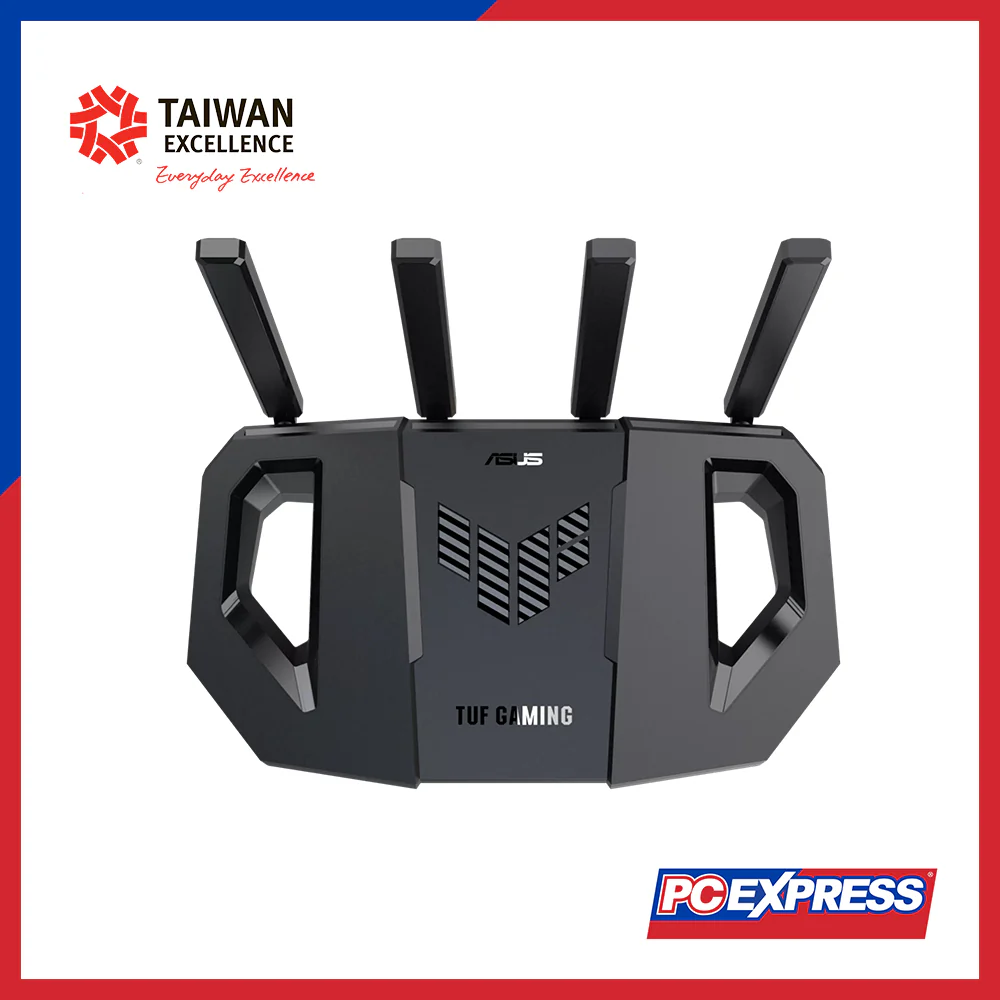

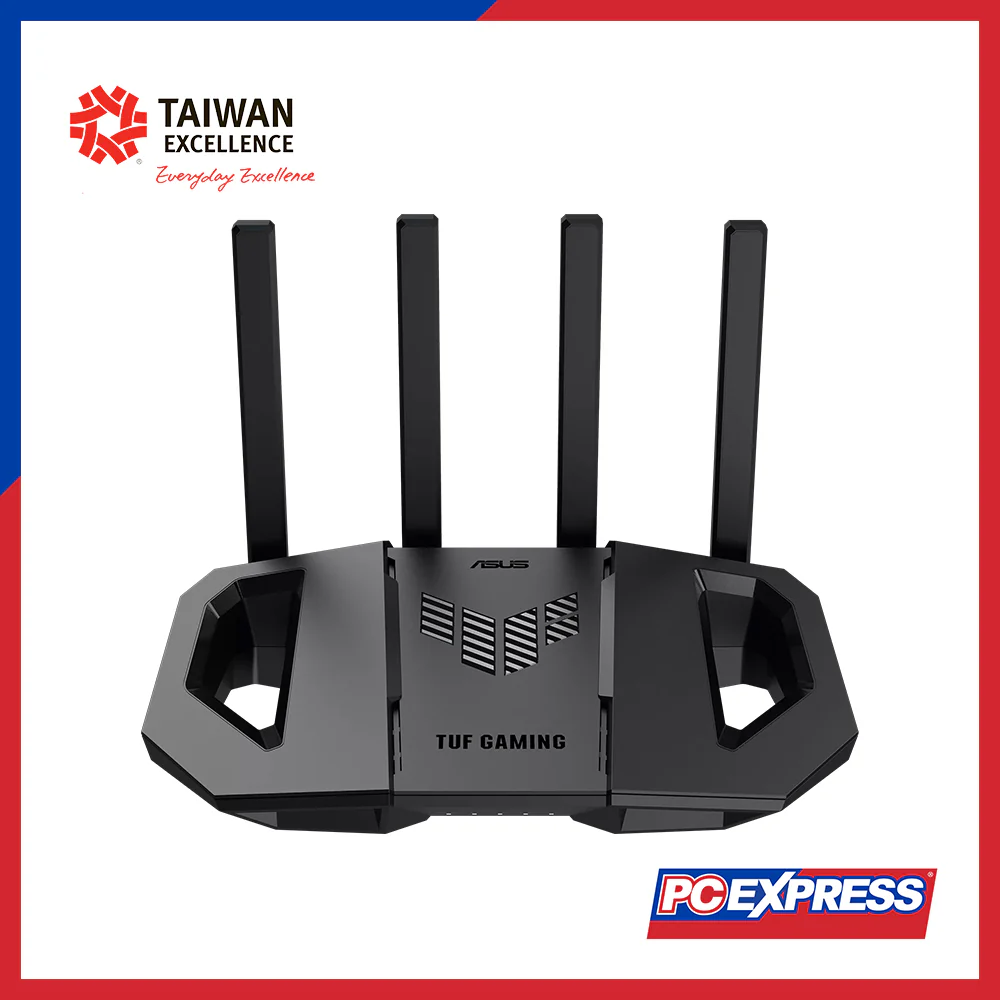

ASUS TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router

Model

TUF Gaming BE3600 (TUF-BE3600)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

Product Segment

BE3600 ultimate BE performance: 688 + 2882 Mbps

WiFi Data Rate

WiFi 6 (5GHz): up to 2402 Mbps
WiFi 7 (2.4GHz): up to 688 Mbps
WiFi 7 (5GHz): up to 2882 Mbps

Antenna

External antenna × 4

Transmit / Receive

2.4GHz: 2×2
5GHz: 2×2

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash
1 GB RAM

Boosts Speed

• OFDMA
• Beamforming (standard-based & universal)
• 4096-QAM
• 20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

• Wireless router mode
• Access point mode
• Media bridge mode

I/O Ports

• 1× RJ45 (2.5Gbps WAN)
• 4× RJ45 (Gigabit LAN)
• 1× USB 3.2 Gen 1

Buttons

WPS Button
Reset Button
Power Button

LED Indicator

Power ×1
WAN ×1
LAN ×1
2.4GHz WiFi ×1
5GHz WiFi ×1

Power Supply

AC Input: 100V–240V (50~60Hz)
DC Output: 12V / 2A

Package Content

• TUF Gaming BE3600 Dual Band WiFi 7 Router
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight

561g

Product Dimensions

274 × 168 × 205 mm

AiMesh

• Primary AiMesh Router
• AiMesh Node

Game Features

• Game Boost / Acceleration
• Mobile Game Mode

Parental Control

• Website and App Blocking
• Safe Browsing
• Custom Internet Schedule

Guest Network

• Internet access with local access restriction
• Max Rules: 2.4GHz ×3, 5GHz ×3
• Guest Connection Time Limit

Security

• AiProtection
• WPA/WPA2/WPA3-Personal
• WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall (Keyword: 64, Network Services: 32, URL: 64)

AiProtection Features

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention

VPN Support

• VPN Client: L2TP, OpenVPN, PPTP, WireGuard
• VPN Server: IPSec, OpenVPN, PPTP, WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS: Bandwidth Monitor & Limiter (32 rules)
• Traditional QoS (32 rules)
• Traffic Monitor: Real-time, Wired, Wireless
• Traffic Analyzer: Daily/Weekly/Monthly + Website History

WAN Features

• Connection Types: PPPoE, PPTP, L2TP, Auto IP, Static IP
• 3G/4G LTE Dongle
• Port Forwarding (64 rules)
• Port Triggering (32 rules)
• DMZ, DDNS
• NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP, PPPoE Relay

LAN Features

• DHCP Server
• IGMP Snooping
• IPTV Support
• Manual IP Assignment (64 rules)
• Wake-on-LAN (WOL)

Wireless Features

• UTF-8 SSID
• WiFi MAC Address Filter (64 entries)
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Beamforming (Universal + Explicit)

USB Applications

• File System: HFS+, NTFS, vFAT, ext2/3/4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba/FTP Server
• Shared Folder Privileges

Administration

• Config Backup/Restore
• Diagnostic Tools
• Feedback System
• System Log
• New Device Notifications
• Login Captcha
• Auto Firmware Update
• Connection Diagnosis
