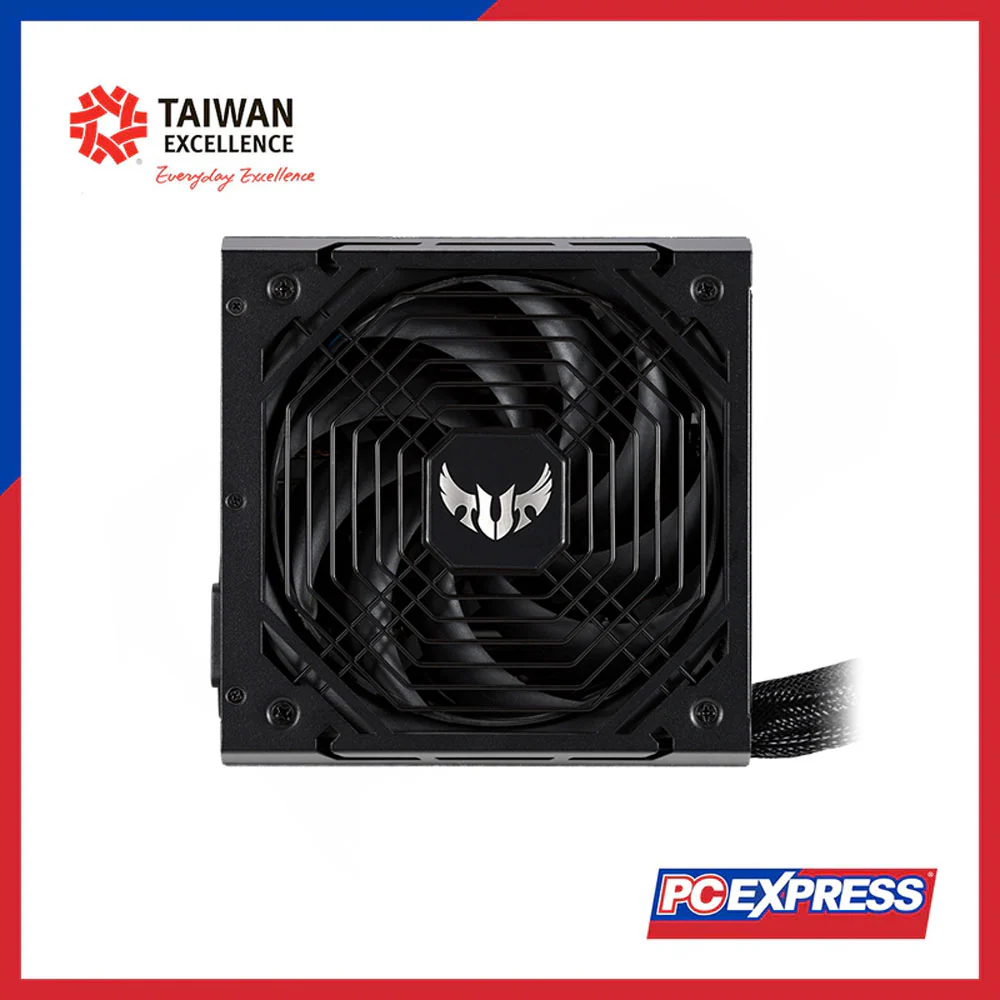

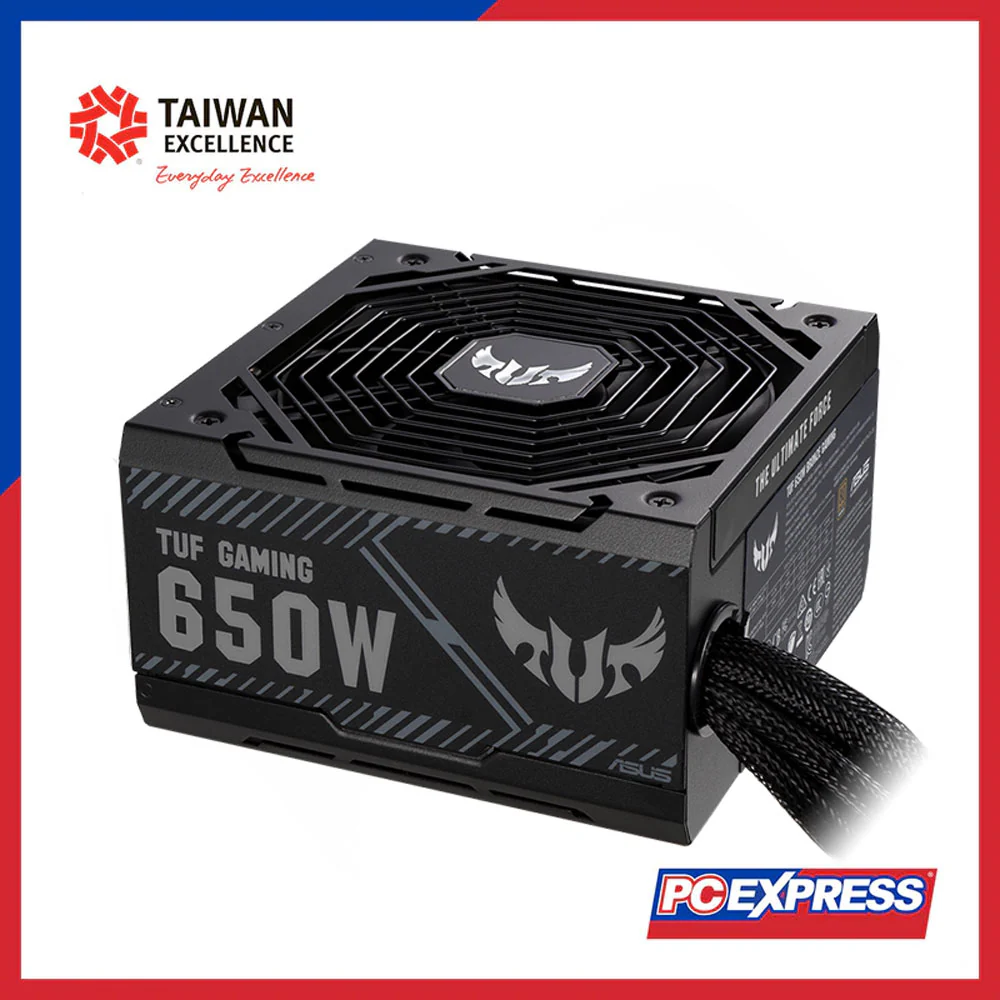

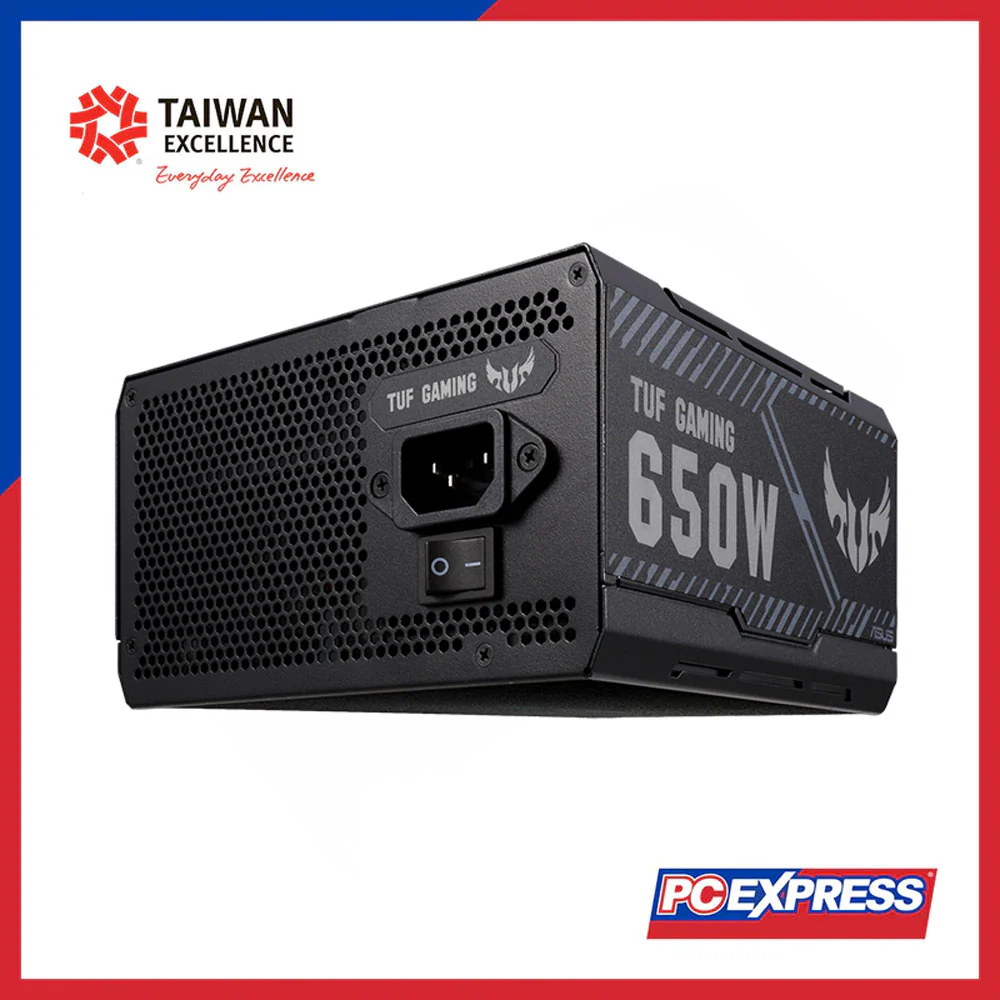

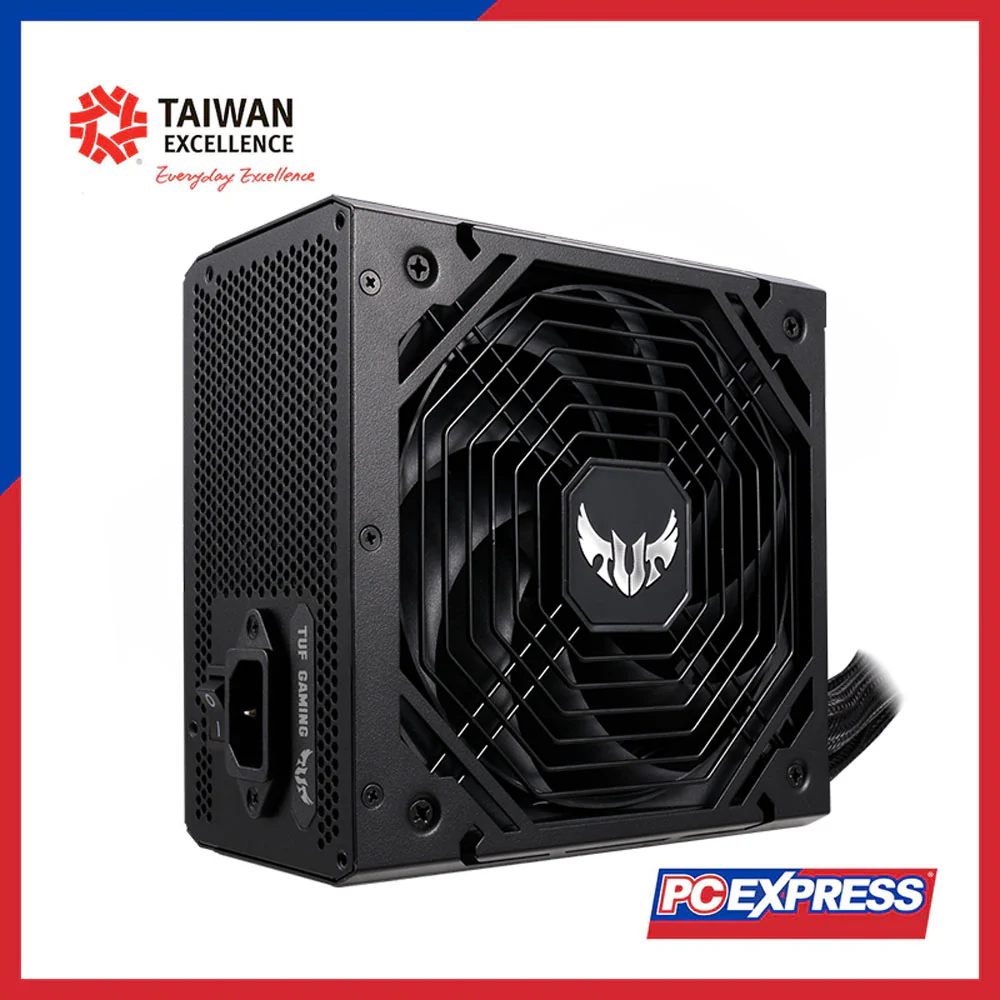

ASUS TUF GAMING 650B 650W 80+ Bronze Non-Modular Power Supply
SPECIFICATION
|
Model |
TUF-GAMING-650B |
|
Dimensions |
15 x 15 x 8.6 Centimeter |
|
Efficiency |
80Plus Bronze |
|
Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
|
Hazardous Materials |
ROHS |
|
AC Input Range |
100-240Vac |
|
DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
|
Maximum Load |
25A 25A 51A 0.8A 3A |
|
Combined Load |
130W 130W 612W 9.6W 15W |
|
Total Output |
650W |
|
Cable Connectors |
MB 24/20-pin x1 |
|
CPU 4+4-pin x2 |
|
|
PCI-E 6+2-pin x4 |
|
|
SATA x5 |
|
|
Peripheral x4 |
|
|
Package Contents |
Power Cord x 1 |
|
Motherboard Power Cable x 1 (600mm) |
|
|
CPU Cable x 2 (800mm) |
|
|
PCI-E 1-to-2 Cable x 2 (600mm) |
|
|
SATA 1-to-2 Cable x 1 (400+120mm) |
|
|
SATA 1-to-4 Cable x 1 (400+120+120+120mm) |
|
|
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) |
|
|
TUF Gaming sticker x1 |
|
|
Weight |
Single PSU: 2.06KG |
|
Product Weight (with packing): 2.75KG |
|
|
0dB Fan Button |
No |
