ASUS TUF GAMING B650M-E WIFI Micro-ATX Motherboard

CPU

AMD Socket AM5 for Ryzen™ 9000/8000/7000 Series Desktop Processors

Chipset

AMD B650

Memory

4 x DIMM slots, Max 192GB, DDR5 7600+(OC) to 4800, Dual Channel, EXPO, OptiMem II

Graphics

2 x DisplayPort (max 8K@60Hz), 1 x HDMI (4K@60Hz)

Expansion Slots

1 x PCIe 4.0 x16 (9000/7000 CPUs), 1 x PCIe 4.0 x16 (8000 CPUs), 2 x PCIe 4.0 x1

Storage

2 x M.2 slots (PCIe 5.0/4.0 support), 4 x SATA 6Gb/s, RAID 0/1/10 support

Ethernet

1 x Realtek 2.5Gb Ethernet, TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.2

Rear USB

8 ports: 2 x USB 3.2 Gen 2 (10G), 2 x USB 3.2 Gen 1 (5G), 4 x USB 2.0

Front USB

7 ports: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio

Realtek 7.1 Surround Sound, 24-Bit/192kHz, Audio shielding, Premium capacitors, Dedicated PCB layers

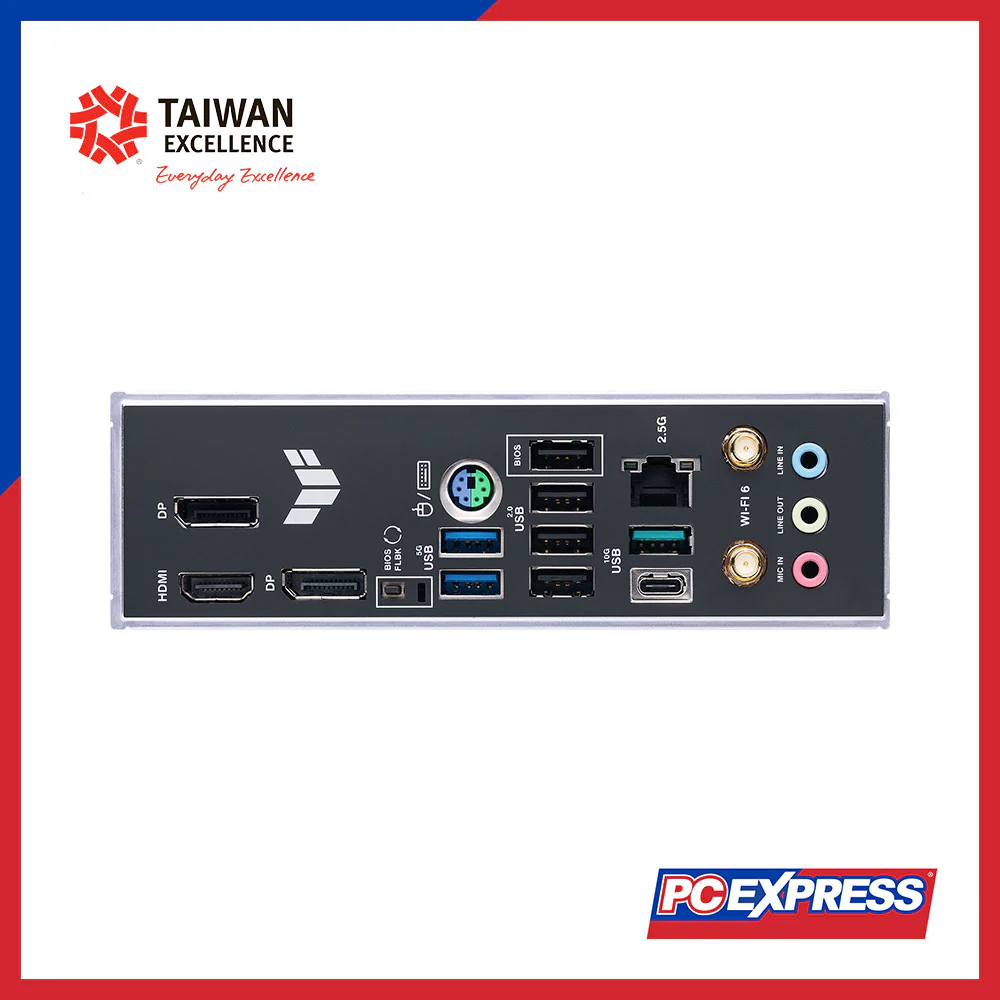

Back Panel I/O Ports

2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0, 2 x DisplayPort, 1 x HDMI, 1 x Wi-Fi Module, 1 x Ethernet, 3 x Audio jacks, BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

1 x CPU Fan header, 1 x CPU OPT Fan header, 1 x AIO Pump header, 2 x Chassis Fan headers, 2 x M.2 slots, 4 x SATA ports, 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

Special Features

ASUS TUF Protection, Q-Design, Thermal Solutions, EZ DIY, Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation

Software Features

Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio, MyASUS, Norton 360 (60-Day Trial), WinRAR

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, UEFI BIOS EZ Mode

Manageability

WOL by PME, PXE

Accessories

2 x SATA 6Gb/s cables, 1 x Wi-Fi antennas, TUF Gaming sticker, M.2 Rubber package, M.2 screws, TUF Certification card, User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
