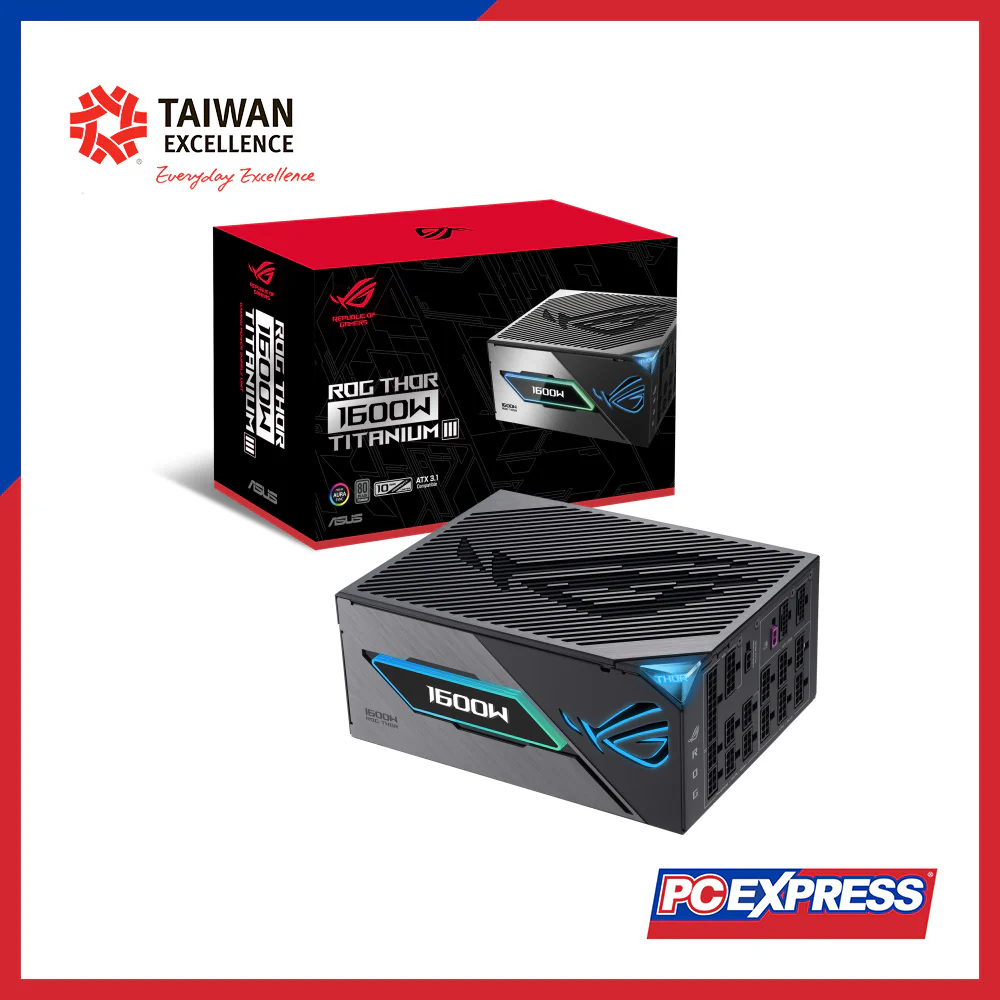

ASUS ROG THOR III 1600W 80+ Titanium Full Modular Power Supply

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

200 x 150 x 86 mm

Efficiency

80Plus Titanium

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP / OVP / UVP / SCP / OCP / OTP

Hazardous Materials

RoHS

AC Input Range

100–240Vac

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

30A / 25A / 133.3A / 0.3A / 3A

Combined Load

125W / 125W / 1600W / 3.6W / 15W

Total Output

1600W

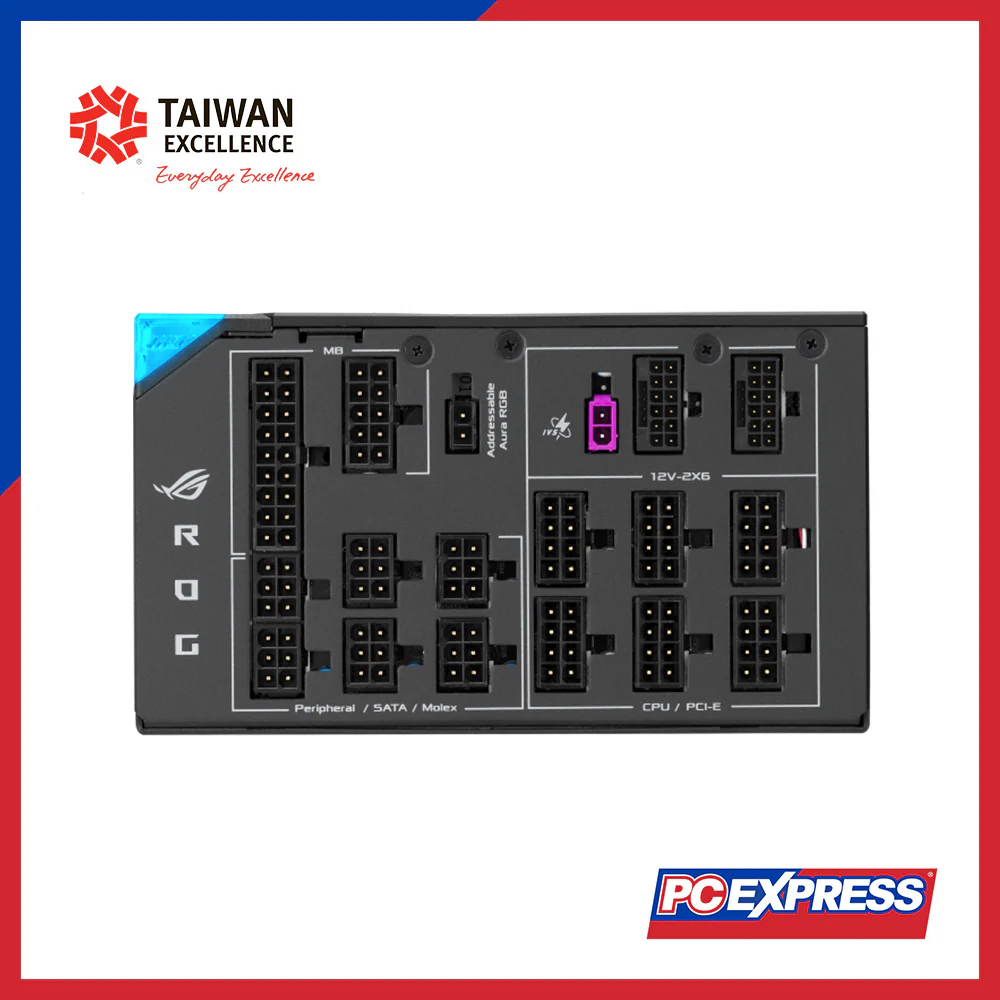

Cable Connectors

MB 24/20-pin x1
CPU 4+4-pin x2
PCI-E 6+2-pin x4
PCI-E 16-pin x2
SATA x10
PERIPHERAL x9

Package Contents

Power Cord x1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x2 (750mm)
PCI-E Cable 1-to-1 x4 (750mm)
SATA Cable 1-to-4 x1 (400+120+120+120mm)
SATA Cable 1-to-3 x2 (400+120+120mm)
Peripheral 1-to-3 x3 (400+150+150mm)
Addressable RGB Cable x1 (800mm)
ROG Sticker x1
ROG Cable Tie x6
Chassis Screws Package x1
Cable Tie x12
User Manual x1

Weight

2.80 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

TBD

0dB Technology

Supported (fan shuts off entirely under certain load)

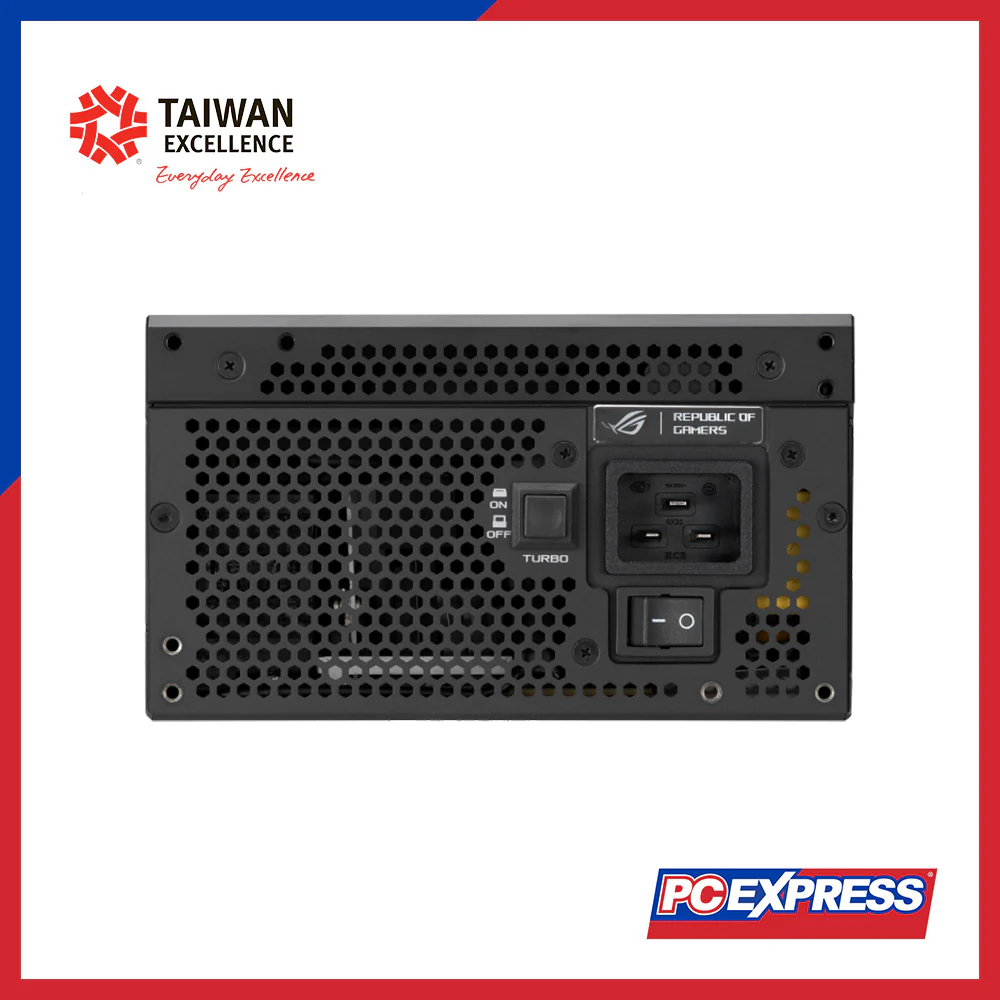

0dB Fan Button

Yes – ON: fan spins only at certain load
OFF: fan spins continuously at all load levels
