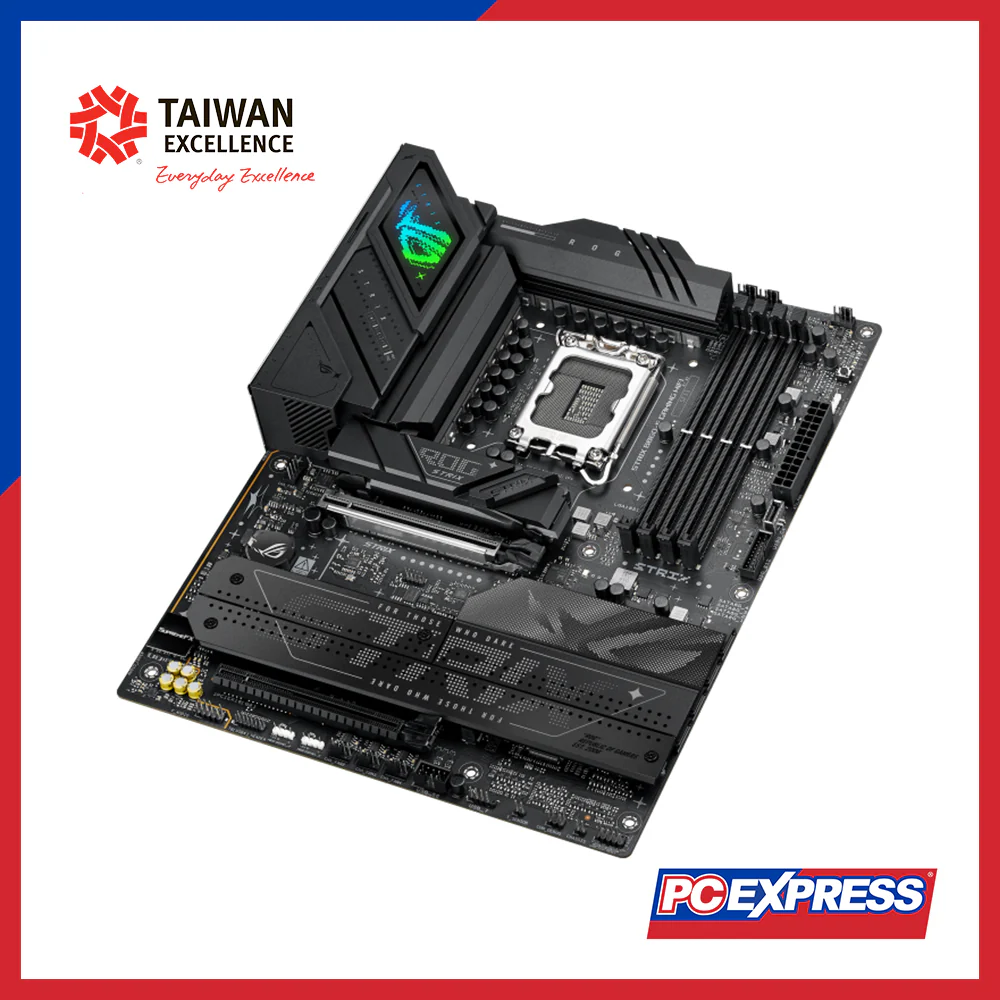

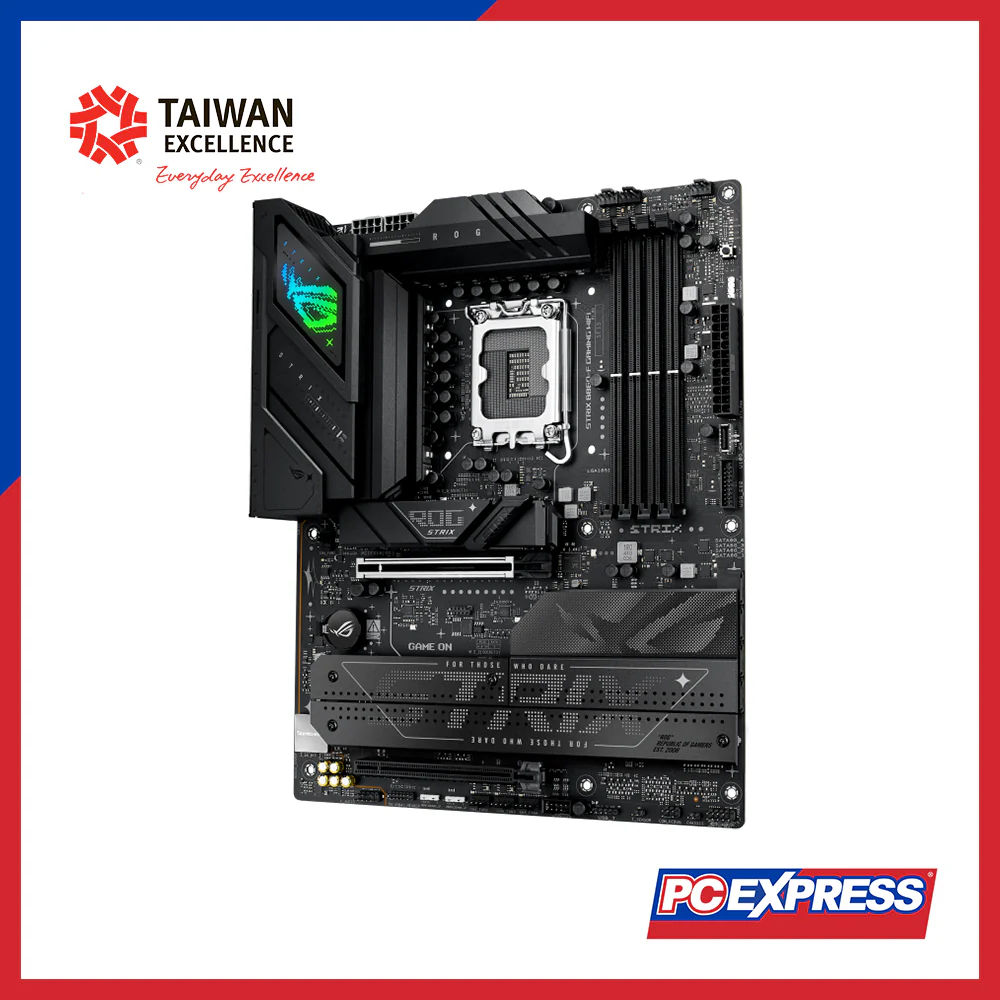

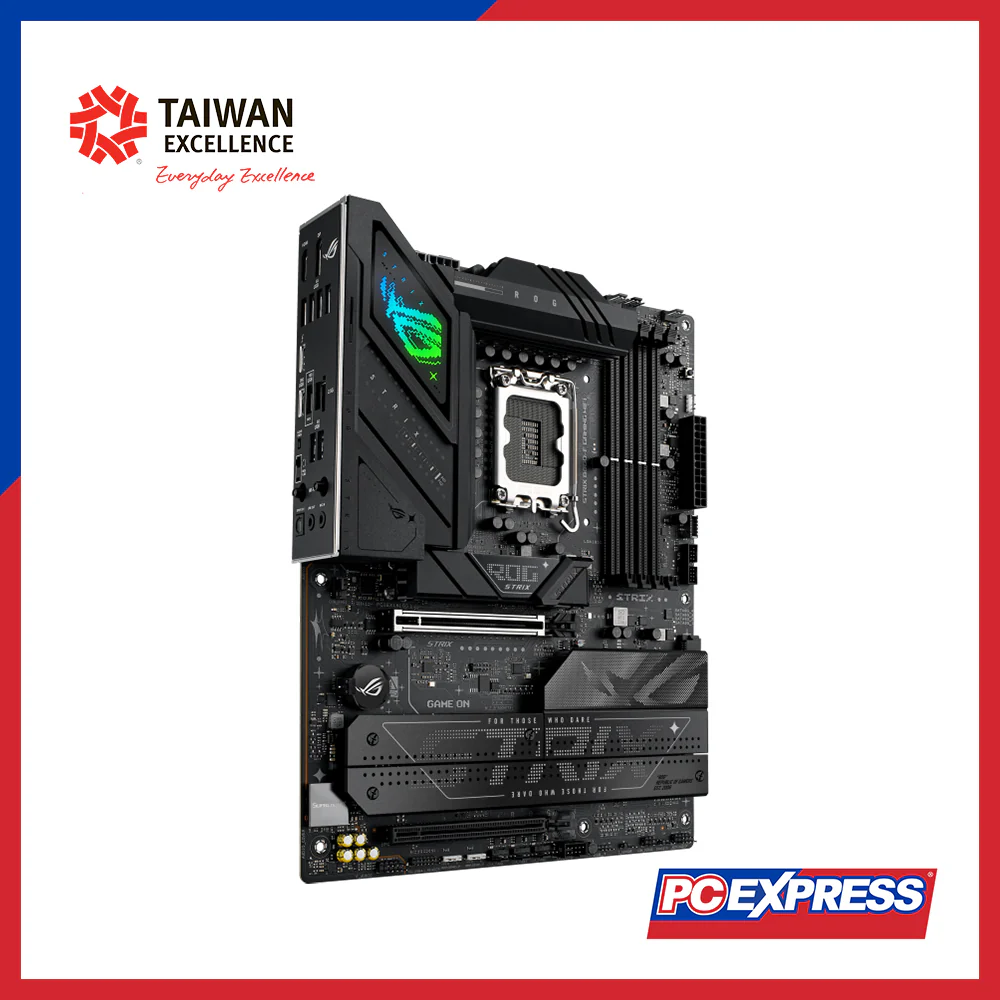

ASUS ROG STRIX B860-F GAMING WiFi ATX Motherboard

CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0 (CPU dependent)

Chipset

Intel® B860 Chipset

Memory

4× DIMM slots, Max 256GB DDR5; Supports up to 9066MT/s (OC); Non-ECC, Un-buffered, CUDIMM; Dual Channel; Intel® XMP; DIMM Fit; ASUS AEMP III; DDR5 On-Die ECC (varies by CPU & configuration)

Graphics

1× DisplayPort (8K@60Hz DSC, DP 1.4); 1× HDMI™ (8K@60Hz DSC, HDMI 2.1); 1× Thunderbolt™ 4 (USB Type-C®) supports DP & TB video (up to 8K@60Hz x1 DSC or 4K@60Hz x2; bandwidth up to 23.8Gbps); Graphics support varies by CPU

Expansion Slots

1× PCIe 5.0 x16 (x16 mode, CPU); 1× PCIe 4.0 x16 (x4 mode, Chipset)

Storage

4× M.2 + 4× SATA 6Gb/s; M.2_1 (PCIe 5.0 x4, 2242/2260/2280); M.2_2 (PCIe 4.0 x4, 2280); M.2_3 (PCIe 4.0 x4, 2280/22110); M.2_4 (PCIe 4.0 x4, 2280, shares bandwidth with PCIEX16 G4); Supports Intel® Rapid Storage Technology (RAID 0/1/5/10)

Ethernet

1× Intel® 2.5Gb Ethernet; ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (2×2, 802.11be); Supports 2.4/5/6GHz; 160MHz bandwidth; Up to 2.9Gbps; Bluetooth® 5.4 (OS & regional dependent; Windows 11 24H2 required for full Wi-Fi 7 support)

USB (Rear)

1× Thunderbolt™ 4 (USB-C®); 1× USB 20Gbps (USB-C®); 1× USB 10Gbps (Type-A); 6× USB 5Gbps (Type-A)

USB (Front)

1× USB 10Gbps (USB-C®); 1× USB 5Gbps header (2 ports); 2× USB 2.0 headers (3 ports total); USB-C® PD max 5V/3A

Audio

ROG SupremeFX 7.1 HD Audio CODEC ALC4080; 120dB SNR playback / 110dB SNR recording; 32-bit/384kHz front playback; Impedance sense; Savitech SV3H712 AMP; Optical S/PDIF out; Premium capacitors; Audio cover (Front panel required for 7.1; rear Line Out does not support spatial audio)

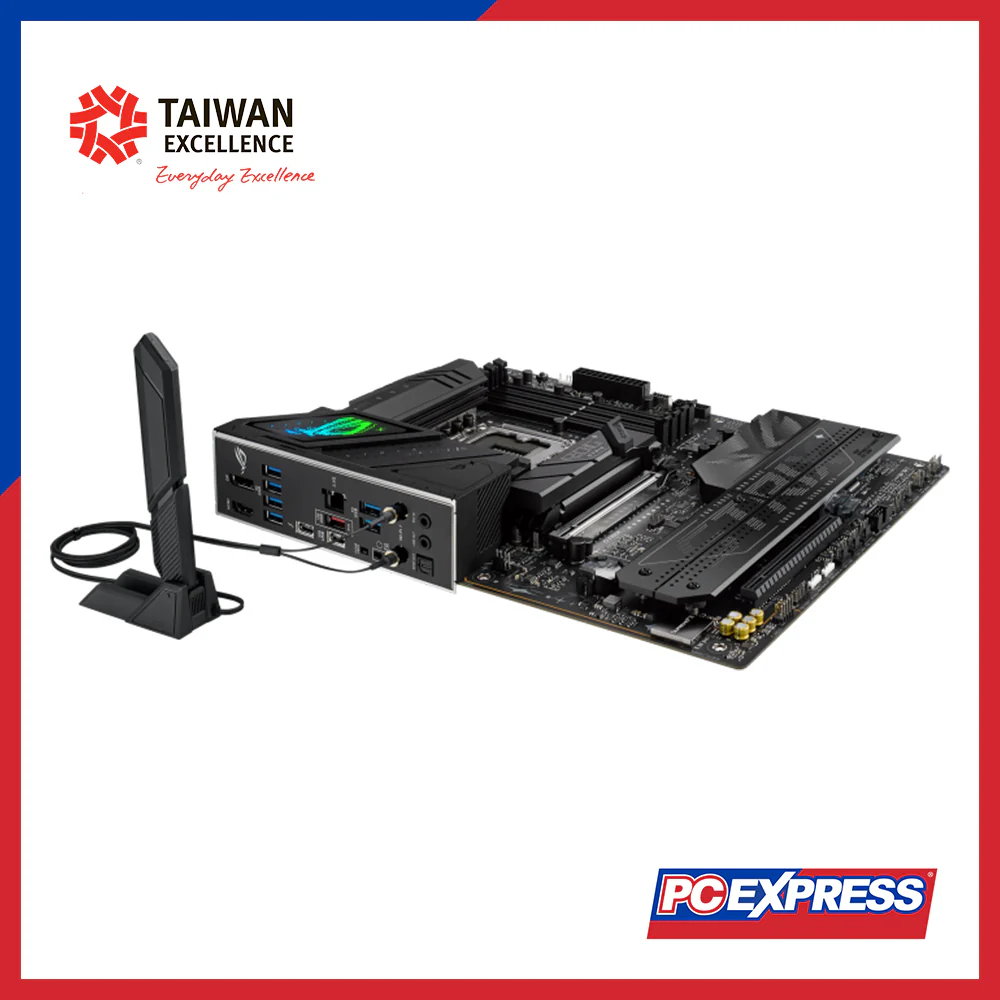

Back Panel I/O

1× Thunderbolt™ 4 (USB-C®); 1× USB 20Gbps (USB-C®); 1× USB 10Gbps; 6× USB 5Gbps; 1× DisplayPort; 1× HDMI™; 1× Wi-Fi module; 1× Intel® 2.5Gb LAN; 2× Audio jacks; 1× Optical S/PDIF; 1× BIOS FlashBack™ button; 1× Clear CMOS button

Internal Fan Headers

1× CPU Fan; 1× CPU OPT; 1× AIO Pump; 4× Chassis Fan

Power Connectors

1× 24-pin Main Power; 2× 8-pin +12V CPU Power

Internal Storage Connectors

4× M.2 (Key M); 4× SATA 6Gb/s

Internal USB Connectors

1× USB 10Gbps (USB-C®); 1× USB 5Gbps header (2 ports); 2× USB 2.0 headers (3 ports)

Other Internal Headers

3× Addressable Gen2; 1× Chassis Intrusion; 1× Front Panel Audio; 1× Start button; 1× Front System Panel; 1× Thermal Sensor; 1× Thunderbolt™ (USB4®) header

Special Features

Extreme Engine Digi+ (5K Black metallic capacitors); ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Slide, PCIe Q-Release Slim, Q-Antenna, Q-Dashboard, Q-LED, Q-Slot); ASUS Thermal Solution (M.2 heatsinks, VRM heatsink); ASUS EZ DIY (BIOS FlashBack™, Clear CMOS, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM); Aura Sync

Software Features

ROG CPU-Z; Dolby Atmos; Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving); ASUS Driver Hub; AIDA64 Extreme (60-day trial); HWiNFO; ASUS GlideX; TurboV Core; Adobe Creative Cloud (trial); Norton 360 for Gamers (60-day trial); WinRAR (40-day trial); UEFI BIOS; NPU Boost; ASUS CrashFree BIOS 3; ASUS EZ Flash; ASUS UEFI BIOS EZ Mode; ASUS MyHotkey

BIOS

256 Mb Flash ROM; UEFI AMI BIOS

Manageability

WOL by PME; PXE

Accessories

2× SATA 6Gb/s cables; ASUS WiFi Q-Antenna; Cable ties; M.2 Q-Latch package; M.2 Q-Slide package; ROG key chain; ROG Strix stickers; 4× M.2 rubbers; Quick start guide

Operating System

Windows® 11 (22H2 & later)

Form Factor

ATX; 12" × 9.6" (30.5 cm × 24.4 cm)
