ASUS ROG STRIX 1200W 80+ Platinum Fully Modular Power Supply

Model

ROG STRIX 1200W Platinum

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions (L x W x H)

160 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP, OVP, UVP, SCP, OCP, OTP

Hazardous Materials

RoHS Compliant

AC Input Range

100–240Vac

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

25A / 25A / 100A / 0.3A / 3A

Combined Load

130W / 130W / 1200W / 3.6W / 15W

Total Output Power

1200W

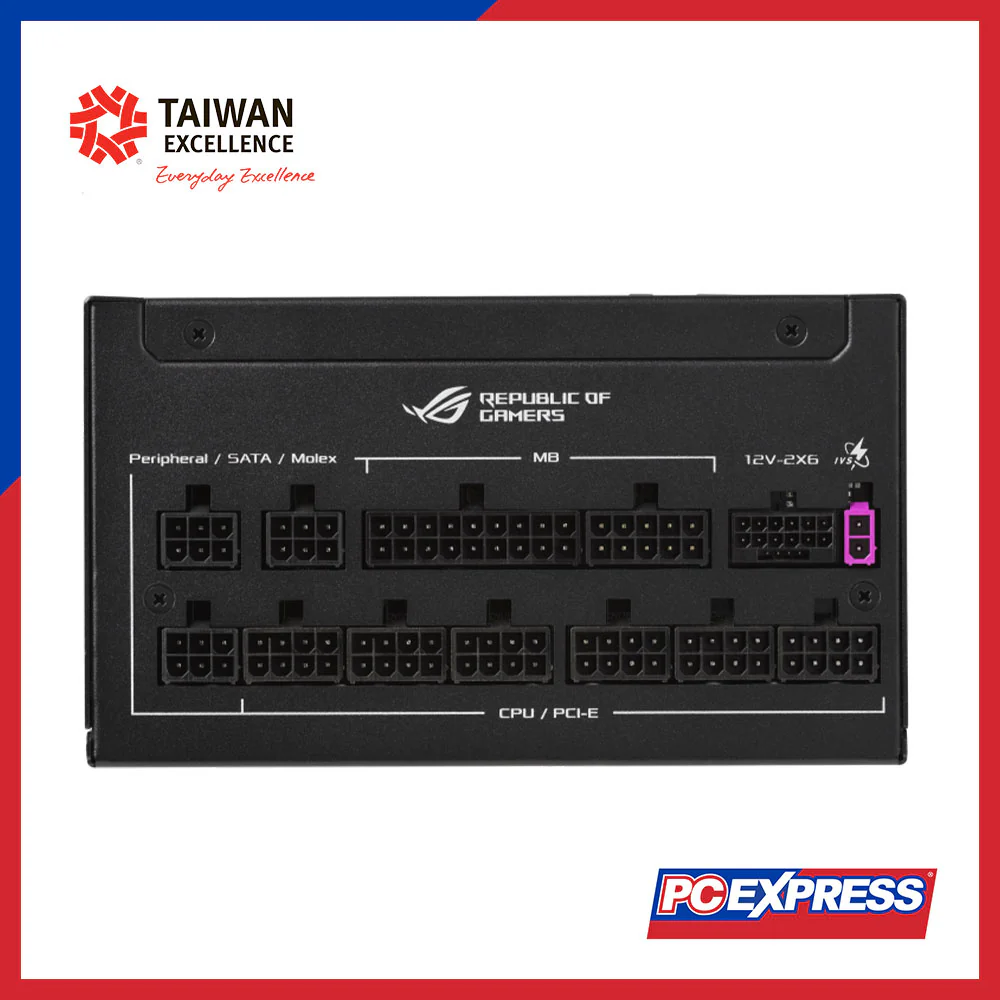

Cable Connectors

- MB 24/20-pin x1
- CPU 4+4-pin x2
- PCI-E 16-pin x1
- PCI-E 6+2-pin x4
- SATA x6
- PERIPHERAL x3

Package Contents

- Power Cord x1
- Motherboard Power Cable x1 (610mm)
- CPU Cable x2 (1000mm)
- PCI-E Gen 5.1 Cable x1 (750mm)
- PCI-E 8-pin to 6+2 Cable x4 (750mm)
- SATA 1-to-3 Cable x2 (400+120+120mm)
- Peripheral 1-to-3 Cable x1 (400+150+150mm)
- ROG Strix DIY Sticker x1
- User Manual x1

Weight

1.84 kg (single PSU)

Cybenetics Noise Level

A

0dB Technology

Supported (Fan shuts off entirely at low load)

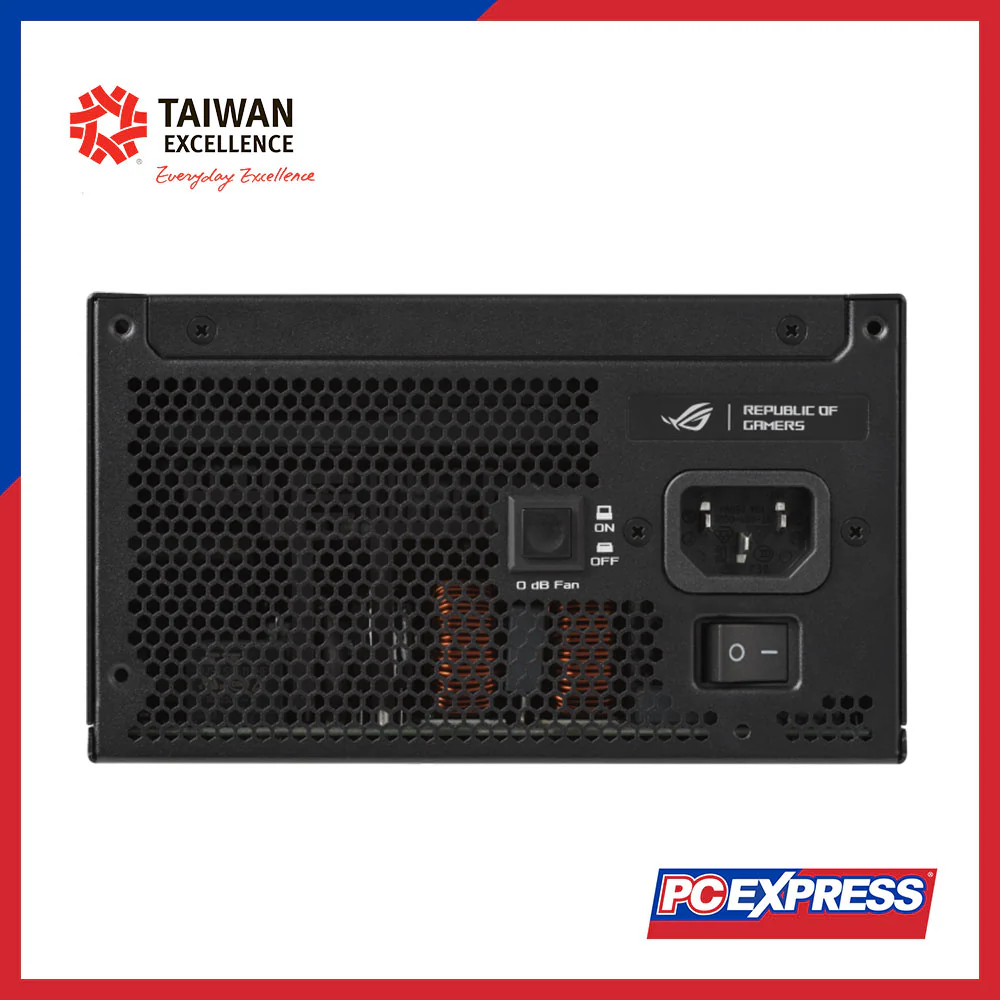

0dB Fan Button

Yes (Toggle between silent and always-on fan mode)
