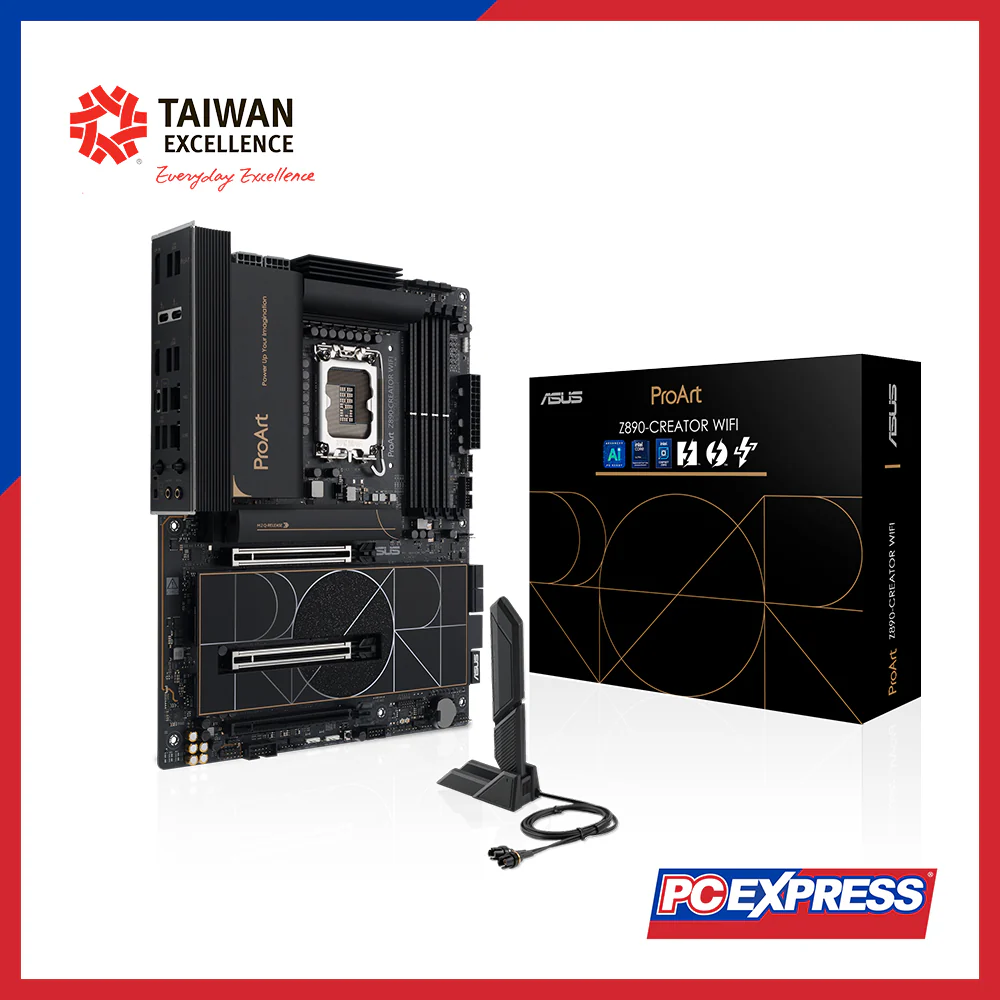

ASUS PROART Z890-CREATOR WIFI ATX Motherboard

Model

ProArt Z890-CREATOR WIFI

News & Updates

Visit ASUS GLOBAL website for updates. Thunderbolt 5 features supported only on Windows 11. Install and update to the latest version for best experience.

CPU Support

Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost 2.0 and Turbo Boost Max 3.0**
**Dependent on CPU type

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM, up to 256GB DDR5
Supports up to 9066+ MT/s (OC), Non-ECC, Un-buffered, CUDIMM
Dual-channel, XMP, AEMP III, DIMM Fit, DIMM Flex
On-Die ECC supported on non-ECC DDR5

Graphics

1 x HDMI 2.1 (4K@60Hz)
2 x Thunderbolt™ 5 (USB-C, up to 2x 8K@60Hz + 1x 4K@60Hz with DP-in)
1 x Thunderbolt™ 4 (USB-C, up to 8K@60Hz)
Thunderbolt 4 output disabled when Thunderbolt 5 is used for dual displays

Expansion Slots

CPU:
– 2 x PCIe 5.0 x16 (x16 or x8/x8)
Chipset:
– 1 x PCIe 4.0 x16 (x4 mode)
See PCIe bifurcation table online

Storage

Total: 5 x M.2 + 4 x SATA 6Gb/s
M.2_1 (CPU): PCIe 5.0 x4
M.2_2, M.2_3, M.2_4: PCIe 4.0 x4
M.2_5: PCIe 4.0 x4 & SATA
M.2_5 shares bandwidth with PCIe 4.0 x16

Ethernet

1 x Marvell® AQtion 10Gb
1 x Intel® 2.5Gb
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be) 2x2, 2.4/5/6GHz
Up to 5.8Gbps, 320MHz
Bluetooth® 5.4
Wi-Fi 7 fully supported on Windows 11 24H2+
Windows 10 supports only Wi-Fi 6

Rear USB Ports (10 total)

2 x Thunderbolt™ 5 (USB-C)
1 x USB4 / Thunderbolt™ 4 (USB-C)
6 x USB 10Gbps (Type-A)
1 x USB 2.0 (Type-A)

Front USB Ports (5 total)

1 x USB 20Gbps (Type-C)
1 x USB 5Gbps header (for 2 ports)
1 x USB 2.0 header (for 2 ports)
USB-C Power Delivery: 5V/3A

Audio

Realtek ALC1220P 7.1 Surround
Gold-plated jacks, Premium capacitors, 120dB SNR output
32-bit/192kHz not supported for 7.1 due to HDA limits
Requires HD Audio front panel for full 7.1 output

Back I/O Ports

2 x Thunderbolt™ 5 (USB-C)
1 x USB4 / Thunderbolt™ (USB-C)
6 x USB 10Gbps (Type-A)
1 x USB 2.0 (Type-A)
1 x HDMI
1 x DP-in
1 x Marvell® AQtion 10GbE
1 x Intel® 2.5GbE
2 x Audio jacks (gold-plated)
1 x Wi-Fi module
1 x BIOS FlashBack™ button

Internal I/O Connectors

1 x 24-pin ATX Power
2 x 8-pin CPU Power
5 x M.2 slots
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C
2 x USB 5Gbps (via header)
2 x USB 2.0 (via header)
5 x 4-pin Fan headers
1 x AIO Pump header
1 x Clear CMOS button
1 x Front Panel Audio
1 x SPI TPM header
1 x COM header
1 x Thermal Sensor
3 x ARGB headers
Various Q-Design headers

Special Features

ASUS 5X Protection III
ASUS Q-Design (Q-Release, Q-Latch, Q-Antenna, etc.)
ASUS Thermal Solution (VRM & M.2 Heatsinks)
ASUS EZ DIY (BIOS FlashBack™, Clear CMOS, SafeDIMM, etc.)
Aura Sync w/ Gen2 ARGB support

Software

Armoury Crate, Aura Creator, Fan Xpert 4, ProArt Creator Hub, ASUS CPU-Z, Thunderbolt Share, USB Wattage Watcher, ASUS Driver Hub, Norton 360 (Trial), WinRAR (Trial)

BIOS

256Mb UEFI AMI BIOS
AI Overclocking Guide, MyHotkey, CrashFree BIOS 3, EZ Flash, UEFI EZ Mode

Remote Management

ASUS Control Center Express (ACCE)

Manageability

WOL by PME, PXE

Accessories

2 x SATA cables
1 x ASUS WiFi Q-Antenna
1 x Q-Connector
2 x M.2 Q-Latch kits
2 x M.2 rubber kits
1 x ProArt accessory bag
1 x ACCE activation card
1 x Quick start guide

Operating System

Windows 11 (22H2 and later)

Form Factor

ATX (12" x 9.6" / 30.5 x 24.4 cm)
