ASUS PRIME X870-P WIFI-CSM ATX Motherboard

CPU

AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series

Chipset

AMD X870 Chipset

Memory

4x DIMM slots, up to 256GB DDR5, 8000+ MT/s (OC), Dual Channel, EXPO & AEMP support

Graphics

1x HDMI 2.1 (4K@60Hz), 2x USB4 (40Gbps) Type-C (DisplayPort 1.4a, 4K@60Hz)

Expansion Slots

1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x1 mode)

Storage

4x M.2 (PCIe 5.0/4.0/3.0), 2x SATA 6Gb/s, RAID 0/1/5/10 support

Ethernet

1x Realtek 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (2x2, 2.4/5/6GHz, up to 2.9Gbps), Bluetooth® v5.4

USB (Rear I/O)

2x USB4 (40Gbps, Type-C), 1x USB 10Gbps (Type-A), 3x USB 5Gbps (Type-A), 4x USB 2.0 (Type-A)

USB (Front Panel)

1x USB 10Gbps (Type-C), 1x USB 5Gbps header (2x USB 5Gbps), 2x USB 2.0 headers (4x USB 2.0)

Audio

Realtek 7.1 Surround Sound HD Audio CODEC, 24-Bit/192kHz, Audio Shielding, Premium Caps

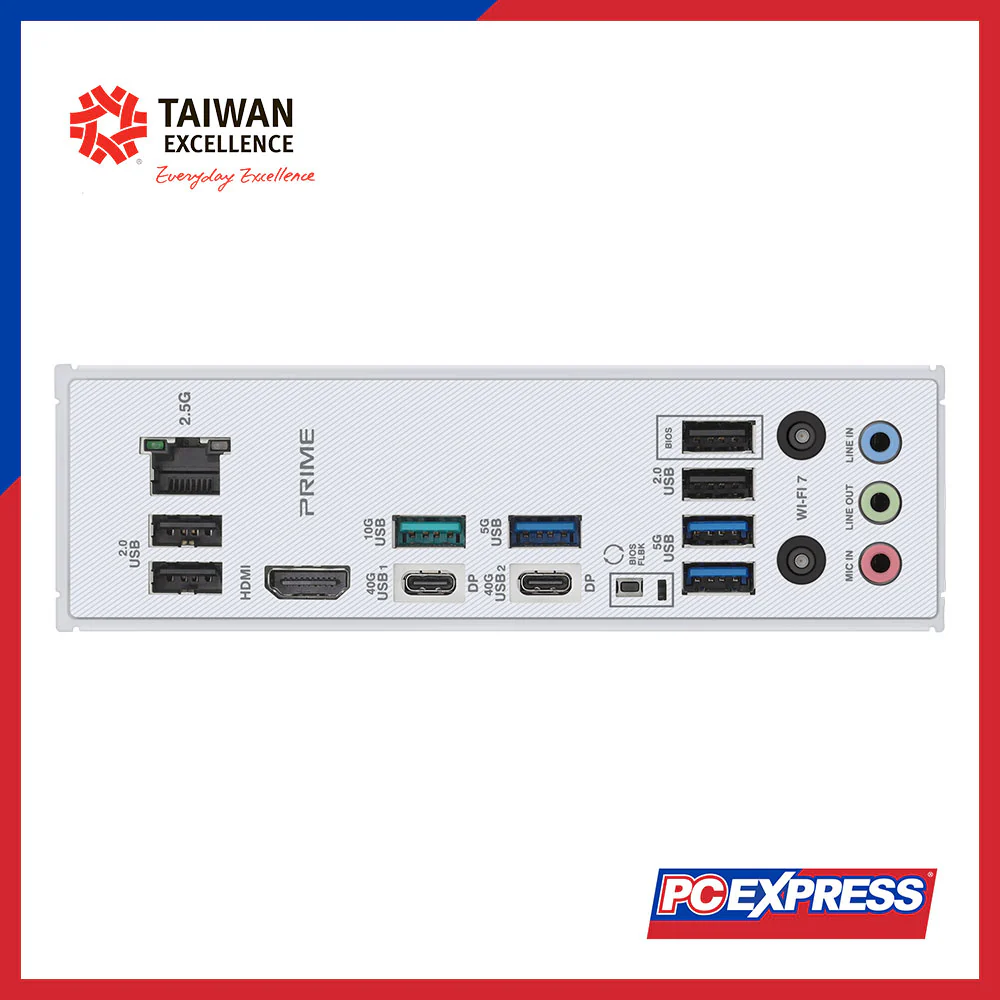

Back Panel I/O

2x USB4, 1x USB 10Gbps, 3x USB 5Gbps, 4x USB 2.0, 1x HDMI, 1x Wi-Fi module, 1x 2.5Gb Ethernet, 3x Audio jacks, 1x BIOS FlashBack™ button

Internal I/O Connectors

4x M.2, 2x SATA 6Gb/s, 4x 4-pin fan headers, 1x AIO Pump header, 1x USB 10Gbps (Type-C), 1x USB 5Gbps header, 2x USB 2.0 headers, Addressable Gen 2 headers, COM Port, TPM, S/PDIF, Front Panel audio

Special Features

ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync

Software

Armoury Crate, Fan Xpert 4 (AI Cooling II), ASUS DriverHub, TurboV Core, ASUS CPU-Z, Norton 360 (60 days), WinRAR (40 days)

BIOS

256Mb Flash ROM, UEFI AMI BIOS (EZ Flash 3, MyHotkey, CrashFree BIOS 3)

Manageability

ASUS Control Center Express (ACCE), WOL by PME, PXE

Accessories

2x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, M.2 rubber package, 2x M.2 screw packages, ACC Express Activation Key Card, Quick Start Guide

OS Support

Windows 11

Form Factor

ATX (30.5cm x 24.4cm)
