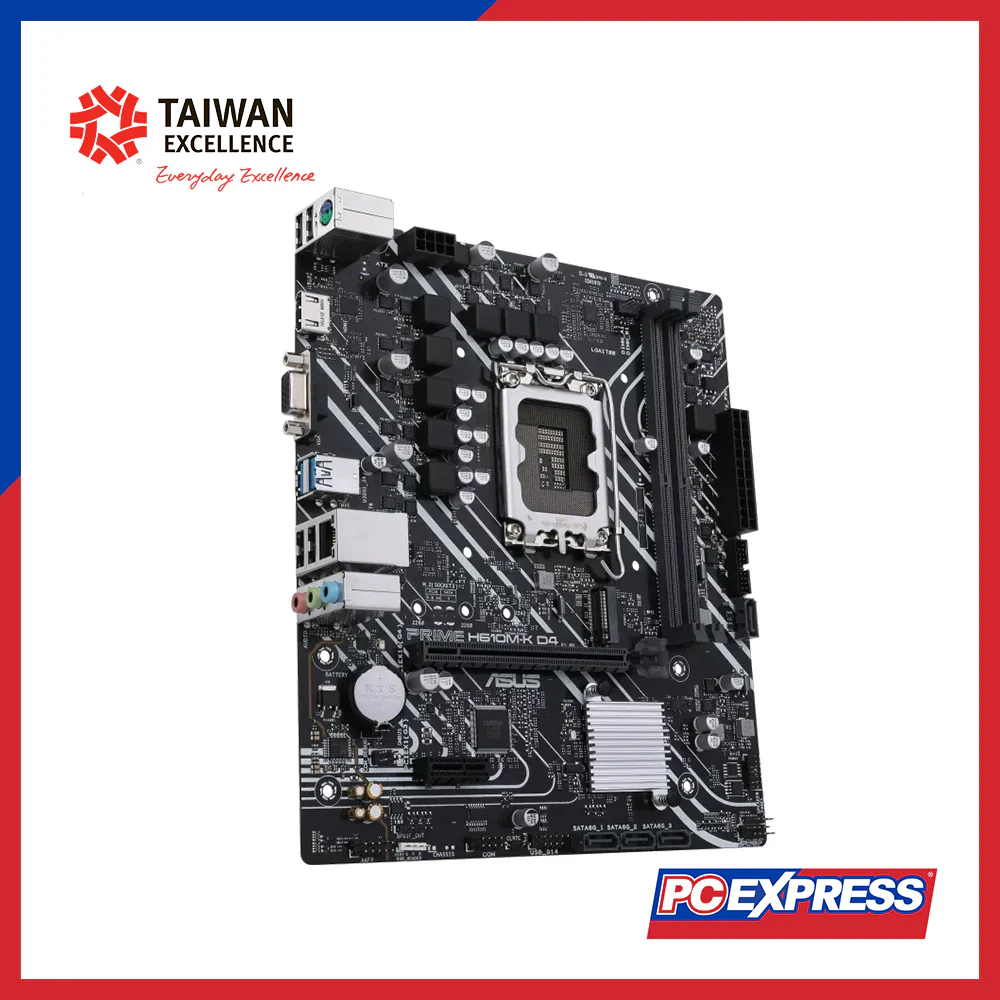

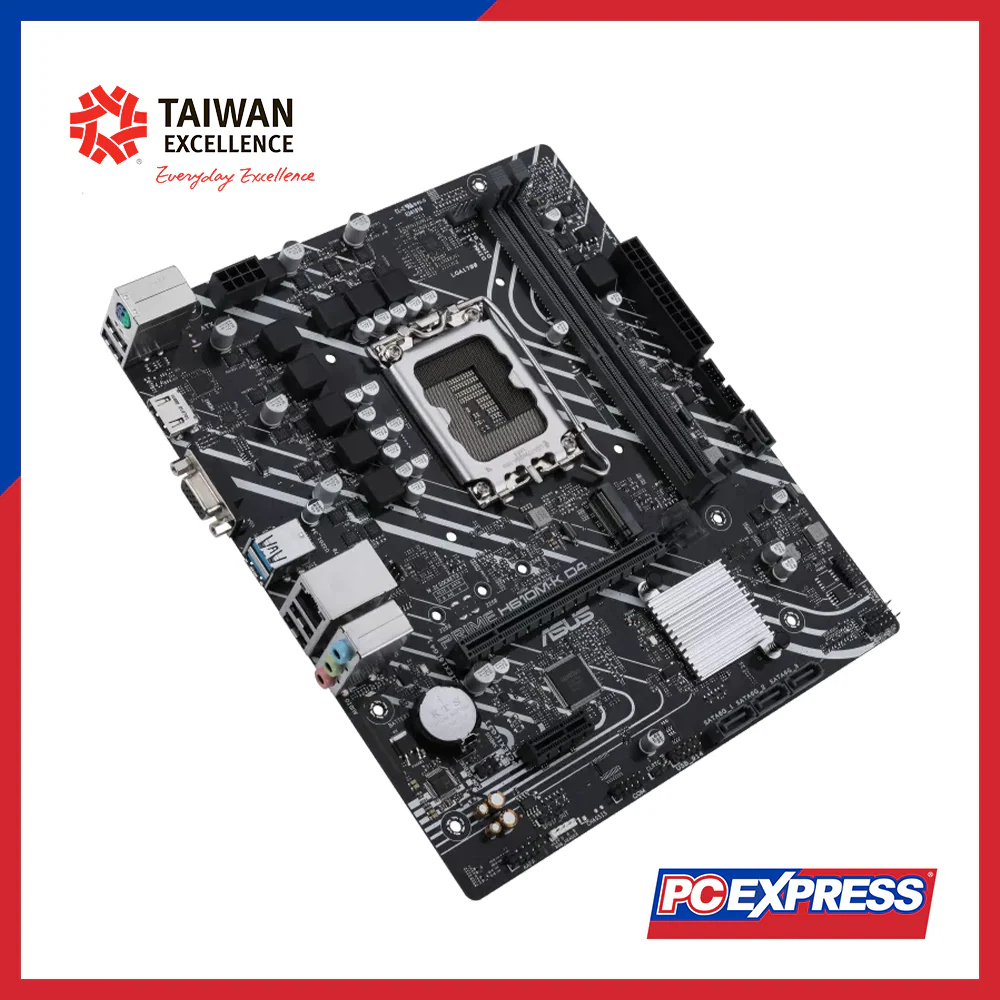

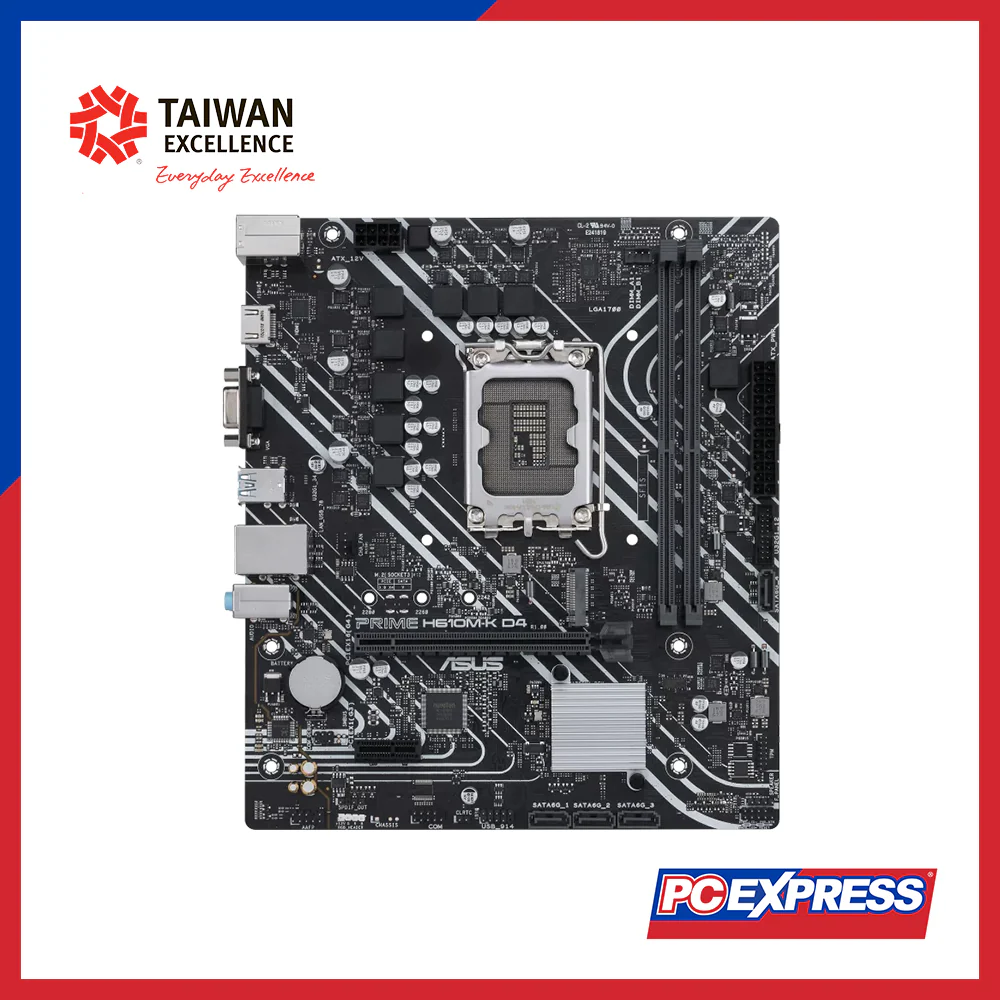

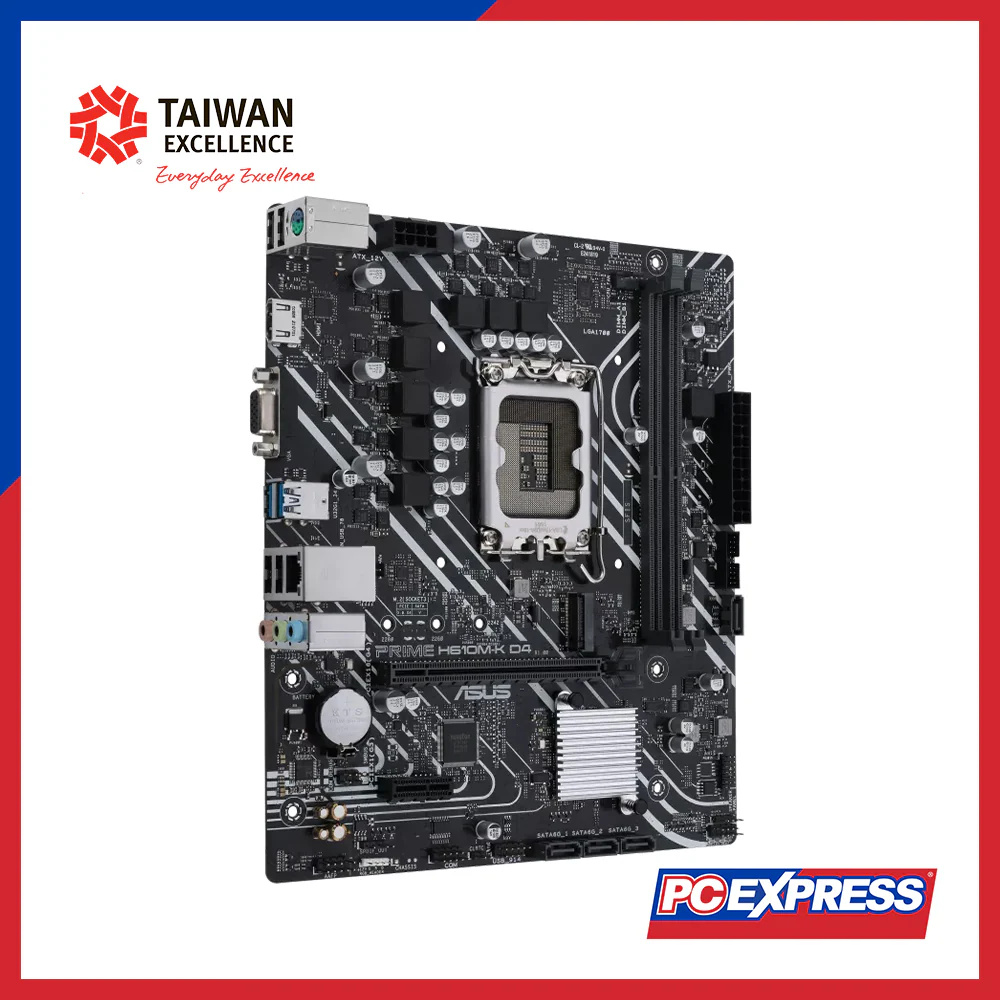

ASUS PRIME H610M-K D4/CSM micro-ATX Motherboard

Model

PRIME H610M-K D4-CSM

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on CPU and DRAM modules.

Graphics

1 x D-Sub port
1 x HDMI® port**
* Graphics specs may vary by CPU type.
** Supports 4K@60Hz as per HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th, 13th & 12th Gen): 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot

Storage

Total: 1 x M.2 slot + 4 x SATA 6Gb/s ports
M.2 slot (Key M): 2242/2260/2280 (PCIe 3.0 x4 & SATA modes)
Note: M.2 shares bandwidth with SATA6G_4 port; if M.2 SATA mode is used, SATA6G_4 is disabled.

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear (6 ports): 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A
Front (4 ports): 1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB 2.0 header (supports 2 ports)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
24-Bit/192 kHz playback
Audio Shielding, Dedicated audio PCB layers
* HD audio chassis required for 7.1 output.

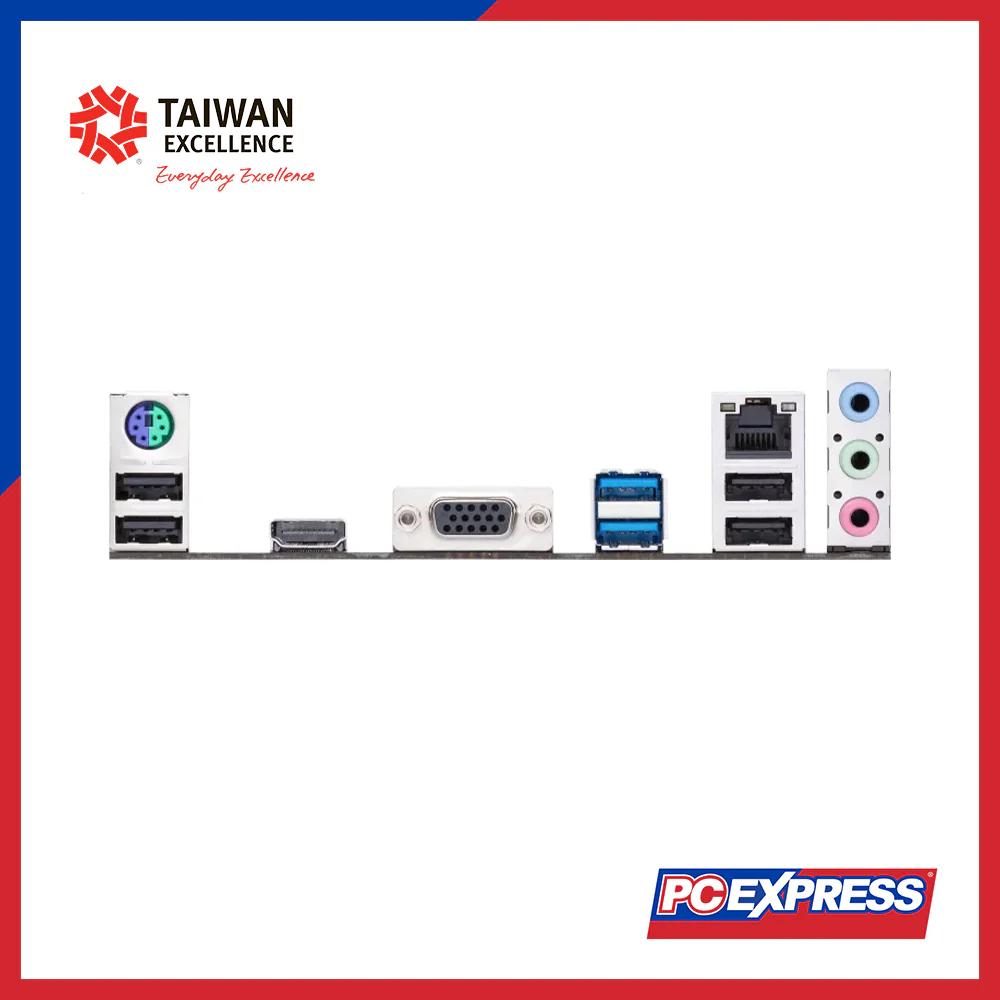

Back Panel I/O Ports

2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan/Cooling: 1 x CPU Fan header, 1 x Chassis Fan header
Power: 1 x 24-pin ATX, 1 x 8-pin +12V
Storage: 1 x M.2 slot, 4 x SATA 6Gb/s
USB: 1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0 header (2 ports)
Misc: 1 x RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1 pin), 1 x System Panel header (10-1 pin)

Special Features

ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O
ASUS Q-Design: Q-DIMM, Q-Slot
ASUS Thermal Solution: Aluminum heatsink
ASUS Lighting Control: RGB header

Software Features

ASUS Exclusive Software: Armoury Crate, AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert), ASUS CPU-Z
IT Management: ASUS Control Center Express (ACCE)
Utilities: Norton Anti-virus (Free Trial), WinRAR
UEFI BIOS: CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables: 2 x SATA 6Gb/s

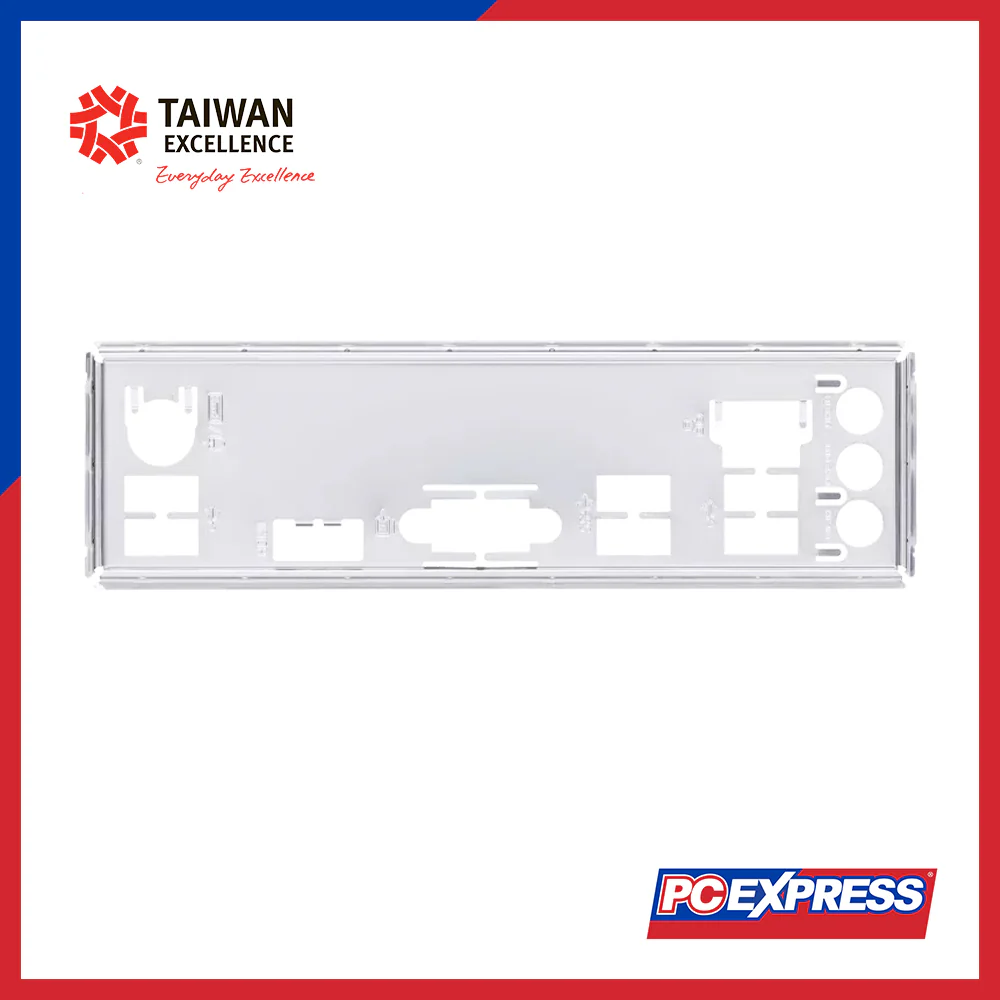

Misc: 1 x I/O Shield, 1 x M.2 Anchor
Installation Media: 1 x Support DVD
Documentation: 1 x ACC Express Activation Key Card, 1 x User Guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor (9.2" x 8.0" / 23.4 cm x 20.3 cm)
