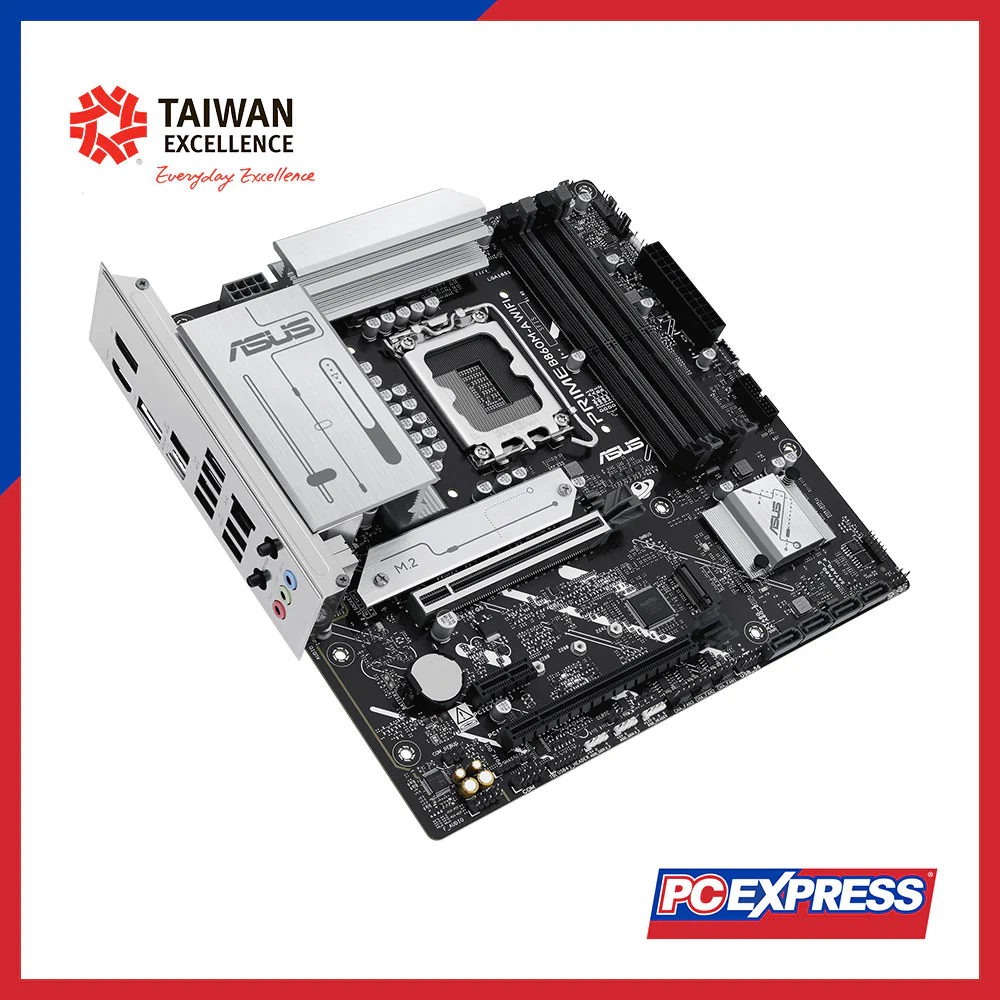

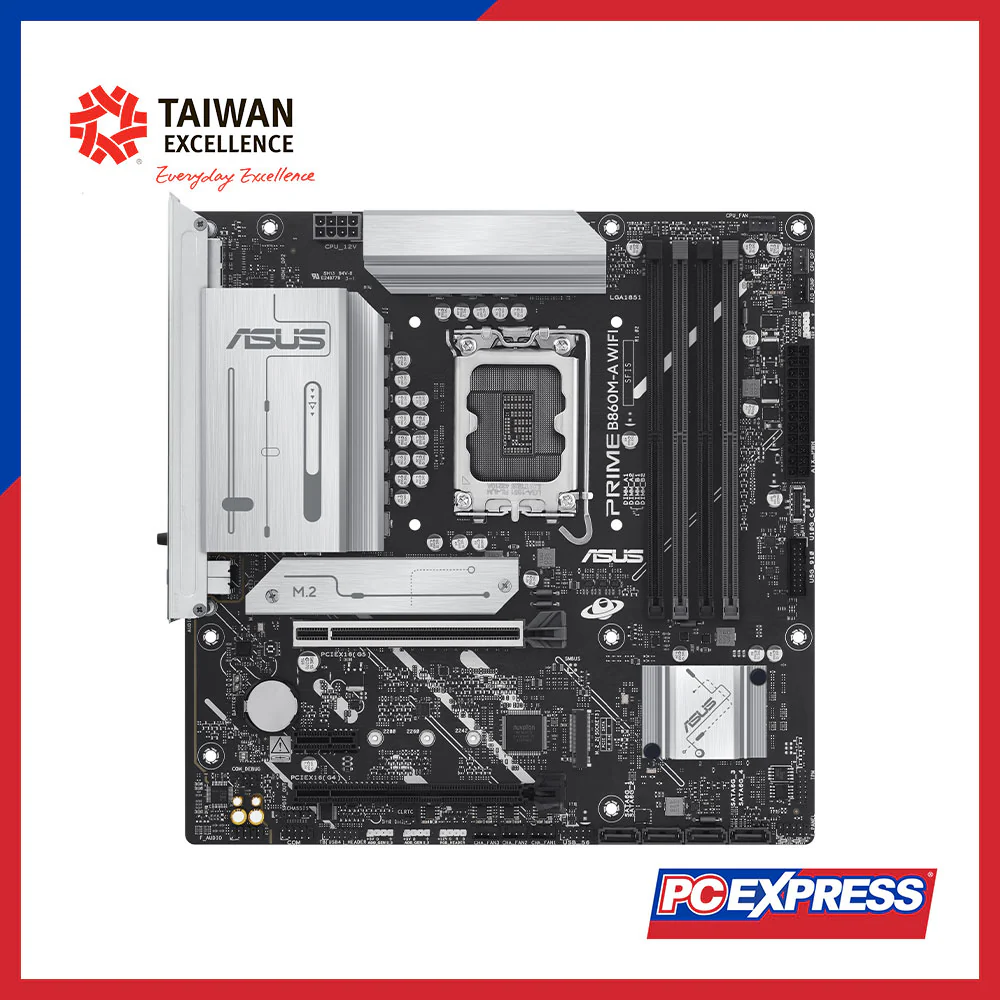

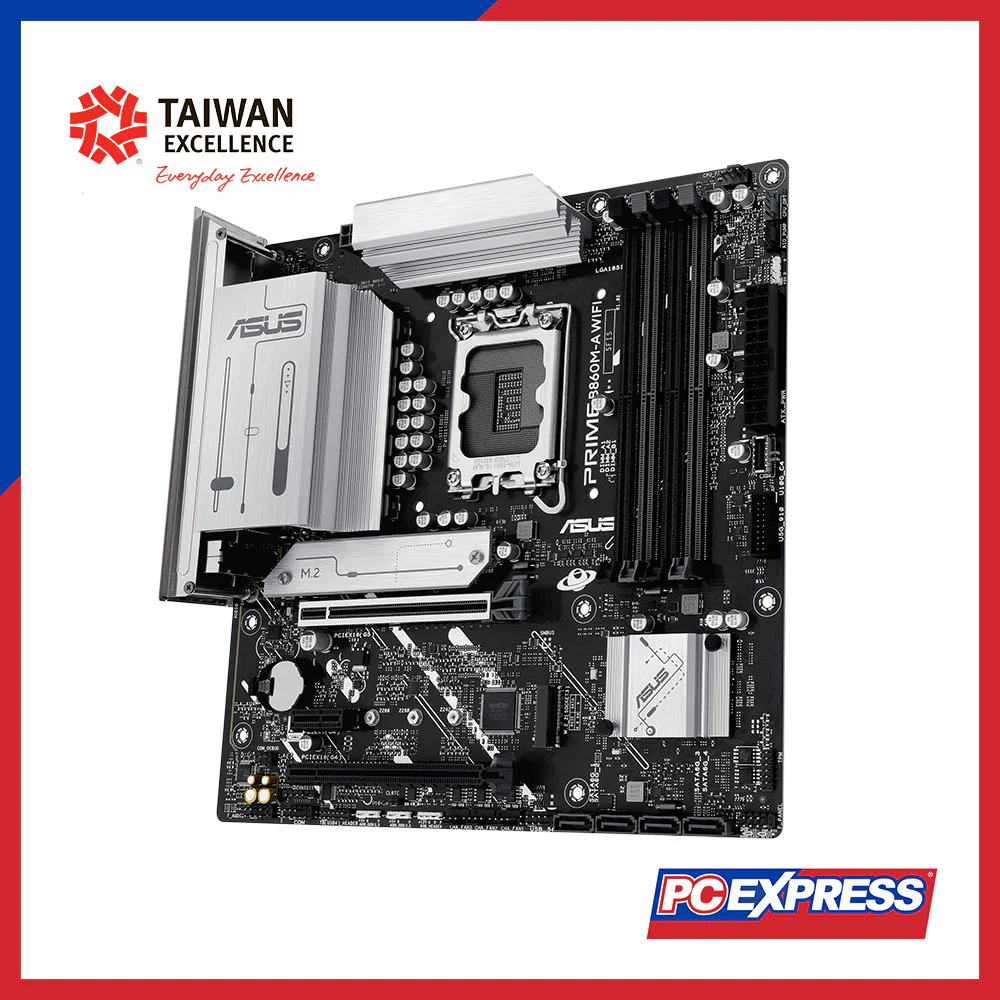

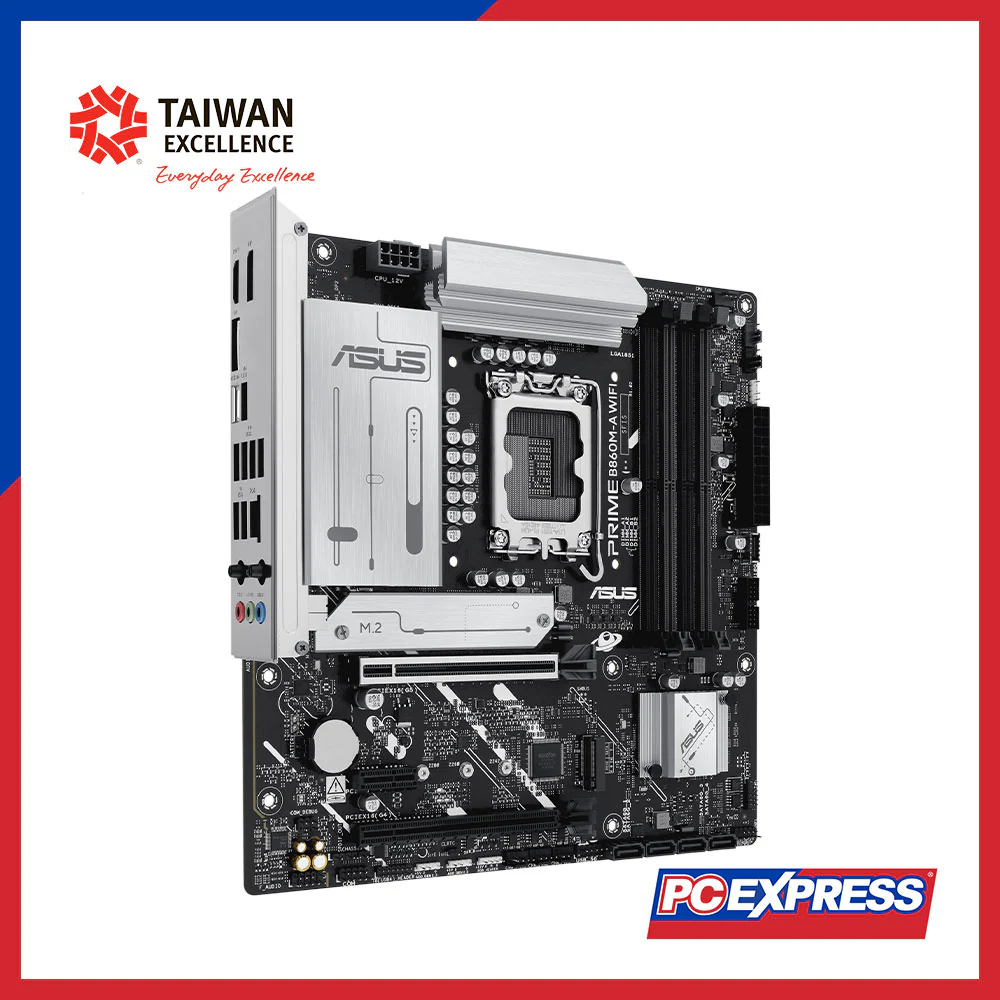

ASUS PRIME B860M-A WIFI CSM Micro-ATX Motherboard
SPECIFICATION
|
CPU |
Supports IntelĀ® Coreā¢ Ultra Processors (Series 2), LGA1851; IntelĀ® Turbo Boost Technology 2.0 & 3.0 |
|
Chipset |
IntelĀ® B860 Chipset |
|
Memory |
4 x DIMM slots, up to 256GB DDR5, supports up to 8666+MT/s (OC), Dual Channel, Non-ECC, Un-buffered, XMP, AEMPIII |
|
Graphics |
2 x DisplayPort (4K@60Hz), 1 x HDMIā¢ port (4K@60Hz); depends on CPU or discrete graphics |
|
Expansion Slots |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
|
Storage |
2 x M.2 slots (PCIe 5.0 & PCIe 4.0 modes), 4 x SATA 6Gb/s ports |
|
Ethernet |
Realtek 2.5Gb Ethernet, ASUS LANGuard |
|
Wireless & BT |
Wi-Fi 6E (802.11ax), BluetoothĀ® v5.3 |
|
USB Ports |
Rear: 1 x USB-CĀ® 20Gbps, 1 x USB-A 10Gbps, 2 x USB-A 5Gbps, 4 x USB 2.0; Front: 1 x USB-CĀ® 10Gbps, 2 x USB 5Gbps, 2 x USB 2.0 |
|
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC, supports 24-Bit/192 kHz playback |
|

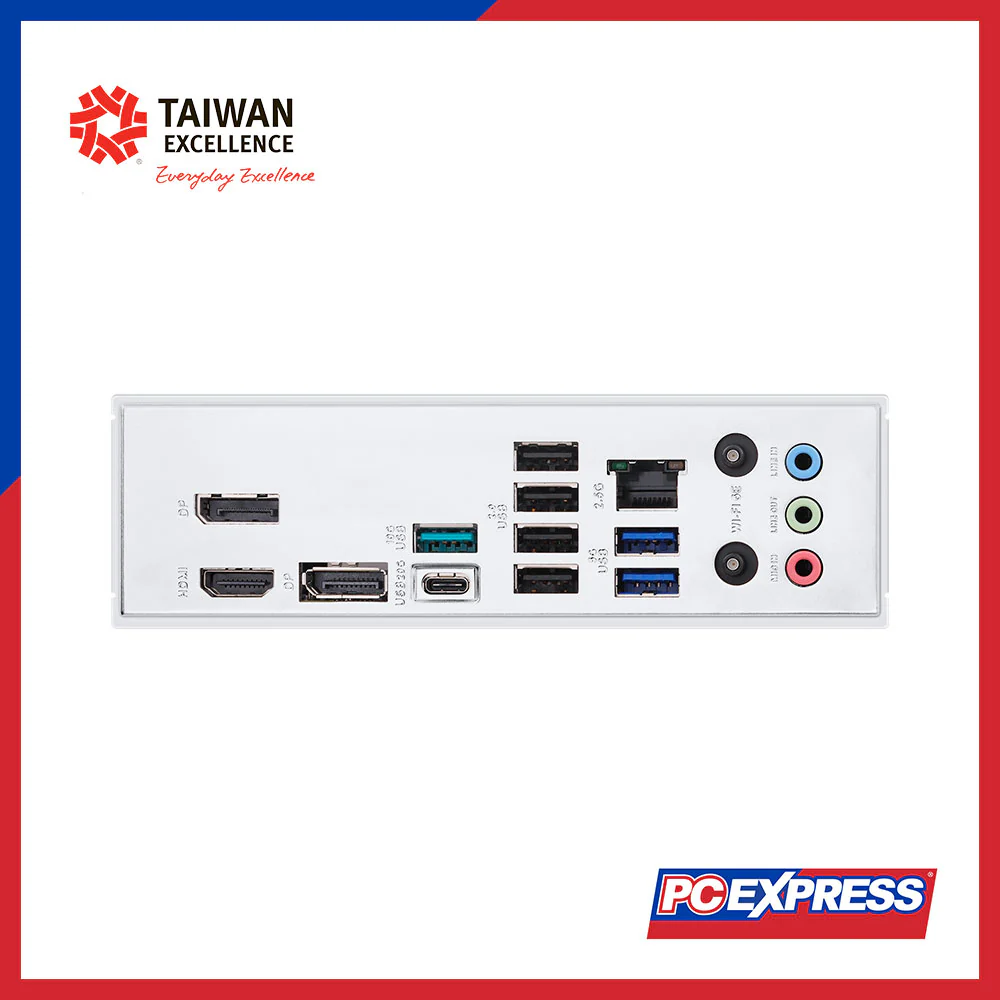

Back Panel I/O |
USB (8 ports), 2 x DisplayPort, 1 x HDMIā¢, 1 x Ethernet, 3 x Audio jacks, Wi-Fi module |
|
Internal I/O |
CPU/Chassis fan headers, AIO pump header, M.2 slots, SATA ports, USB headers, RGB headers, TPM header, and more |
|
Special Features |
ASUS 5X Protection III, Q-Design, Thermal Solutions (M.2 heatsink, VRM heatsink), Aura Sync (RGB & Addressable headers) |
|
Software |
Armoury Crate, Fan Xpert 2+, ASUS CPU-Z, Norton 360 (60-day trial), WinRAR (40-day trial) |
|
BIOS |
256Mb UEFI AMI BIOS, ASUS EZ Flash, ASUS CrashFree BIOS 3 |
|

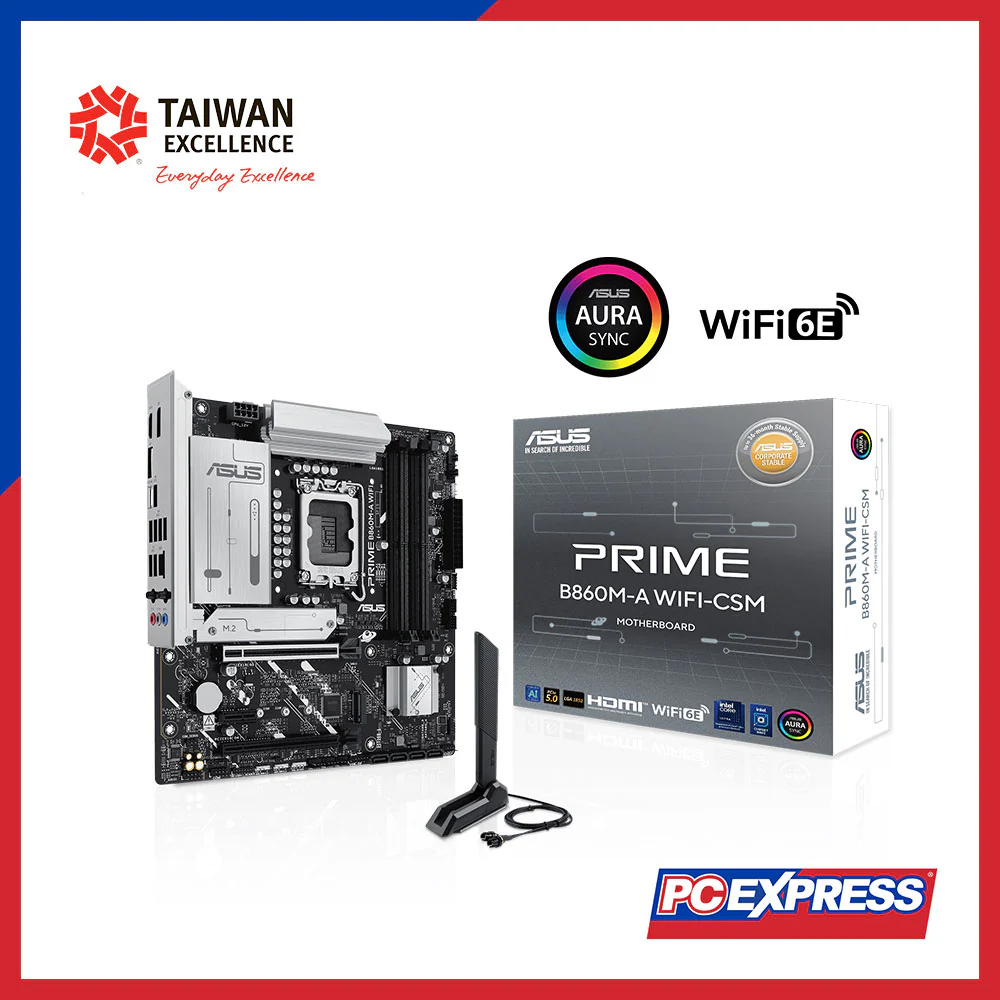

Accessories |
2 x SATA 6Gb/s cables, Wi-Fi Q-Antenna, M.2 rubber package, M.2 SSD screws, Quick start guide |
|
Operating System |
Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
|
Form Factor |
micro-ATX (24.4 cm x 24.4 cm) |
