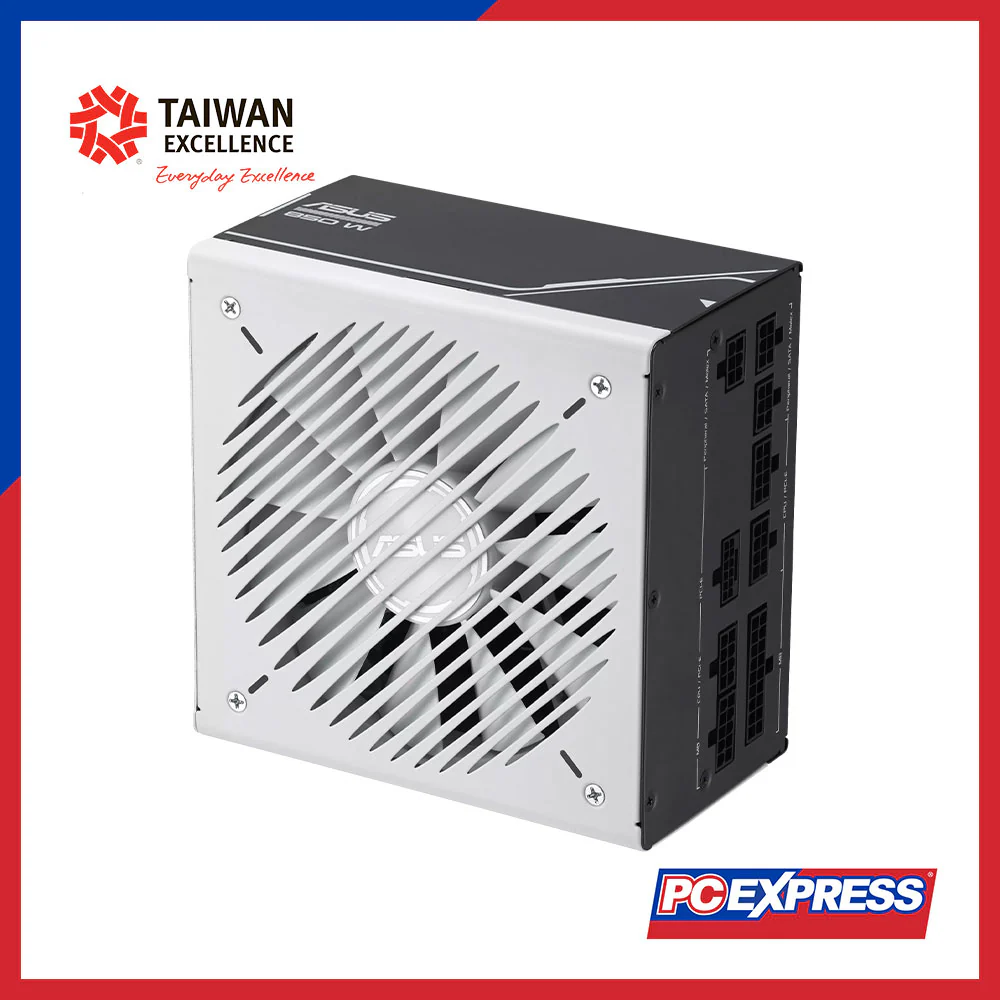

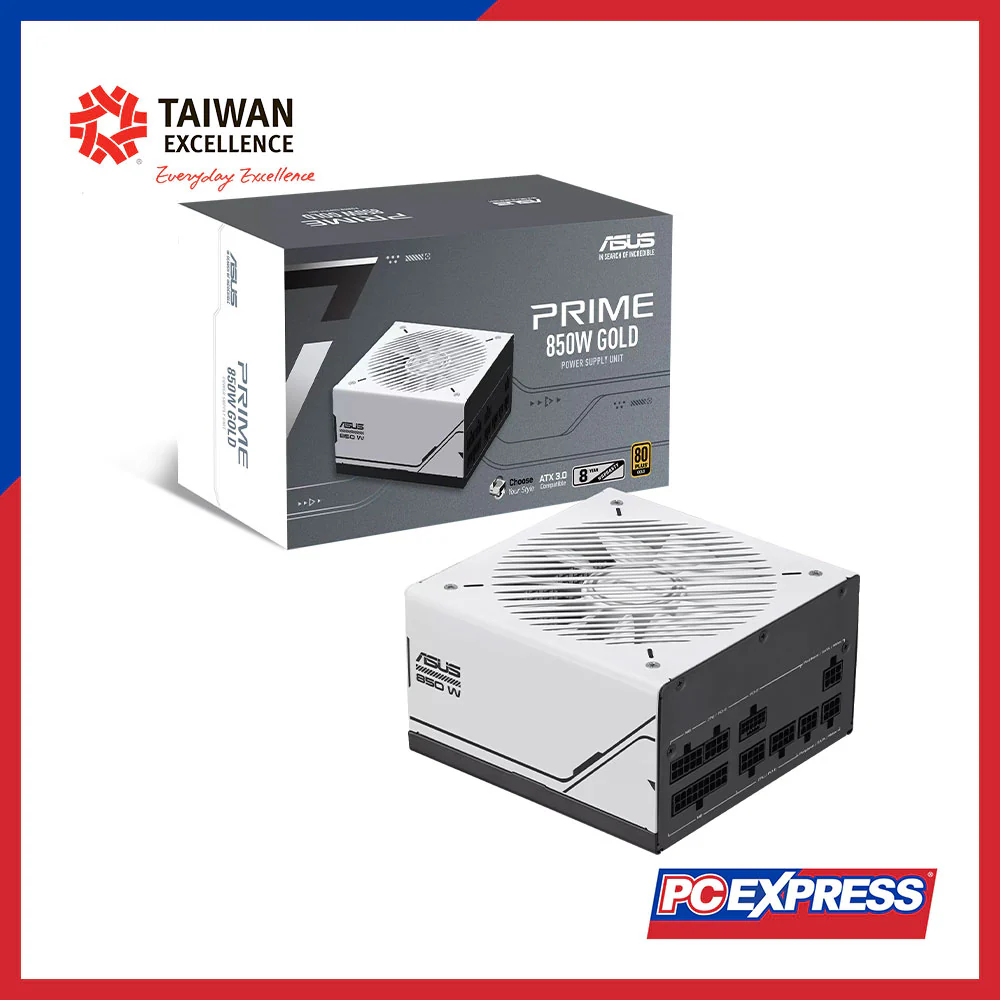

ASUS PRIME 850W 80+ Gold Full-Modular Power Supply

Model

AP-850G

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP / OVP / UVP / SCP / OCP / OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

20A / 20A / 70.5A / 0.3A / 2.5A

Combined Load

110W / 110W / 846W / 3.6W / 12.5W

Total Output

850W

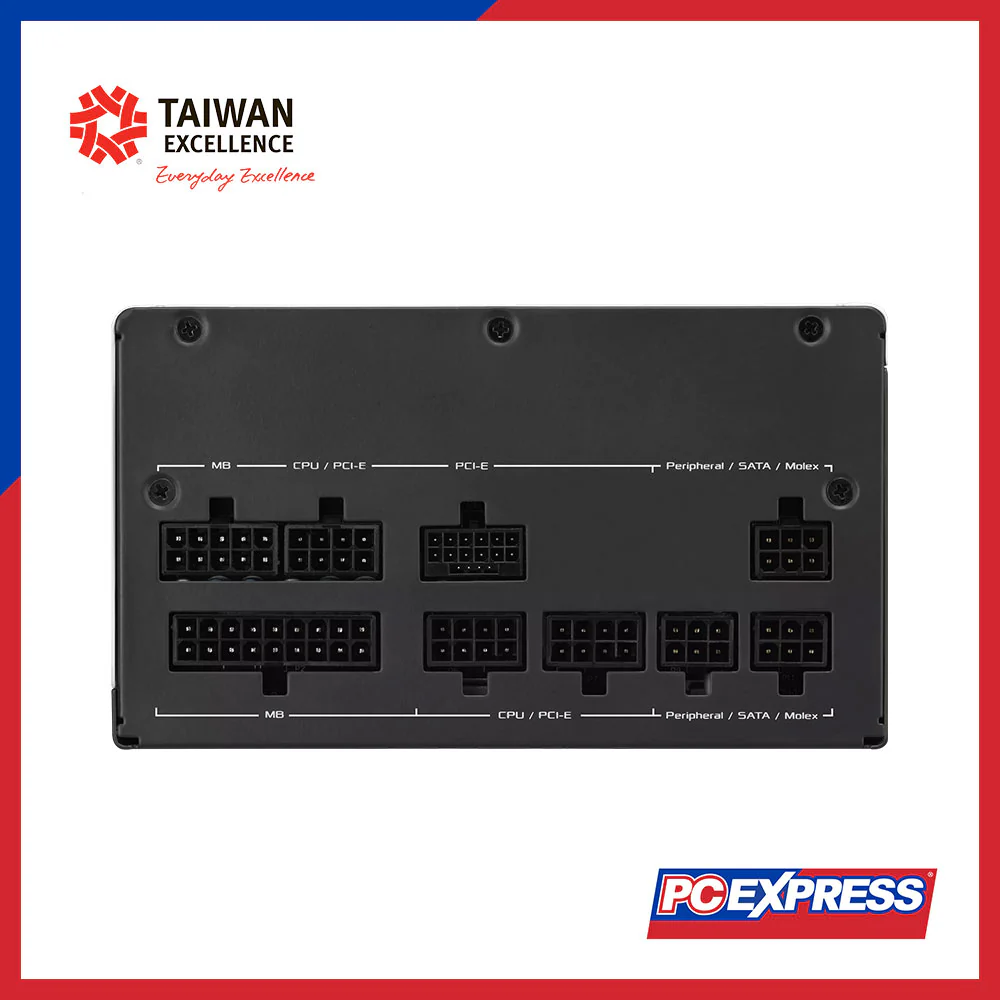

Cable Connectors

MB 24/20-pin x1
CPU 4+4-pin x2
PCI-E 16-pin x1
PCI-E 8-pin x3
SATA x5
PERIPHERAL x3

Package Contents

Power Cord x1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (650mm)
PCI-E Gen 5.1 16-pin Cable x1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x1 (675mm)
SATA 1-to-2 Cable x1 (400+120mm)
SATA 1-to-3 Cable x1 (400+120+120mm)
Peripheral 1-to-3 Cable x1 (400+150+150mm)
User Manual x1

Weight

1.502 kg (single PSU)

0dB Technology

No

0dB Fan Button

No, this product is without 0dB technology
