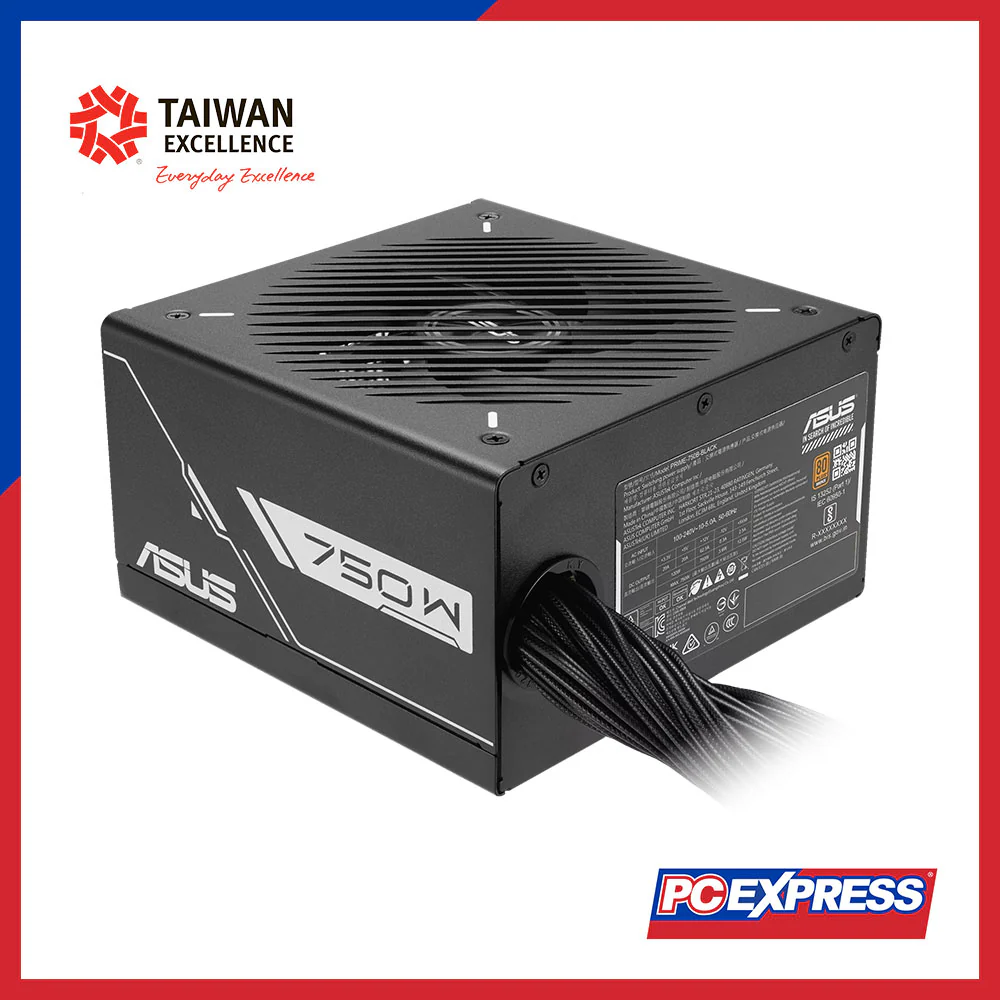

ASUS Prime 750W 80+ Bronze Non-Modular Power Supply

Model

PRIME-750B-BLACK

Intel Form Factor

ATX12V

PFC Type

Active PFC

Dimensions

150 × 150 × 86 mm

Efficiency

80Plus Bronze

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP, OVP, UVP, SCP, OCP, OTP

Hazardous Materials

RoHS compliant

AC Input Range

100–240Vac

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

+3.3V: 20A; +5V: 20A; +12V: 62.5A; -12V: 0.3A; +5Vsb: 2.5A

Combined Load

+3.3V & +5V: 120W; +12V: 750W; -12V: 3.6W; +5Vsb: 12.5W

Total Output

750W

Cable Connectors

MB 24/20-pin ×1; CPU 4+4-pin ×2; PCI-E 8-pin ×3; SATA ×6; Peripheral ×3

Package Contents

Power Cord ×1; Motherboard Power Cable (600mm) ×1; CPU Cable (800mm) ×2; PCI-E 1-to-2 (600mm) ×1; PCI-E 1-to-1 (600mm) ×1; SATA 1-to-3 Cable (400+120+120mm) ×2; Peripheral 1-to-3 Cable (400+120+120mm) ×1; User Manual ×1

Weight (Single PSU)

2.2 kg

Product Weight (with packing)

3.067 kg

0dB Technology

No

0dB Fan Button

No (product is without 0dB technology)
