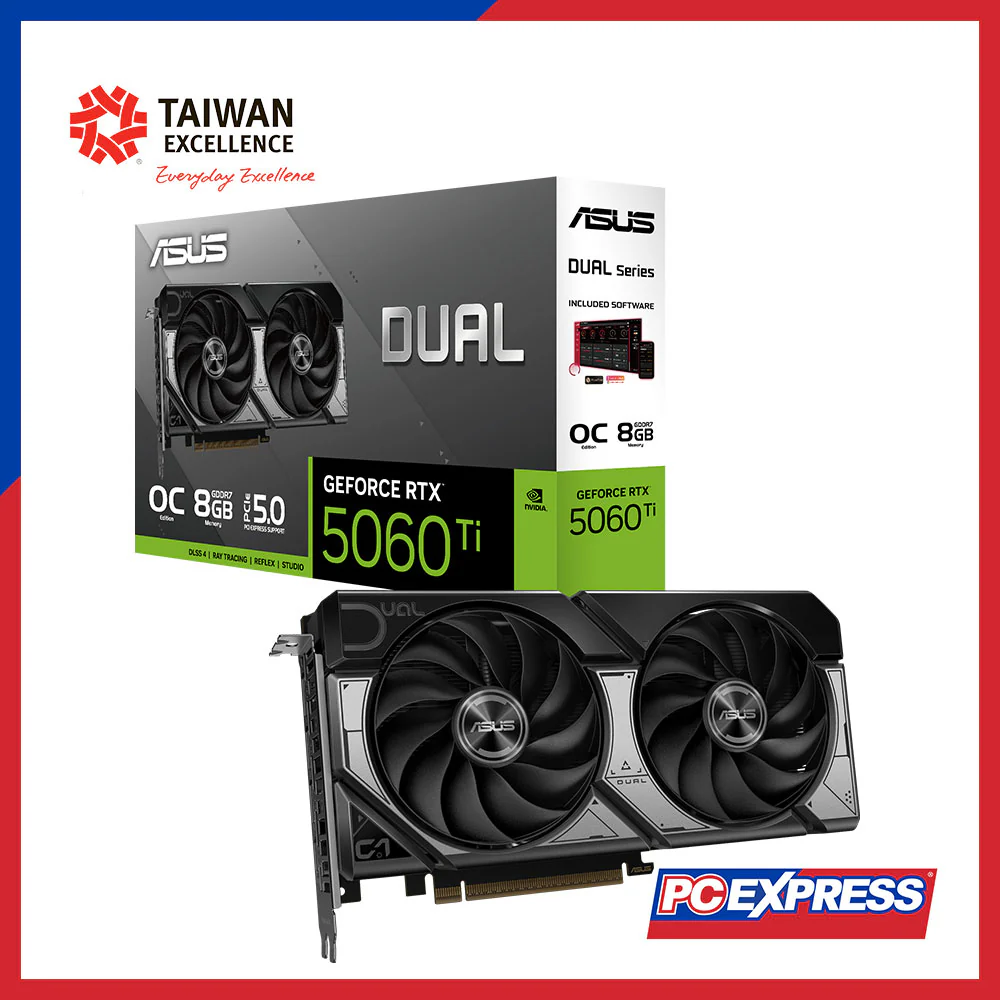

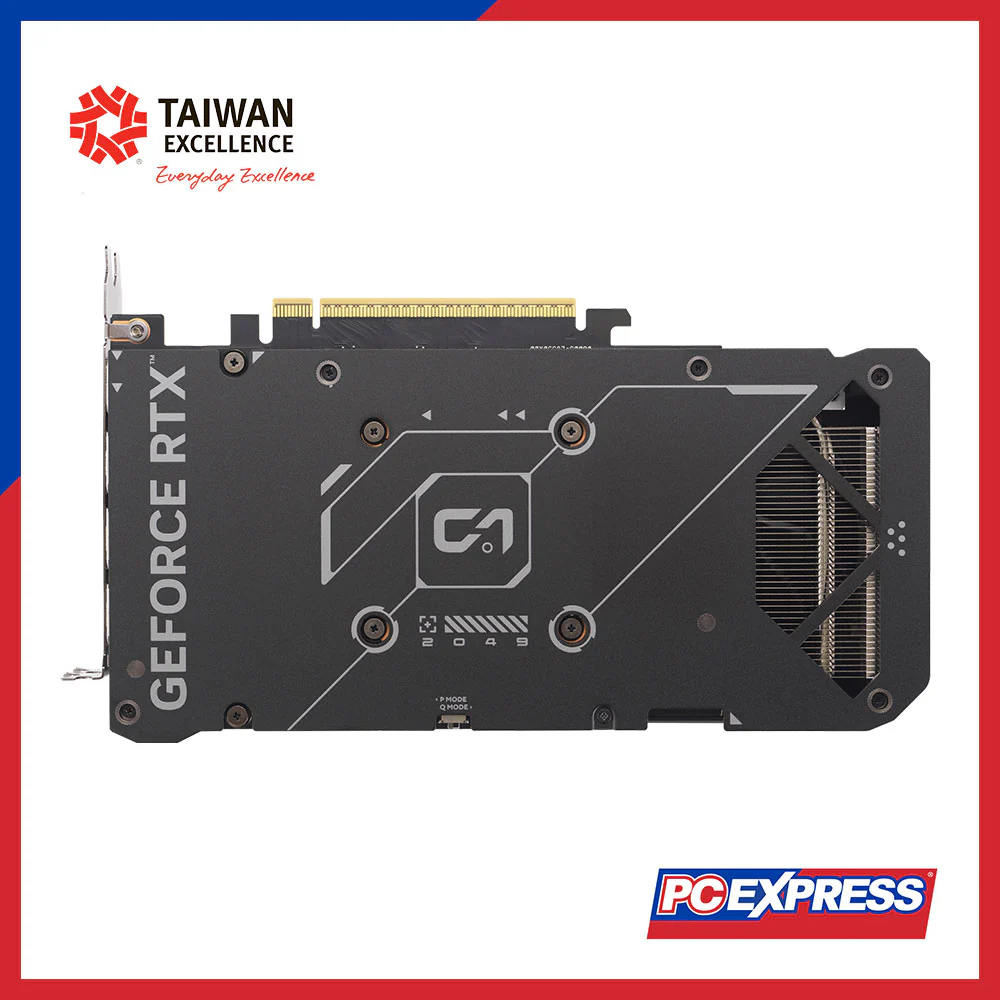

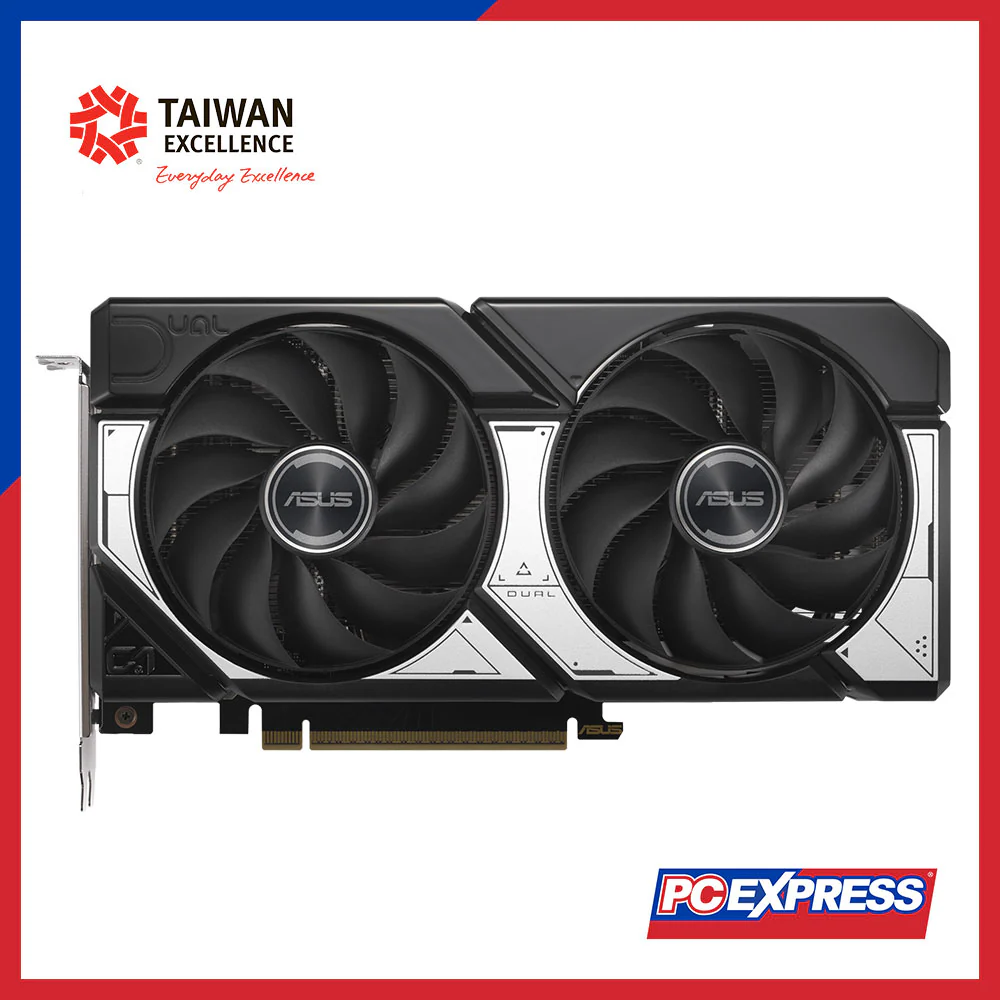

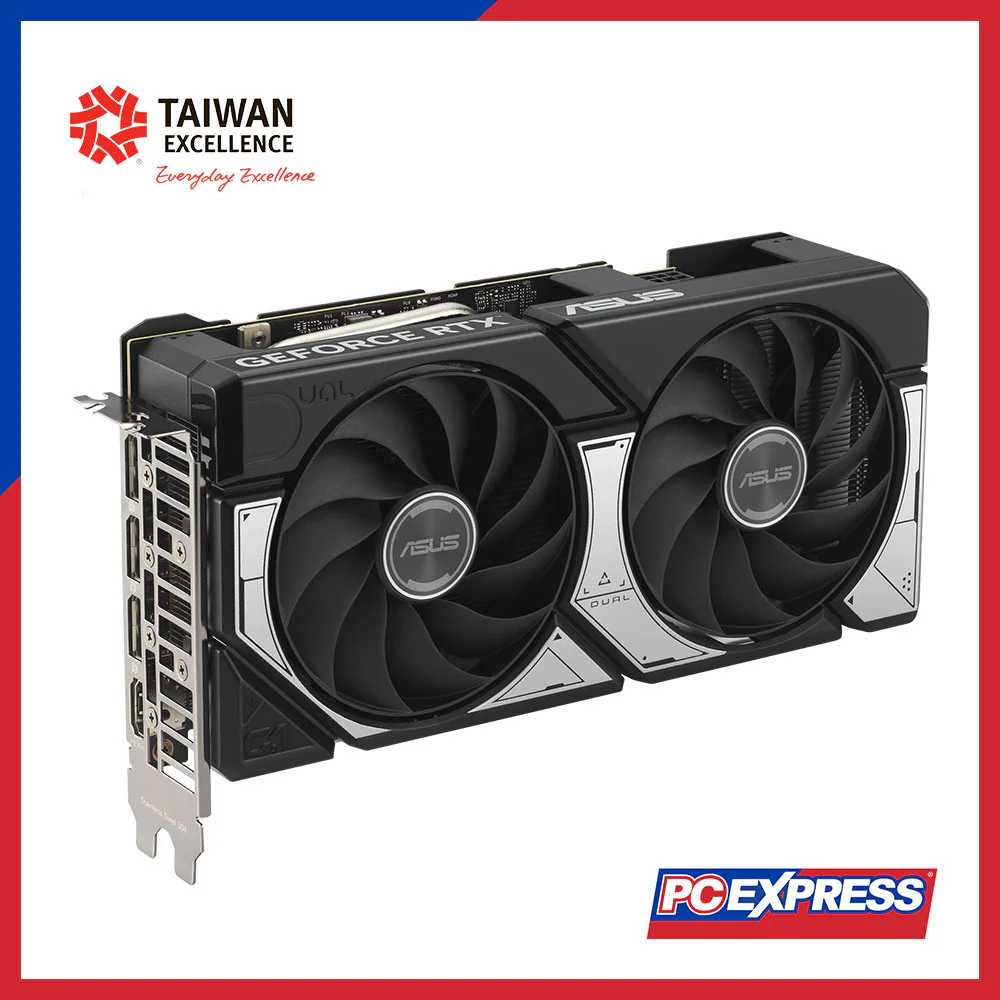

ASUS Dual GeForce RTX™ 5060 Ti OC Edition 8GB GDDR7 128-bit Graphics Card

Model

DUAL-RTX5060TI-O8G

Graphic Engine

NVIDIA® GeForce RTX™ 5060 Ti

AI Performance

767 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL® 4.6

Video Memory

8 GB GDDR7

Engine Clock

• OC mode: 2632 MHz
• Default (Boost) mode: 2602 MHz

CUDA Cores

4608

Memory Speed

28 Gbps

Memory Interface

128-bit

Maximum Resolution

7680 × 4320 (Digital Max)

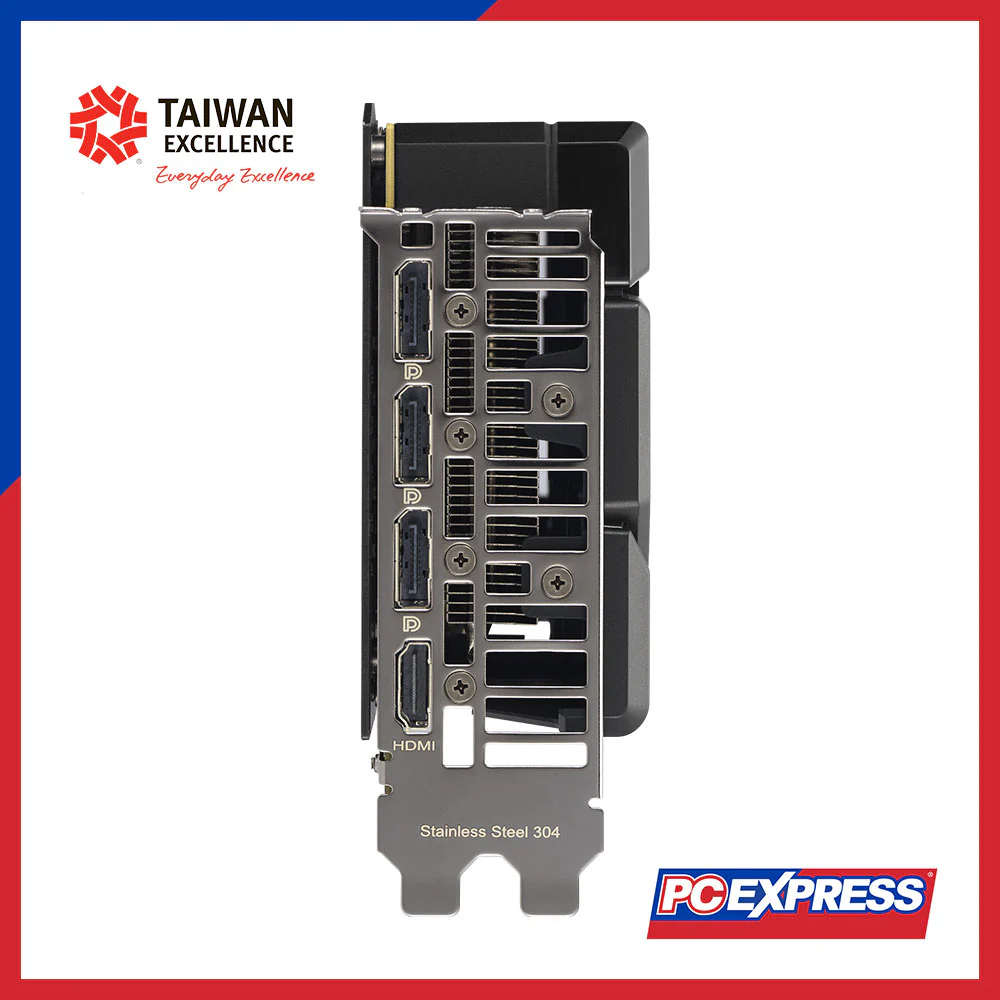

Display Outputs

• 1 × HDMI 2.1b (native)
• 3 × DisplayPort 2.1b (native)

HDCP Support

Yes (2.3)

Maximum Displays Supported

4

NVLink / CrossFire Support

No

Accessories Included

• Speedsetup Manual
• Thank You Card

Software

ASUS GPU Tweak III; MuseTree; GeForce Game Ready Driver; Studio Driver (available from ASUS support site)

Dimensions (L × W × H)

229 × 120 × 50 mm

Recommended PSU

550 W (based on fully overclocked GPU + CPU)

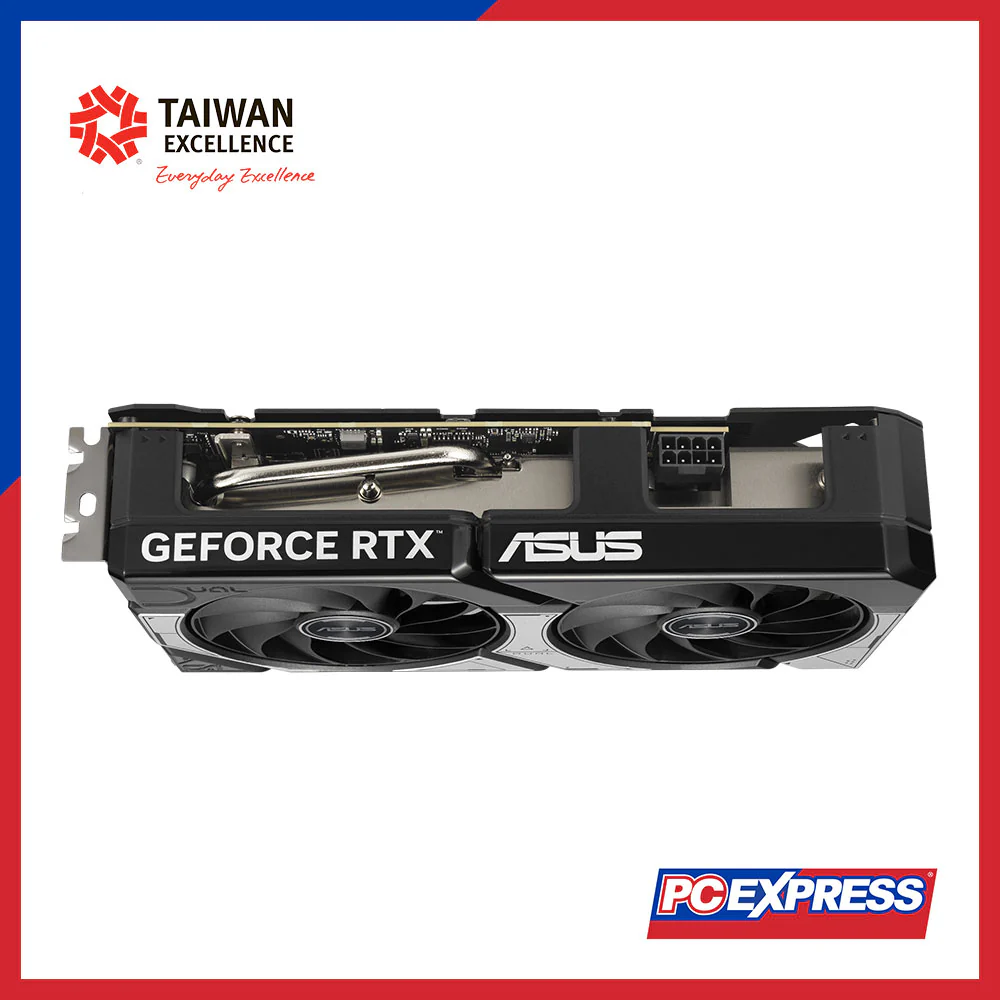

Power Connector

1 × 8-pin PCIe

Slot Width

2.5 slots

SFF (Small Form Factor) Ready

Compatible

Notes

• Wattage recommendation considers a fully overclocked system—use “Choose By Wattage” on ASUS PSU page for tailored advice
• Specs subject to change; verify with supplier for availability and exact details.
