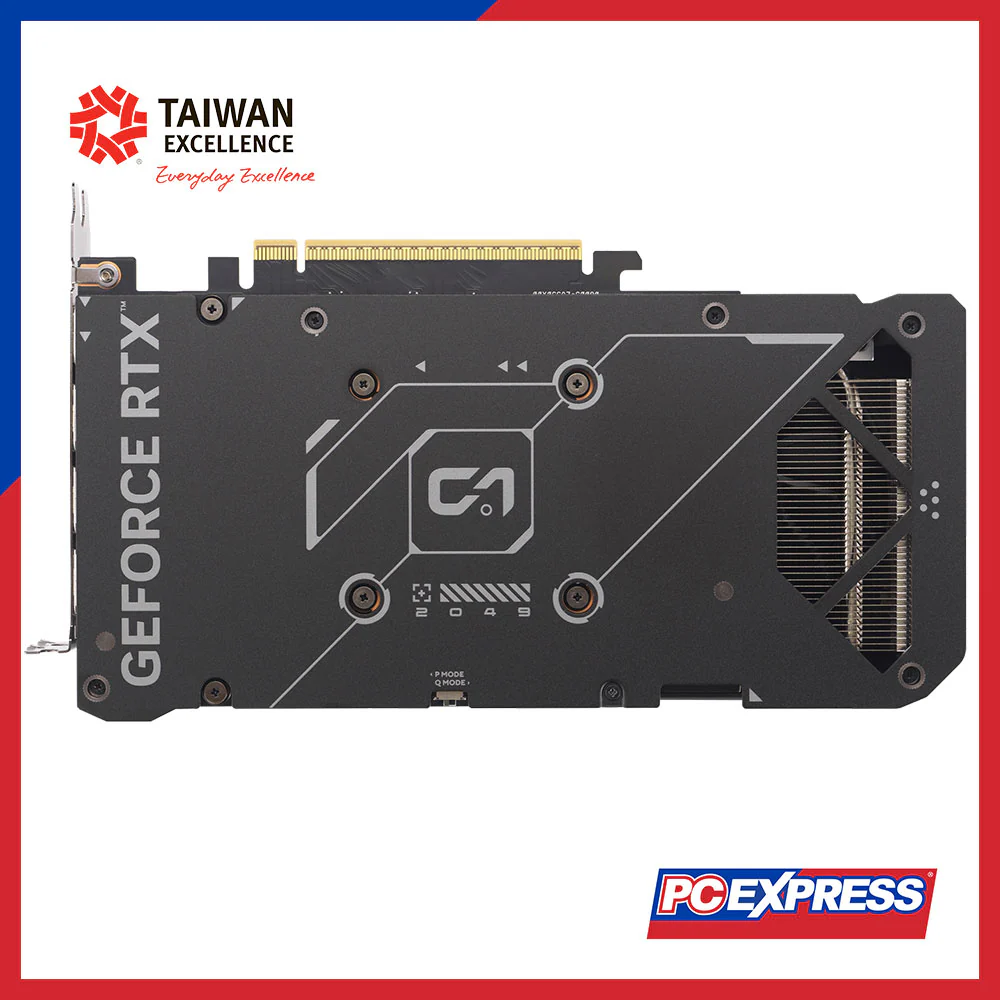

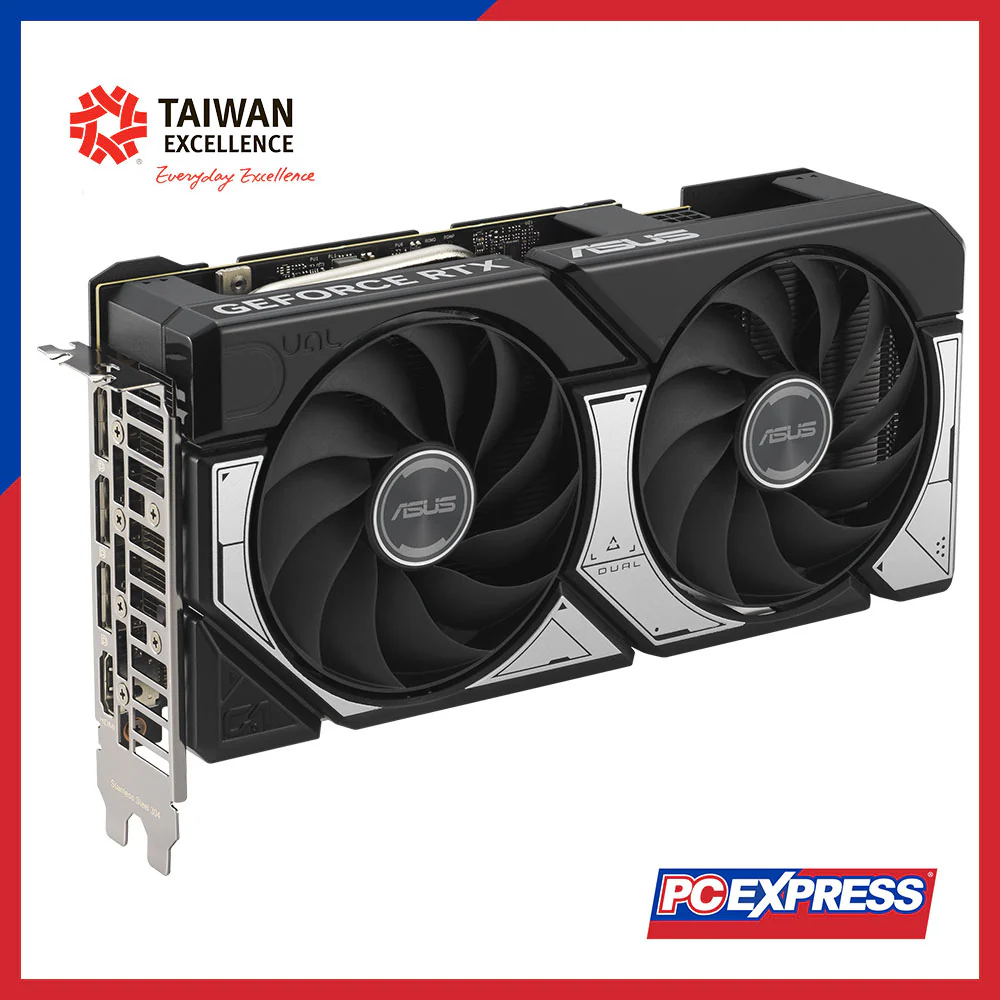

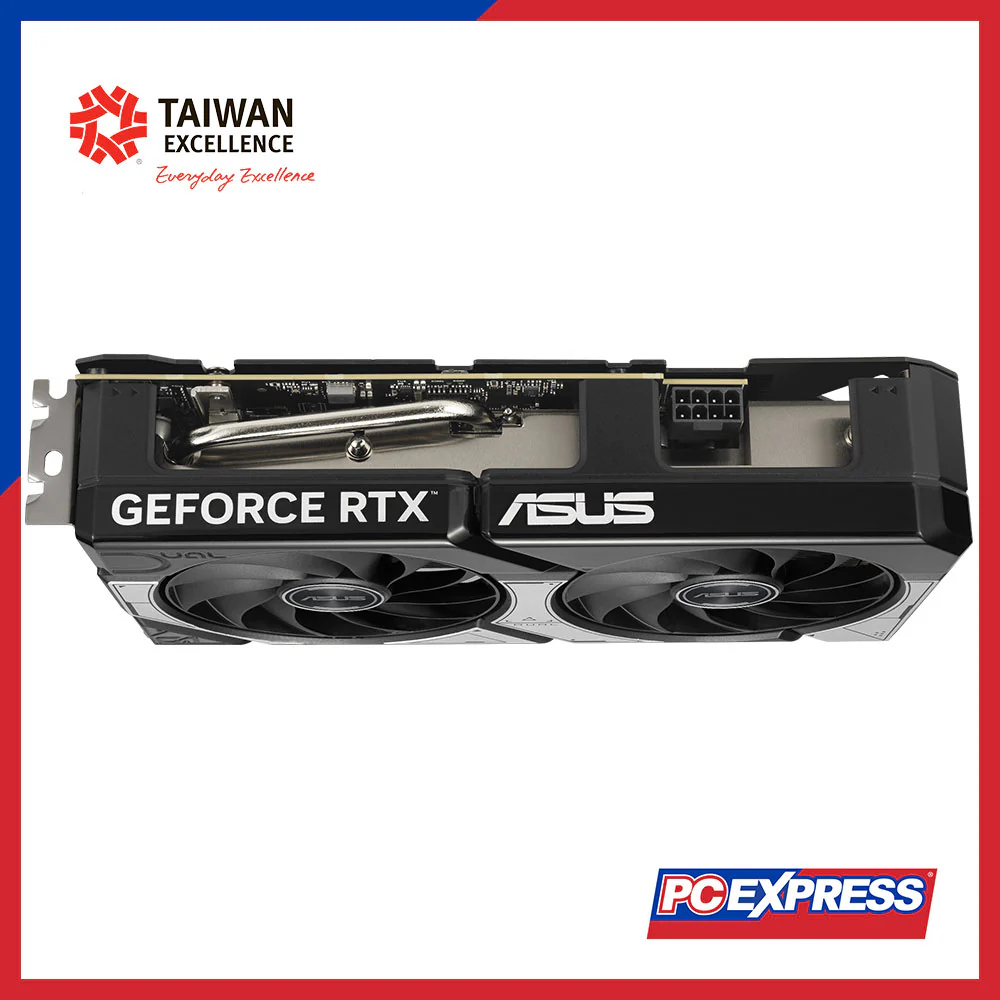

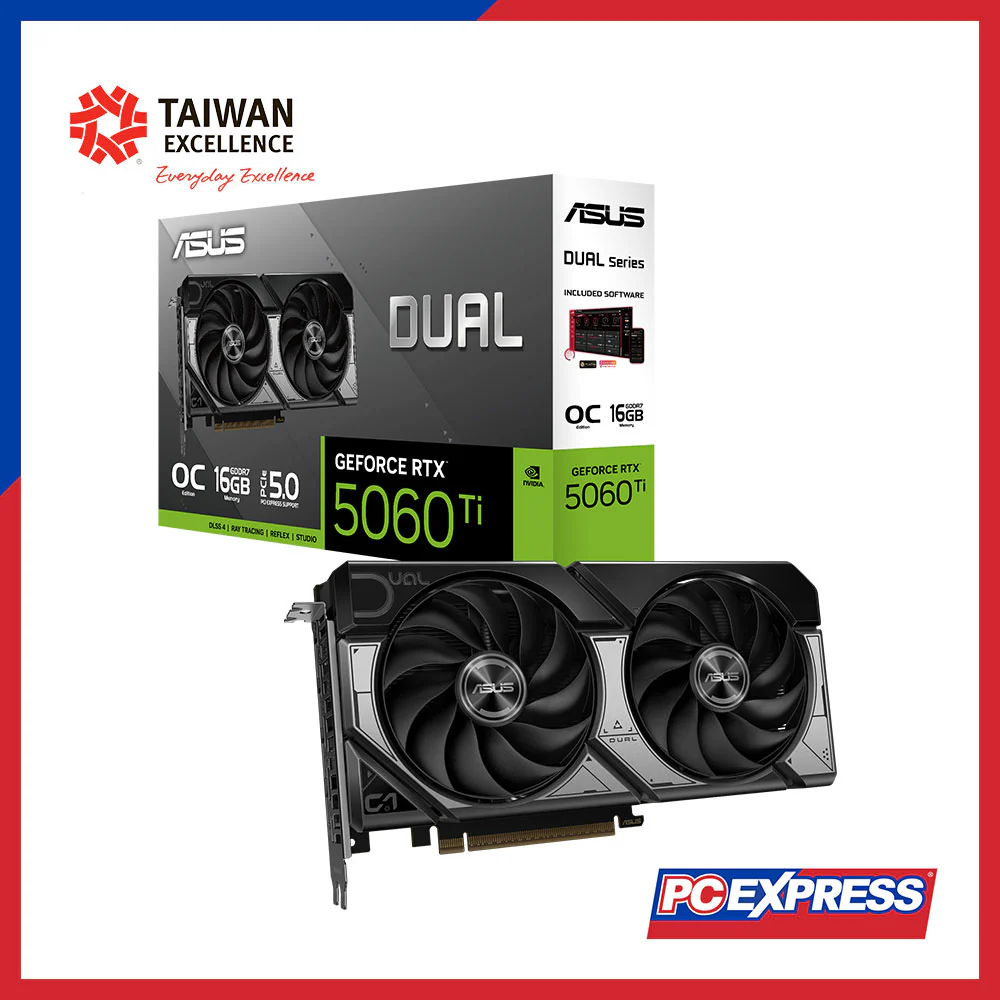

ASUS Dual GeForce RTX™ 5060 Ti OC Edition 16GB GDDR7 128-bit Graphics Card

Graphics Engine

NVIDIA® GeForce RTX™ 5060 Ti

Model Name

DUAL-RTX5060TI-O16G

AI Performance

767 TOPs

Bus Standard

PCI Express 5.0

OpenGL Version

OpenGL® 4.6

Video Memory

16 GB GDDR7

Engine Clock

• OC Mode: 2632 MHz
• Default (Boost): 2602 MHz

CUDA Cores

4608

Memory Speed

28 Gbps

Memory Interface

128-bit

Max Digital Resolution

7680 × 4320

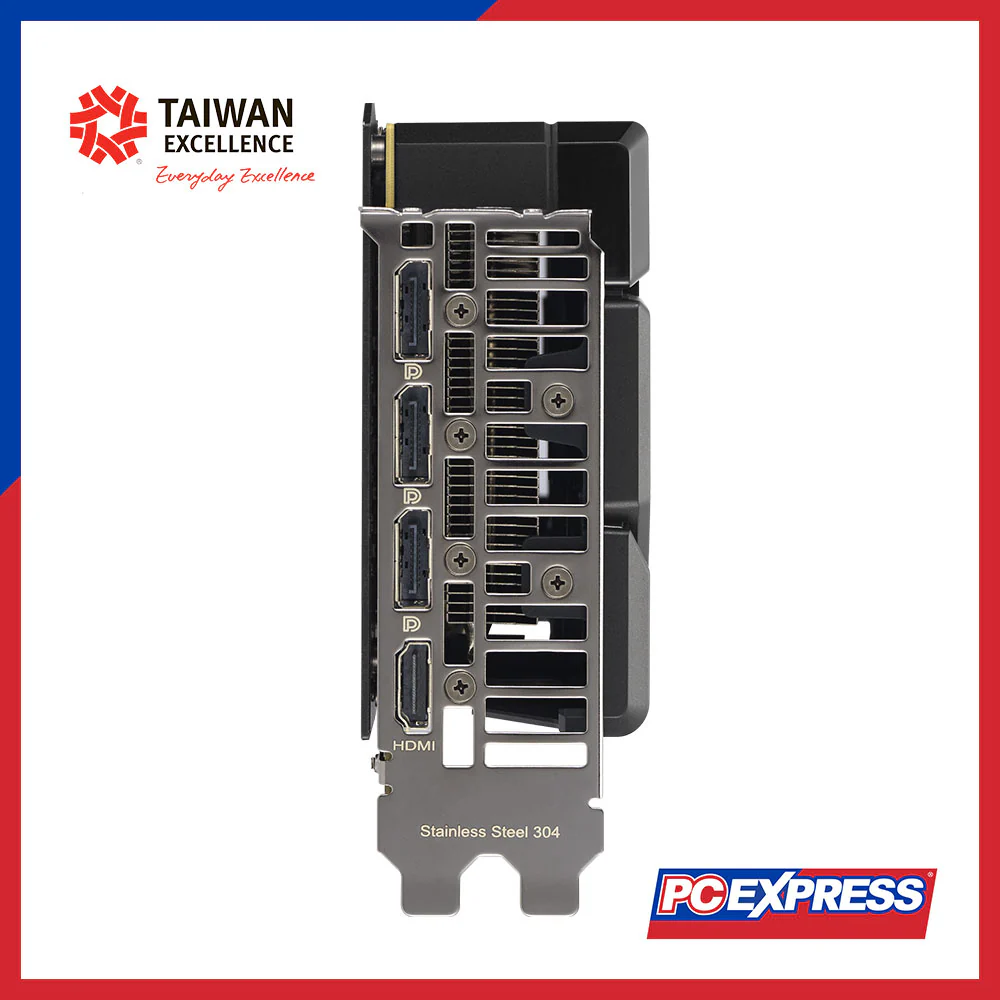

Display Outputs

• 1× Native HDMI 2.1b
• 3× Native DisplayPort 2.1b

HDCP Support

Yes (2.3)

Max Displays Supported

4

NVLink/CrossFire

No

Accessories

• Speedsetup Manual
• Thank You Card

Software Bundle

ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers (download from support site)

Dimensions (L×W×H)

229 × 120 × 50 mm

Recommended PSU

550 W

Power Connector

1× 8-pin

Slot Width

2.5 slots

Small-Form-Factor Ready

Yes

Notes

• Wattage rec. based on fully OC’d GPU+CPU; use “Choose By Wattage” PSU tool for tailored advice
• Specs subject to change; check with supplier for availability and exact offers
