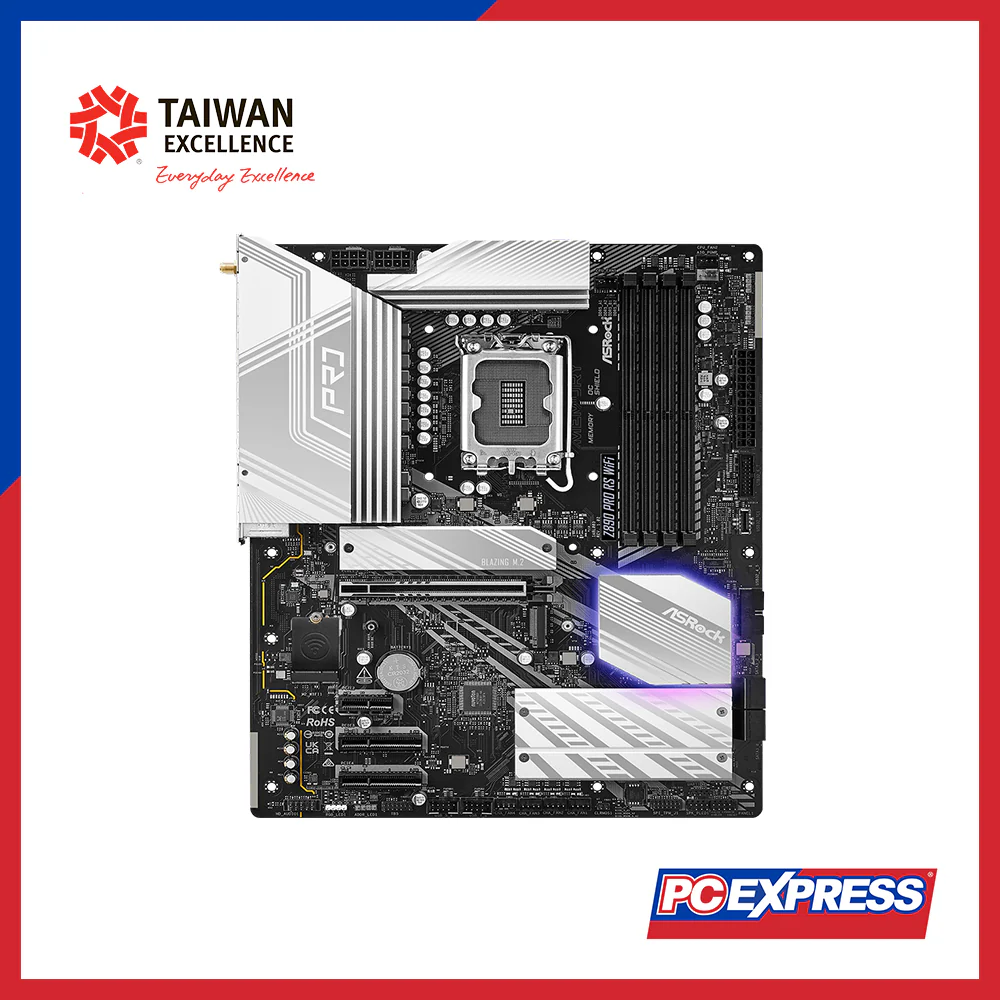

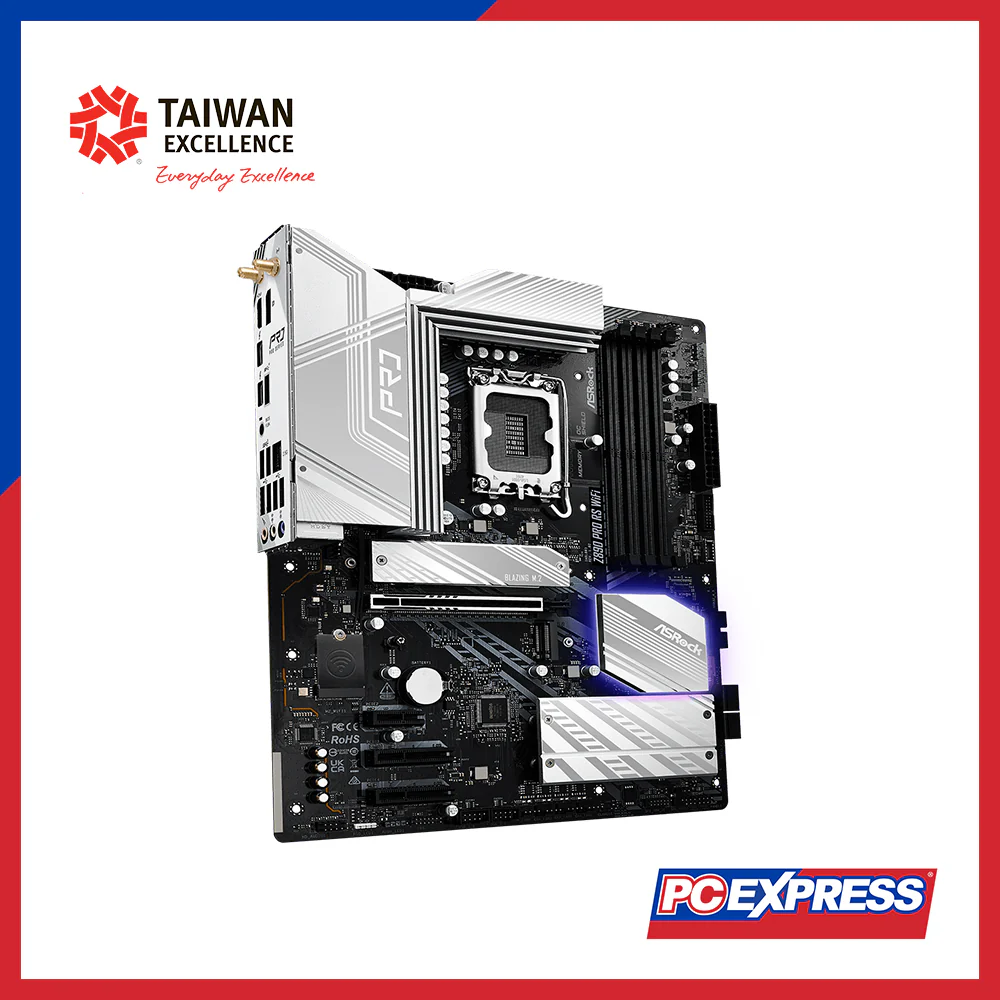

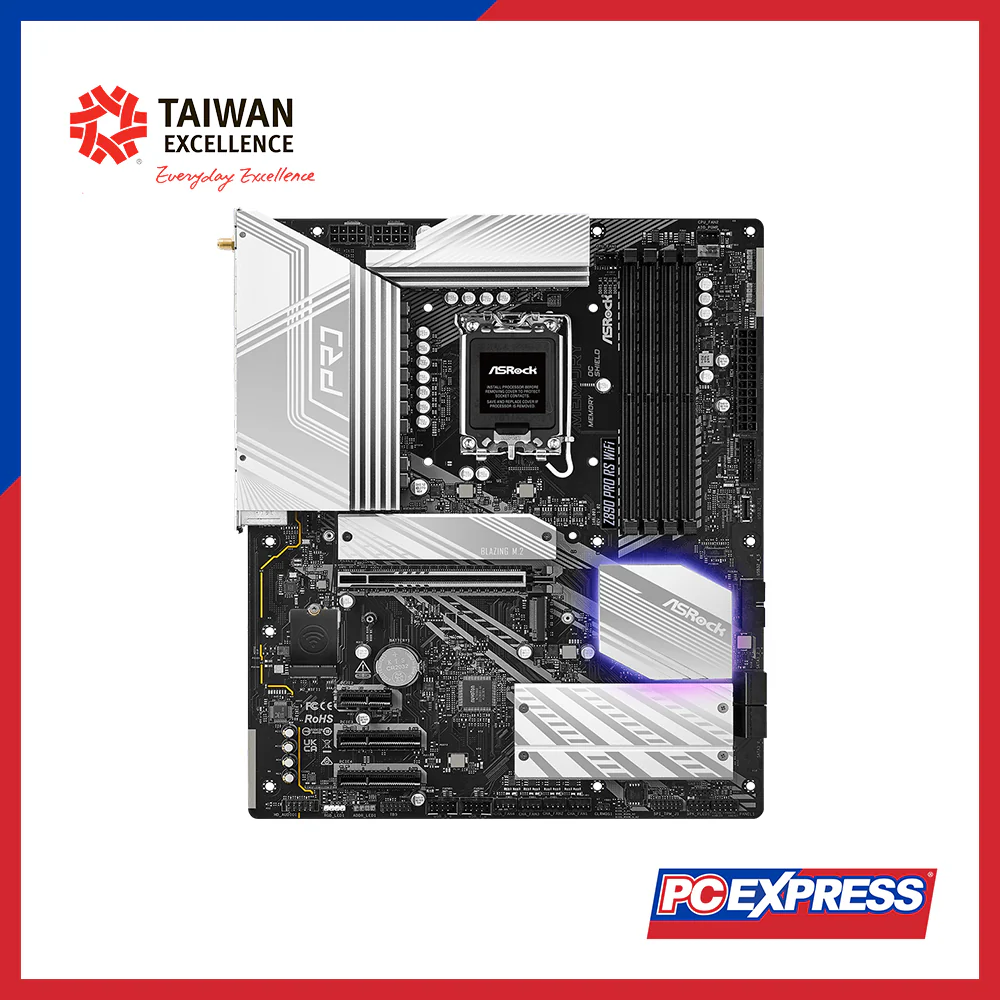

ASROCK Z890 PRO RS WIFI ATX Motherboard

Unique Feature

Superb Productivity

- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt™ 4 Type-C Ports (40 Gb/s)

Rock-Solid Durability

- 16+1+1+1+1 Power Phase, Dr. MOS with Heatsink Armor
- Memory OC Shield
- Integrated I/O Shield

Ultrafast Connectivity

- 2.5G LAN (Dragon RTL8125BG)
- 802.11axe Wi-Fi 6E Module

EZ Update

- BIOS Flashback Button
- ASRock Auto Driver Installer

EZ Troubleshooter

- ASRock Post Status Checker

CPU

- Supports Intel® Core™ Ultra (Series 2, LGA1851RL-ILM)
- Hybrid Tech, Turbo Boost Max 3.0, TVB, ABT
- Integrated NPU for AI

Chipset

- Intel® Z890

Memory

- 4 x DDR5 DIMM (up to 256GB)
- Up to 9066+ MHz (OC)*
- CUDIMM Support
- Intel® XMP 3.0

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI

Graphics

- Intel® Xe LPG GPU
- 1 x HDMI 2.1 (4K 120Hz)
- 1 x DP 1.4 (8K 60Hz)
- 2 x Thunderbolt™ 4 (8K 60Hz)*

Audio

- 7.1 CH HD Audio (Realtek ALC897)
- Nahimic Audio

LAN

- 2.5G LAN (Dragon RTL8125BG)
- Smart Bandwidth Control
- Visual UI, Stats, Modes, Custom Priority

Wireless LAN

- Wi-Fi 6E (802.11axe), Bluetooth 5.3
- Dual-Band 2x2, MU-MIMO
*6GHz band via Windows 11 only

Expansion Slots

- CPU: 1 x PCIe 5.0 x16
- Chipset: 2 x PCIe 4.0 x4, 1 x PCIe 4.0 x1
- 1 x M.2 Key E (WiFi/BT, CNVio2)

Storage

- CPU: 1 x Gen5x4 M.2, 1 x Gen4x4 M.2
- Chipset: 2 x Gen4x4 M.2, 4 x SATA3 6Gb/s
- Intel® VMD Support

RAID

- RAID 0/1/5/10 on SATA & M.2 NVMe

USB Ports

- CPU: 2 x Thunderbolt™ 4 Type-C
- Chipset: 1 x Gen2x2 Type-C (Front), 1 x Gen2 Type-A (Rear), 6 x Gen1, 8 x USB 2.0

Internal Connectors

- SPI TPM, RGB, 3 x ARGB, Fan Headers
- USB 2.0, 3.2 Gen1, Type-C Headers
- AIO Pump, Power Connectors

Rear I/O Ports

- 2 x Antenna, 1 x HDMI, 1 x DP 1.4
- 2 x Thunderbolt™ 4
- 1 x USB 3.2 Gen2 Type-A, 2 x Gen1, 4 x USB 2.0
- LAN, Audio Jacks, BIOS Flashback

Software

- A-Tuning, Dragon LAN Software, Polychrome SYNC

UEFI

- EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash

Accessories

- 2 x SATA Cables, 2 x WiFi Antennas
- 1 x M.2 Screw, 1 x M.2 Standoff

Form Factor

- ATX (12.0" x 9.6"), 2oz Copper PCB

Operating System

- Microsoft Windows® 11 64-bit

Certifications

- FCC, CE, ErP/EuP Ready
