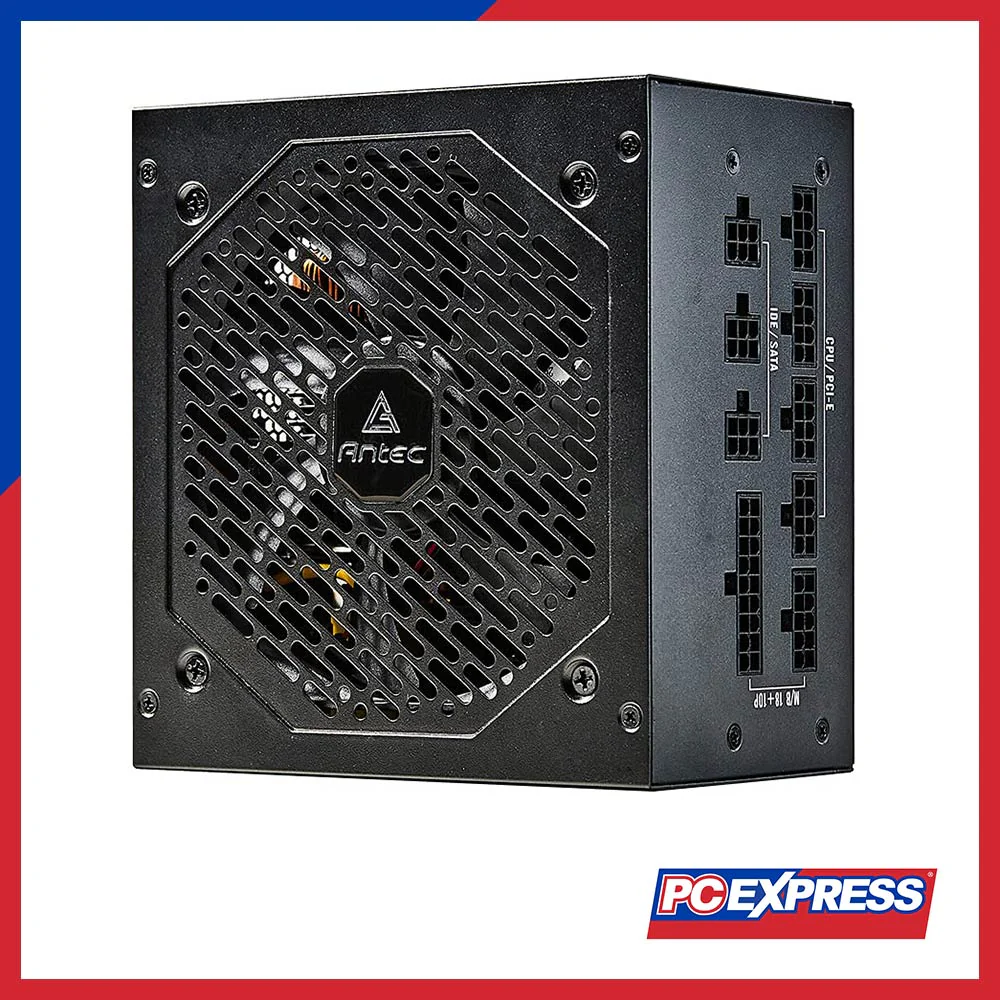

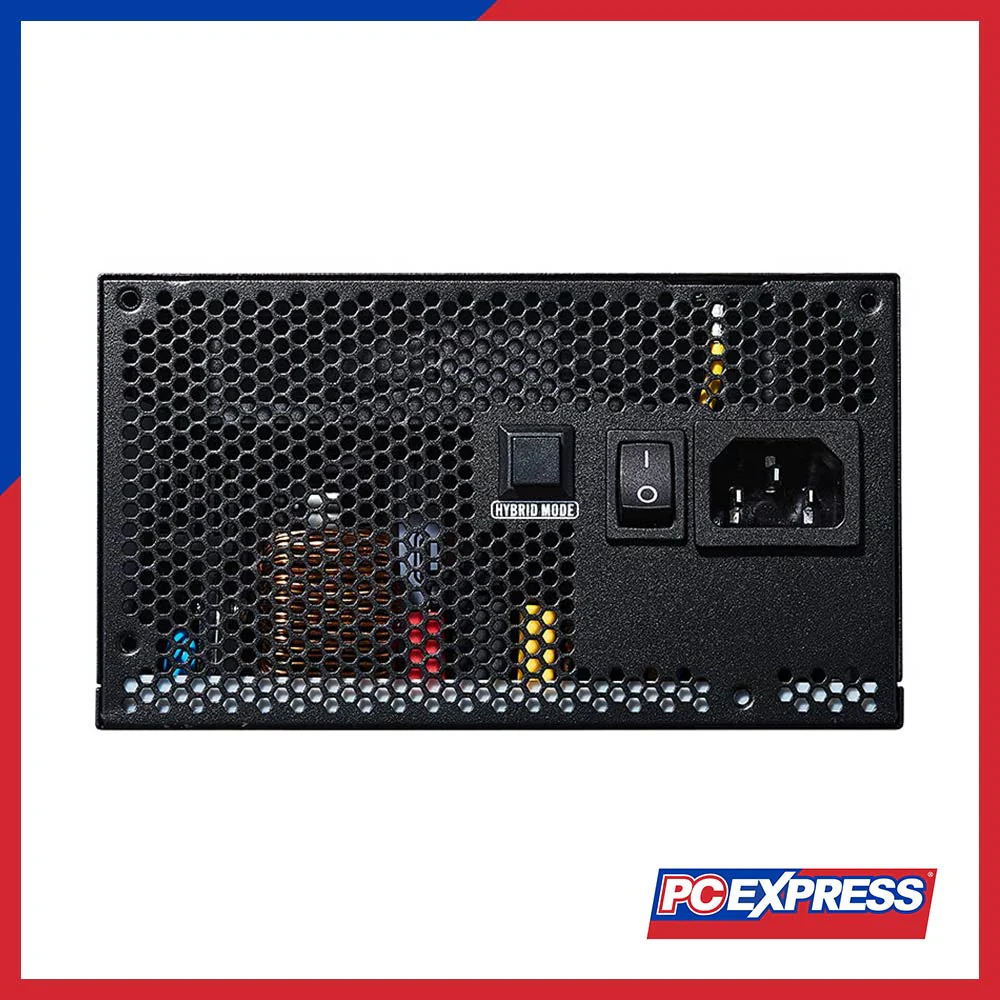

ANTEC NE 850GOLD M 850W 80+ GOLD Full Modular True Rated Power Supply

Product Name

NE850G M

Model Name

X7000A083-20

Type

ATX 12V 2.4

Modular

Fully

Dimension

150(L) x 140(W) x 86(H) mm

Input Voltage

100-240 VAC

Input Current

10A MAX

Input Frequency Range

50Hz-60Hz

PFC

Active PFC

Power Good Signal

100-500ms

Efficiency

Up To 92%

Protection

OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO

Output Capacity

850W

Operation Temperature

0~40°C

Regulatory

cTUVus / TUV / CB / RCM / CE / FCC / BIS /

BSMI / KC / UKCA / ICES

Fan

120mm Silence Fan

Certifications

80 Plus Gold

Connector

1 x MB 24(20+4) Pin

2 x 8(4+4) Pin EPS 12V

6 x 8(6+2) Pin PCI-E

10 x SATA

5 x Molex

1 x FDD

Net Weight

1.38 kgs

Gross Weight

2.55 kgs

UPC#

0-761345-11761-6 NE850G M

0-761345-11762-3 NE850G M AU

0-761345-11763-0 NE850G M EC

0-761345-11764-7 NE850G M GB

0-761345-11765-4 NE850G M JP
