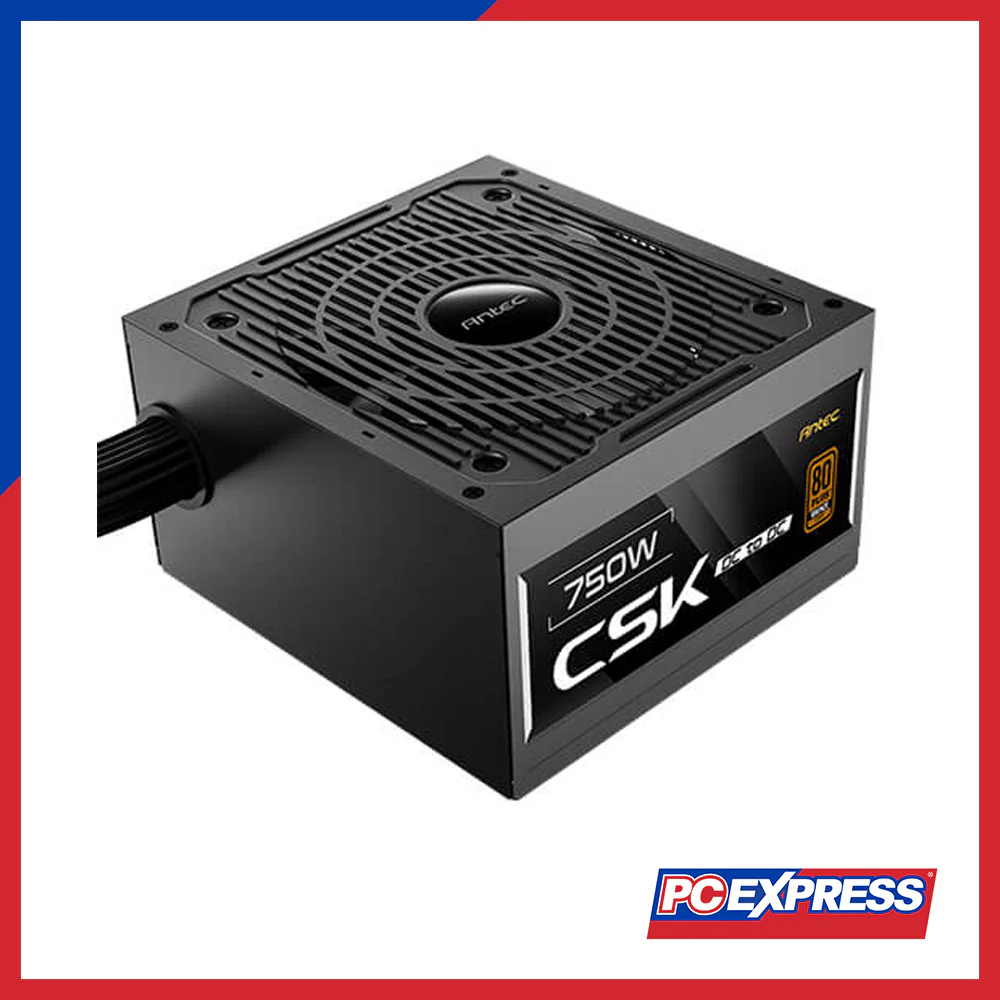

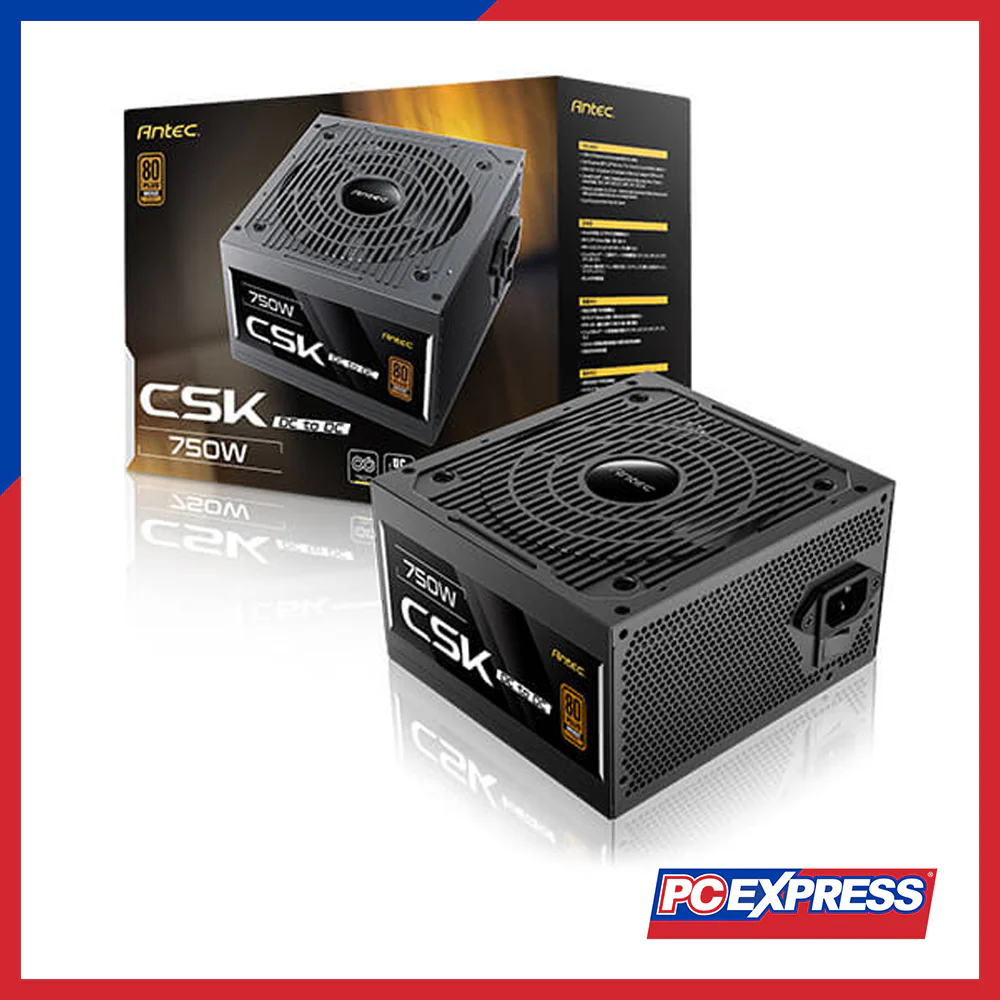

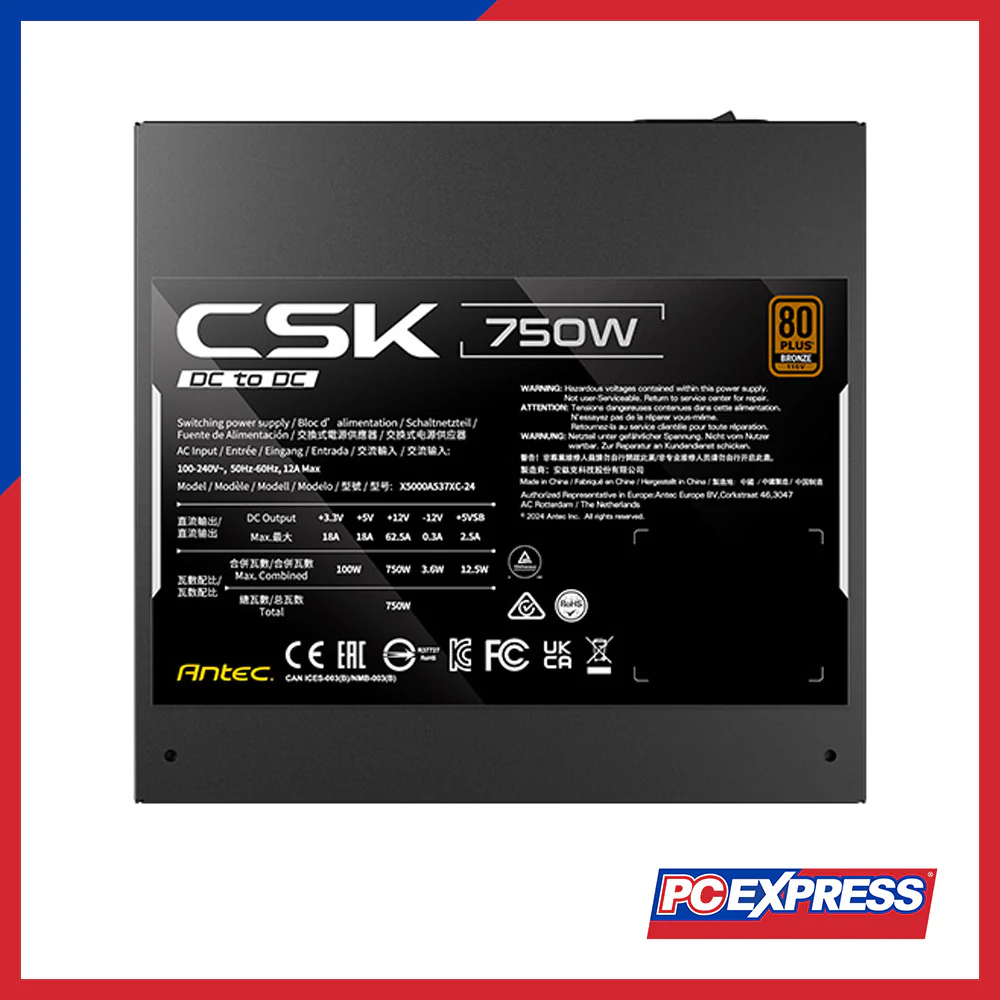

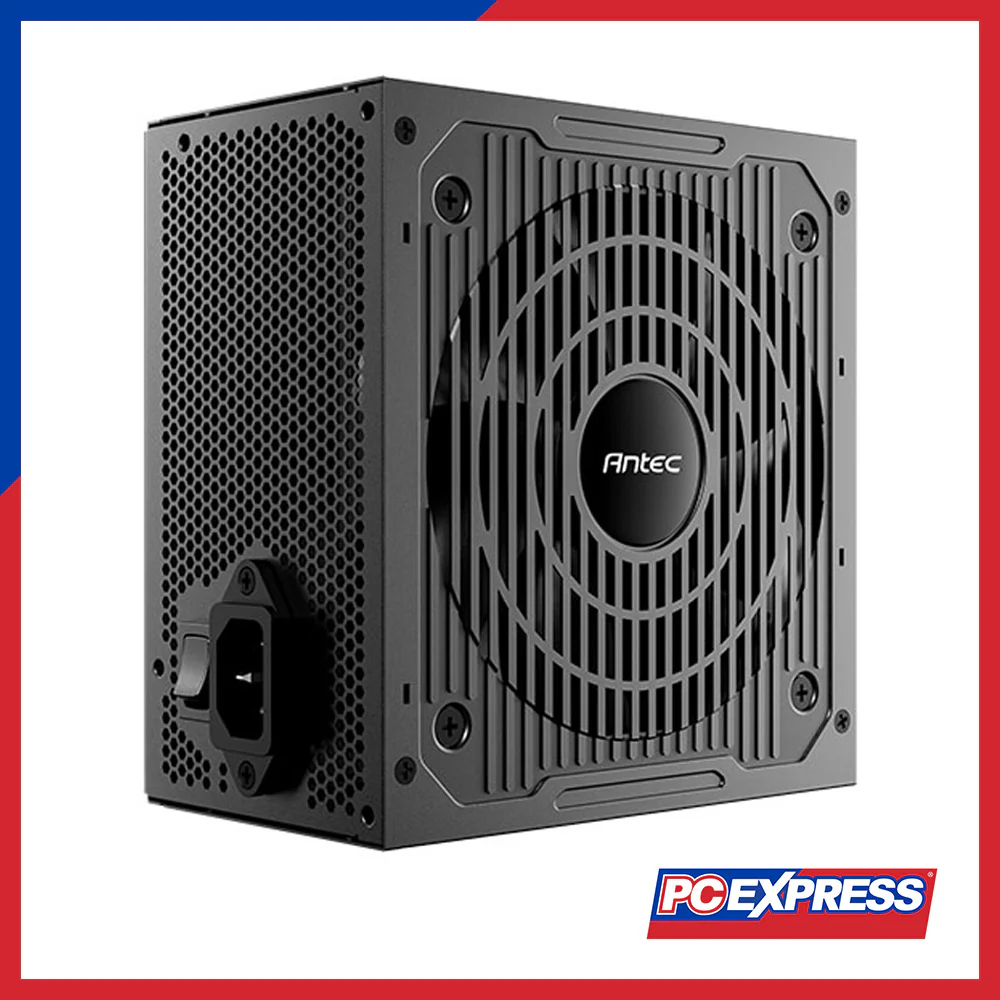

ANTEC CSK750 DC 750W 80+ Bronze Non-Modular Power Supply

Model

CSK750DC / CSK750DC Bronze

Safe Model

X5000A537XC-24

Type

ATX 12V 2.52

Dimension

140(L) × 150(W) × 86(H) mm

Modular

Non-Modular

Input Voltage

100V-240V

Input Current

12A Max

Input Frequency Range

50Hz-60Hz

PFC

Active PFC

Power Good Signal

100-500ms

Protection

OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity

750W

Operation Temperature

0~40°C

Regulatory

cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, BIS

Fan

120mm Silent Fan

Certifications

80 Plus Bronze

Connector

1 × 24(20+4)pin MB
1 × 16(12+4)pin PCIe 5.1 / 12V-2x6 / 300W
2 × 8(4+4)pin CPU
4 × 8(6+2)pin PCI-E
6 × SATA
3 × Molex

Unit Box Dimensions

255(L) × 195(W) × 100(H) mm

Shipping Box Dimensions

545(L) × 425(W) × 230(H) mm

Net Weight

1.80 kg

Gross Weight

2.00 kg

UPC#

CSK750DC US: 0-761345-20115-5
CSK750DC WHITE US: 0-761345-20120-9
CSK750DC JP: 0-761345-20114-8
CSK750DC WHITE JP: 0-761345-20119-3
CSK750DC GB: 0-761345-20113-1
CSK750DC WHITE GB: 0-761345-20118-6
CSK750DC EC: 0-761345-20112-4
CSK750DC WHITE EC: 0-761345-20117-9
CSK750DC AU: 0-761345-20111-7
CSK750DC WHITE AU: 0-761345-20116-2
