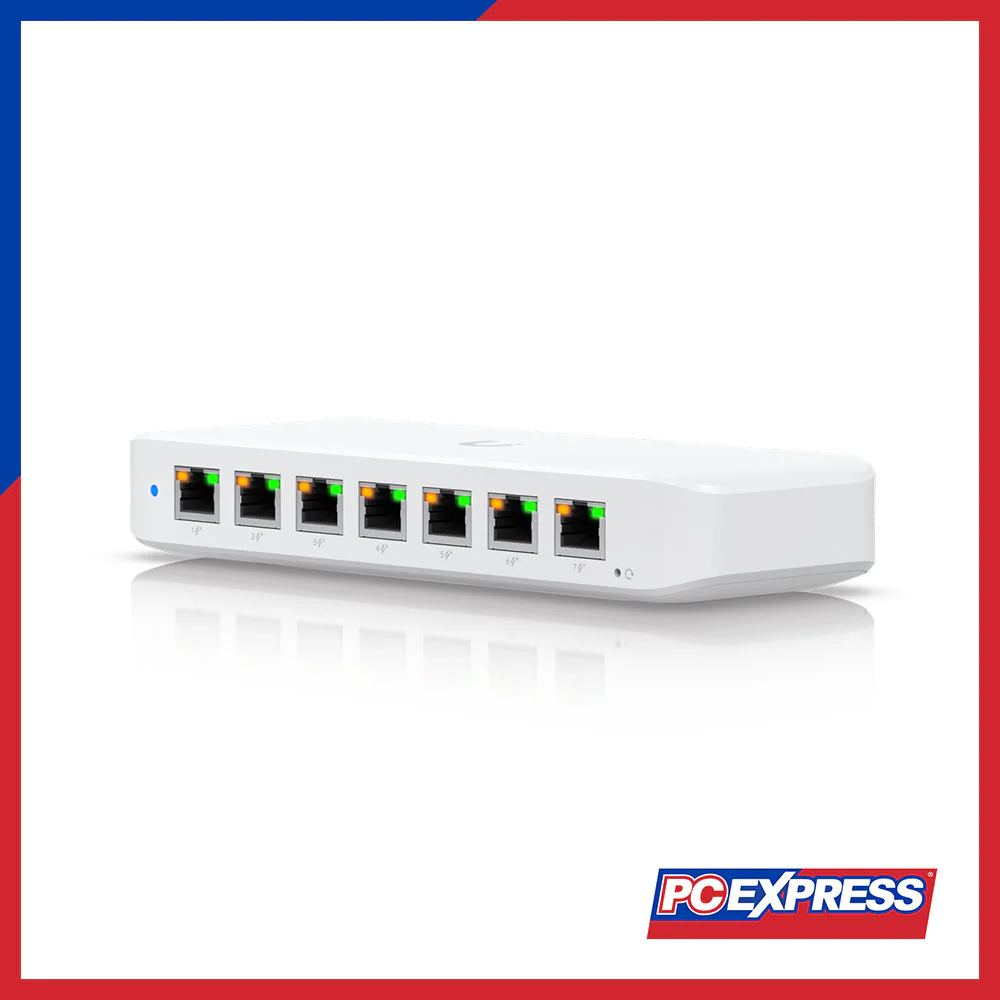

UBIQUITI USW-Ultra-210W Switch

Mechanical

Dimensions

203 x 76 x 33 mm (8 x 3 x 1.3")

Weight

Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)

Enclosure Material

Polycarbonate

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(8) GbE RJ45 ports

PoE Interface

(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total Non-blocking Throughput

8 Gbps

Switching Capacity

16 Gbps

Forwarding Rate

11.904 Mpps

Power Method

(1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Power Supply

54V, external, 3.9A/210W

Supported Voltage Range

44–57V DC

Max. Power Consumption

9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)

Total Available PoE

PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*

Max. PoE+ Wattage per Port

30W

Button

Factory reset

Ambient Operating Temperature

PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient Operating Humidity

10 to 90% non-condensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

Layer 3 Features

–

LEDs

System

Status

Ethernet

PoE
Link/activity

Application Requirements

UniFi Network

Version 8.0.7 and later
