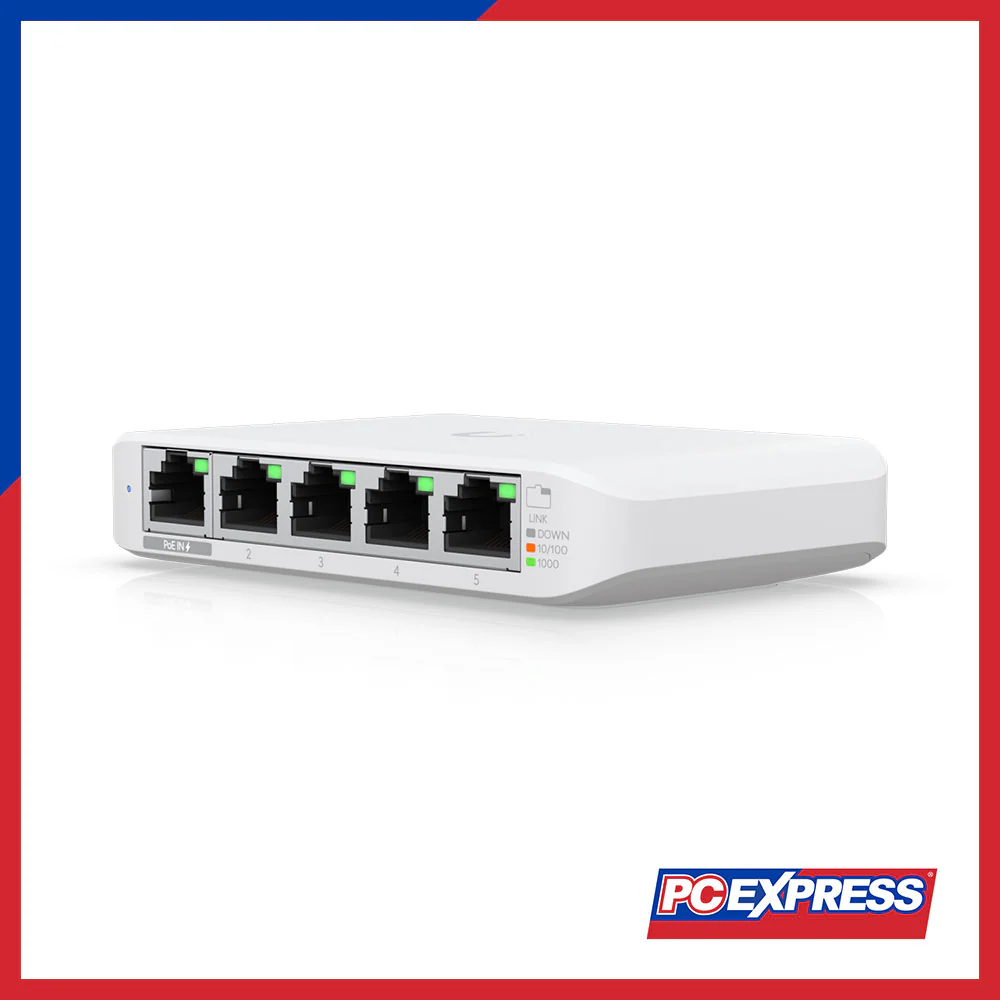

UBIQUITI USW-Flex-Mini Switch

Mechanical

Dimensions

107 x 70 x 21 mm (4.2 x 2.8 x 0.8")

Weight

150 g (5.3 oz)

Enclosure Material

Polycarbonate

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(5) GbE RJ45 ports

Total Non-Blocking Throughput

5 Gbps

Switching Capacity

10 Gbps

Forwarding Rate

7.44 Mpps

Power Method

(1) USB Type C, 5V
(1) PoE/PoE+, 44–57V DC, 0.05–0.04A

Power Supply

5V, 1A power adapter*
*Only single-unit packages include the 5V, 1A USB-C power adapter.

Supported Voltage Range

USB Type C: 4.7–5.3V DC
PoE/PoE+: 44–57V DC

Max. Power Consumption

2.5W

ESD/EMP Protection

Air: ±16kV, Contact: ±12kV

Button

Factory reset

Environmental

Operating Temperature

-5 to 45° C (23 to 113° F)

Operating Humidity

10 to 90% non-condensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

Port isolation
Storm control
Port mirroring
Multicast/broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

Layer 3 Features

–

LEDs

System

Status

Ethernet

Speed/link/activity

Application Requirements

UniFi Network: Version 5.12.5 and later
