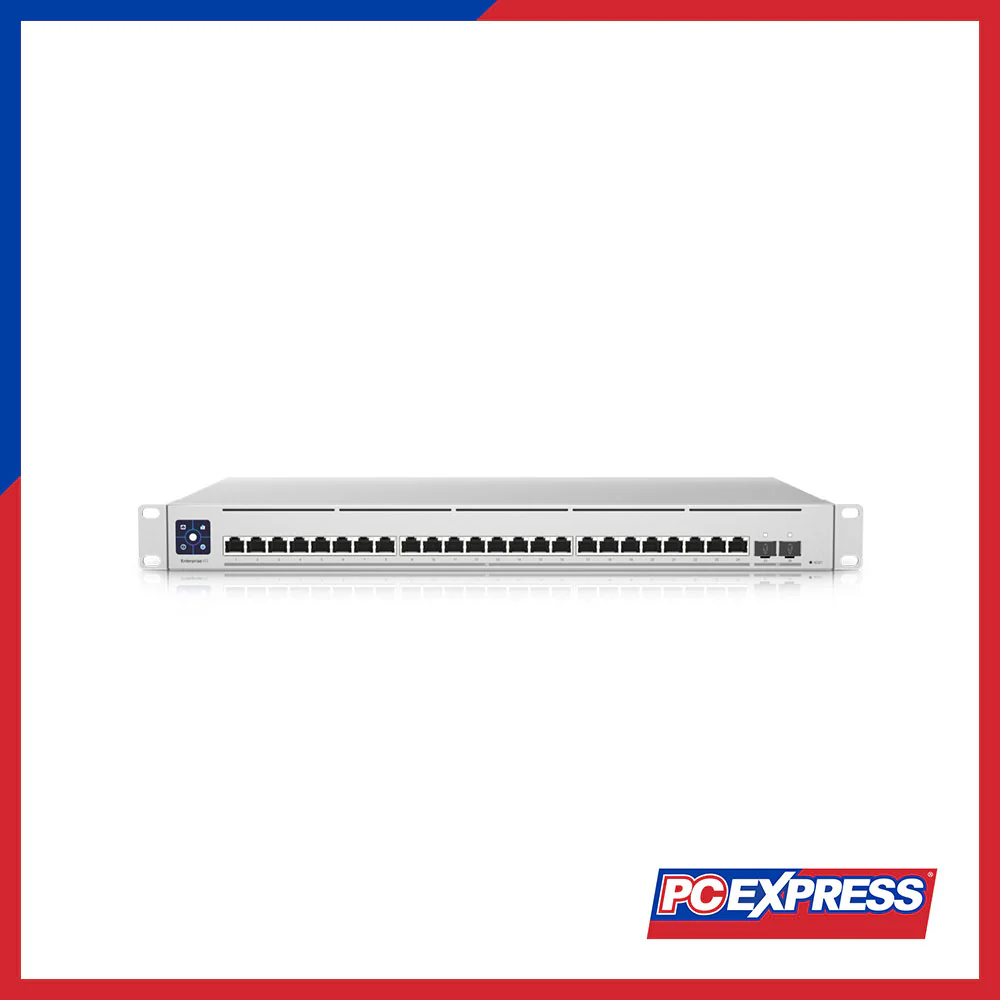

UBIQUITI USW-EnterpriseXG-24 Switch

Mechanical

Dimensions

442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

Weight

Without mounting brackets: 4.5 kg (9.9 lb)
With mounting brackets: 4.6 kg (11 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(24) 1/2.5/5/10 GbE ports
(2) 25G SFP28 ports*

Notes for SFP28 Ports

Do not support mixed speed at 25 Gbps mode.
When one port is at 25 Gbps, the others are also limited to 25 Gbps.
Mixed speed supported when all ports are at 1 or 10 Gbps.

Total Non-blocking Throughput

290 Gbps

Switching Capacity

580 Gbps

Forwarding Rate

431.52 Mpps

Power Method

(1) Universal input: 100–240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input: 11.5V DC, 8.7A

Power Supply

AC/DC, internal, 100W

Supported Voltage Range

100–240V AC

Max. Power Consumption

100W

Services

SMB Layer 3 GbE switch

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

LCM Display

(1) 1.3" color touchscreen

Button

Factory reset

Environmental

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs

LED Indicators

System

Status

Ethernet

Link/activity

Application Requirements

UniFi Network

Version 6.1.67 and later
