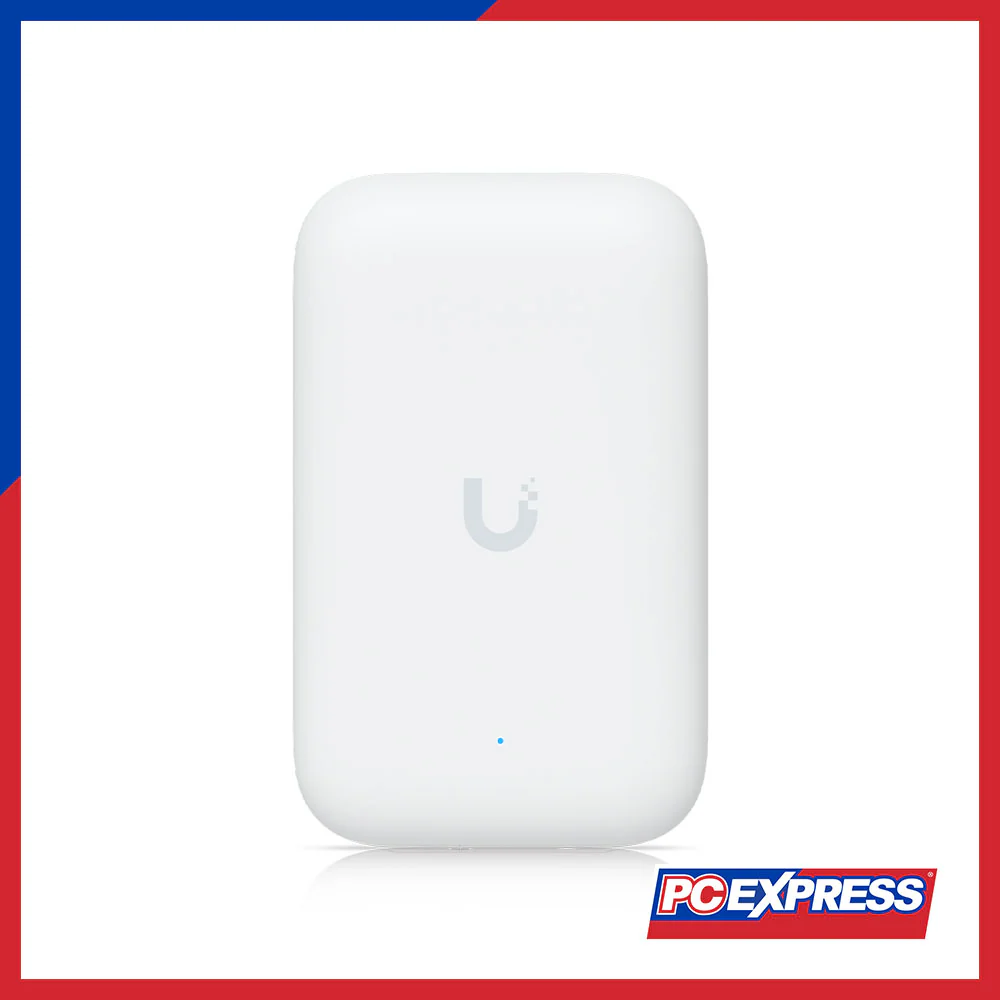

UBIQUITI UK-Ultra (Swiss Army Knife) WiFi Access Point

Mechanical

Dimensions

137 x 84 x 34 mm (5.4 x 3.3 x 1.3")

Weight

173 g (6.1 oz)

Enclosure Material

UV-stabilized polycarbonate

Mount Material

Polycarbonate, SGCC steel, plastic

Pole Mount Diameter

1~2" on pipe outer diameter

Wind Survivability

33.2 N at 200 km/h (7.5 lbf at 125 mph)

Weatherproofing

IPX6

Hardware

Networking Interface

(1) GbE RJ45 port

Management Interface

Ethernet

Power Method

PoE

Power Supply

UniFi PoE Switch

Supported Voltage Range

44–57V DC

Max. Power Consumption

8W

Max. TX Power

2.4 GHz: 20 dBm
5 GHz: 20 dBm
6 GHz: –

MIMO

2.4 GHz: 2 x 2 (DL MU-MIMO)
5 GHz: 2 x 2 (DL MU-MIMO)
6 GHz: –

Max. Data Rate

2.4 GHz: 300 Mbps (BW40)
5 GHz: 866.7 Mbps (BW80)
6 GHz: –

Antenna Gain

2.4 GHz: 4.7 dBi
5 GHz: 6.1 dBi
6 GHz: –

Antenna

(1) Internal antenna
(2) RP-SMA connectors for optional external antennas

LEDs

Power: White/blue
Mesh signal: Blue

Button

Factory reset

Mounting

Wall, ceiling, pole (Included)

Ambient Operating Temp

-40 to 60°C (-40 to 140°F)

Ambient Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi Standards

802.11a/b/g/n/ac

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest Traffic Isolation

Supported

Concurrent Clients

200+

Supported Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

Application Requirements

UniFi Network (Web): Version 8.0.7 and later
UniFi Network (iOS): Version 10.11.1 and later
UniFi Network (Android): Version 10.10.1 and later
