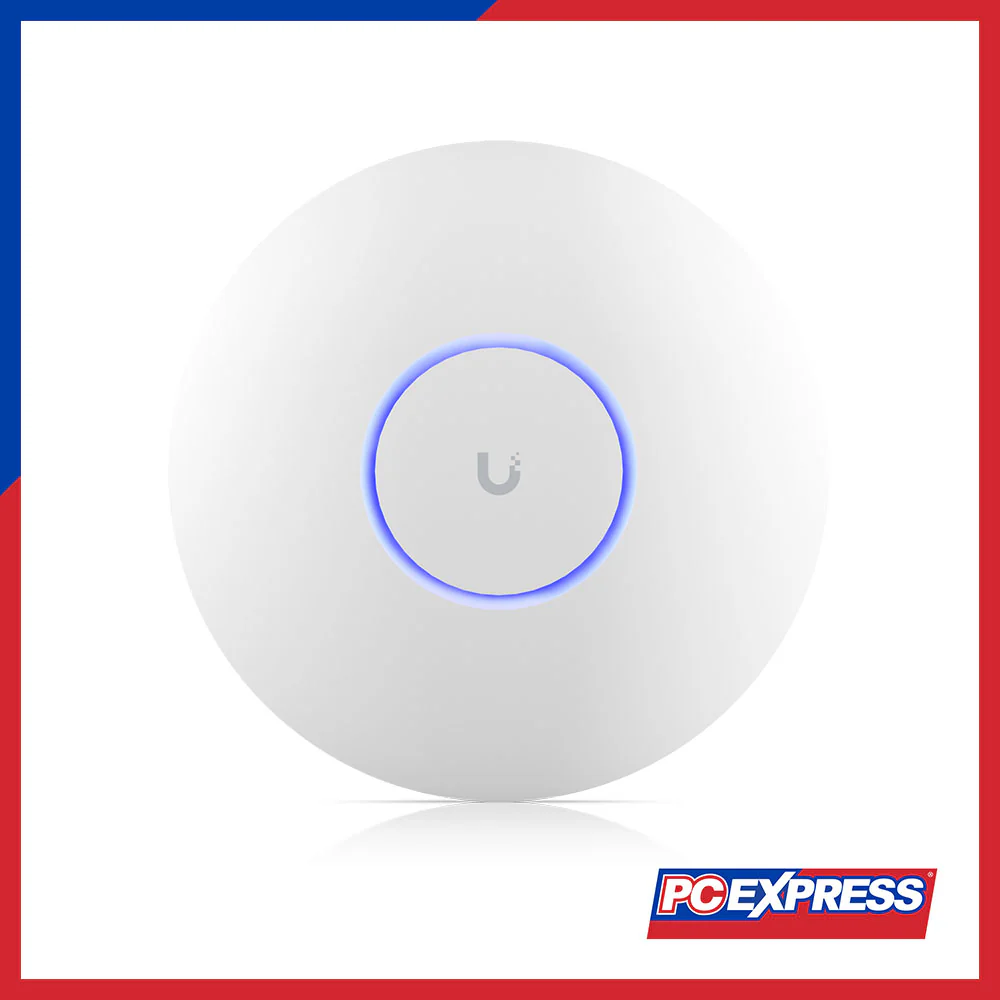

UBIQUITI U7 Pro WiFi Access Point

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure Material

Polycarbonate, metal

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking Interface

(1) 1/2.5 GbE RJ45 port

Management Interface

Ethernet

Power Method

PoE+

Power Supply

UniFi PoE switch

Supported Voltage Range

44–57V DC

Max. Power Consumption

21W

Max. TX Power

2.4 GHz

23 dBm

5 GHz

26 dBm

6 GHz

23 dBm

MIMO

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

5 GHz

2 x 2 (DL/UL MU-MIMO)

6 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

2.4 GHz

688 Mbps (BW40)

5 GHz

4.3 Gbps (BW240)

6 GHz

5.7 Gbps (BW320)

Antenna Gain

2.4 GHz

4 dBi

5 GHz

6 dBi

6 GHz

5.8 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall/ceiling (Included)

Operating Temperature

-30 to 40° C (-22 to 104° F)

Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi Standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest Traffic Isolation

Supported

Concurrent Clients

300+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.0.26 and later

UniFi OS

Version 3.2 and later
