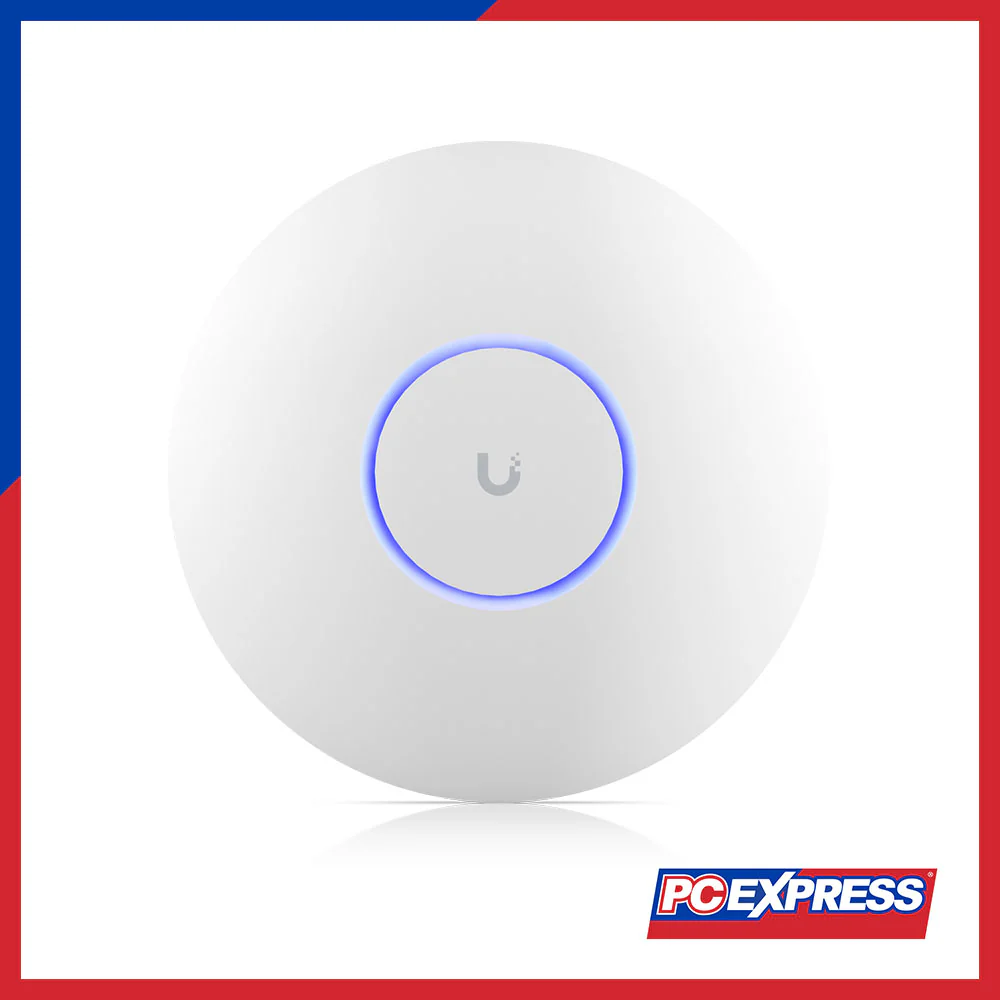

UBIQUITI U7 Pro Max WiFi Access Point

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure Material

Polycarbonate, aluminum

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking Interface

(1) 1/2.5 GbE RJ45 port

Management Interface

Ethernet

Power Method

PoE+

Power Supply

UniFi PoE switch

Supported Voltage Range

44—57V DC

Max. Power Consumption

25W

Max. TX Power

- 2.4 GHz

23 dBm

- 5 GHz

29 dBm

- 6 GHz

23 dBm

MIMO

- 2.4 GHz

2 x 2 (DL/UL MU-MIMO)

- 5 GHz

4 x 4 (DL/UL MU-MIMO)

- 6 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

- 2.4 GHz

688 Mbps (BW40)

- 5 GHz

8.6 Gbps (BW240)

- 6 GHz

5.7 Gbps (BW320)

Antenna Gain

- 2.4 GHz

4 dBi

- 5 GHz

6 dBi

- 6 GHz

5.9 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall, ceiling (Included)

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi Standards

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest Traffic Isolation

Supported

Concurrent Clients

500+

Supported Data Rates

- 802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

- 802.11b

1, 2, 5.5, 11 Mbps

- 802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

- 802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

- 802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

- 802.11ax (WiFi 6/6E)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

- 802.11be (WiFi 7, 5 GHz)

7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

- 802.11be (WiFi 7, 6 GHz)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.2.93 and later
