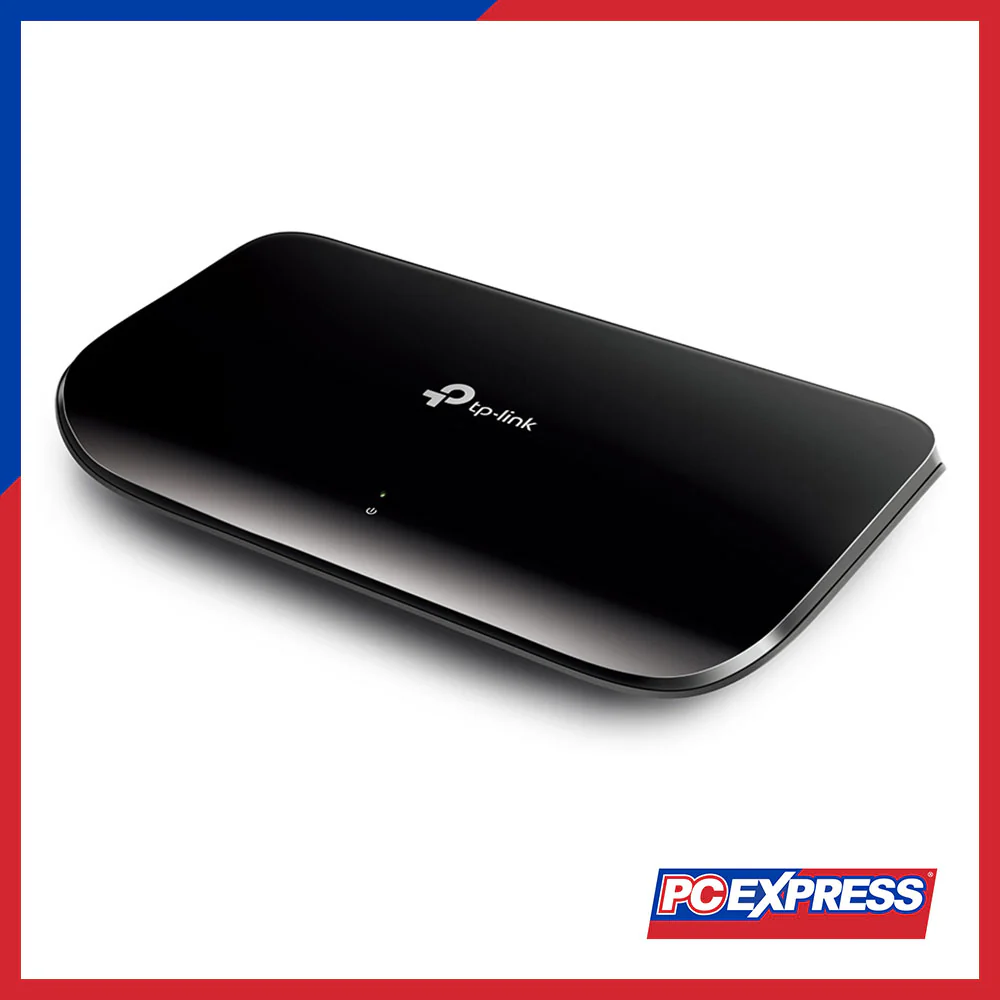

TP-LINK TL-SG1008D 8-Port Gigabit Desktop Switch

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i/802.3u/802.3ab/802.3x

Interface

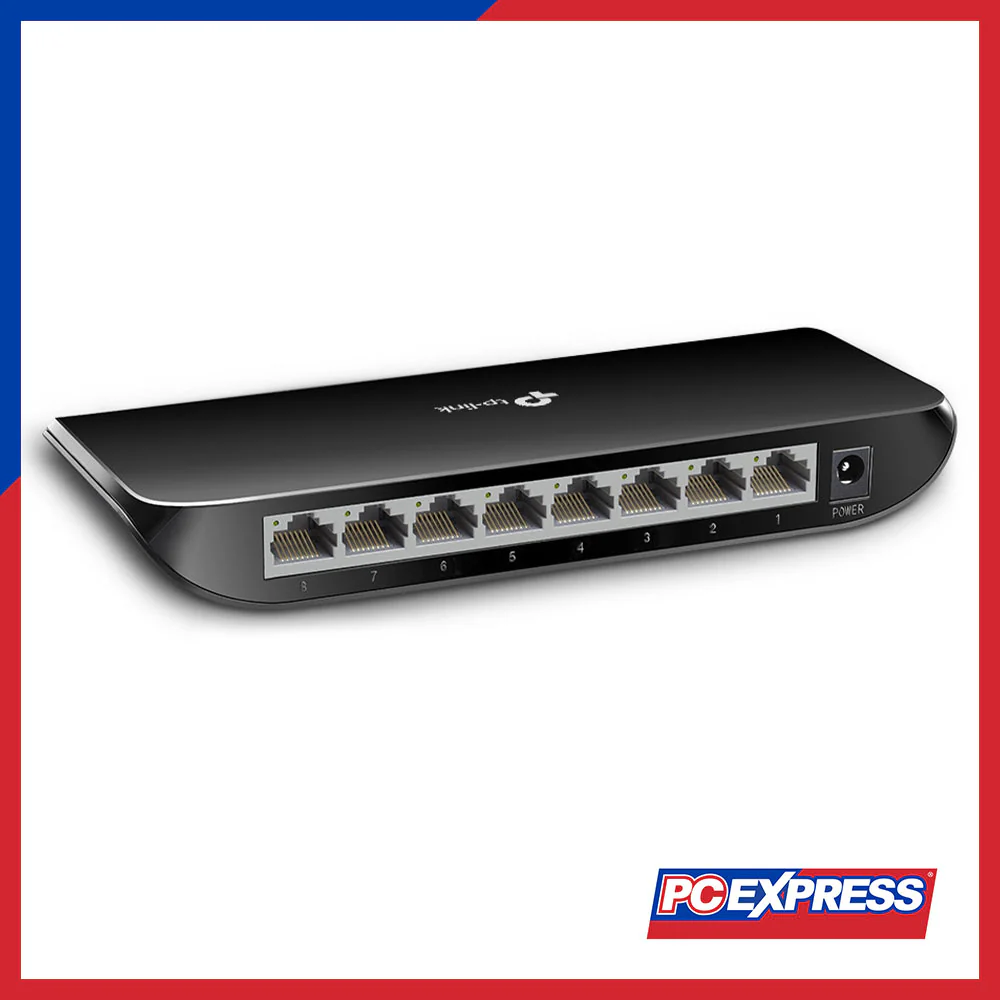

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

No

Power Consumption

Maximum: 4.63W (220V/50Hz)

External Power Supply

External Power Adapter (Output: 5VDC / 0.6A)

Jumbo Frame

15 KB

Switching Capacity

16 Gbps

Dimensions (W x D x H)

7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)

Max Power Consumption

4.63W (220V/50Hz)

Max Heat Dissipation

15.80BTU/h

SOFTWARE FEATURES

Transfer Method

Store and Forward

MAC Address Table

4K

Advanced Functions

Green Technology, saving power up to 80%

802.3X Flow Control, Back Pressure

OTHERS

Certification

FCC, CE, RoHs

Package Contents

8-Port Gigabit Desktop Switch TL-SG1008D

Power Adapter

Installation Guide

System Requirements

-

Environment

Operating Temperature: 0°C104°F)

Storage Temperature: -40°C158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
