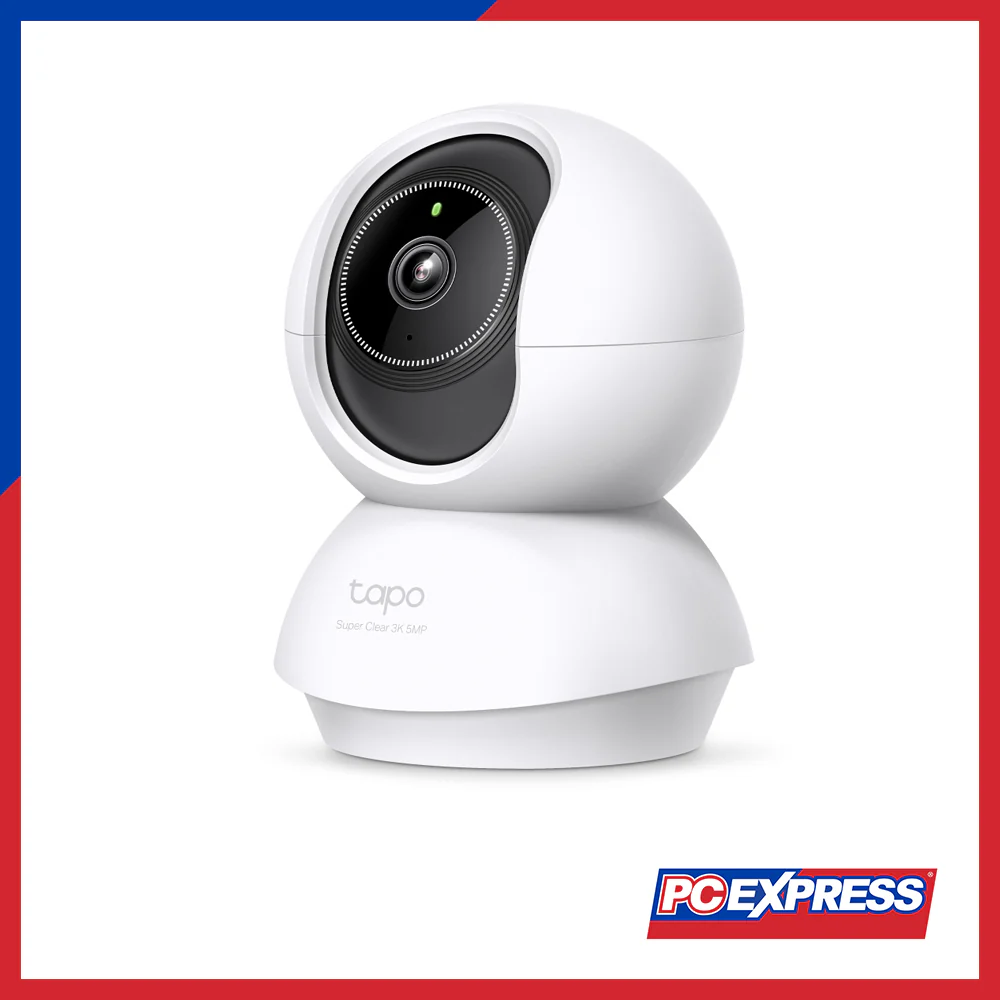

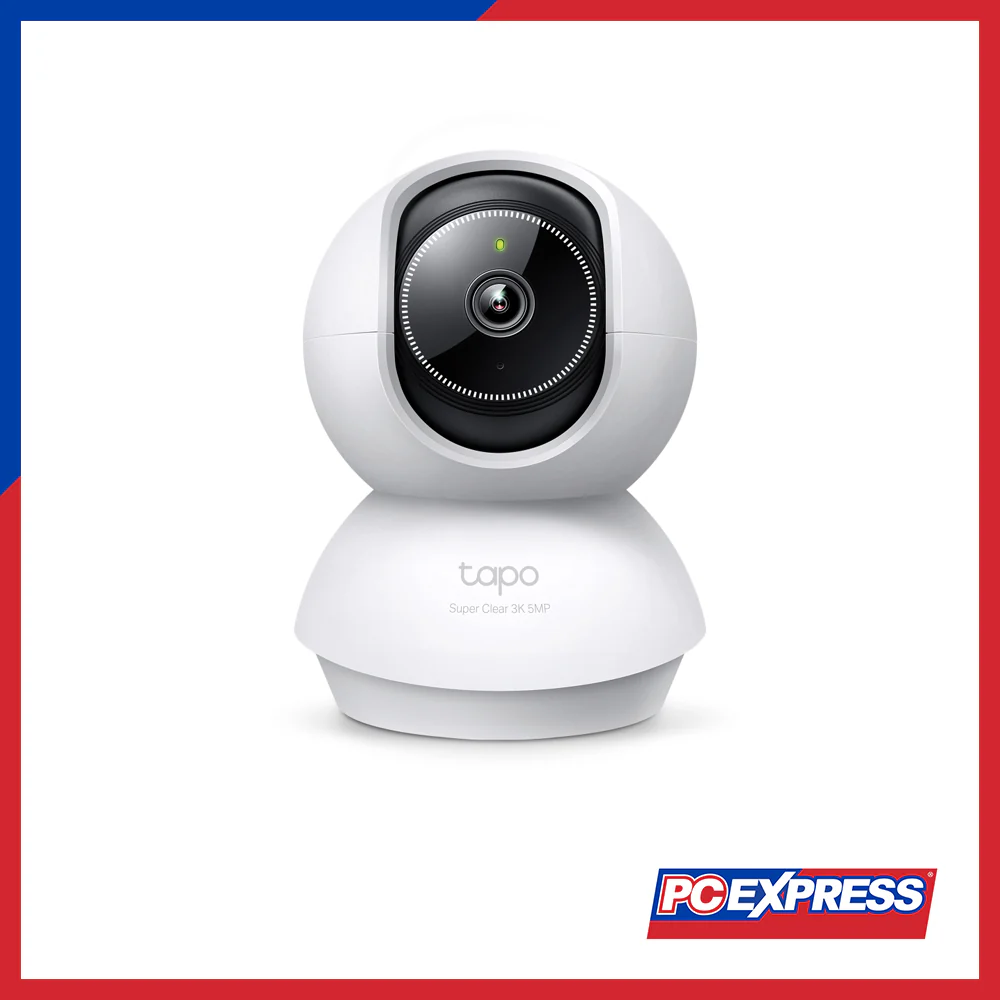

TP-LINK Tapo C230 Pan/Tilt AI Home Security Wi-Fi Camera

CAMERA

Image Sensor

1/3″ Progressive Scan CMOS Starlight Sensor

Lens

• Focal Length: 4 mm
• Aperture: F2.0
• Field of View: 88° (Diagonal), 75° (Horizontal), 41° (Vertical)

Motion Range

• Pan: 340° mechanical (360° coverage)
• Tilt: 69° mechanical

Night Vision

850 nm IR LED (up to 40 ft / 12 m)

Interface & Button

• 1× RESET Button
• 1× MicroSD Card Slot (up to 512 GB)

VIDEO & AUDIO

Maximum Resolution

3K 5 MP (2880×1620 px)

Frame Rate

15/20/25/30 fps (default 15 fps)

Video Compression

H.264

Live View

Yes

Image Enhancement

• 3D DNR
• BLC

Audio I/O

Built‑in Microphone & Speaker

Audio Communication

Two‑Way Audio with Noise Cancellation

Siren Volume

99 dB (measured at 4 in / 10 cm)

STORAGE

Local Storage

MicroSD card slot on camera (up to 512 GB)

Cloud Storage

Tapo Care Cloud Storage (subscription required)

DETECTION & NOTIFICATIONS

AI Detection

• Motion Detection
• Person Detection
• Line‑Crossing Detection
• Tamper Detection
• Baby Cry Detection
• Vehicle Detection
• Pet Detection
• Meow Detection
• Bark Detection
• Glass‑Breaking Detection

Activity Zones

Yes

Output Notification

• System Notification
• System Notification with Snapshot (via Tapo Care)

NETWORK

Network Connectivity

Wi‑Fi (IEEE 802.11b/g/n, 2.4 GHz)

RTSP

Yes

ONVIF

Yes

SECURITY

Security

• On‑Device Machine Learning
• 128‑bit AES Encryption with SSL/TLS
• WPA/WPA2‑PSK

POWER

Power Source

9 V DC Power Adapter

Input Voltage

100–240 V, 50/60 Hz

Output Voltage

9 V ⎓ 0.6 A (DC)

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Mounting Options

Tabletop, Ceiling

Operating Temperature

0 ℃ – 40 ℃

Storage Temperature

–20 ℃ – 60 ℃

Operating Humidity

10 % – 90 % RH, non‑condensing

Storage Humidity

5 % – 90 % RH, non‑condensing

Dimensions (W × D × H)

3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm)

Package Content

• Tapo C230 Camera
• Power Adapter
• Quick Start Guide
• Mounting Screws & Anchors
• Mounting Template
• Camera Base

Certifications

CE, FCC, RCM, WEEE, EAC
