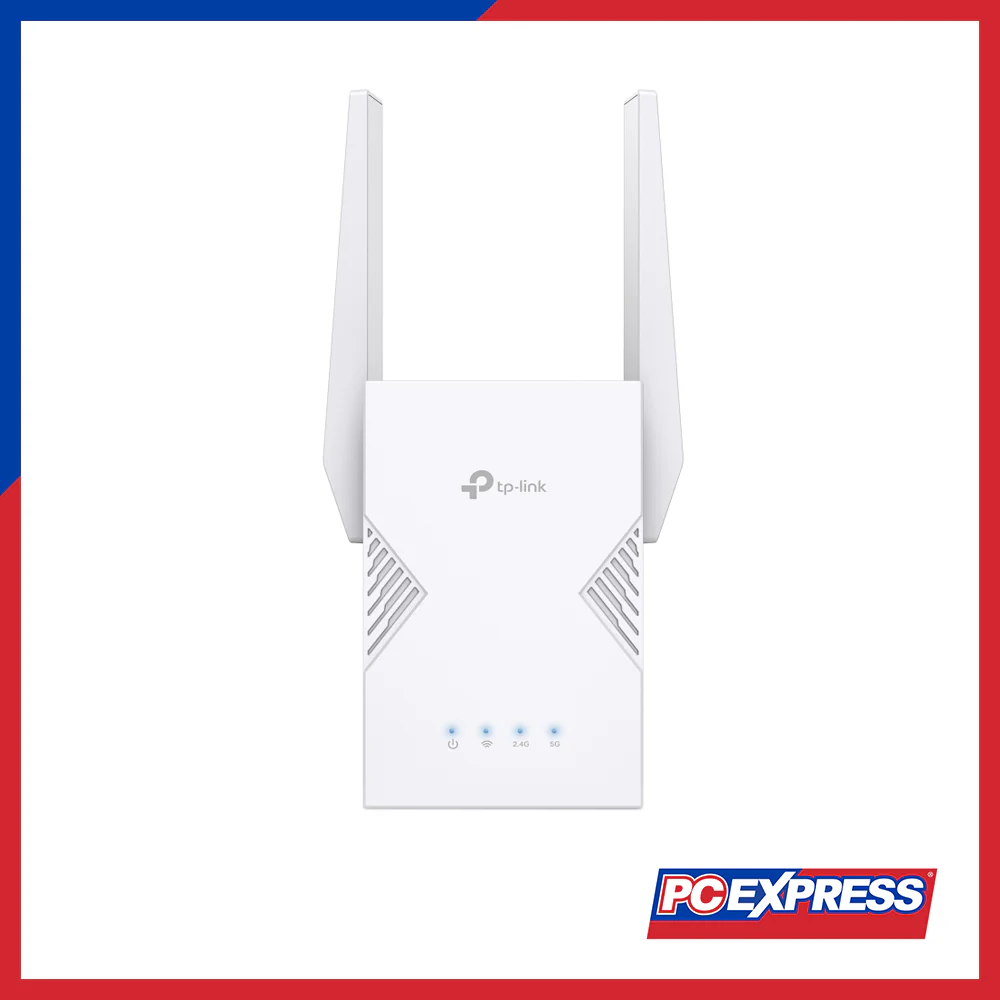

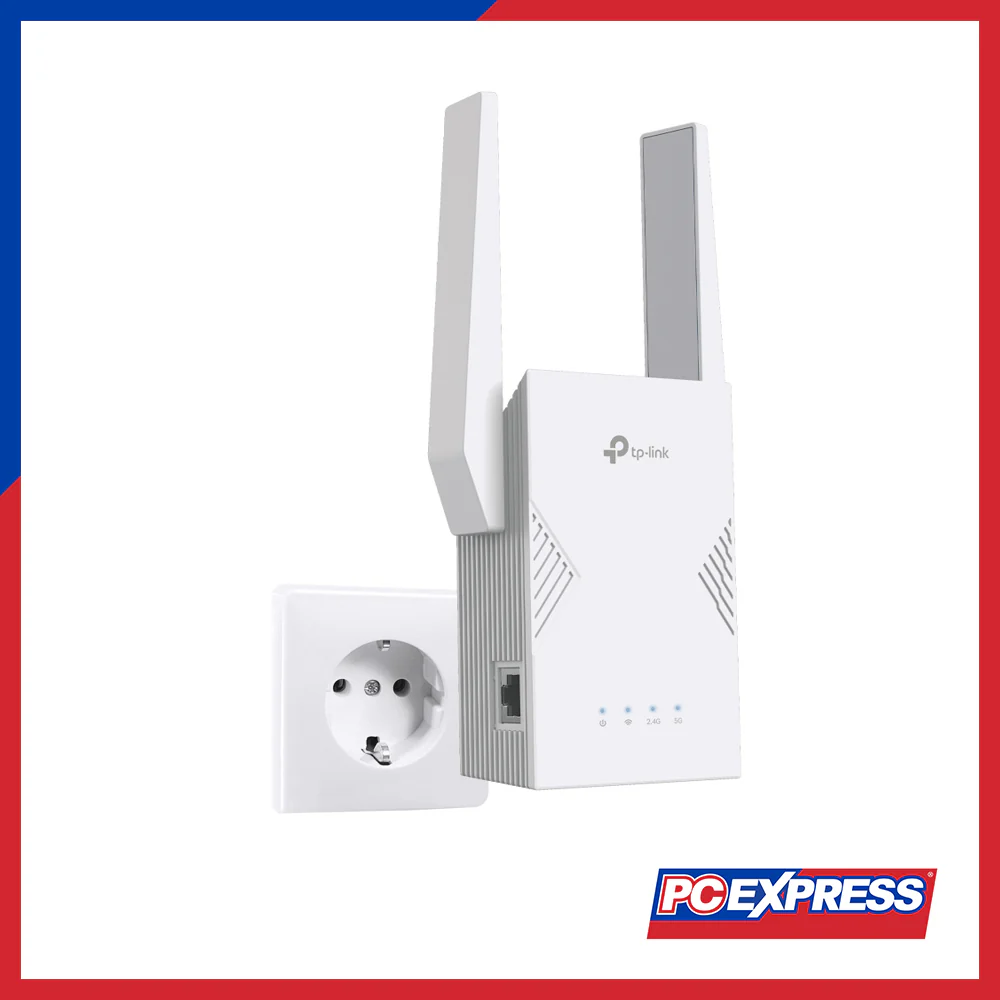

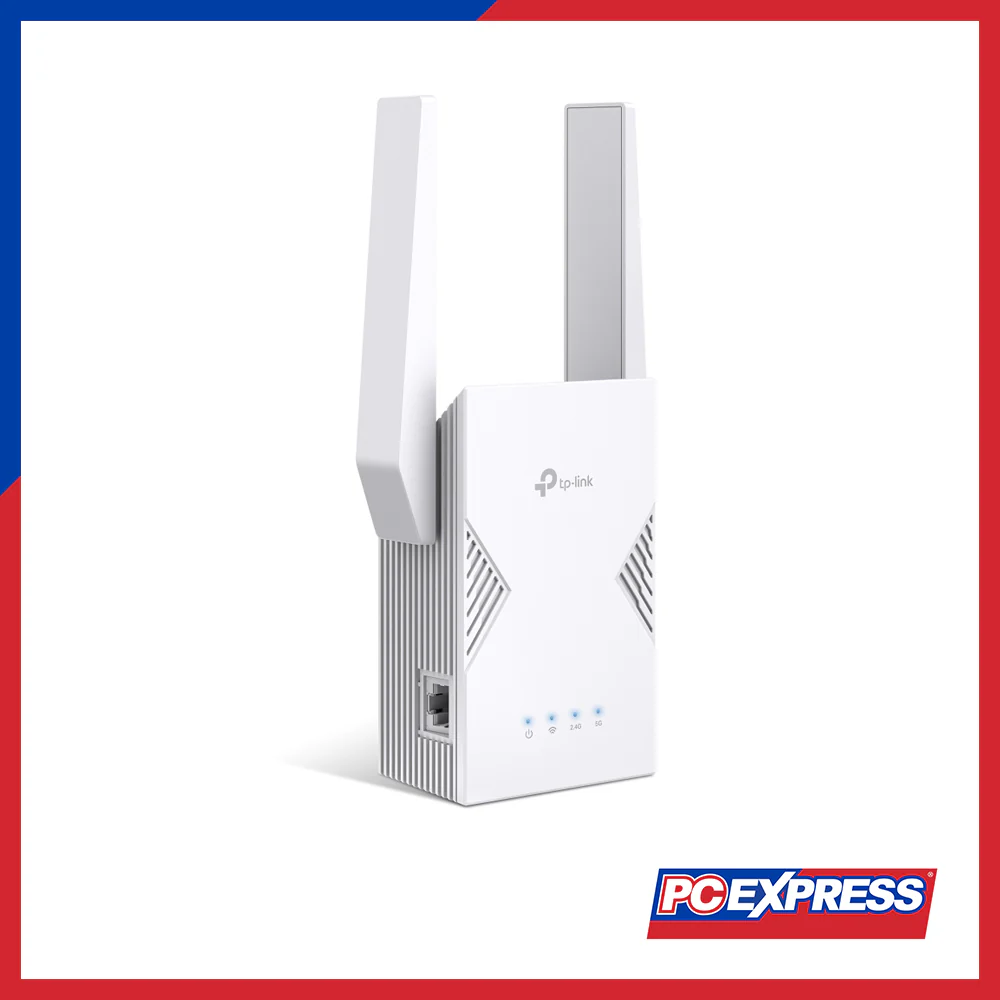

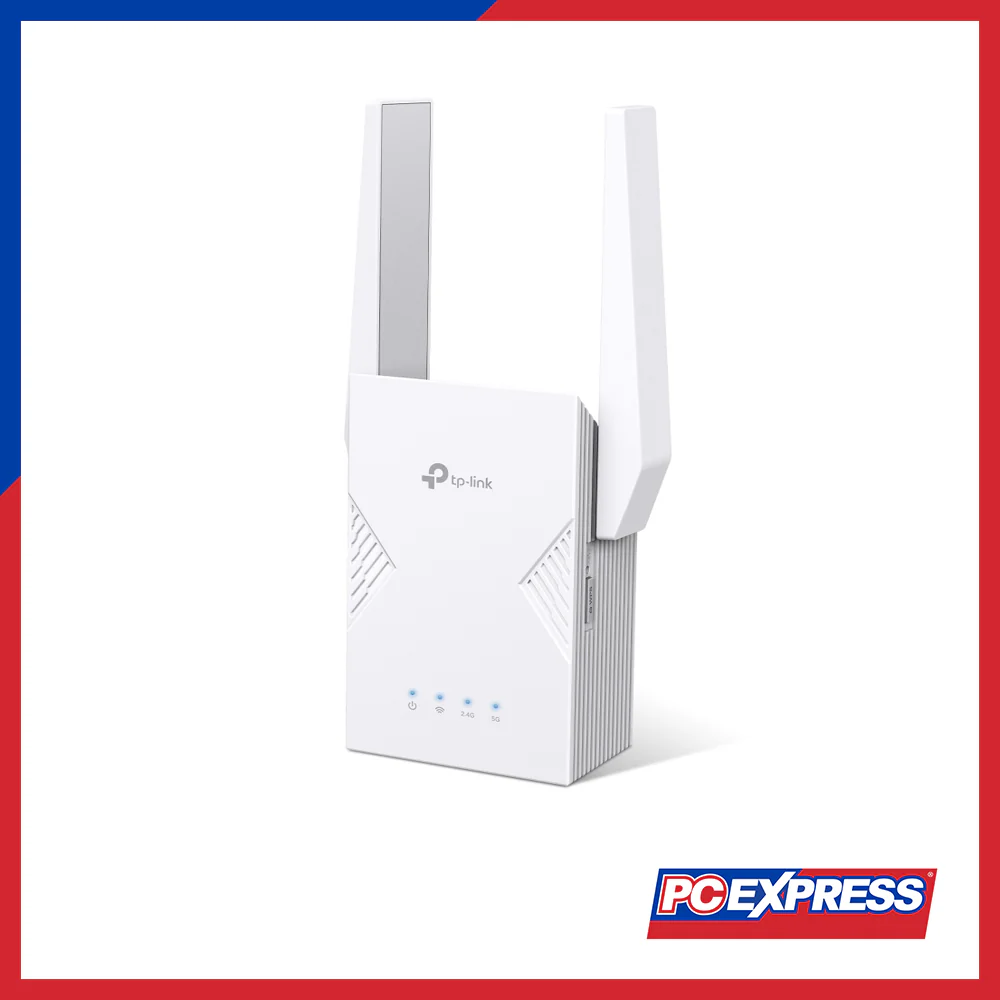

TP-LINK RE225BE BE3600 Dual-Band Wi-Fi 7 Range Extender

Interface

1 Gbps Ethernet Port

Button

• WPS Button
• Reset Button

Input Power

100-240V~50/60Hz 0.3A

Max. Power Consumption

15W

Dimensions (W × D × H)

3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)

Antenna

2 External Antennas

WIRELESS FEATURES

Wireless Standards

Wi-Fi 7
IEEE 802.11be/ax/ac/n/a (5 GHz)
IEEE 802.11be/ax/n/b/g (2.4 GHz)

Frequency

• 5 GHz
• 2.4 GHz

Signal Rate

• 2882 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz

Working Modes

Range Extender / Access Point

Reception Sensitivity

5 GHz:
• EHT20 MCS0: -96 dBm
• EHT40 MCS0: -94 dBm
• EHT80 MCS0: -91 dBm
• EHT160 MCS0: -88 dBm
• EHT20 MCS13: -59 dBm
• EHT40 MCS13: -57 dBm
• EHT80 MCS13: -54 dBm
• EHT160 MCS13: -51 dBm

2.4 GHz:
• EHT20 MCS0: -95 dBm
• EHT40 MCS0: -93 dBm
• EHT20 MCS13: -58 dBm
• EHT40 MCS13: -56 dBm

Wireless Security

• WPA/WPA2-PSK Encryptions
• WPA2/WPA3

Advanced Features

• Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs

Transmission Power (FCC)

• 2.4 GHz < 30 dBm
• 5 GHz < 30 dBm

Mesh Technology

EasyMesh-Compatible

Wireless Function

• LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage

OTHER

Network Services Enabled by Default

Web Server
• Manage via HTTP/HTTPS
• Port: 80/443 (TCP)

DHCP Server
• IP Address Assignment
• Port: 67 (UDP)

App Management
• Manage via App
• Port: 20001 (TCP)
• Port: 20002 (UDP)

Certification

FCC, RoHS

Package Content

• Wi-Fi 7 Range Extender RE235BE
• Quick Installation Guide

System Requirements

JavaScript-enabled browser (IE, Firefox, Chrome, Safari, etc.)

Environment

• Operating Temp: 0℃~40℃ (32℉~104℉)
• Storage Temp: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% (non-condensing)
• Storage Humidity: 5%~90% (non-condensing)
