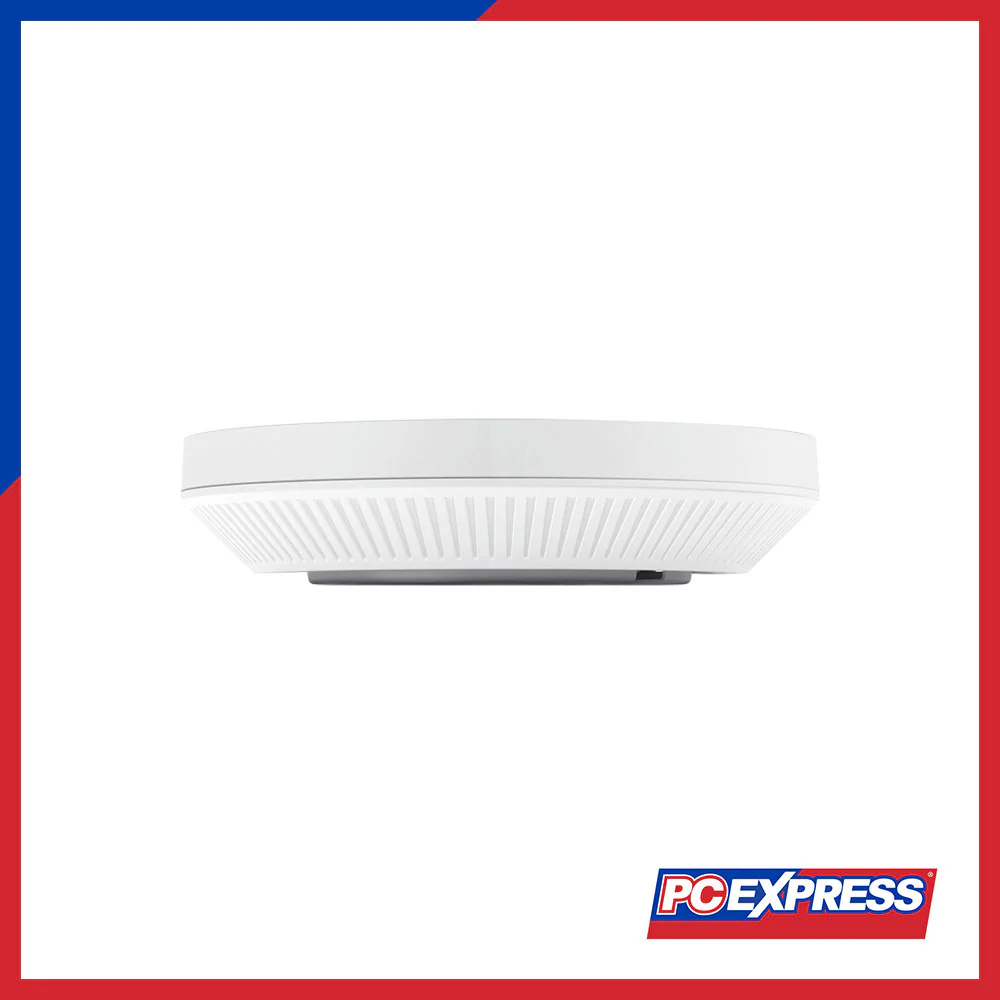

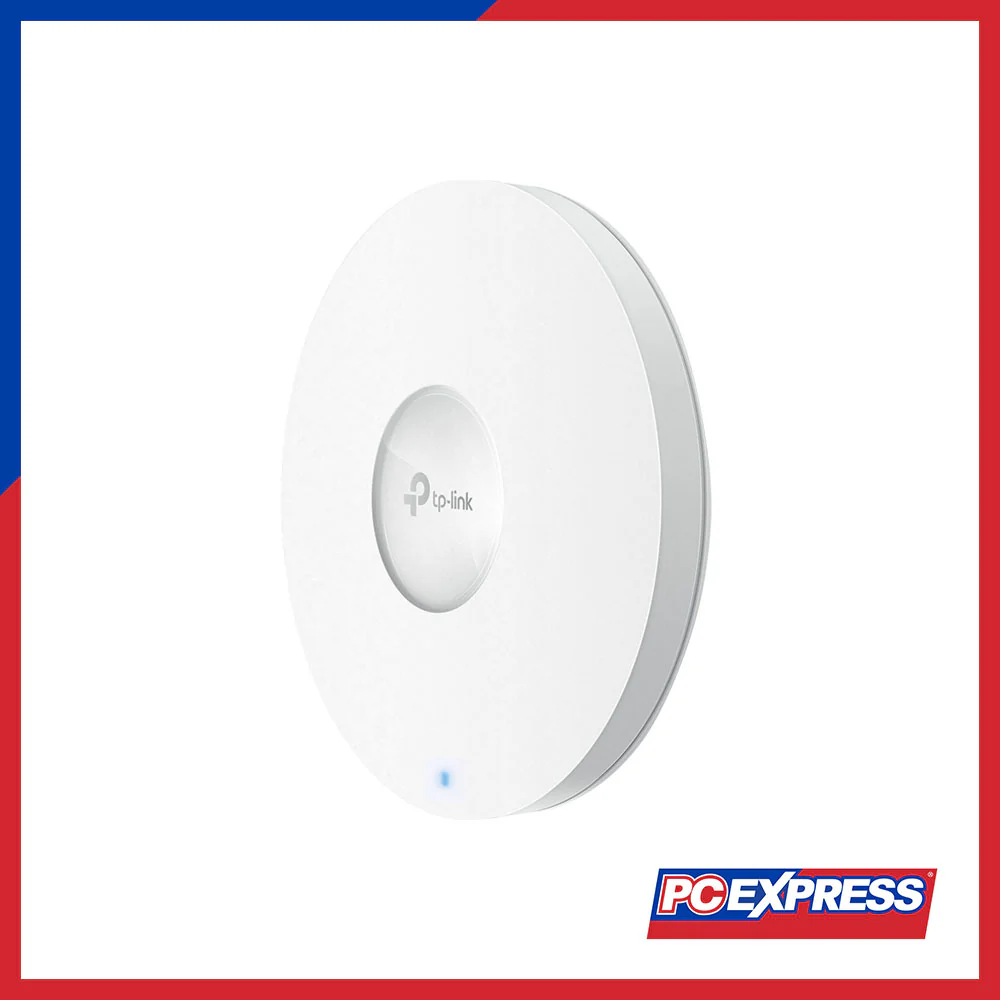

TP-LINK Omada EAP620 HD AX1800 Ceiling Mount WiFi 6 Access Point

Interface

1× Gigabit Ethernet (RJ‑45) Port (supports IEEE 802.3at PoE and Passive PoE)

Button

Reset

Power Supply

• 802.3at PoE
• 48 V Passive PoE
• 12 V / 1.5 A DC

Max. Power Consumption

• EU: 14.4 W (PoE); 13.1 W (DC)
• US: 14.9 W (PoE); 13.4 W (DC)

Dimensions (W × D × H)

6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna

Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

Mounting

• Ceiling / Wall Mounting (kits included)
• Junction Box Mounting

Coverage

140 ㎡ (1,500 ft²)***

Concurrent Clients

1,020+**

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 1,201 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 1024‑QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs; 8 per band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (adjustable in dBm)
• QoS (WMM)
• MU‑MIMO
• Seamless Roaming△
• Omada Mesh△
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics (by SSID/AP/Client)

Wireless Security

• Captive Portal Authentication△
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID‑to‑VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA‑Personal/Enterprise, WPA2‑Personal/Enterprise, WPA3‑Personal/Enterprise

Transmission Power

• CE:
  – < 20 dBm (2.4 GHz, EIRP)
  – < 23 dBm (5 GHz band 1/2, EIRP)
  – < 25 dBm (5 GHz band 3)
• FCC:
  – < 25 dBm (2.4 GHz)
  – < 25 dBm (5 GHz)

Omada App

Yes

Centralized Management

• Omada Cloud‑Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (via OC300, OC200, Omada Cloud‑Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging

Local/Remote Syslog

SSH

Yes

Web‑based Management

HTTP/HTTPS

L3 Management

Yes

Multi‑site Management

Yes

Management VLAN

Yes

Zero‑Touch Provisioning

Yes (requires Omada Cloud‑Based Controller; supported on EAP620 HD v2.0+)

Certification

CE, FCC, RoHS

Package Content

• EAP620 HD
• Power Adapter
• Ceiling / Wall Mounting Kits
• Installation Guide

System Requirements

Microsoft® Windows XP/Vista/7/8/10, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: –40–70 ℃ (–40–158 ℉)
• Operating Humidity: 10–90% RH non‑condensing
• Storage Humidity: 5–90% RH non‑condensing
