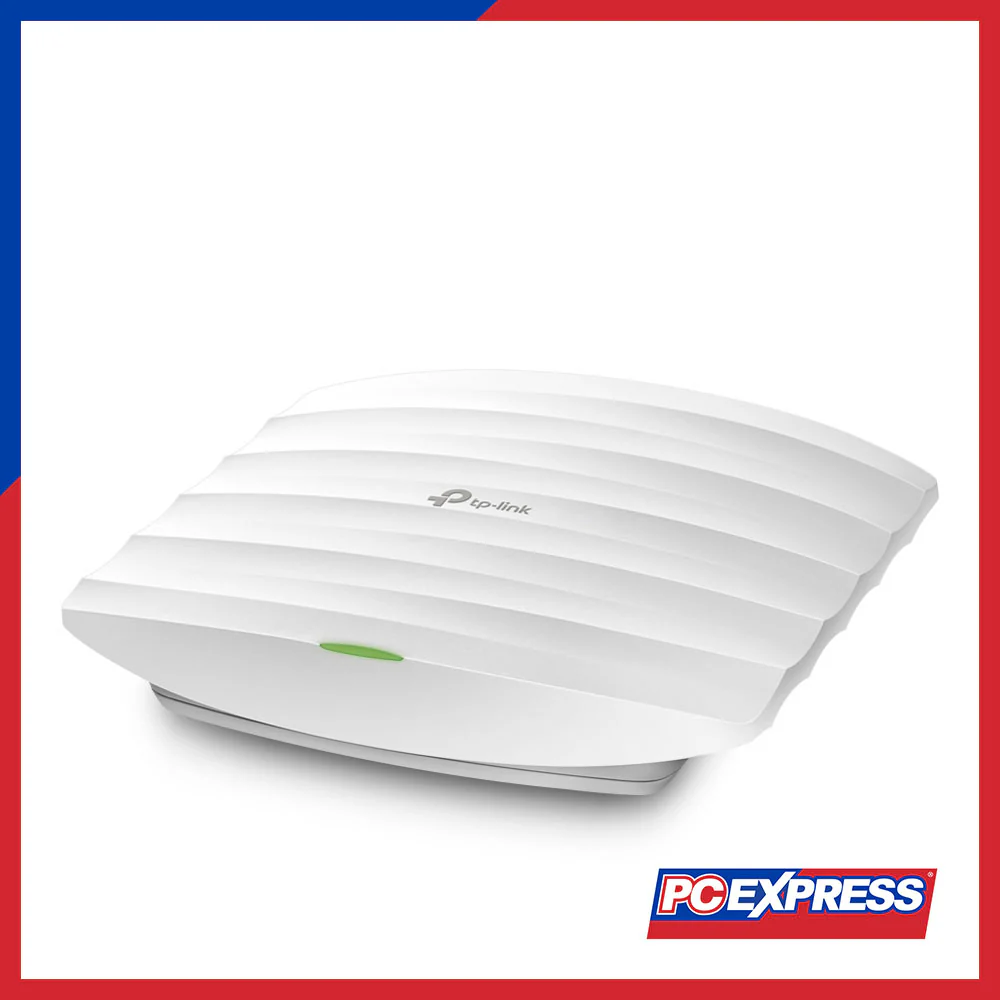

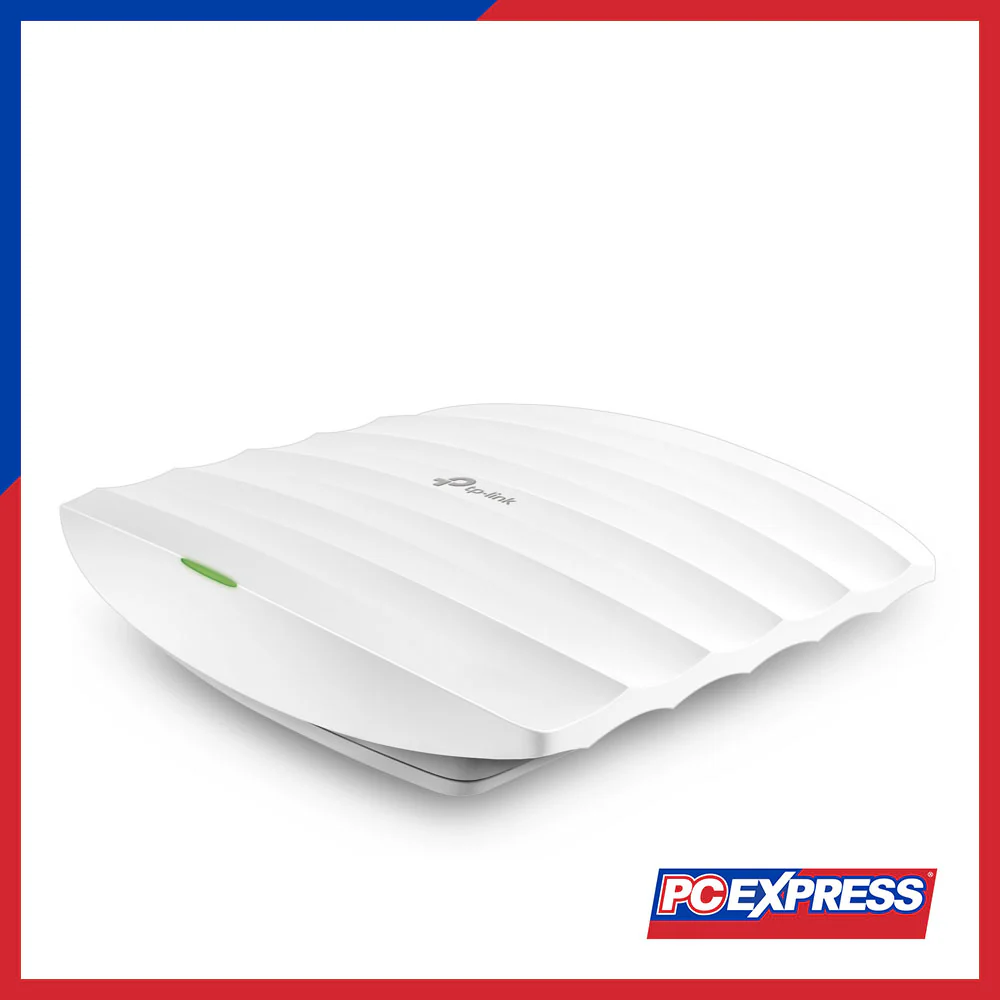

TP-LINK Omada EAP225 AC1350 Ceiling Mount Dual-Band Wi-Fi Access Point

Interface

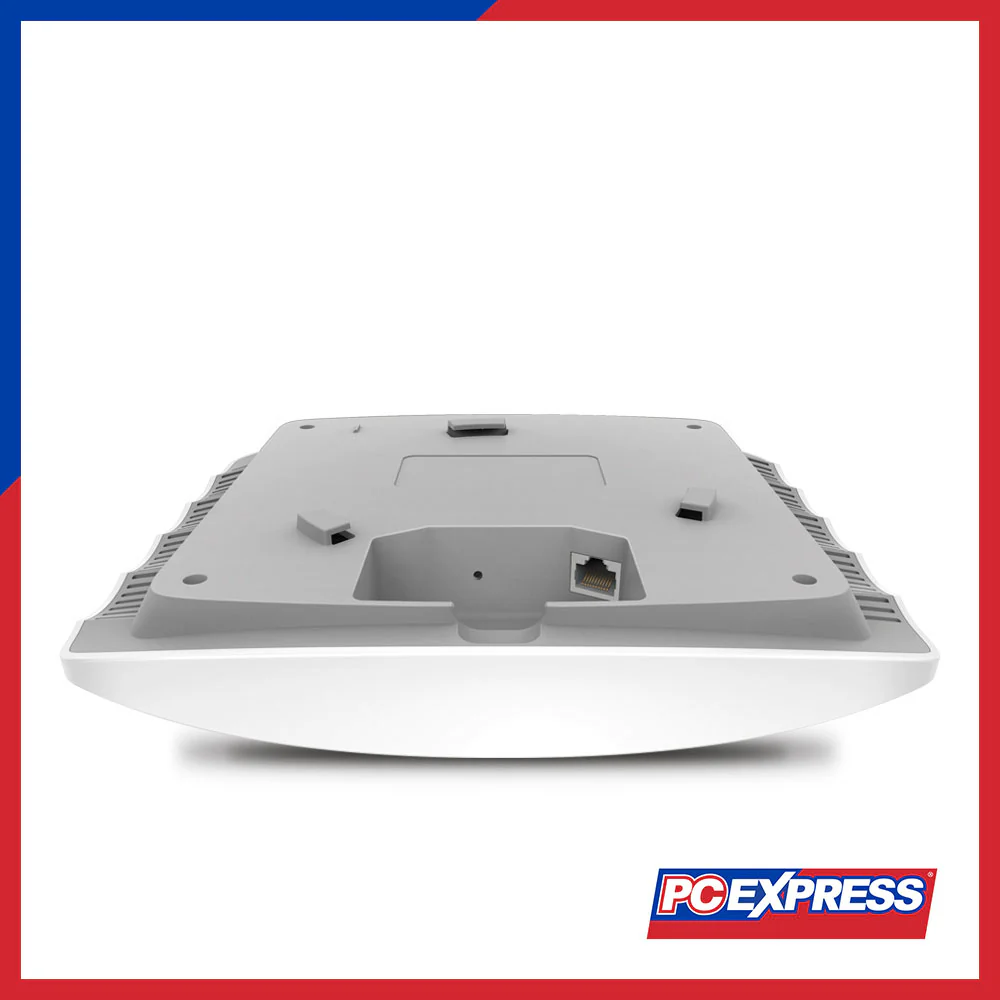

1 × Gigabit Ethernet (RJ‑45) Port (supports IEEE 802.3af PoE and Passive PoE)

Physical Security Lock

Yes

Button

Reset

Power Supply

• 802.3af/at PoE
• 24 V Passive PoE (+4,5 pins; –7,8 pins; PoE adapter included)

Max. Power Consumption

• EU: 10.5 W
• US: 12.6 W

Dimensions (W × D × H)

8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna

Internal omni × 3
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi

Mounting

Ceiling / Wall mounting (kits included)

Wireless Standards

IEEE 802.11ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 450 Mbps

Wireless Functions

• Multiple SSIDs (up to 16; 8 per band)
• Enable/Disable wireless radio
• Automatic channel assignment
• Transmit power control (dBm)
• QoS (WMM)
• Seamless roaming
• Band steering
• Load balance
• MU‑MIMO
• Airtime fairness
• Beamforming
• Rate limit
• Reboot schedule
• Wireless schedule
• Wireless statistics (by SSID/AP/client)

Wireless Security

• Captive portal authentication
• Access control
• MAC address filtering
• Client isolation
• SSID‑to‑VLAN mapping
• Rogue AP detection
• 802.1X support

Transmission Power

• CE:
  – ≤ 20 dBm (2.4 GHz, EIRP)
  – ≤ 23 dBm (5 GHz, EIRP)
• FCC:
  – ≤ 24 dBm (2.4 GHz)
  – ≤ 22 dBm (5 GHz)

Omada App

Yes

Omada Cloud Controller

Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud‑Based Controller (supported on EAP225 v3.0, v4.0+; not supported on v3.20)

Omada Controller Software

Yes

Cloud Access

Yes (via OC300, OC200, Omada Software Controller, or Omada Cloud‑Based Controller; see version support above)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging

Local/Remote Syslog

SSH

Yes

Web‑based Management

HTTP/HTTPS

L3 Management

Yes

Multi‑site Management

Yes

Management VLAN

Yes

Zero‑Touch Provisioning

Yes (requires Omada Cloud‑Based Controller; supported on EAP225 v3.0, v4.0+; not on v3.20)

Certification

CE, FCC, RoHS

Package Content

• AC1350 Wireless MU‑MIMO Gigabit Ceiling Mount Access Point (EAP225)
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide

System Requirements

Microsoft® Windows XP/Vista/7/8/10; Linux

Environment

• Operating Temp: 0 ℃ – 60 ℃ (32 ℉ – 144 ℉)
• Storage Temp: –40 ℃ – 70 ℃ (–40 ℉ – 158 ℉)
• Operating Humidity: 10 % – 90 % non‑condensing
• Storage Humidity: 5 % – 90 % non‑condensing
