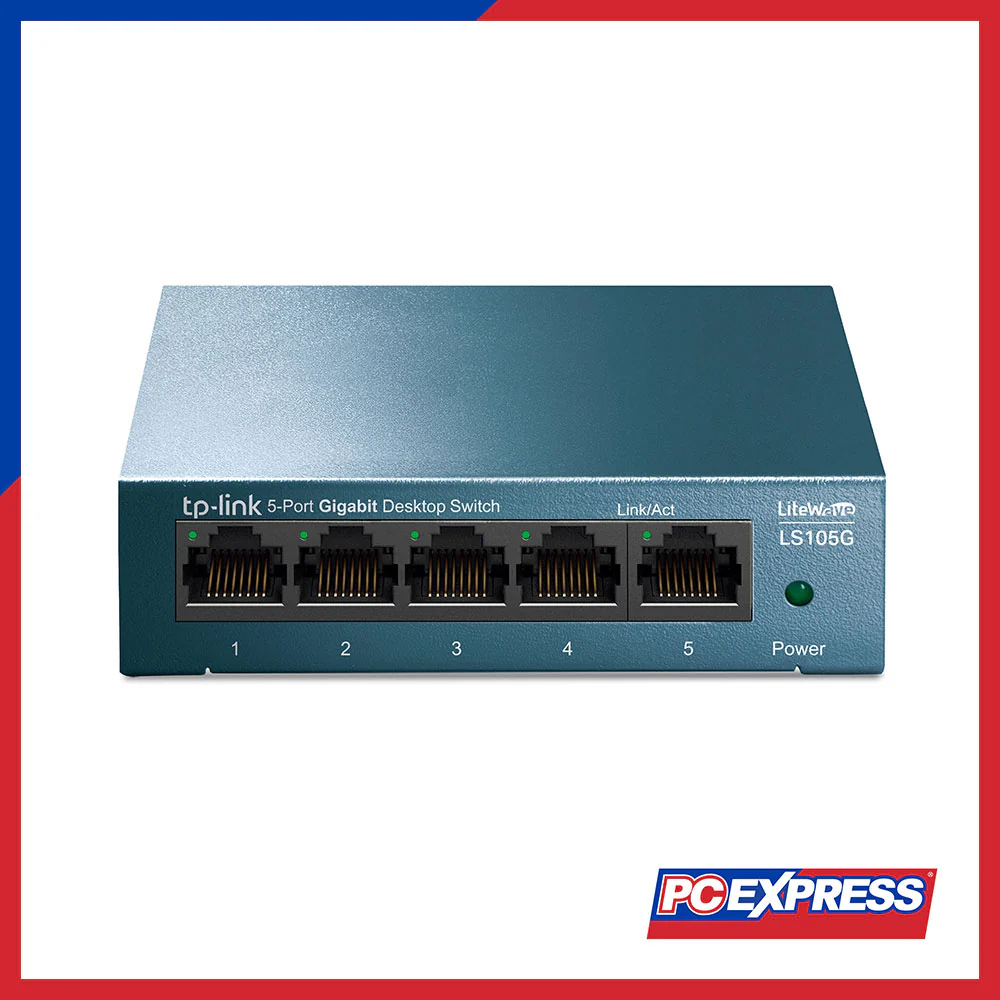

TP-LINK LS105G 5-Port 10/100/1000Mbps Desktop Switch

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i/802.3u/802.3ab/802.3x, IEEE 802.1p

Interface

5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 5VDC / 0.6A)

LED

System Power, Link/Act indicators per port built into each RJ-45 port

Dimensions (W x D x H)

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Max. Power Consumption

3.57 W (220V/50Hz)

Max. Heat Dissipation

12.17 BTU/h

PERFORMANCE

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2K

Packet Buffer Memory

1 Mb

SOFTWARE FEATURES

Advanced Features

Green Technology, 802.3X Flow Control, 802.1P/DSCP QoS

Transmission Method

Store and Forward

OTHERS

Certification

CE, FCC, RoHS

Package Content

5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide

Environment

Operating Temperature: 0°C40°C (32°F104°F)
Storage Temperature: -40°C70°C (-40°F158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
