TP-LINK EAP235 Omada AC1200 Wall-Plate Dual-Band Wi-Fi Access Point

Interface

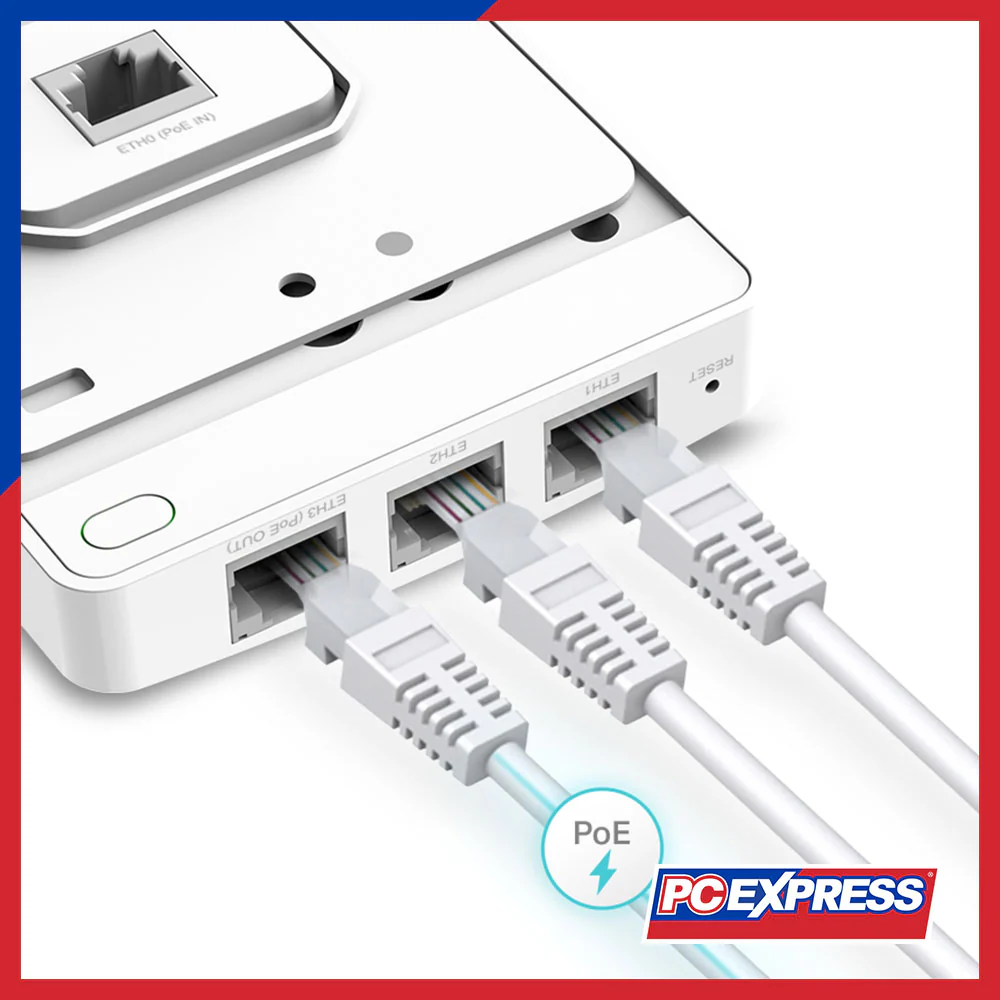

• Uplink: 1 × 10/100/1000 Mbps Ethernet Port
• Downlink: 3 × 10/100/1000 Mbps Ethernet Ports (one supports PoE OUT; requires 802.3at PoE+ input, max output 13 W)

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/802.3at PoE

PoE Out

• PoE Passthrough (Pins 1,2+; 3,6−)
• PoE Out (requires 802.3at PoE input, max output 13 W)△

Max. Power Consumption

9.8 W (standalone)
24.4 W (with PoE Out)

Dimensions (W × D × H)

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna

2 Dual‑Band Antennas
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 4 dBi

Mounting

Wall‑plate mounting

Coverage

25 ㎡ (300 ft²)***

Concurrent Clients

200+**

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps

Wireless Functions

• 16 SSIDs (up to 8 per band)
• Enable/Disable Radio
• Auto Channel Assignment
• Transmit Power Control (dBm)
• QoS (WMM)
• MU‑MIMO
• Band Steering
• Beamforming
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics (by SSID/AP/Client)

Wireless Security

• Captive Portal Authentication
• Access Control
• MAC Address Filtering
• Client Isolation
• SSID‑to‑VLAN Mapping
• Local LAN‑Port‑Based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152‑bit WEP
• WPA/WPA2‑PSK
• WPA/WPA2‑Enterprise

Transmission Power

• CE:
  – ≤ 20 dBm (2.4 GHz, EIRP)
  – ≤ 23 dBm (5 GHz, EIRP)
• FCC:
  – ≤ 21 dBm (2.4 GHz)
  – ≤ 21 dBm (5 GHz)

Omada App

Yes

Centralized Management

• Omada Cloud‑Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (requires OC300, OC200, Omada Software or Cloud‑Based Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging

Local/Remote Syslog

SSH

Yes

Web‑based Management

HTTP/HTTPS

L3 Management

Yes

Multi‑site Management

Yes

Management VLAN

Yes

Zero‑Touch Provisioning

Yes (requires Omada Cloud‑Based Controller)

Certification

CE, FCC, RoHS

Package Content

• Omada AC1200 MU‑MIMO Gigabit Wall‑Plate AP (EAP235‑Wall)
• Installation Guide
• Mounting Screw

System Requirements

Microsoft Windows XP/Vista/7/8/10

Environment

• Operating Temp: 0 – 40 ℃ (32 – 104 ℉)
• Storage Temp: –40 – 70 ℃ (–40 – 158 ℉)
• Operating Humidity: 10 – 90 % non‑condensing
• Storage Humidity: 5 – 90 % non‑condensing
