TP-LINK Archer C64 AC1200 Wireless Mu-Mimo Wifi Router

Network Security

- SPI Firewall

- Access Control

- IP and MAC Binding

Guest Network

- 1× 2.4 GHz Guest Network

- 1× 5 GHz Guest Network

WiFi Encryption

- WPA

- WPA2

- WPA3

- WPA/WPA2-Enterprise (802.1x)

WIRELESS

- Standards: Wi-Fi 5

- WiFi Speeds: AC1200

- 5 GHz: 867 Mbps (802.11ac)

- 2.4 GHz: 400 Mbps (802.11n)

- WiFi Range: Suitable for 3 Bedroom Houses

- 4× Fixed High-Performance Antennas

- Beamforming: Concentrates wireless signal

strength towards clients to expand WiFi range

- WiFi Capacity: Medium

- Dual-Band

- MU-MIMO (Multi-User, Multiple-Input, Multiple-

Output): Simultaneously communicates with

multiple MU-MIMO clients

- Airtime Fairness: Improves network efficiency

by limiting excessive occupation

Working Modes

- Router Mode

- Access Point Mode

HARDWARE

- Processor: 1.2 GHz CPU

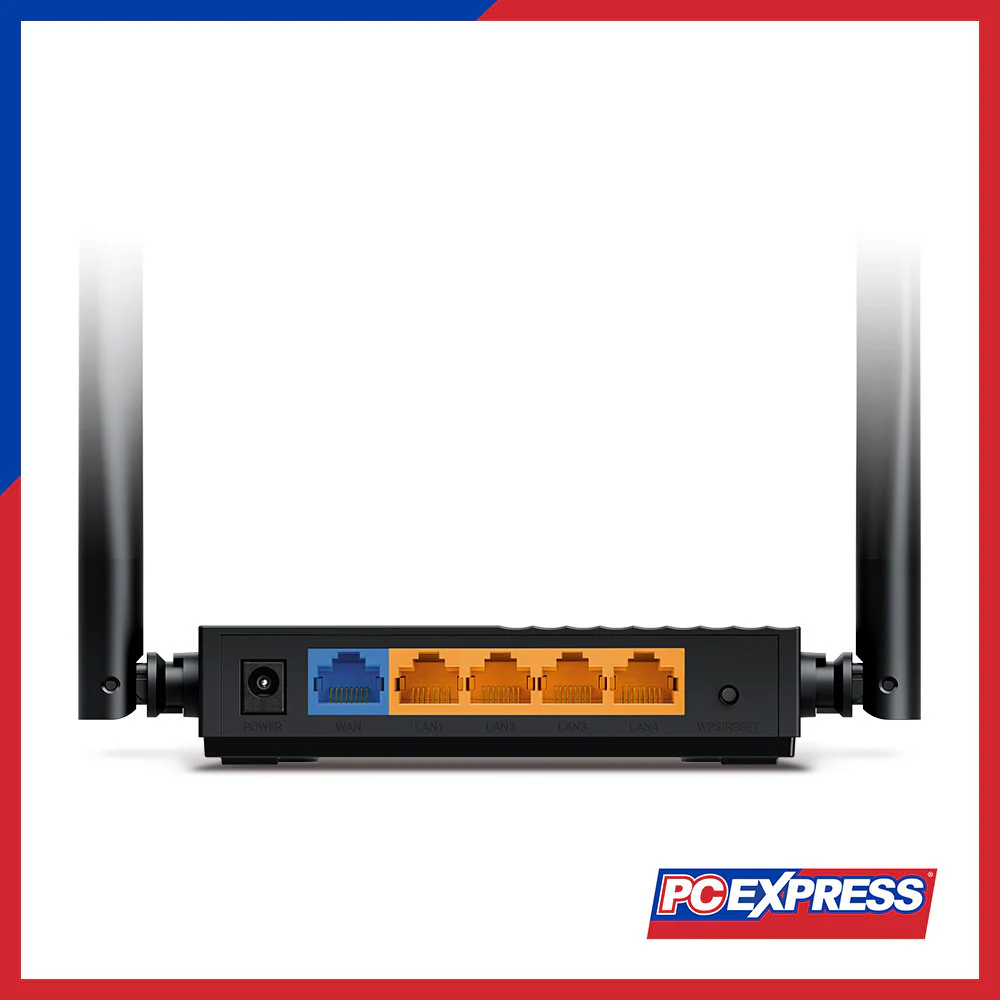

- Ethernet Ports: 1× Gigabit WAN Port

4× Gigabit LAN Ports

- Buttons: WPS/Reset Button

- Power: 12V = 1A

SOFTWARE

- Protocols: IPv4, IPv6

- EasyMesh: Supports mesh networking to eliminate

Wi-Fi dead zones, expand your network, and fill

your entire home with high-speed Wi-Fi.

- Parental Controls: URL Filtering, Time Controls

- WAN Types: Dynamic IP, Static IP, PPPoE (Dual

Access), PPTP (Dual Access), L2TP (Dual Access)

- Quality of Service (QoS) by Device

- Cloud Service: OTA Firmware Upgrade, TP-Link ID,

DDNS, NAT Forwarding, Port Forwarding, Port

Triggering, UPnP, DMZ

- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag

VLAN, DHCP Server, DHCP Client List, Address

Reservation, DDNS (supports TP-Link, NO-IP,

DynDNS)

- Management: Tether App, Webpage

OTHER

- System Requirements: Compatible browsers (e.g.,

Internet Explorer, Firefox, Chrome, Safari),

Cable or DSL Modem (if needed), Subscription

with an internet service provider (for internet

access)

- Certifications: CE, RoHS

- Environment: Operating Temperature: 0℃~40℃ (32℉

~104℉), Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

- WiFi Transmission Power: CE: <20dBm(2.4 GHz),

<23dBm(5.15 GHz~5.25 GHz); FCC: <30dBm(2.4 GHz &

5 GHz)

- WiFi Reception Sensitivity: 5 GHz and 2.4 GHz

PHYSICAL

- Dimensions (W×D×H): 4.7 × 4.7 × 1.1 in (120 × 120

× 27.9 mm)

Package Contents

- Wireless Router Archer C64

- Power Adapter

- RJ45 Ethernet Cable

- Quick Installation Guide
