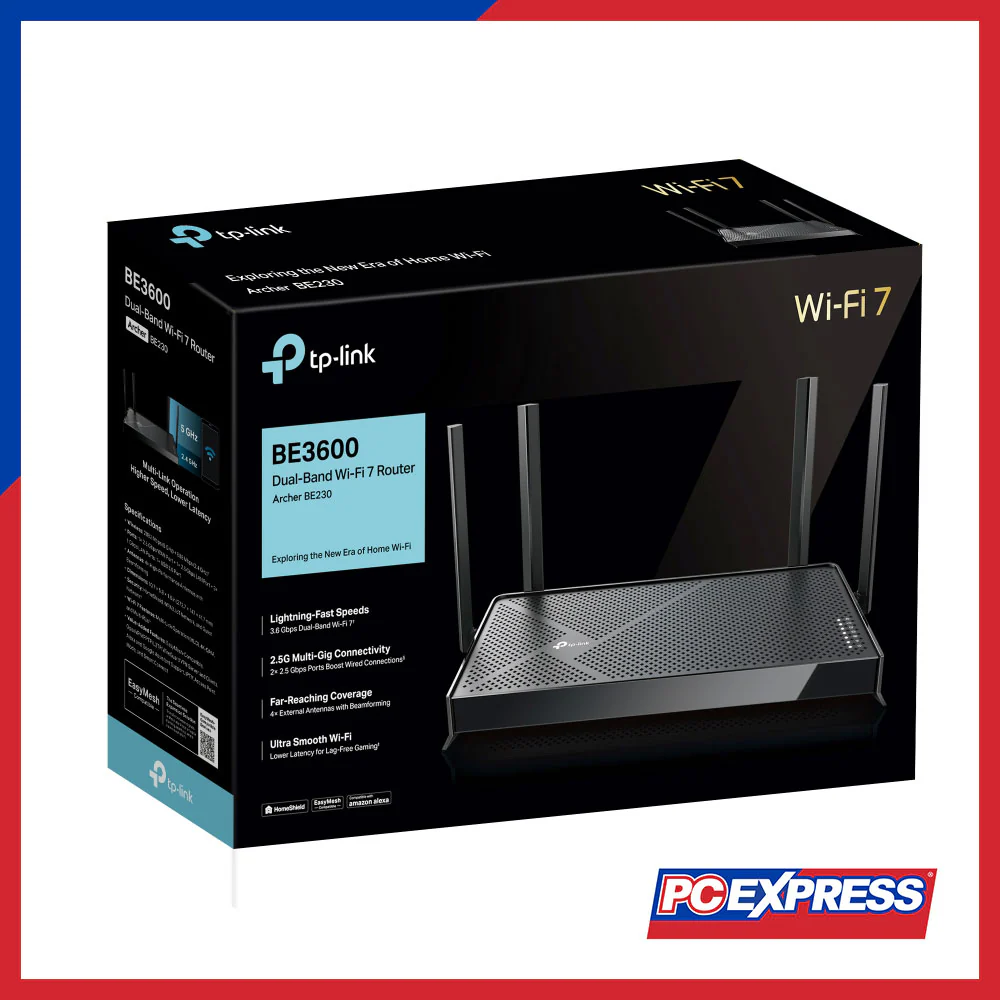

TP-LINK Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router

WiFi Speeds

BE3600

• 5 GHz: 2882 Mbps (802.11be)

• 2.4 GHz: 688 Mbps (802.11be)

WiFi Range

3 Bedroom Houses

4× External Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

High

Dual-Band: Allocate devices to different bands for optimal performance

2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients

OFDMA: Simultaneously communicates with multiple clients

Airtime Fairness: Improves network efficiency by limiting excessive occupation

DFS: Access an extra band to reduce congestion

4 Streams: Connect your devices to more bandwidth

Advanced Functions

• Multi-Link Operation (MLO)

• 4K-QAM

• Multi-RUs

• EasyMesh-Compatible

• Works with Alexa and Google Assistant

• IoT Network

Wireless Mode

• Router Mode

• Access Point Mode

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

• WireGuard VPN Server

VPN Client

• Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

• WireGuard VPN Client

WiFi Encryption

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

• 1× 2.5 Gbps WAN

• 1× 2.5 Gbps LAN

• 3× 1 Gbps LAN

USB Support

1× USB 3.0

• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

• Supported Functions: FTP Server, Media Server, Samba Server

Buttons

• Power On/Off Button

• Wi-Fi On/Off Button

• LED Button

• WPS Button

• Reset Button

Power

12 V ⎓ 2 A (US)

12 V ⎓ 1.5 A (EU)

Protocol

• IPv4

• IPv6

Service Kit

HomeShield

EasyMesh

Compatible with EasyMesh

Parental Controls

HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time, Bedtime, Off Time, Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Type

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service

QoS by Device

Cloud Service

• Auto Firmware Upgrade

• TP-Link ID
