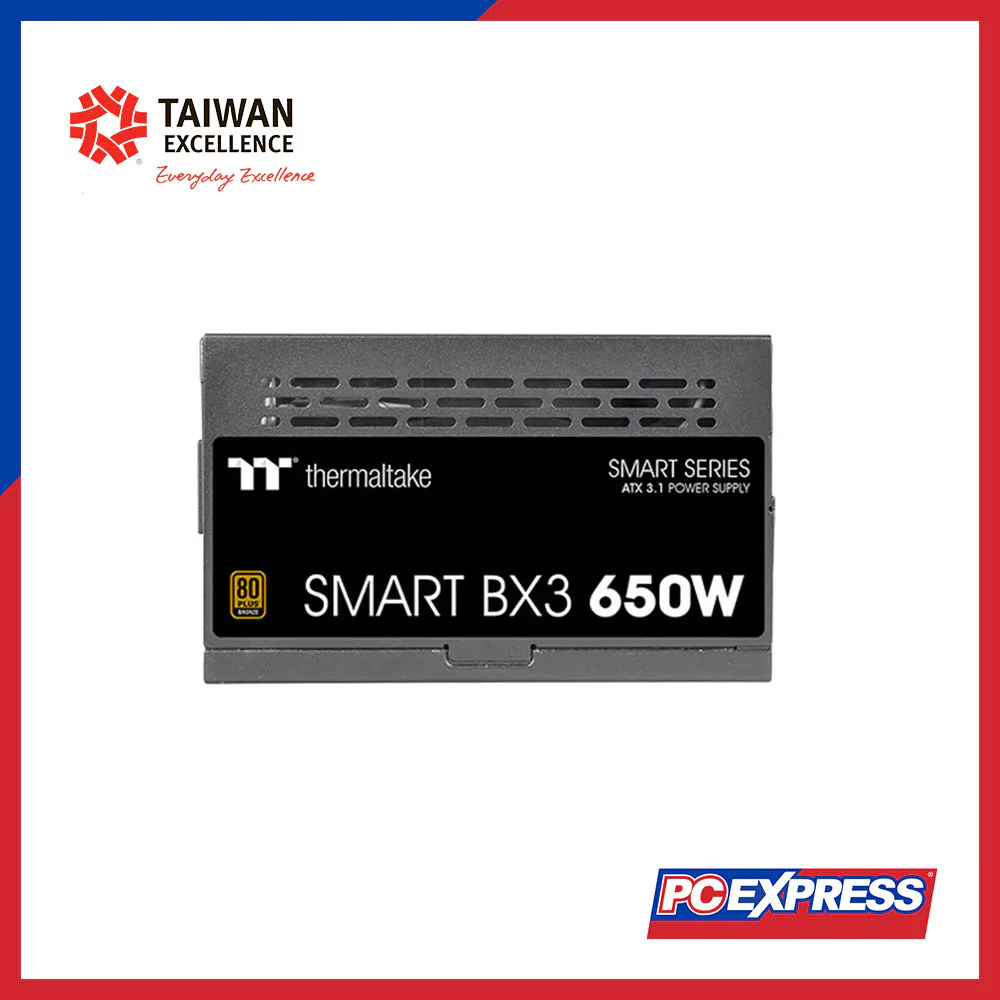

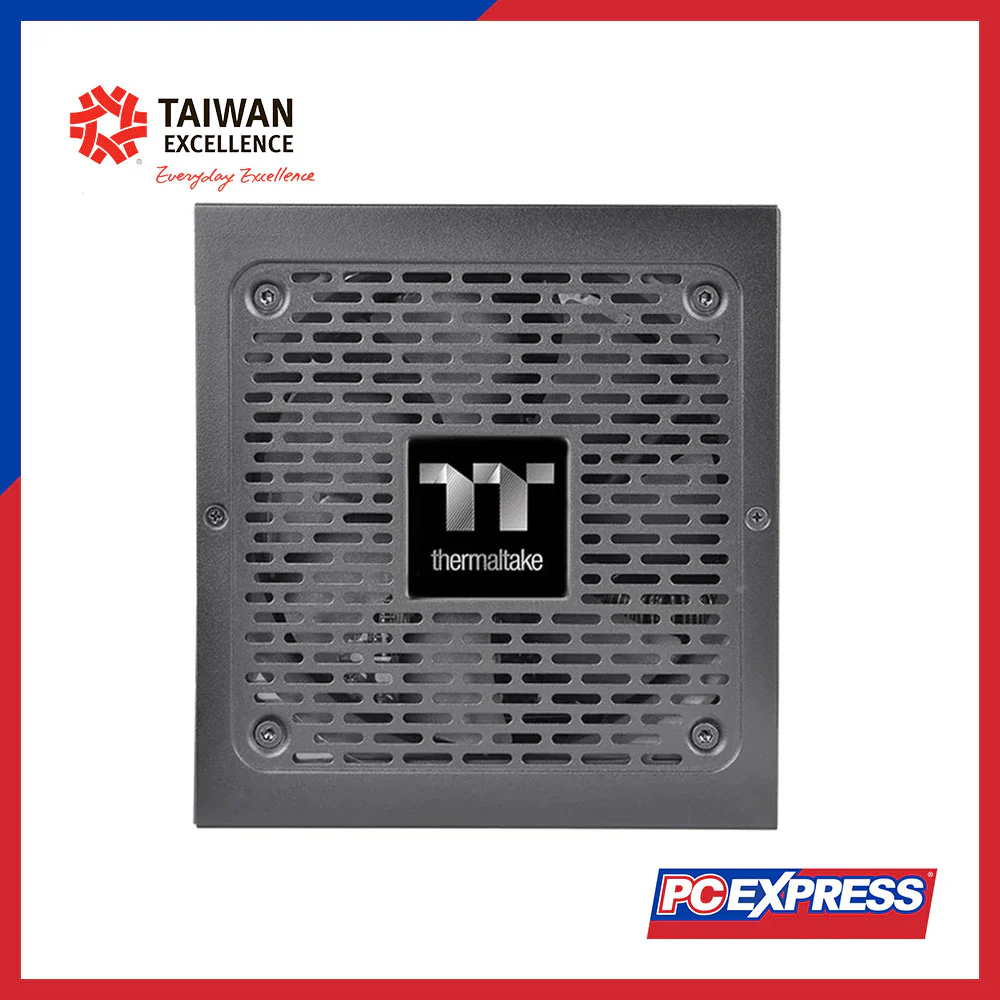

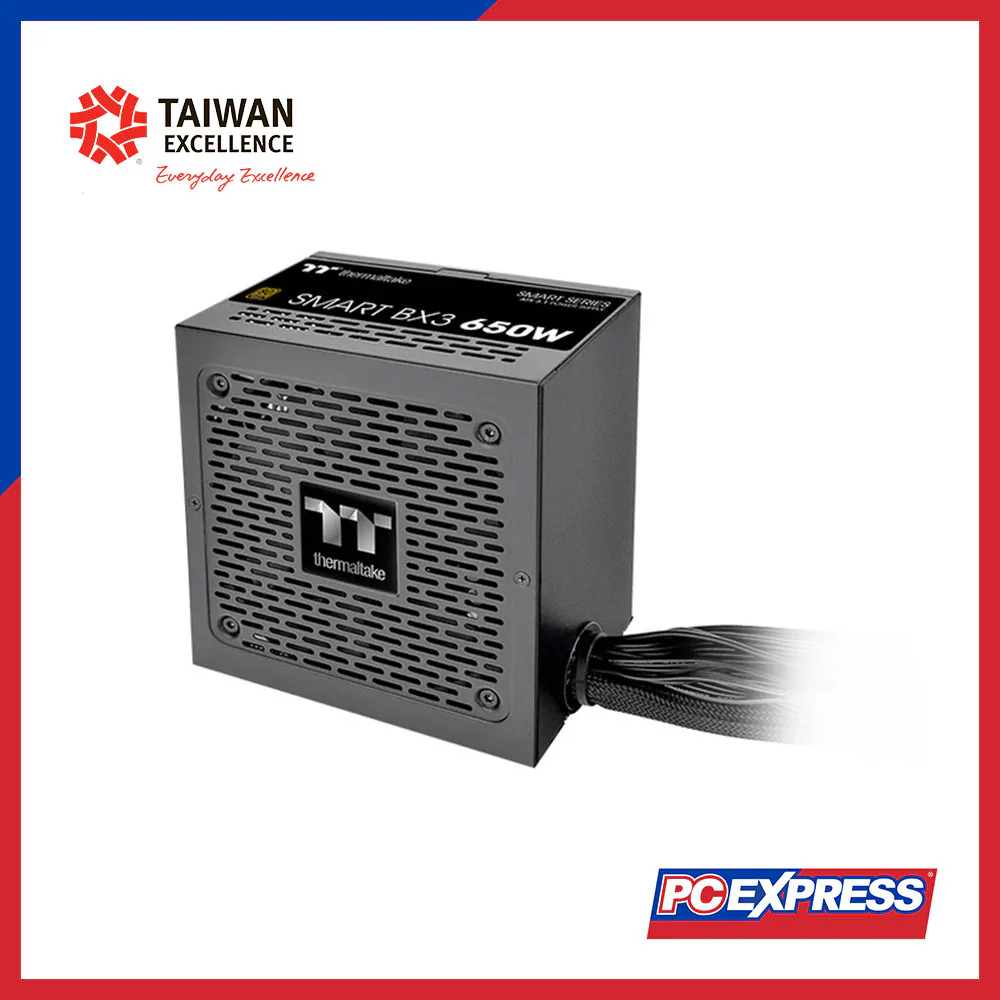

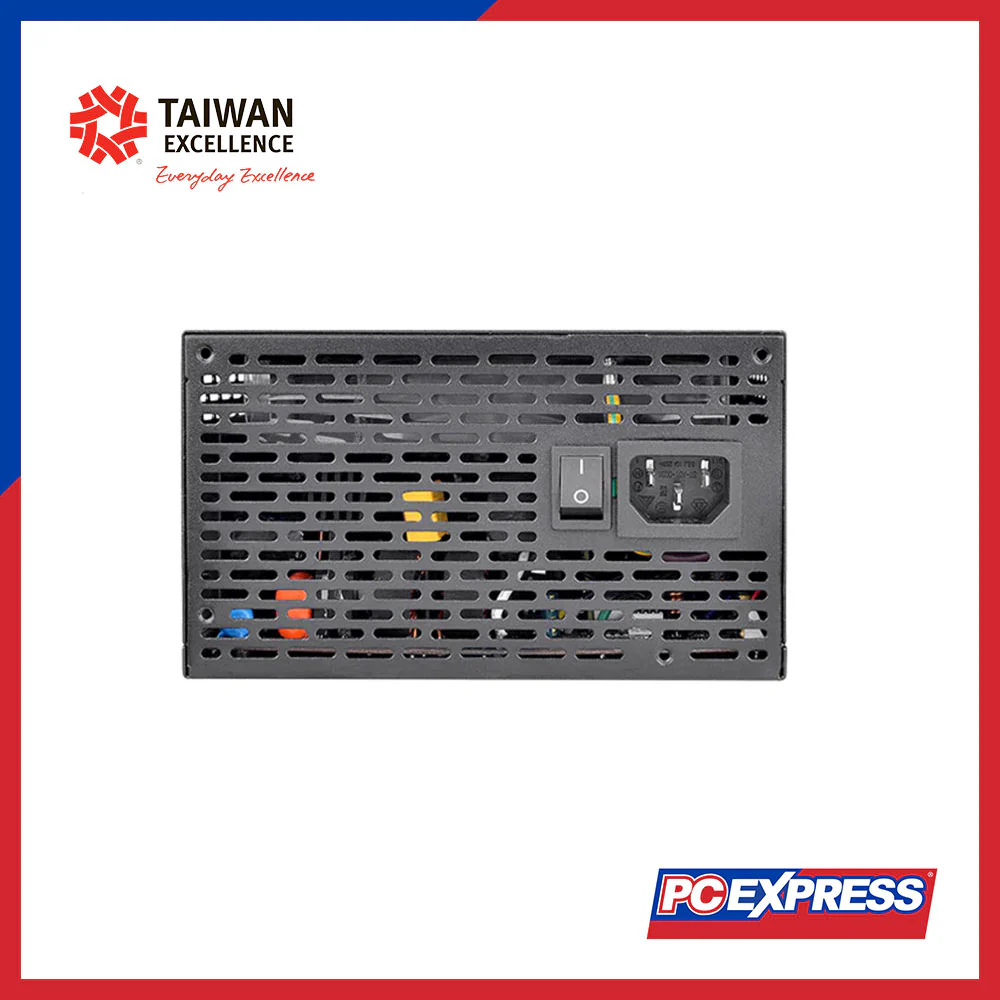

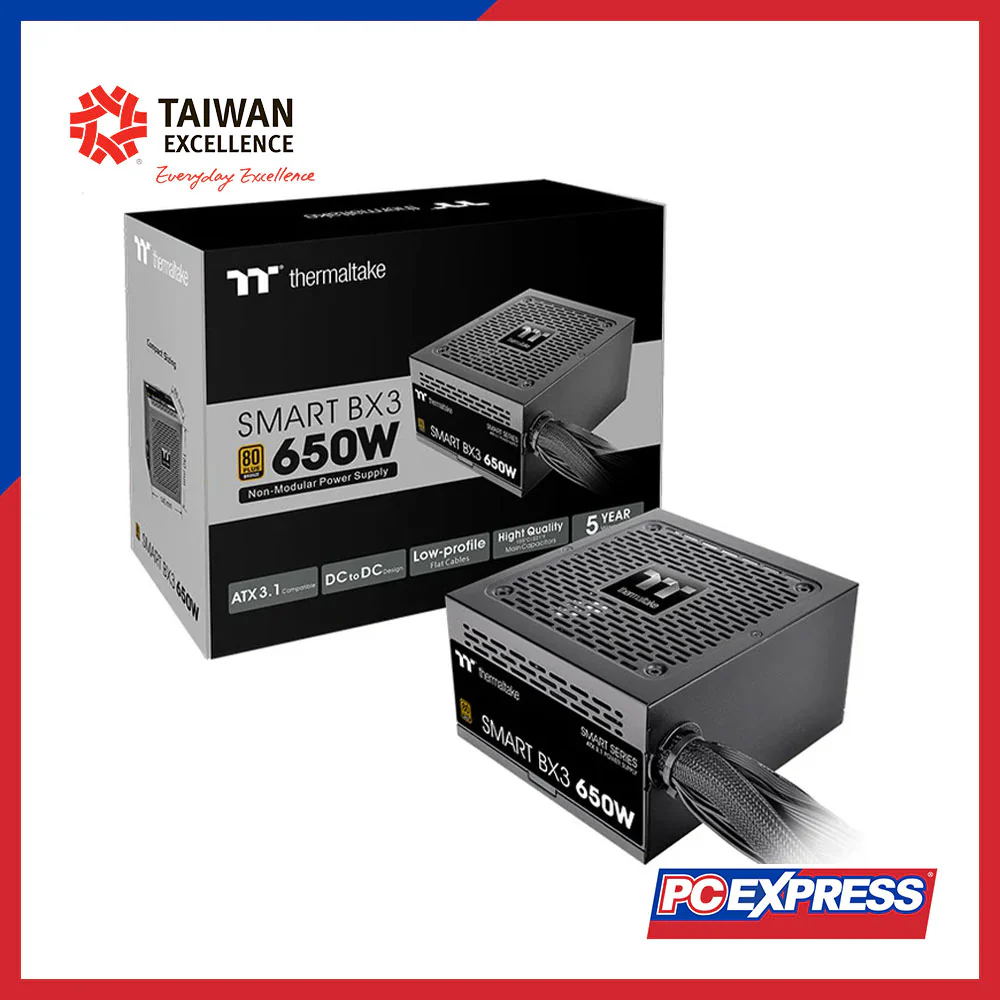

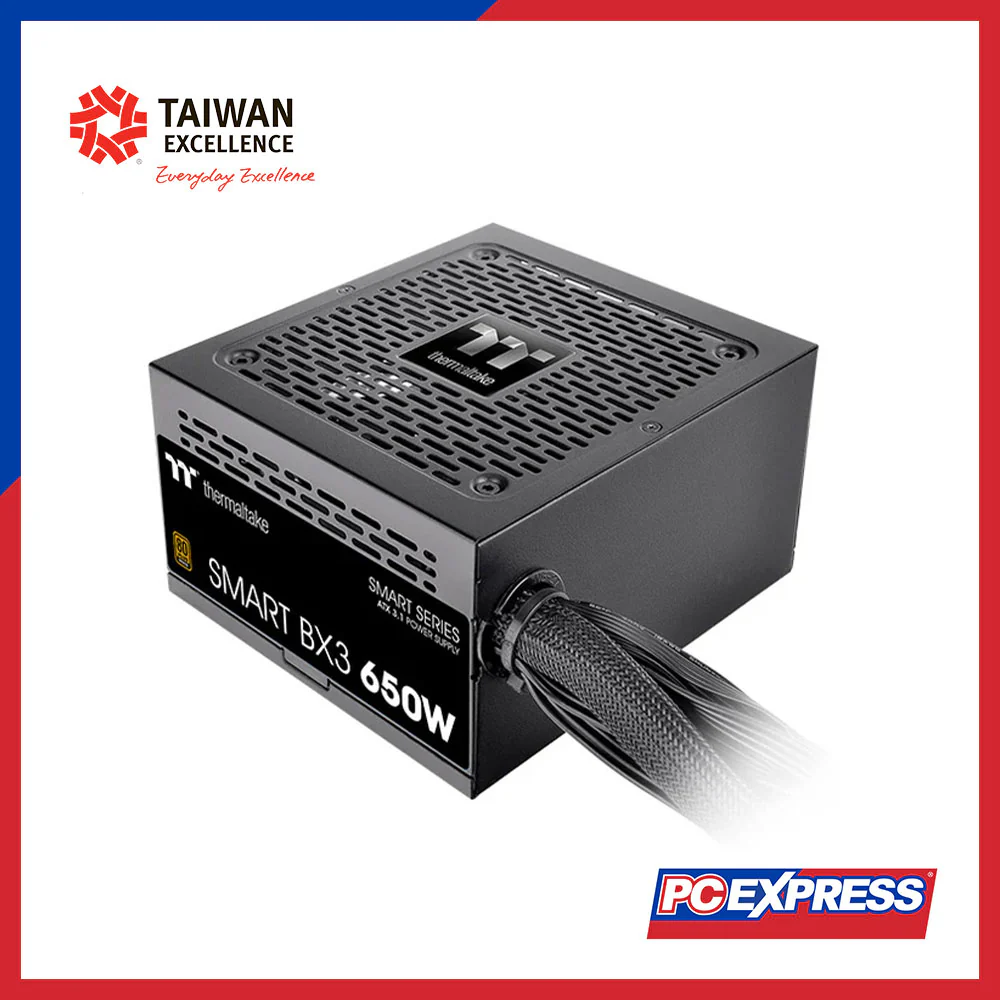

THERMALTAKE Smart BX3 650W 80+ Bronze ATX 3.1 Non-Modular Power Supply

P/N

PS-SPD-0650NNFABU-3

Model

SPD-0650AH2NLB-3

Watts

650 W

Max Output Capacity

650 W

Color

Black

Dimensions (W×H×D)

150 mm × 86 mm × 140 mm

PFC (Power Factor Correction)

Active PFC

Power Good Signal

100–150 ms

Hold-Up Time

> 17 ms at 80 % load

Input Current

15 A – 6 A

Input Frequency Range

50 Hz / 60 Hz

Input Voltage

100–240 V ~

Operating Temperature

5 °C to 45 °C

Operating Humidity

20 % to 85 %

Storage Temperature

– 40 °C to 55 °C

Storage Humidity

10 % to 95 %

Cooling System

120 mm FDB fan

Efficiency

Meets 80 PLUS® Bronze at 115 Vac input

MTBF

100 (typical)

Safety Approvals

CE / UKCA / LVD / FCC / ICES / TUV / CB / cTUVus / BSMI / CCC

PCI-E 6+2-Pin Connectors

2

Protections

OCP, OVP, UVP, OPP, OTP, SCP
