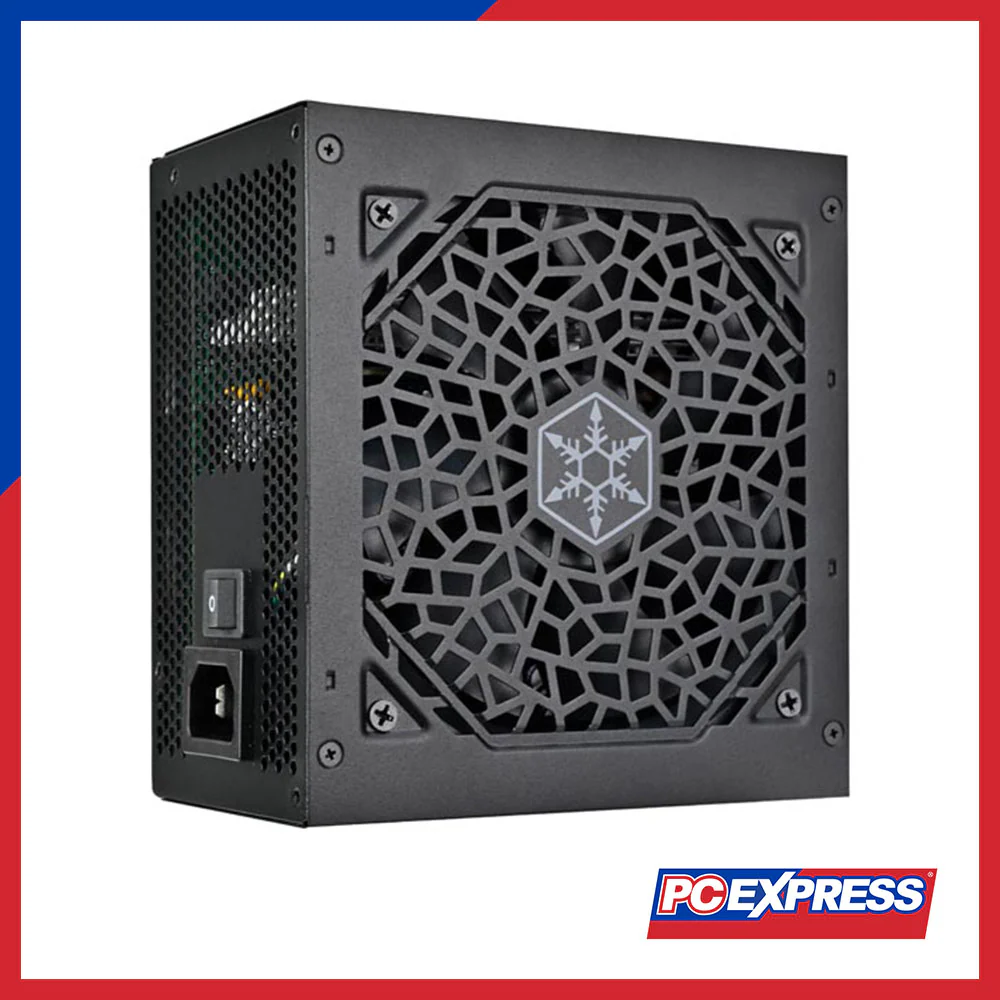

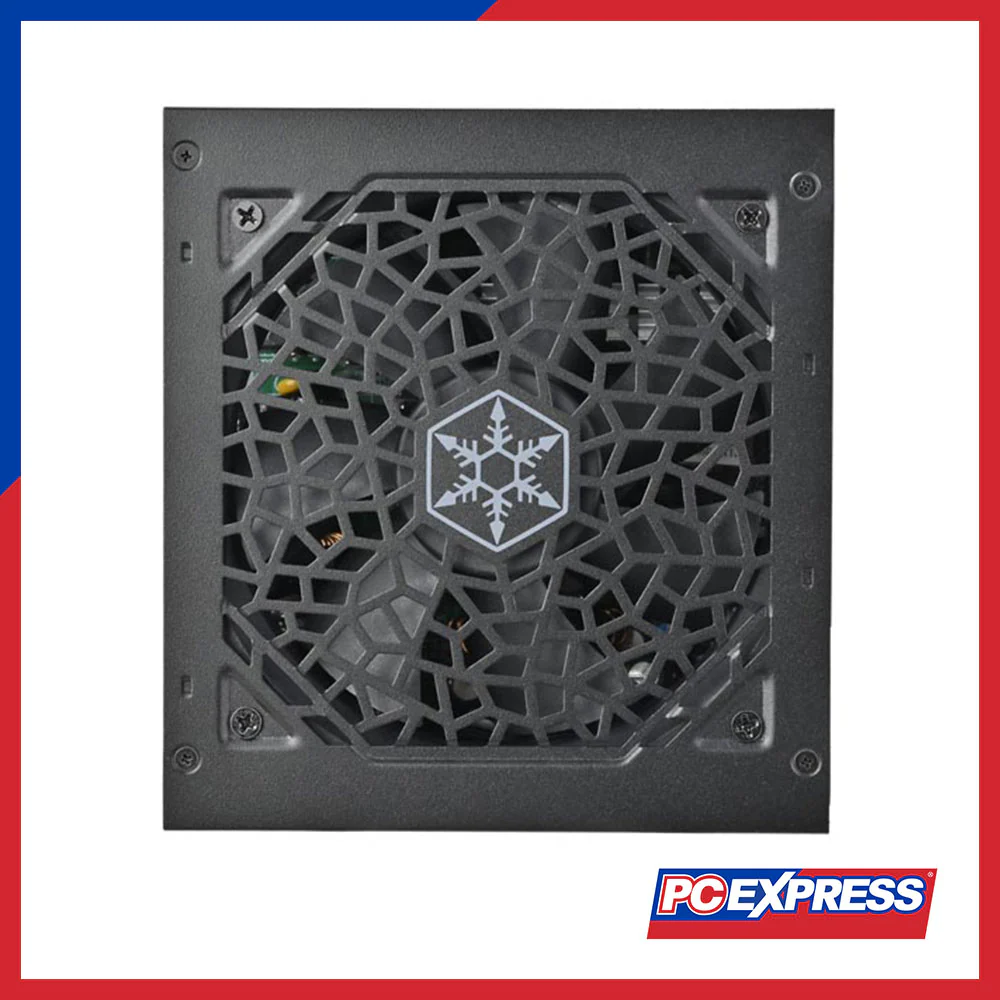

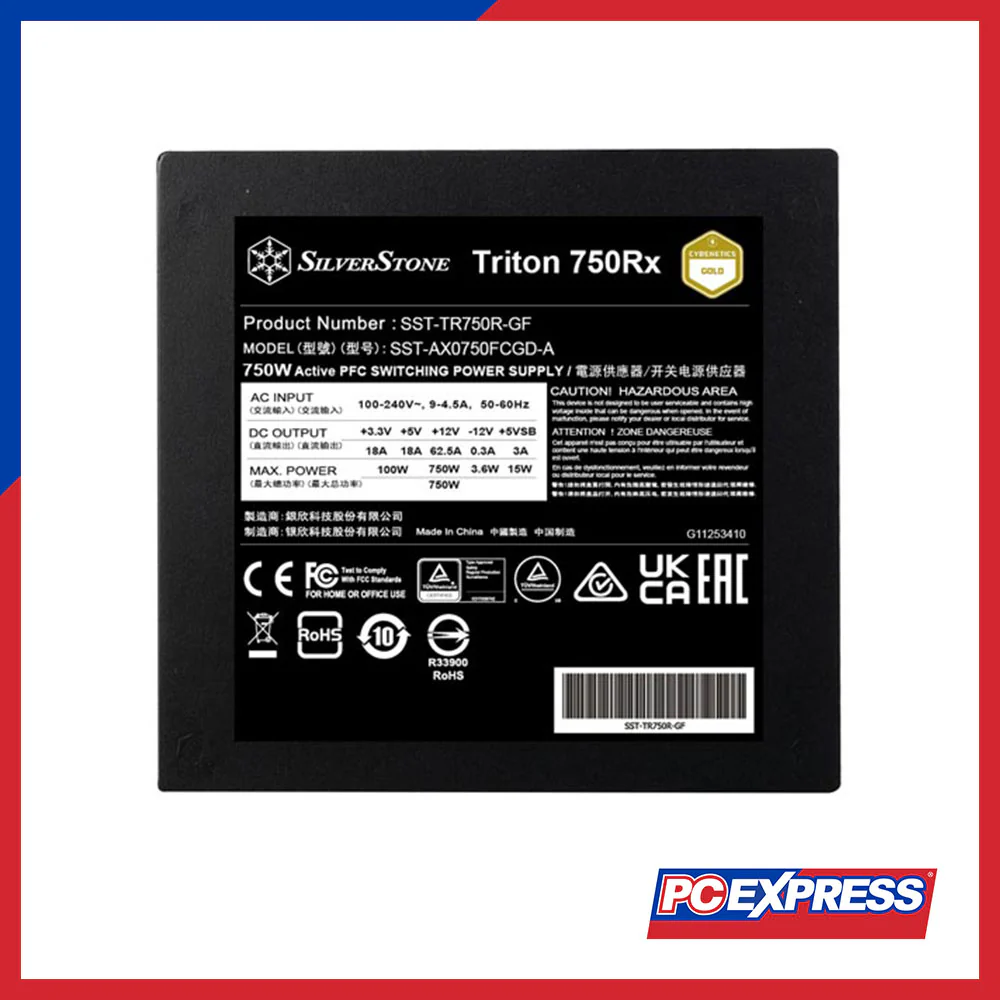

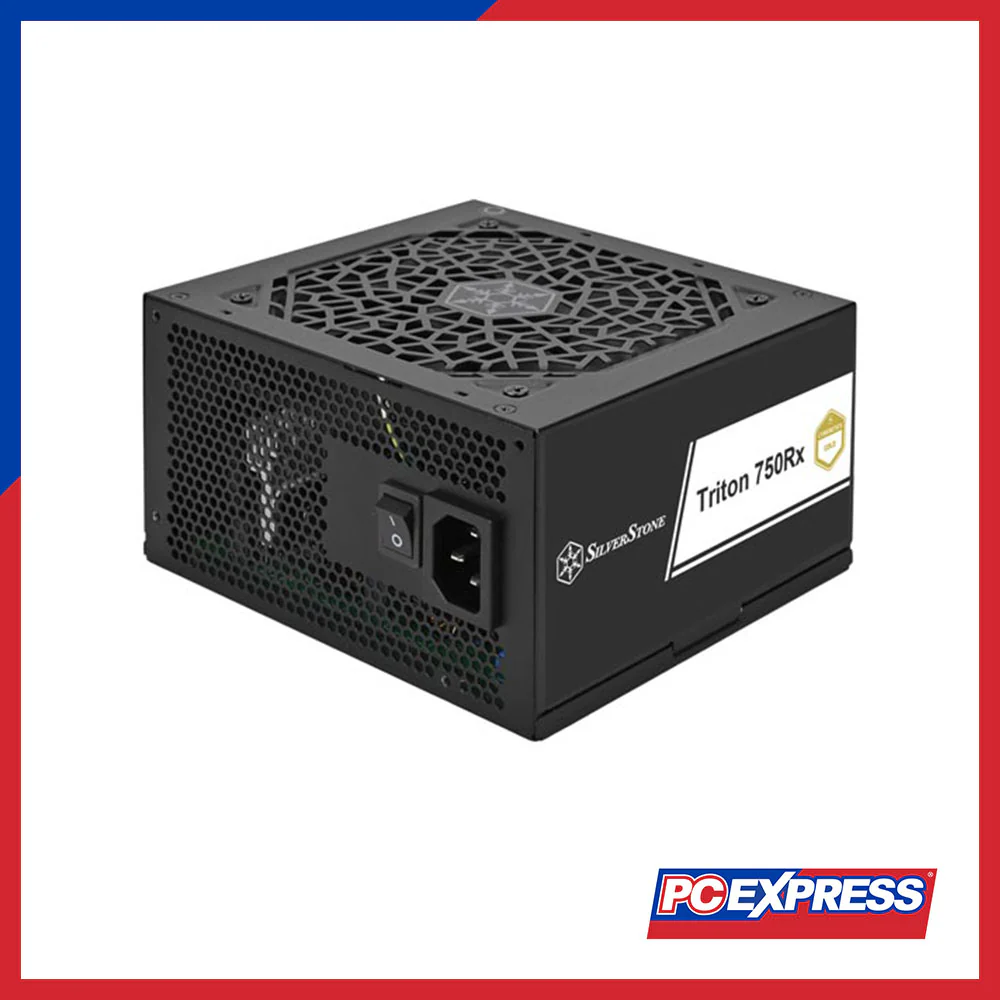

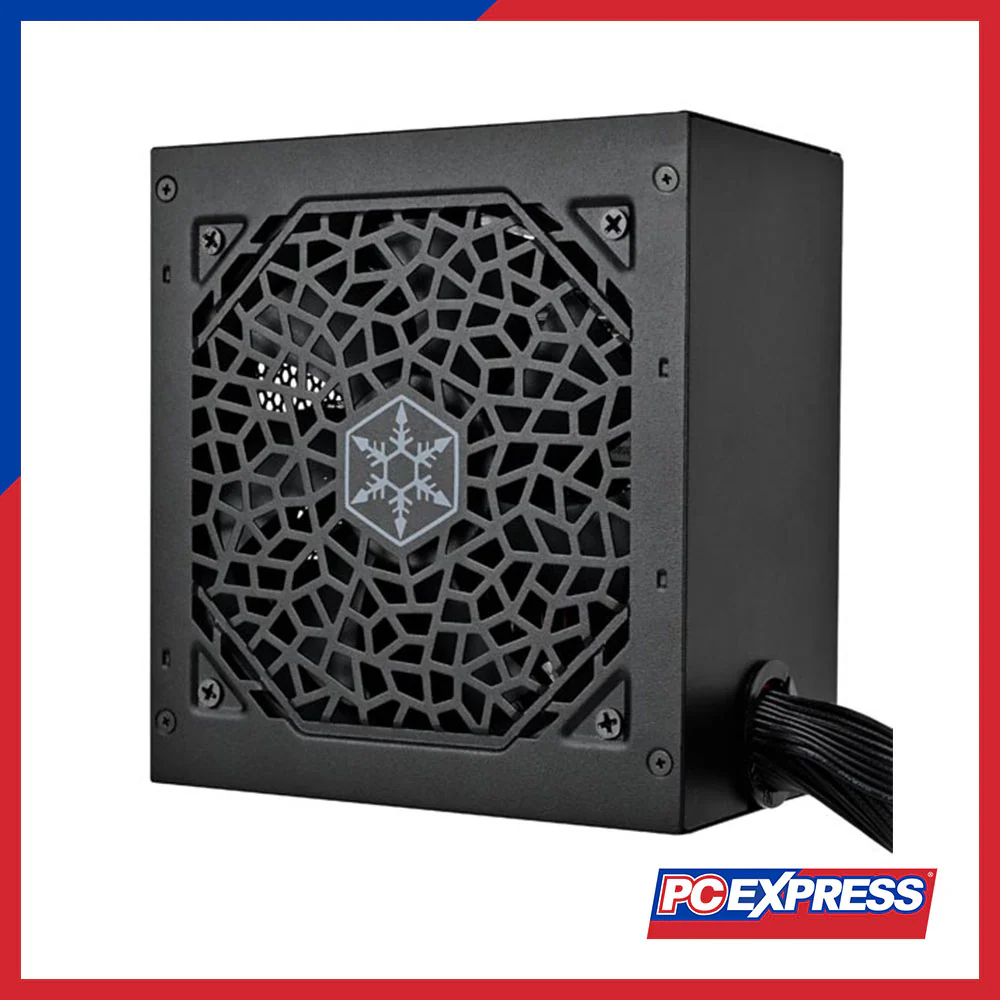

SILVERSTONE Triton 750Rx 750W Cybenetics 80+ Gold Non-Modular Power Supply

Product No.

SST-TR750R-GF

Model (Safety Certification)

SST-AX0750FCGD-A

Color

Black (lead-free paint)

Max. DC Output

750W

Power Density

415.3W/L

Load Range - Output

+3.3V, +5V, +12V1, +5VSB, -12V

Max. Amps

18A, 18A, 62.5A, 3.0A, 0.3A

Min. Amps

0A, 0A, 0A, 0A, 0A

Voltage Range (%)

±5%, ±5%, ±5%, ±5%, ±10%

Line Regulation (%)

±1% for all outputs

Ripple (mVp-p)

50mV, 50mV, 120mV, 50mV, 120mV

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF > 0.9 at full load)

Efficiency

87% ~ 89% overall efficiency

MTBF

100,000 hours

Operating Temperature

0°C ~ 40°C

Protection

Over power, over current, over voltage, short circuit, under voltage, over temperature protection

Connectors

- 1 x 24 / 20-Pin motherboard
- 2 x 8 / 4-Pin EPS / ATX 12V
- 1 x 12+4-Pin 12V-2x6
- 3 x 8 / 6-Pin PCIe
- 6 x SATA
- 2 x 4-Pin Peripheral

Cooling System

Single 120mm ICB bearing fan

Noise Level

18 dBA min.

Certification

Cybenetics Gold

Form Factor

ATX (PS2)

Dimensions (mm)

150mm (W) x 86mm (H) x 140mm (D)

Dimensions (inches)

5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

1.56 kg
