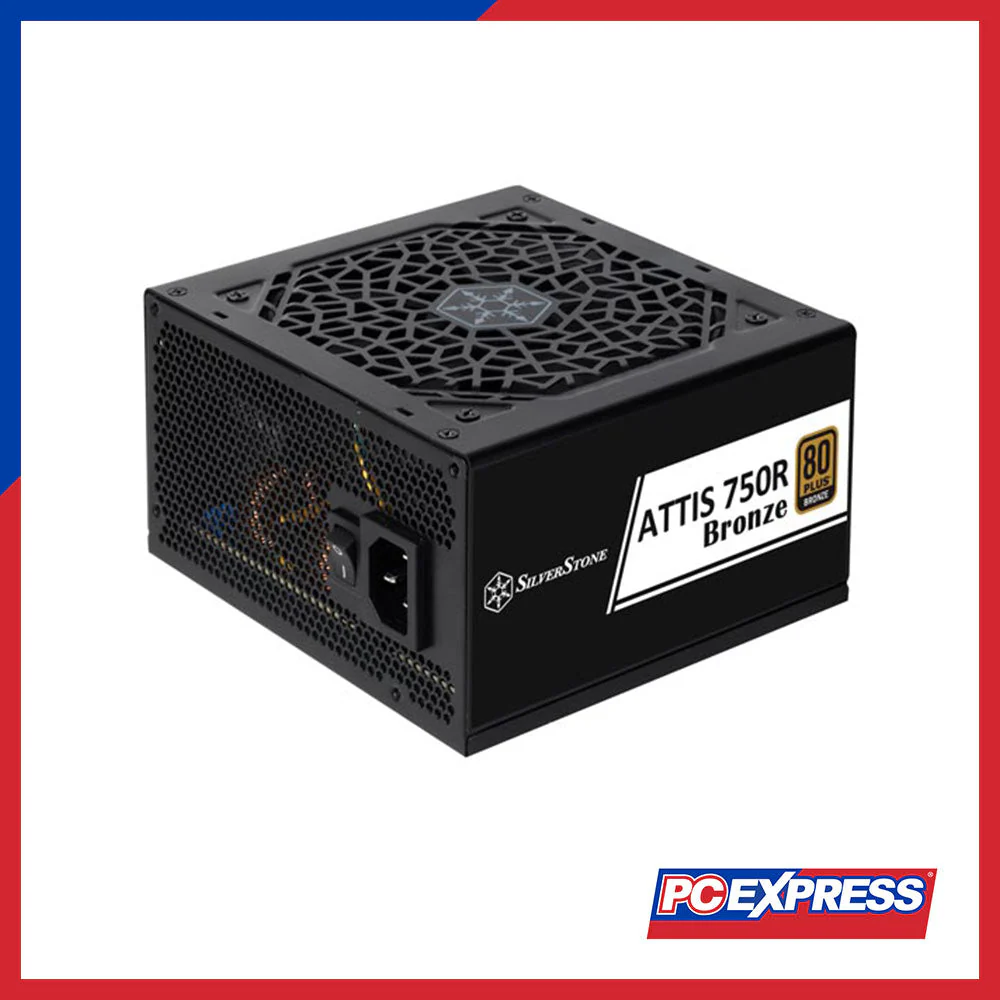

SILVERSTONE ATTIS 750W 80+ Bronze Non-Modular Power Supply

Product No.

SST-AT750R-BF

Model (safety certification)

SST-AX0750FCBR-A

Color

Black (lead-free paint)

Max. DC Output

750W

Load Range

Output

+3.3V

Max. (Amps)

20A

Min. (Amps)

0A

Range (%)

±5%

Line Reg. (%)

±1%

Ripple (mVp-p)

50mV

Combined +3.3V & +5V

100W

Combined +12V

750W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Power Protection<br>Over Voltage Protection<br>Short Circuit Protection<br>Under Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector<br>2 x 4-Pin + 4-Pin ATX 12V connector<br>4 x 8 / 6-Pin PCIe connector<br>6 x SATA connectors<br>3 x 4-Pin Peripheral connector

Cooling System

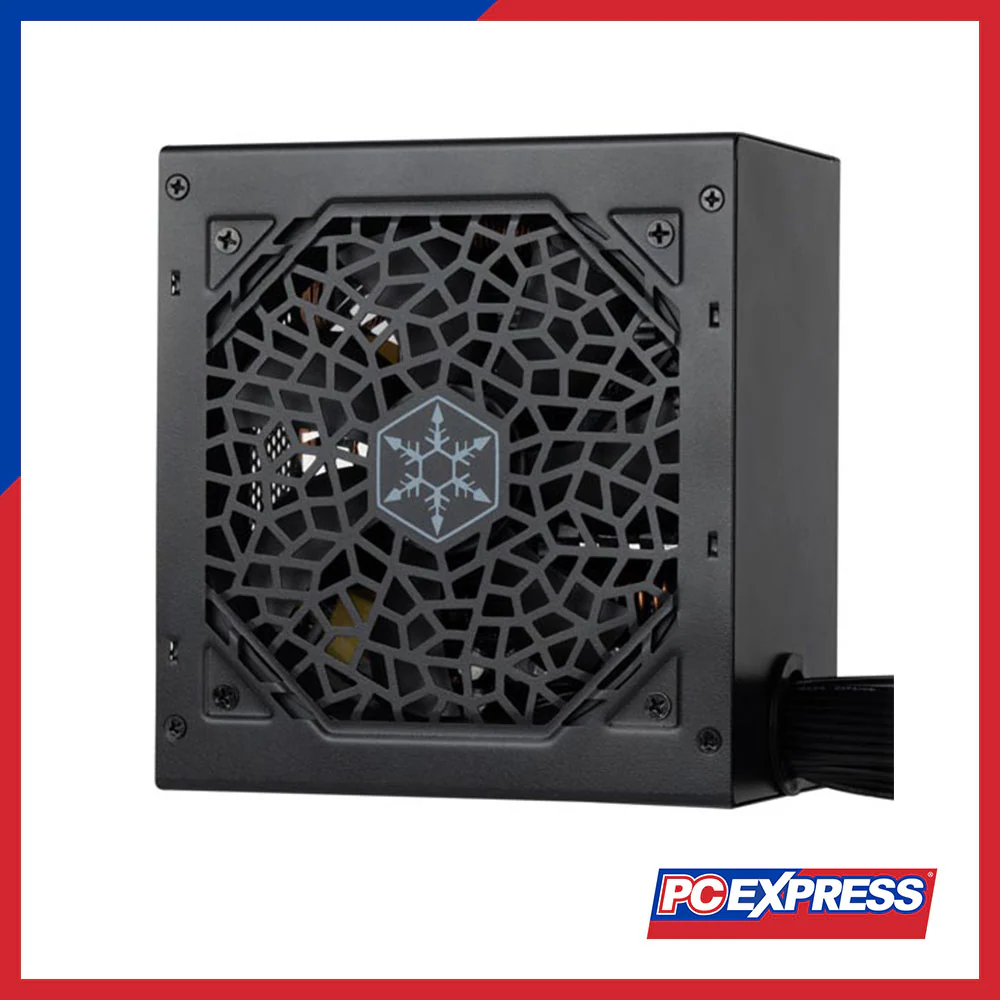

Silent 120mm fan

Noise Level

18 dBA minimum

Certification

80 PLUS Bronze

Form factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)

Weight

1.54 kg

Other

GPU Support list
