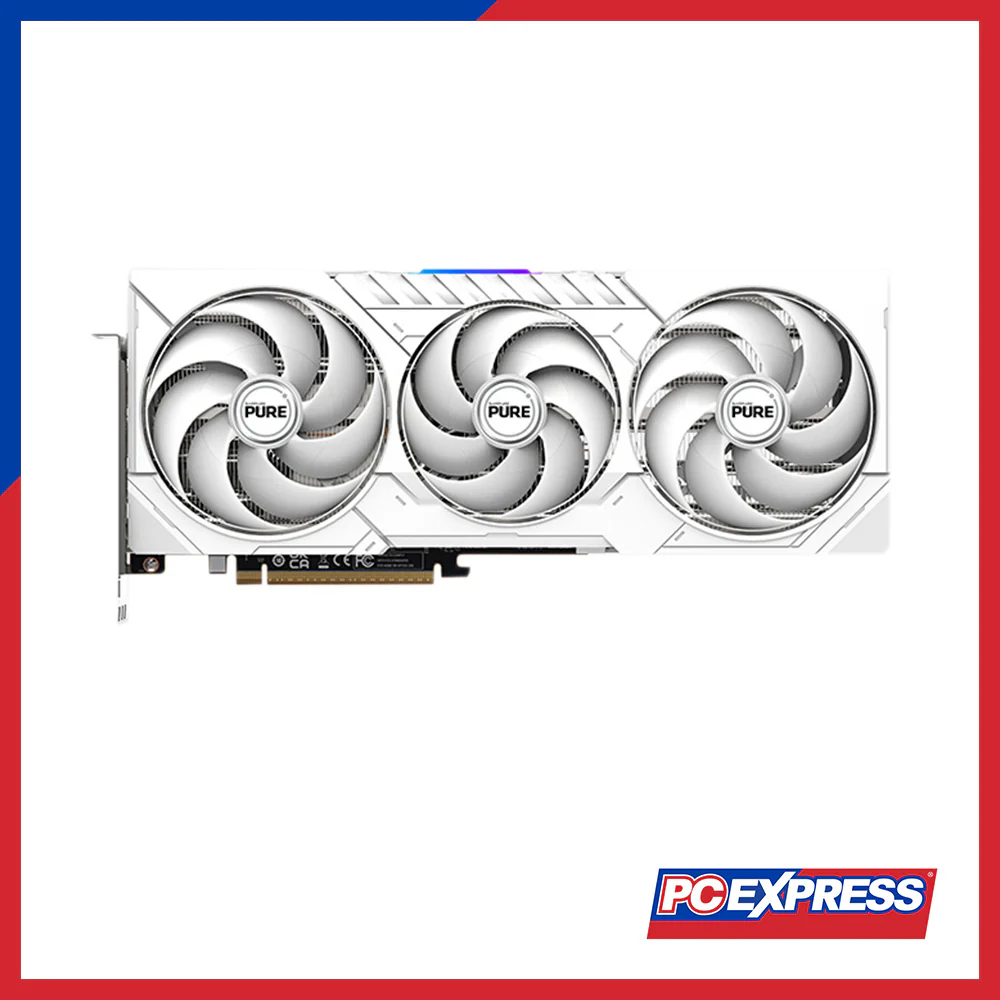

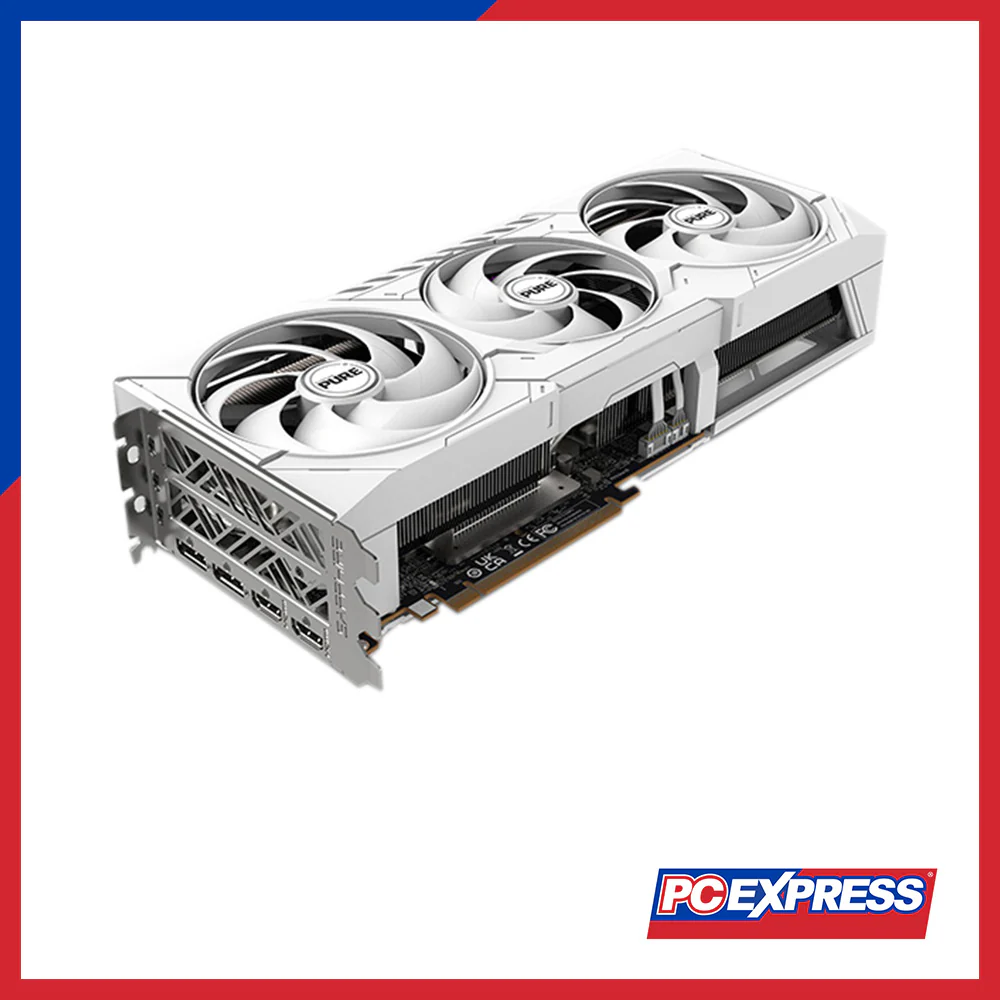

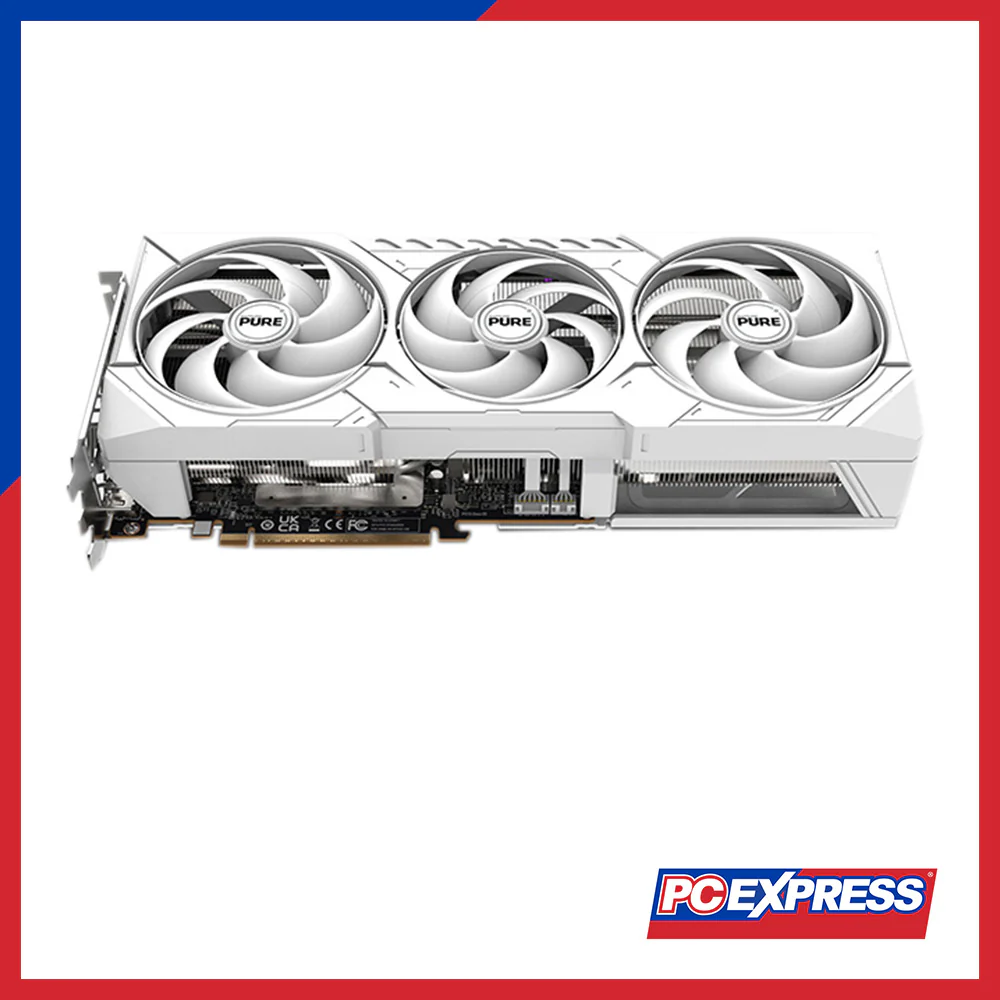

SAPPHIRE AMD Radeon™ RX 9070 XT PURE GAMING OC 16GB GDDR6 256-bit Graphics Card

Part Number

SPR-11348-02-20G

GPU

AMD Radeon™ RX 9070 XT Graphics Card

Architecture

AMD RDNA™ 4

Engine Clock

Boost Clock: Up to 3010 MHz
Game Clock: Up to 2460 MHz

Boost Clock Notes

Maximum frequency achievable under bursty workloads. Actual frequency depends on thermal and workload conditions.

Game Clock Notes

Expected GPU clock in typical gaming applications (set to TGP). Actual results may vary.

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

64

AI Accelerators

128

Memory Size/Bus

16GB / 256-bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4

Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI®
2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

4K

Sapphire Features

Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, Tri-X Cooling Technology, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, Two-Ball Bearing Fans, 14-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, Performance vs. Efficiency Quicksets, Glow!, TriXX Boost, External RGB LED MB Synchronization

Accessories Bundled

L-Shape Support Bracket, 3pin 5V ARGB Cable

AMD Features

AMD RDNA™ 4 Architecture, 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators), AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4 with AI Upscaling, DisplayPort™ 2.1a, AMD Radiance Display™ Engine, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag 2, AV1 Encode/Decode, AMD FidelityFX™ technologies, DirectX® 12 Ultimate, AMD Noise Suppression, AMD Freesync™, 16GB GDDR6 on 256-bit bus, AMD Smart Technologies, AMD Software: Adrenalin Edition™

Cooler Type

Tri-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing

Form Factor

3-slot, ATX

Dimensions

320(L) x 120.25(W) x 61.6(H) mm

Power Consumption

317W Typical Board Power

Supported OS

Linux®, Windows® 10, Windows® 11 (64-bit required)

System Requirement

Minimum 750W PSU, 2 × 8-pin Power Connectors, PCIe X16 lane slot, Minimum 8GB system memory (16GB recommended)
