QNAP TS-464-8G 4-BAY NAS Server

Model

TS-464-8G

CPU

Intel® Celeron® N5095, 4-core/4-thread, burst up to 2.9 GHz

CPU Architecture

64-bit x86

Graphic Processor

Intel® UHD Graphics

Floating Point Unit

Yes

Encryption Engine

AES-NI

Hardware-accelerated Transcoding

Yes

System Memory

8 GB SODIMM DDR4 (1 x 8 GB)

Maximum Memory

16 GB (2 x 8 GB)

Memory Slots

2 x SODIMM DDR4

Flash Memory

4 GB (Dual boot OS protection)

Drive Bays

4 x 3.5-inch SATA 6Gb/s

Drive Compatibility

3.5" SATA HDD, 2.5" SATA SSD

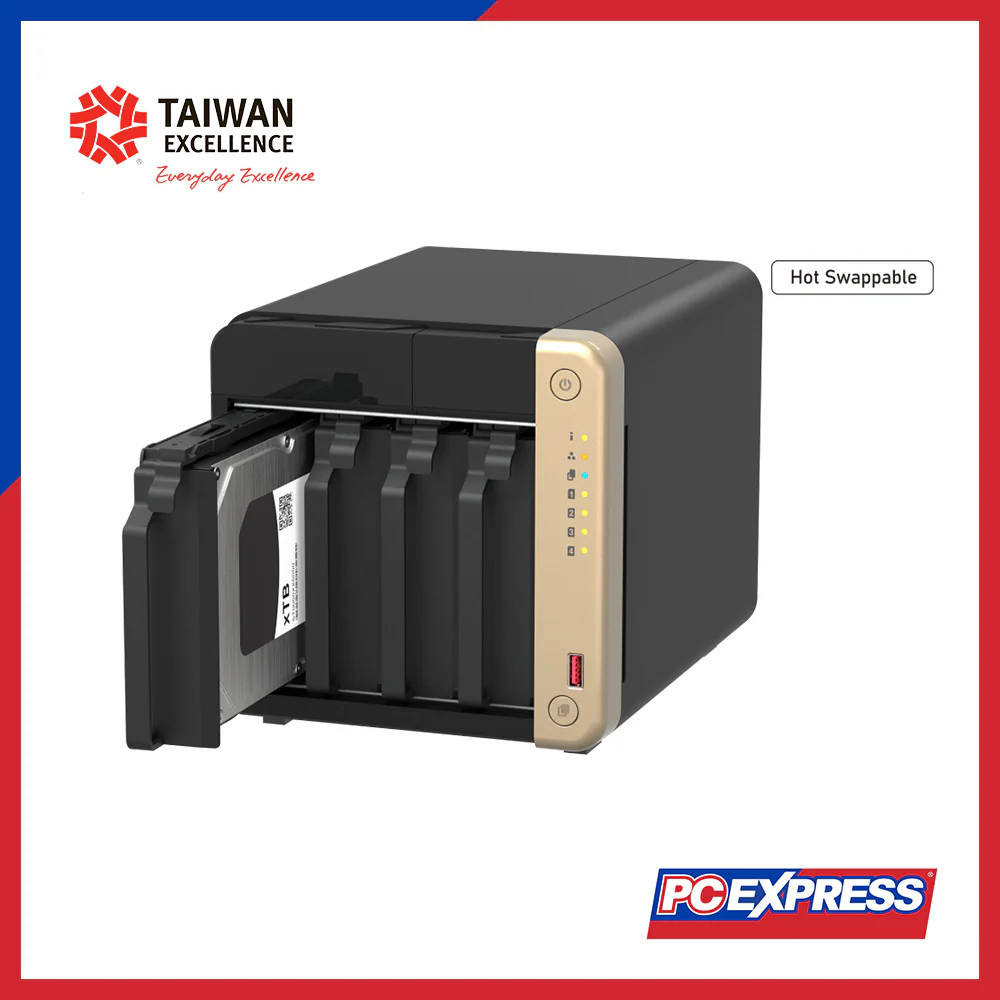

Hot-swappable

Yes (Note: Not supported for M.2 SSDs)

M.2 Slots

2 x M.2 2280 PCIe Gen 3 x1

Heatsink Size Recommendation

Less than 68 x 20 x 10 mm (L x W x H)

SSD Cache Acceleration Support

Yes

2.5GbE Ports

2 (2.5G/1G/100M/10M)

5GbE / 10GbE Support

Optional via PCIe expansion card

Wake-on-LAN (WOL)

Yes

Jumbo Frame Support

Yes

PCIe Slot

1 x PCIe Gen 3 x2

PCIe Card Dimensions

190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 in

USB 2.0 Ports

2

USB 3.2 Gen 2 Ports

2 x Type-A (10 Gbps)

IR Sensor Support

Optional (QNAP RM-IR004 remote control)

HDMI Output

1 x HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)

Form Factor

Tower

LED Indicators

Power/Status, LAN, USB, HDD1-4

Buttons

Power, USB Copy, Reset

Dimensions (HxWxD)

165 × 170 × 226.5 mm (excludes foot pad)

Net Weight

2.26 kg

Gross Weight

3.59 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70 °C (-4°F - 158°F)

Relative Humidity

5–95% RH non-condensing, wet bulb: 27˚C

Power Supply Unit

90W Adapter, 100–240V

Power Consumption (Standby)

21.618 W

Power Consumption (Operating)

40.536 W (typical, with drives fully populated)

Cooling Fan

1 x 120mm, 12VDC

System Warning

Buzzer

Kensington Lock Slot

Yes

Standard Warranty

3 years
