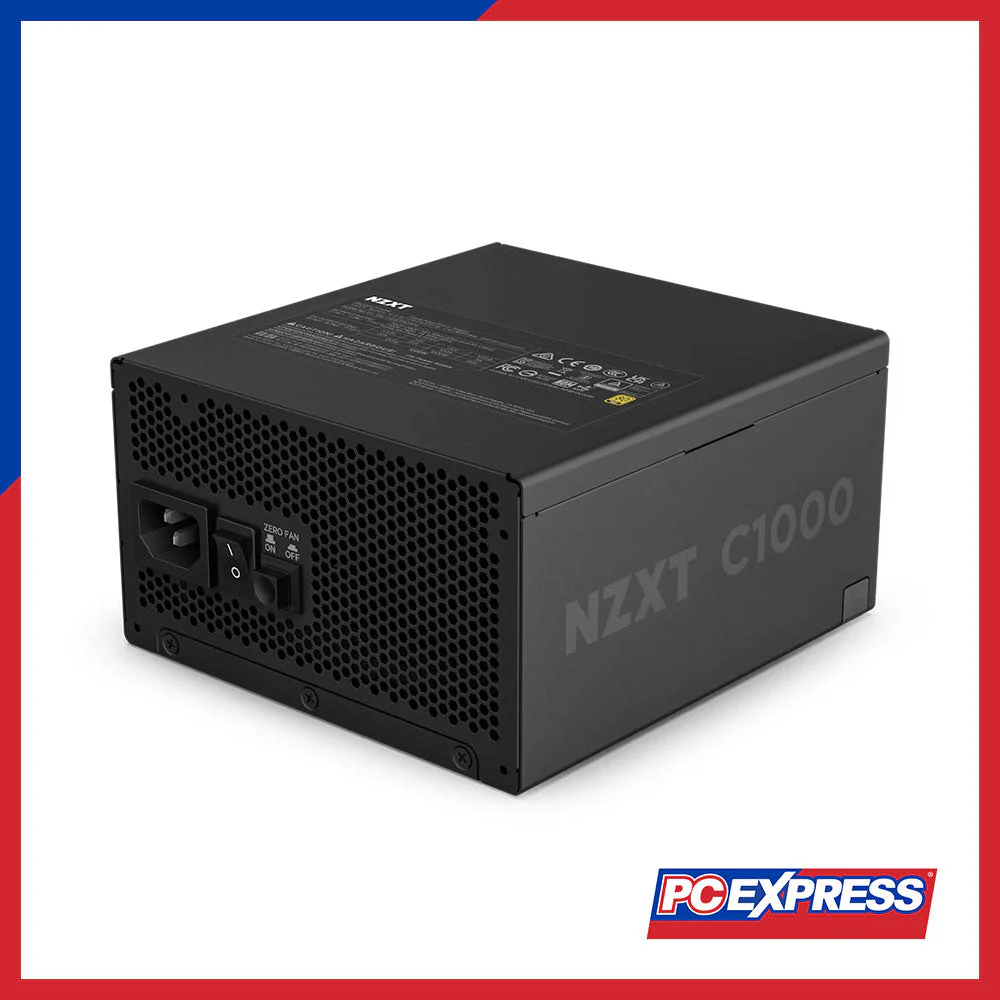

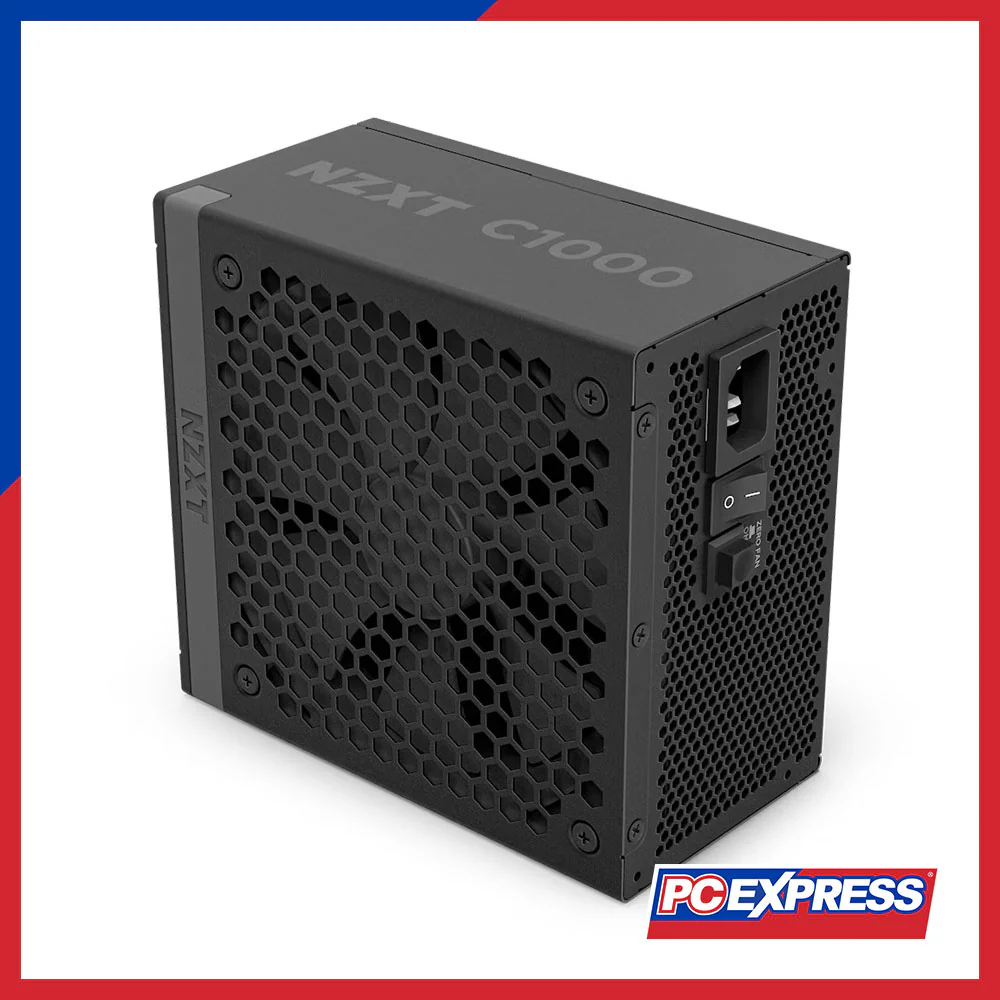

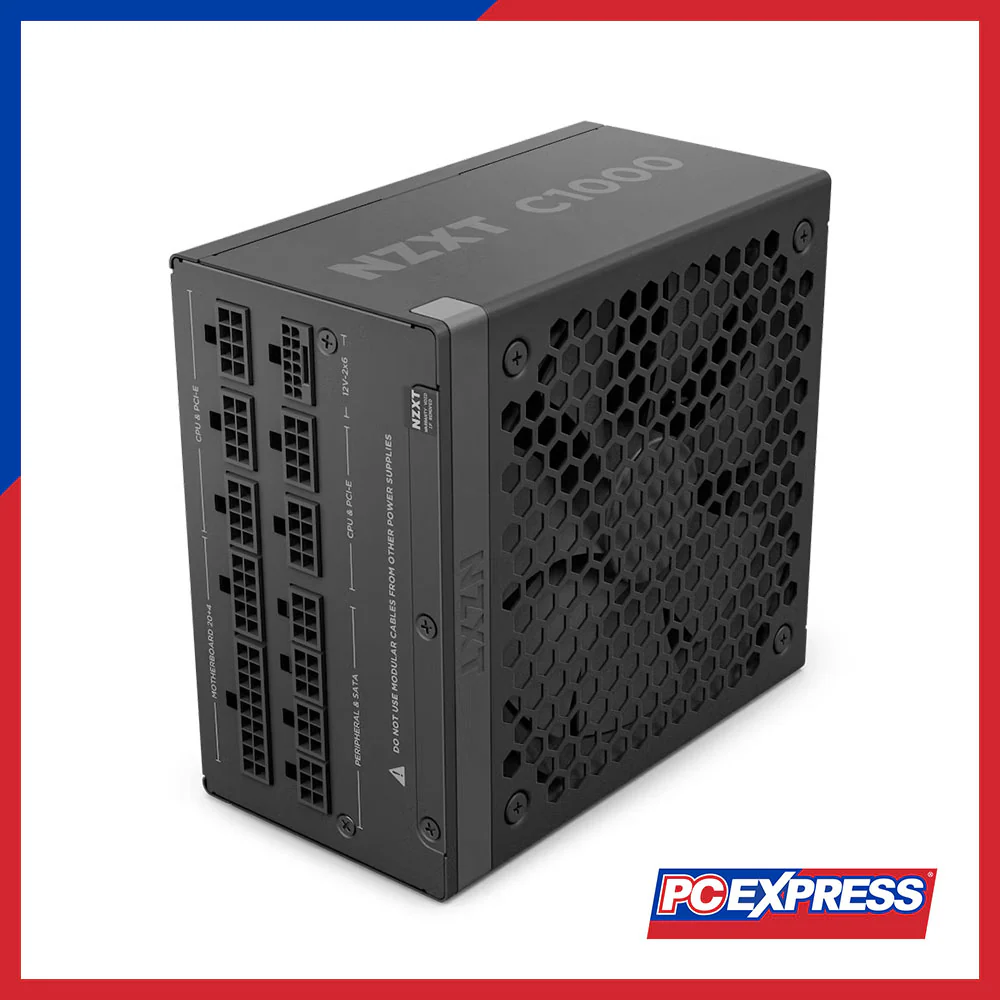

NZXT C1000 1000W 80+ Gold ATX 3.1 Fully Modular Power Supply (Black)

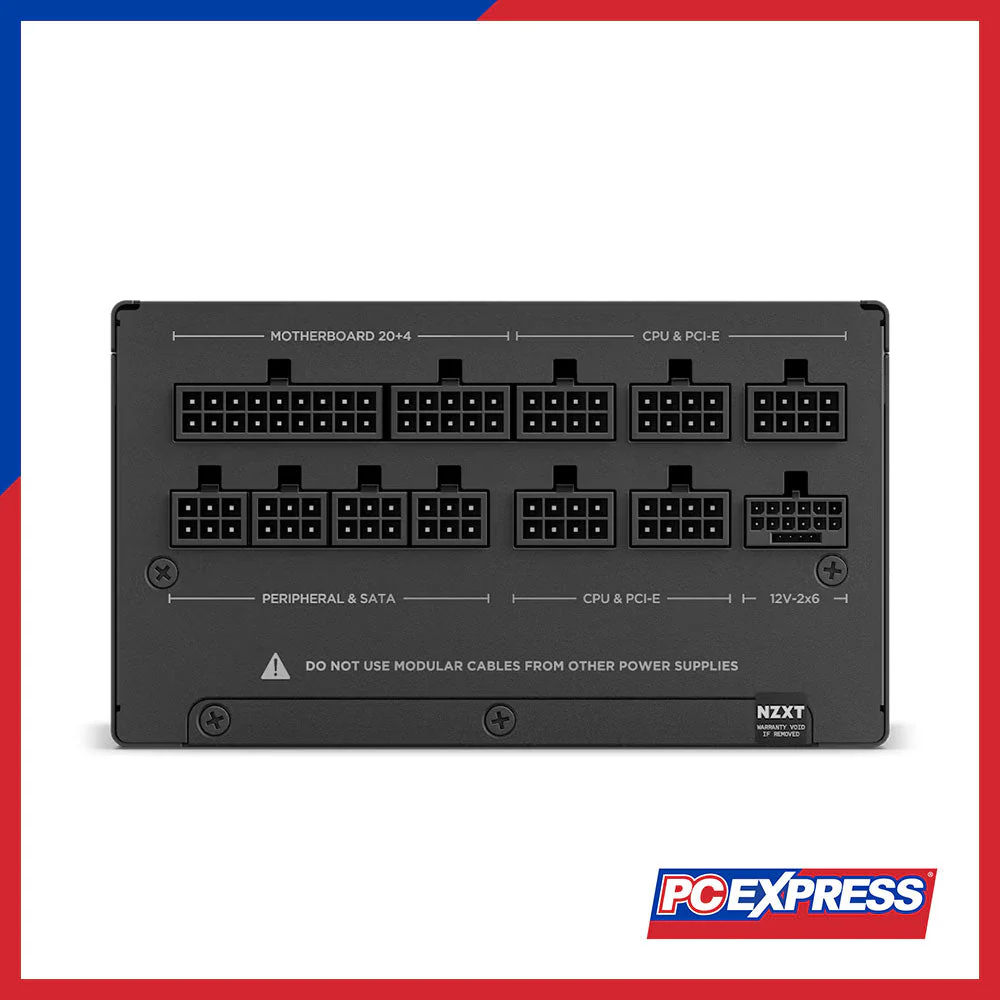

Output Connectors

- 24-pin ATX Power Cable

1

- 4+4-pin CPU Power Cable

1

- 8-pin CPU Power Cable

1

- 6+2-pin PCIe Power Cable

3

- 16-pin (12+4) 12V-2x6 PCIe Cable

1

- SATA Cable

12

- Peripherals Cable

4

Cable Specs

- 24-pin ATX Power Cable

600mm with nylon sleeving

- 4+4-pin CPU Power Cable

700mm with nylon sleeving

- 8-pin CPU Power Cable

700mm with nylon sleeving

- 6+2-pin PCIe Power Cable

650mm with nylon sleeving

- 16-pin (12+4) 12V-2x6 PCIe Cable

650mm with nylon sleeving

- SATA Cable

500mm + 150mm

- Peripherals Cable

500mm + 150mm

AC Input Rating

- 100 - 240Vac

13A 50Hz-60Hz

- 200 - 240Vac (China & South Korea)

6.5A 50Hz-60Hz

DC Output Rating

- 3.3V / +5V

22A (120W)

- 12V

83.3A (1000W)

- 5Vsb

3A (15W)

- Total

1000W

Energy Efficiency

- Rating

80 PLUS Gold

- 10% Loading

85.5% @ 115Vac

- 20% Loading

89.7% @ 115Vac

- 50% Loading

91.9% @ 115Vac

- 100% Loading

89.3% @ 115Vac

Electrical Features

- PF Correction

Active @0.99

- Protections

OVP, UVP, SCP, OTP, OPP, OCP

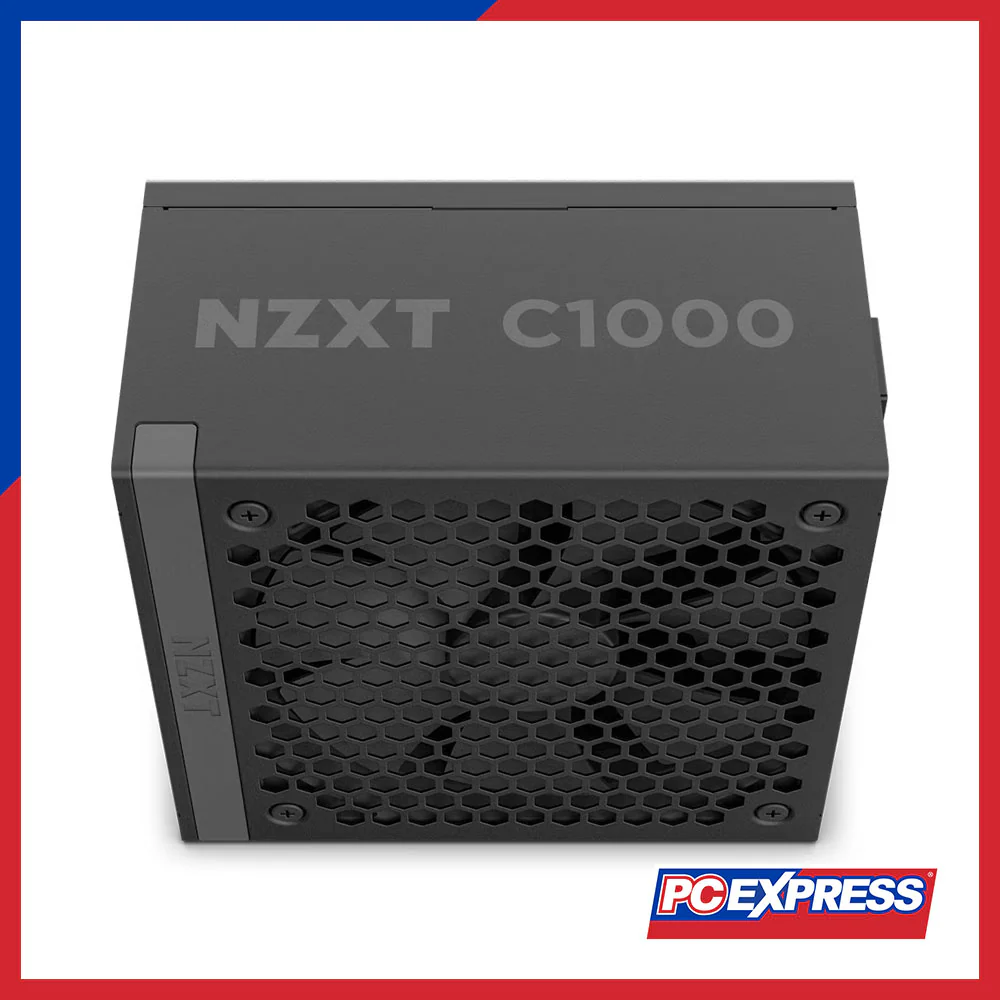

Fan Specs

- Dimensions

135 x 135 x 25 mm

- Speed

2300 ± 10% RPM

- Airflow

93.02 CFM

- Noise

44.5 dBA max

- Bearing

Fluid Dynamic Bearing (FDB)

Operation

- MTBF

100,000 hours

- Temperature

0 - 50 °C

Dimensions

- Width

150 mm

- Height

86 mm

- Depth

160 mm

General

- Material(s)

Steel, PCB, and Plastic

- Compliance Standard

ATX12V v3.1 / EPS12V v2.92

- Regulation & Certification

FCC, Canada, CE, CB (IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

Model Numbers (Black)

PA-0G2BB-CN / PA-0G2BB-UK / PA-0G2BB-US / PA-0G2BB-EU / PA-0G2BB-JP / PA-0G2BB-AU

Model Numbers (White)

PA-0G2BW-CN / PA-0G2BW-UK / PA-0G2BW-US / PA-0G2BW-EU / PA-0G2BW-JP / PA-0G2BW-AU

EAN (Black)

5056547204680 (CN) / 5056547204697 (UK) / 5056547204703 (US) / 5056547204710 (EU) / 5056547204727 (JP) / 5056547204734 (AU)

EAN (White)

5056547206318 (CN) / 5056547206325 (UK) / 5056547206332 (US) / 5056547206349 (EU) / 5056547206356 (JP) / 5056547206363 (AU)

UPC (Black)

810074844758 (CN) / 810074844765 (UK) / 810074844772 (US) / 810074844789 (EU) / 810074844796 (JP) / 810074844802 (AU)

UPC (White)

810074846370 (CN) / 810074846387 (UK) / 810074846394 (US) / 810074846400 (EU) / 810074846417 (JP) / 810074846424 (AU)
