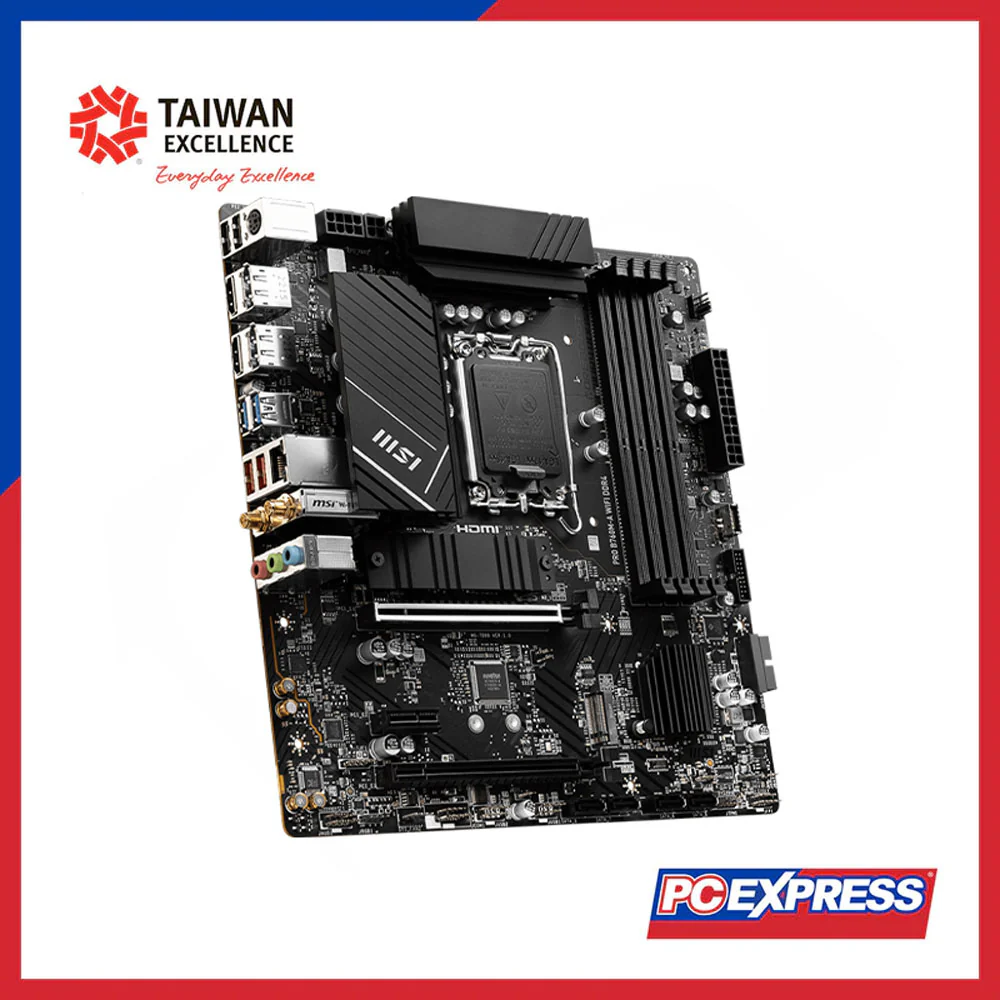

MSI PRO B760M-A WIFI DDR4 ATX Motherboard

Chipset

Intel B760

CPU Support

Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® Processors

Socket

LGA 1700

Memory

4x DDR4, Max Memory Capacity 128GB, Various Memory Support Options

Onboard Graphics

2x HDMI™ (2.1, 4K 60Hz), 2x DisplayPort (1.4, 4K 60Hz) - Availability depends on CPU's integrated graphics

PCI-E Slots

2x PCI-E x16 Slots (Various Gen and Speed Configurations), 1x PCI-E x1 slot

Storage

2x M.2 (PCIe 4.0 and SATA support), 4x SATA 6G, RAID Support

USB Ports

2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 4x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen1 Type C (Front), 2x USB 3.2 Gen2 Type A (Rear)

LAN

Realtek® RTL8125BG 2.5G LAN

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E, Bluetooth® 5.3, Pre-installed in M.2 (Key-E) slot, Wi-Fi 6E availability may vary by region, Bluetooth 5.3 requires Windows 10 build 21H1 or Windows 11

Audio

Realtek® ALC897 Codec, 7.1-Channel HD Audio

Internal IO

Various power connectors, fan connectors, USB ports, RGB LED connectors, TPM pin header, and more

LED Feature

4x EZ Debug LED
