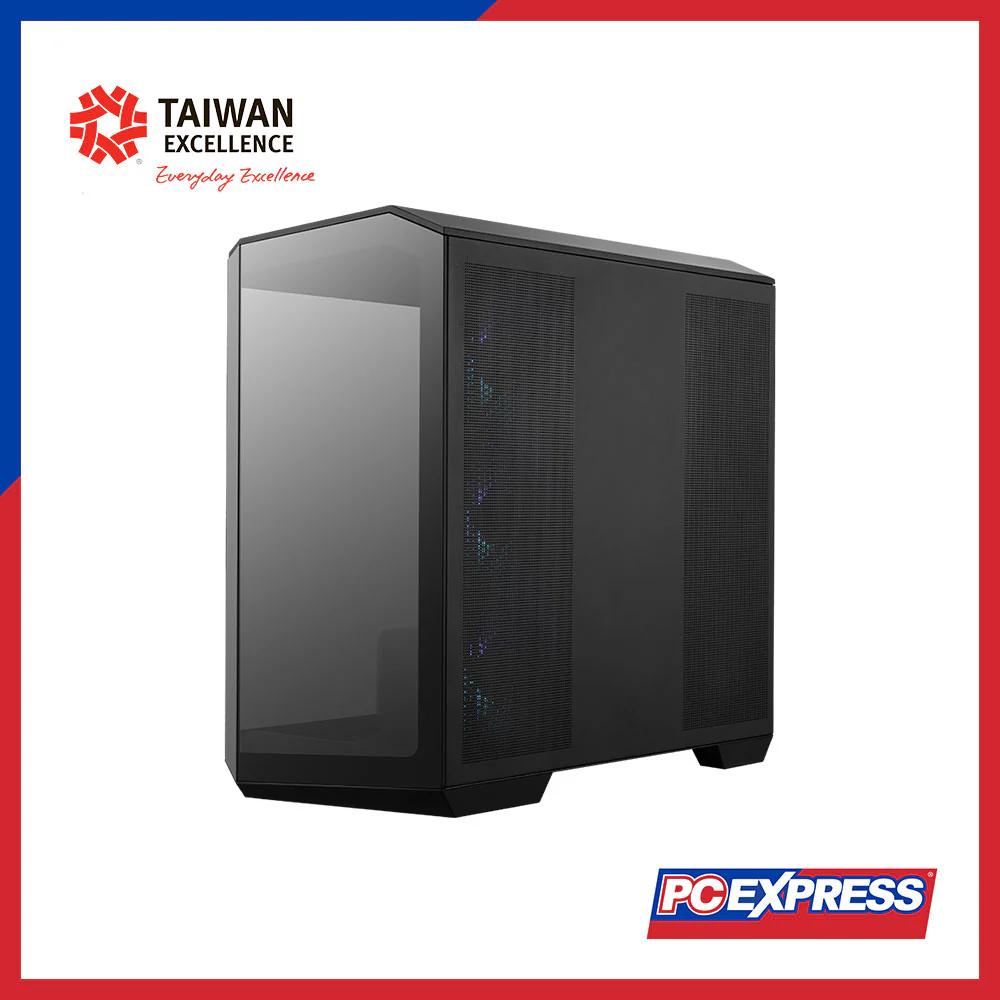

MSI MAG PANO M100R PZ Tempered Glass ARGB Gaming Case - Black

Product Name

MAG PANO M100R PZ/Black

Case Form Factor

Micro-ATX Tower

Motherboard Form Factor Support

M-ATX (Back-connect supported) / ITX

I/O Ports

1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button

Drive Mount Support

1 x 2.5”, 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)

Expansion Slots

5

Maximum GPU Length

390 mm / 15.35 inches (*Support horizontal installation only)

Maximum CPU Cooler Height

175 mm / 6.9 inches

Power Supply Support

ATX

Maximum PSU Length

200 mm / 7.87 inches

Fan Size Support

Top: 3 x 120 mm / 2 x 140 mm, Rear: 1 x 120 mm / 1 x 140 mm, Side: 3 x 120 mm, Bottom: 1 x 120 mm, PSU Shroud: 2 x 120 mm

Pre-installed Fan Size

Side: 3 x 120 mm

Pre-installed Fan Type

Side: 3 x ARGB Fan (Reverse-blade), Rear: 1 x ARGB Fan

Radiator Size Support

Top: 120 / 240 / 360 mm, Rear: 120 / 140 mm

Dimensions (DxWxH)

440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches

Net Weight

8.66 kg

Gross Weight

11.29 kg
