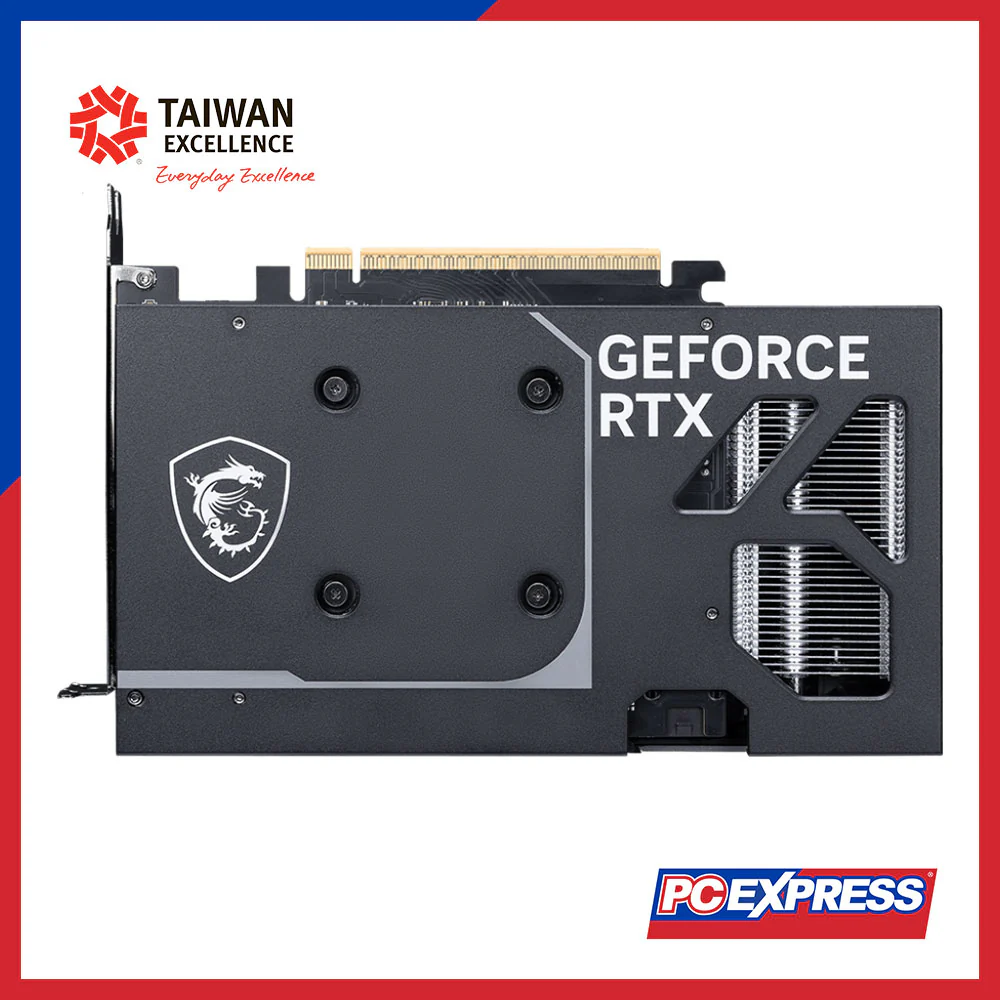

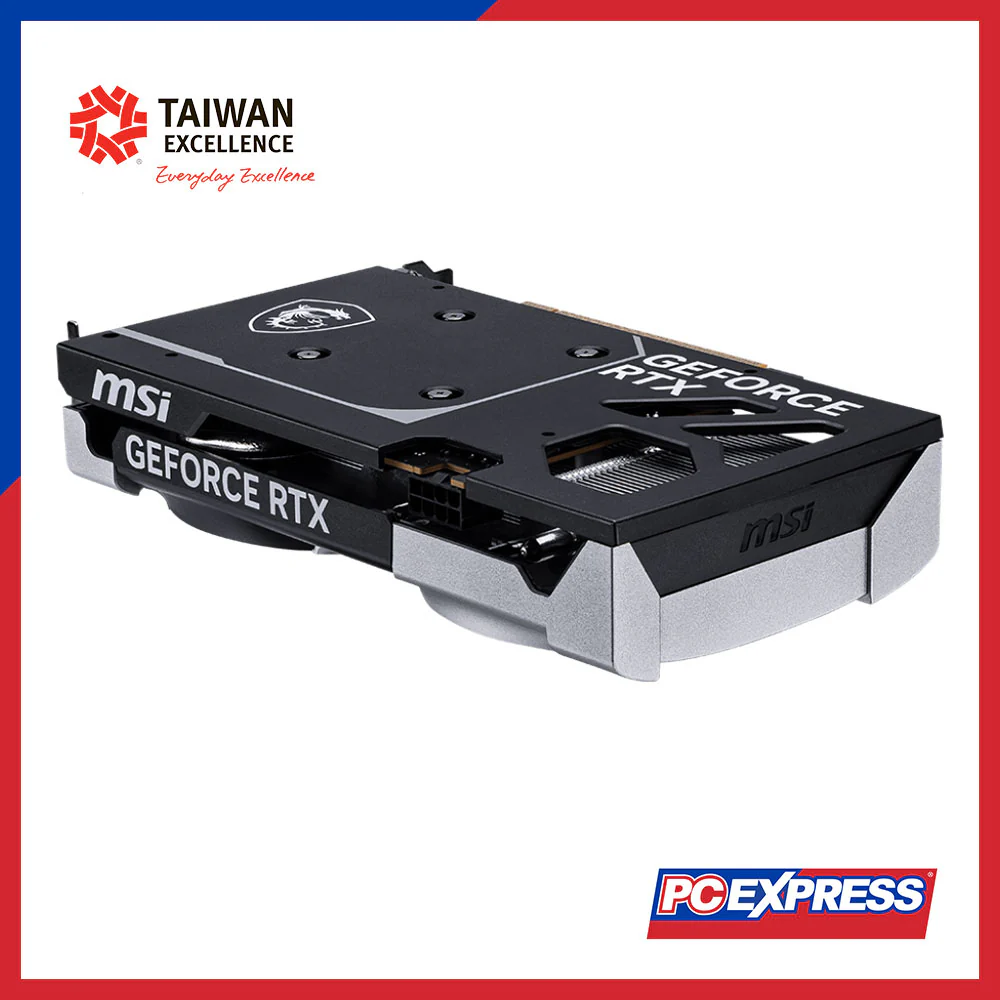

MSI GeForce RTX™ 5060 VENTUS 2X OC 8GB GDDR7 128-bit Graphics Card

Marketing Name

GeForce RTX™ 5060 8G VENTUS 2X OC

Model Name

G5060-8V2C

Graphics Processing Unit

NVIDIA® GeForce RTX™ 5060

Interface

PCI Express® Gen 5 ×16 (electrically x8)

Core Clocks

Extreme Performance: 2535 MHz (MSI Center)
Boost: 2527 MHz

CUDA® CORES

3840

Memory Speed

28 Gbps

Memory

8 GB GDDR7

Memory Bus

128-bit

Output

3 × DisplayPort 2.1b
1 × HDMI 2.1b (up to 4K 480 Hz or 8K 120 Hz w/ DSC, VRR, HDR)

HDCP Support

Yes

Power Consumption

145 W

Power Connectors

1 × 8-pin

Recommended PSU

550 W

Card Dimension (L × W × H)

197 × 120 × 41 mm

Weight (Card / Package)

511 g / 829 g

DirectX Version Support

DirectX 12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® Technology

Yes

Digital Maximum Resolution

7680 × 4320
