MSI GeForce RTX™ 5060 GAMING TRIO OC 8GB GDDR7 128-bit Graphics Card

Marketing Name

GeForce RTX™ 5060 8G GAMING TRIO OC

Model Name

G5060-8GTC

Graphics Processing Unit

NVIDIA® GeForce RTX™ 5060

Interface

PCI Express® Gen 5 x16 (uses x8)

Core Clocks

• Extreme Performance: 2640 MHz (MSI Center)
• Boost: 2625 MHz

CUDA® CORES

3840 Units

Memory Speed

28 Gbps

Memory

8 GB GDDR7

Memory Bus

128-bit

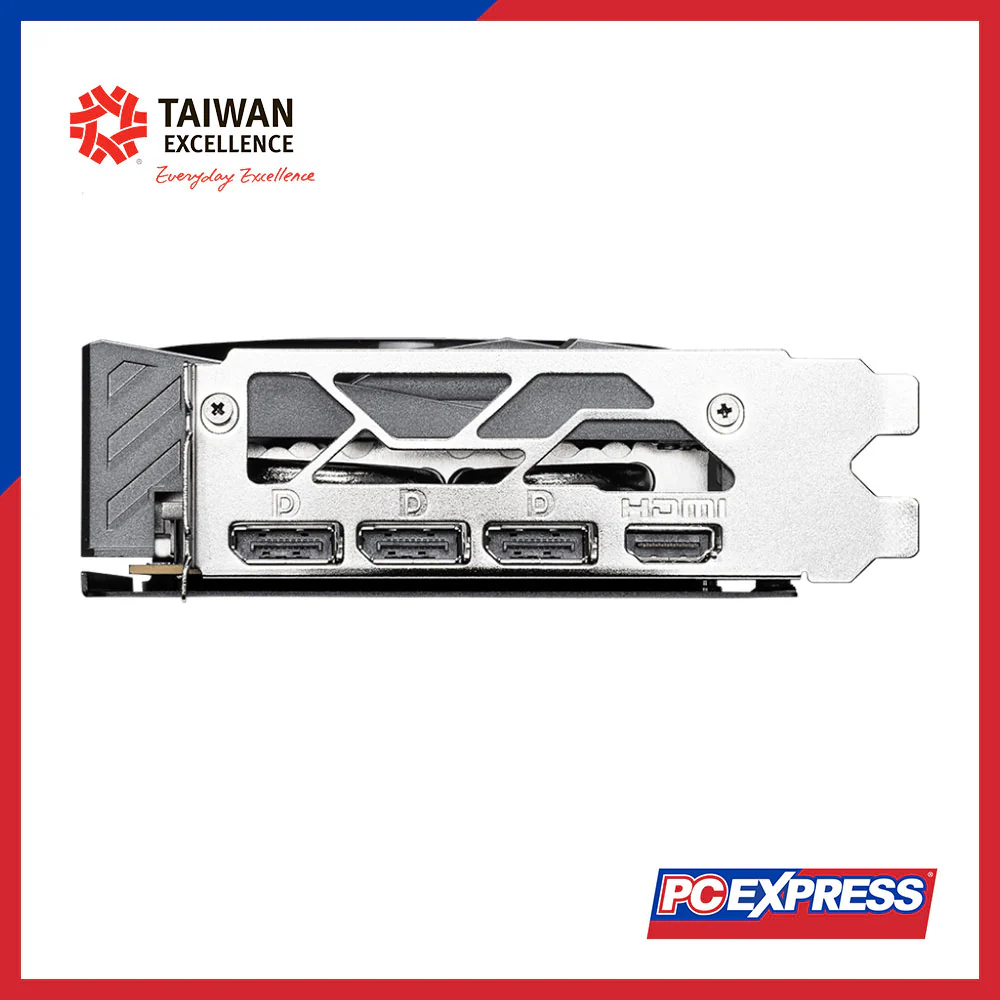

Output

• DisplayPort × 3 (v2.1b)
• HDMI™ × 1 (HDMI™ 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Yes

Power Consumption (Board TDP)

155 W

Power Connectors

8-pin × 1

Recommended PSU

550 W

Card Dimensions (L × W × H)

300 × 125 × 44 mm

Weight (Card / Package)

797 g / 1206 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® Technology

Yes

Digital Maximum Resolution

7680 × 4320
