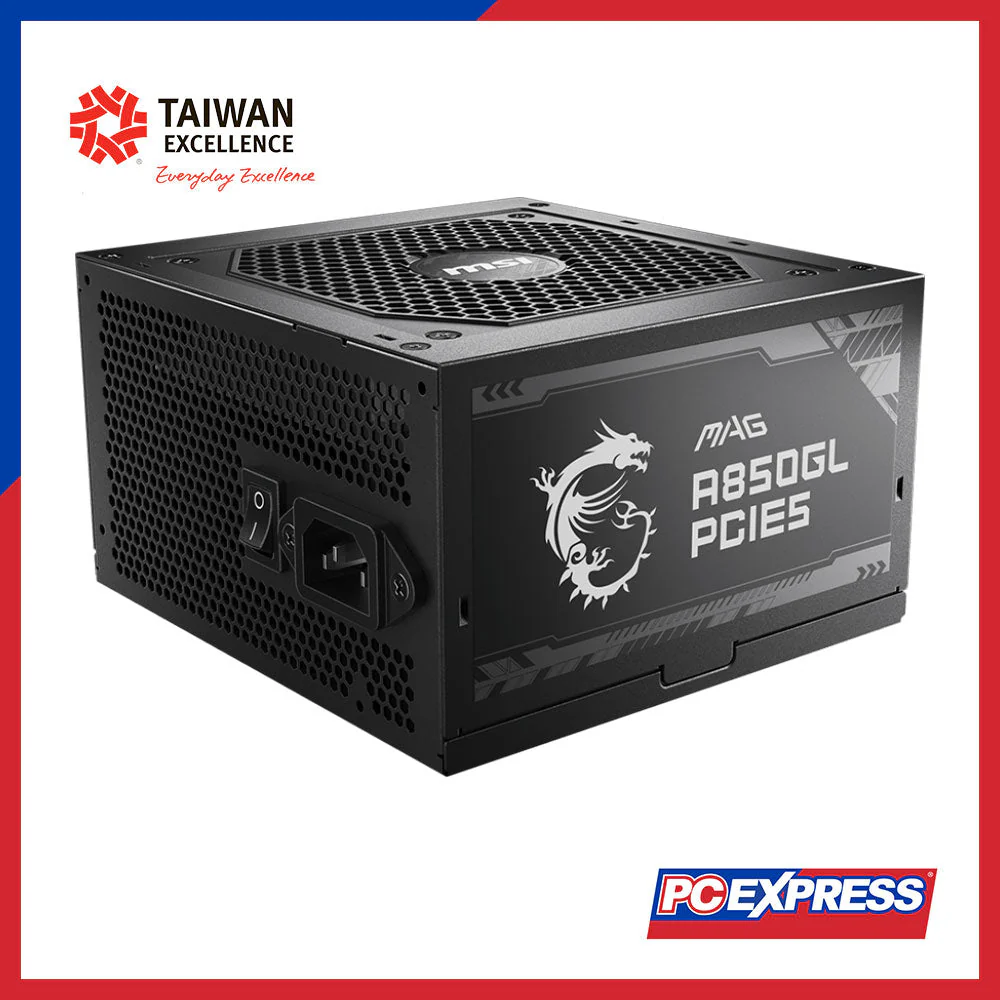

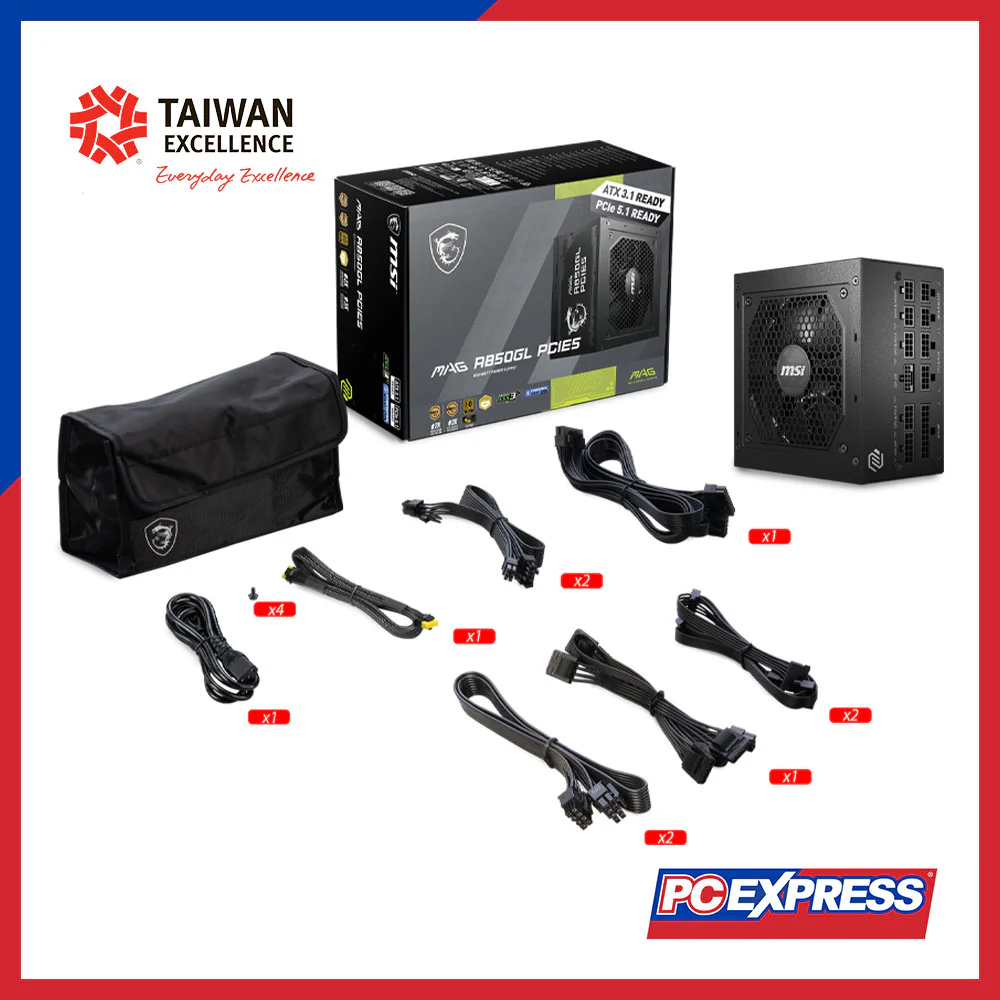

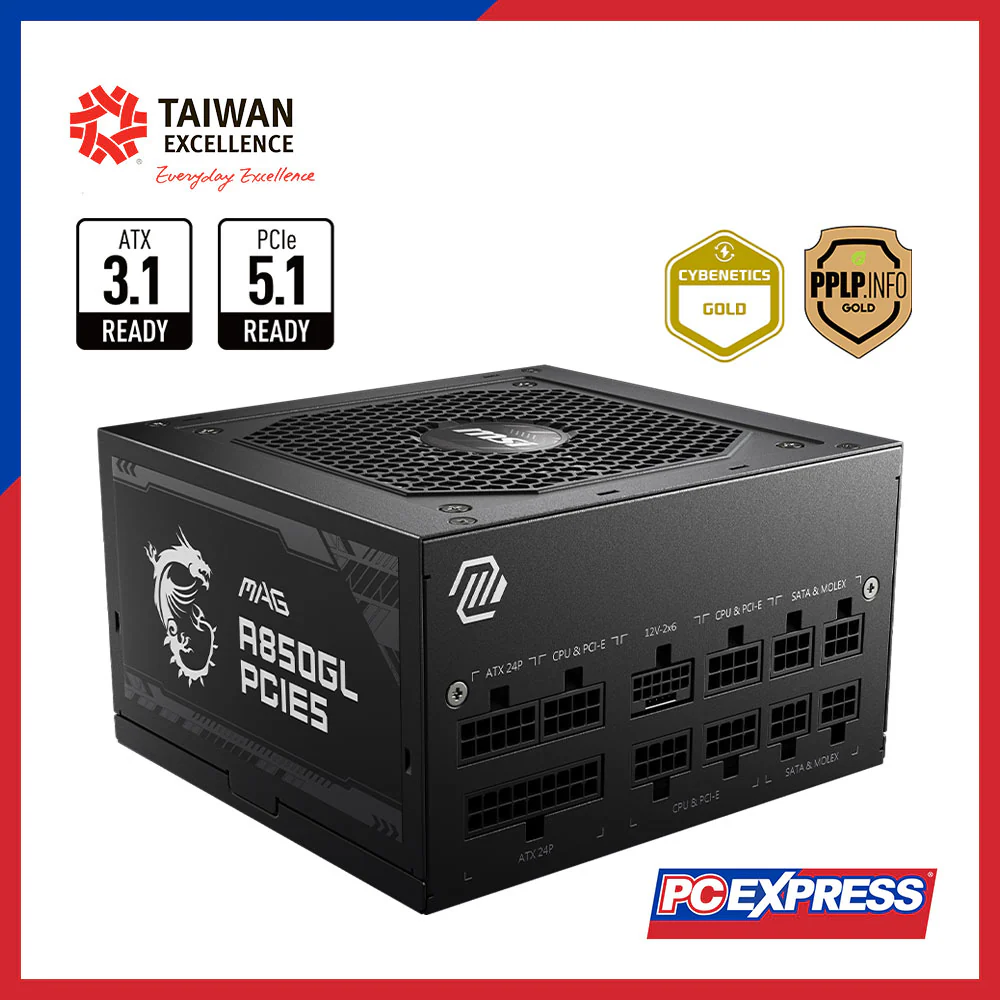

MSI 850W MAG A850GL ATX 3.1 80+ Gold Fully Modular Power Supply
SPECIFICATION
|
Efficiency Rating |
80 PLUS Gold (up to 90%) |
|
Modular |
Yes (Full Modular) |
|

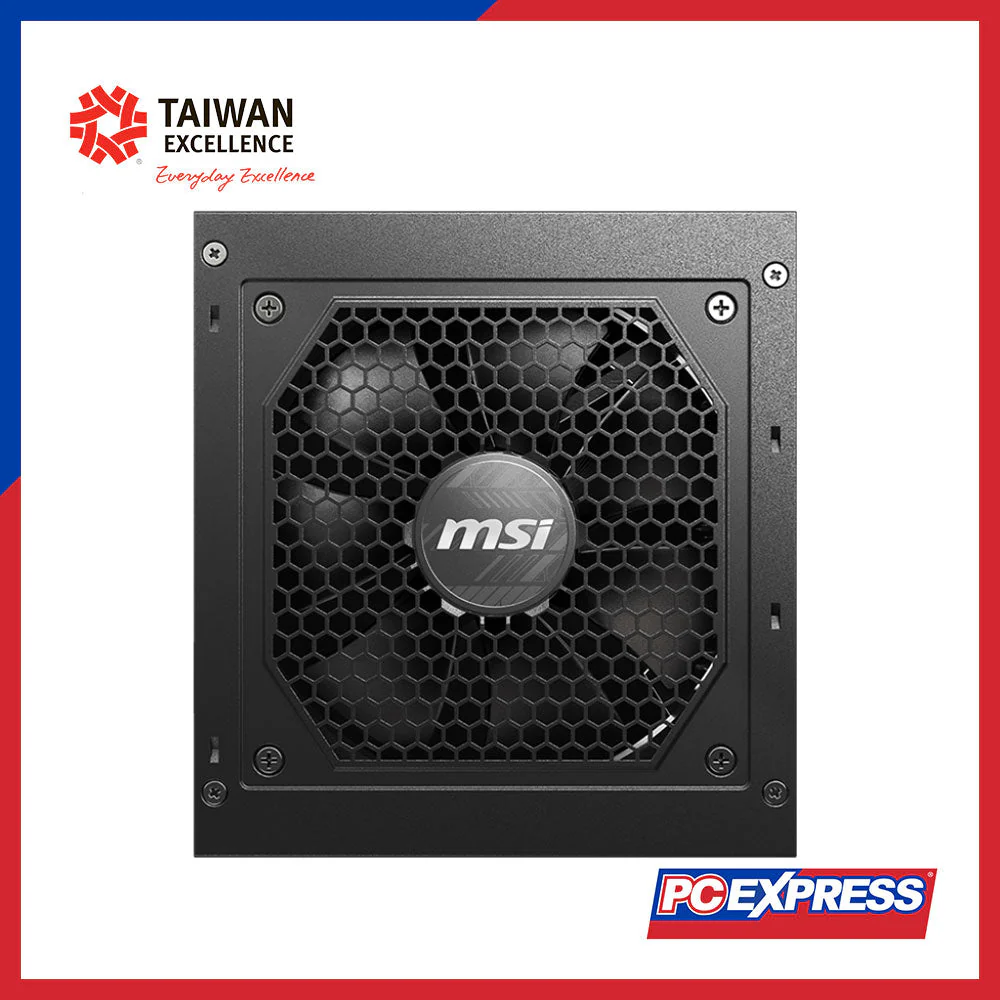

Fan Size |
120 mm |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Dimensions (DxWxH) |
140 x 150 x 86 mm |
|
PFC Type |
Active PFC |
|
Input Voltage Range |
100~240 VAC |
|
Power Watt |
850W |
|
Power Excursion |
1700W (*up to 200% of the PSU's rated power for 100μs) |
|
Input Frequency Range |
47-63Hz |
|
Protection |
OCP, OVP, OPP, OTP, SCP, UVP |
|

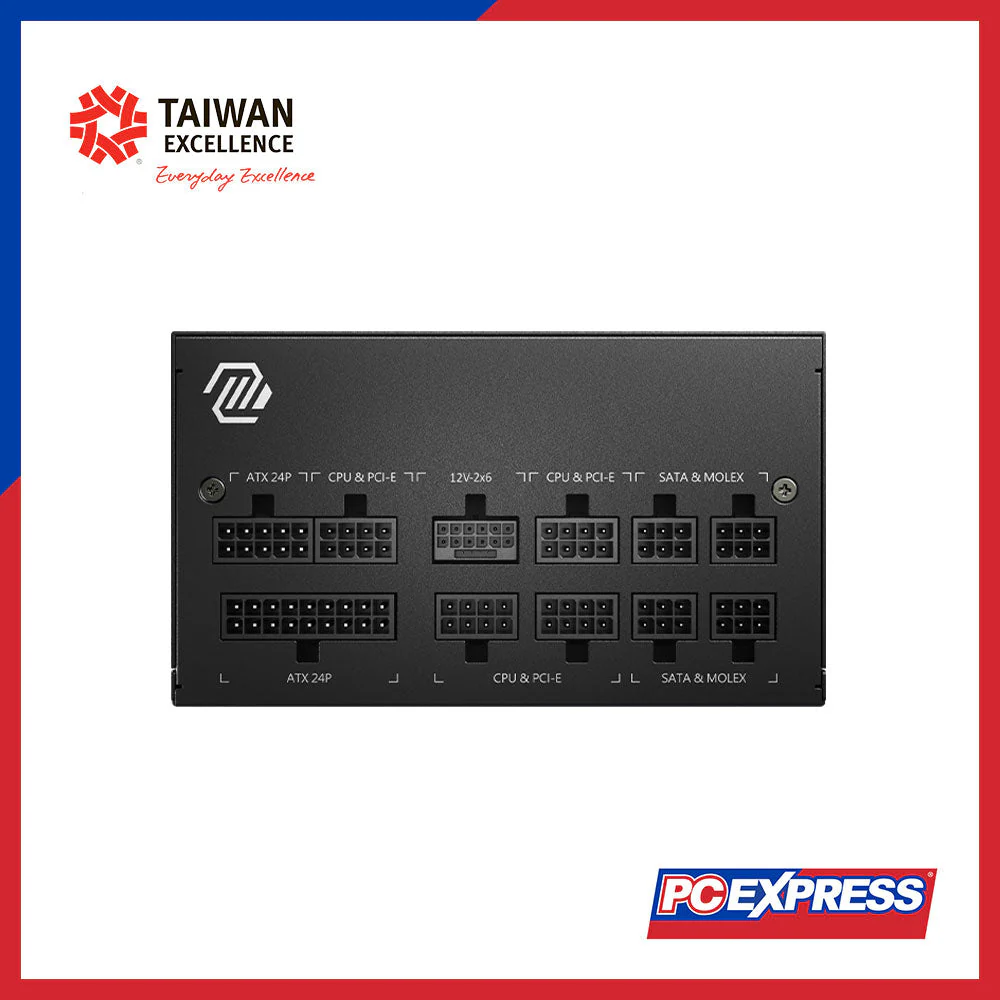

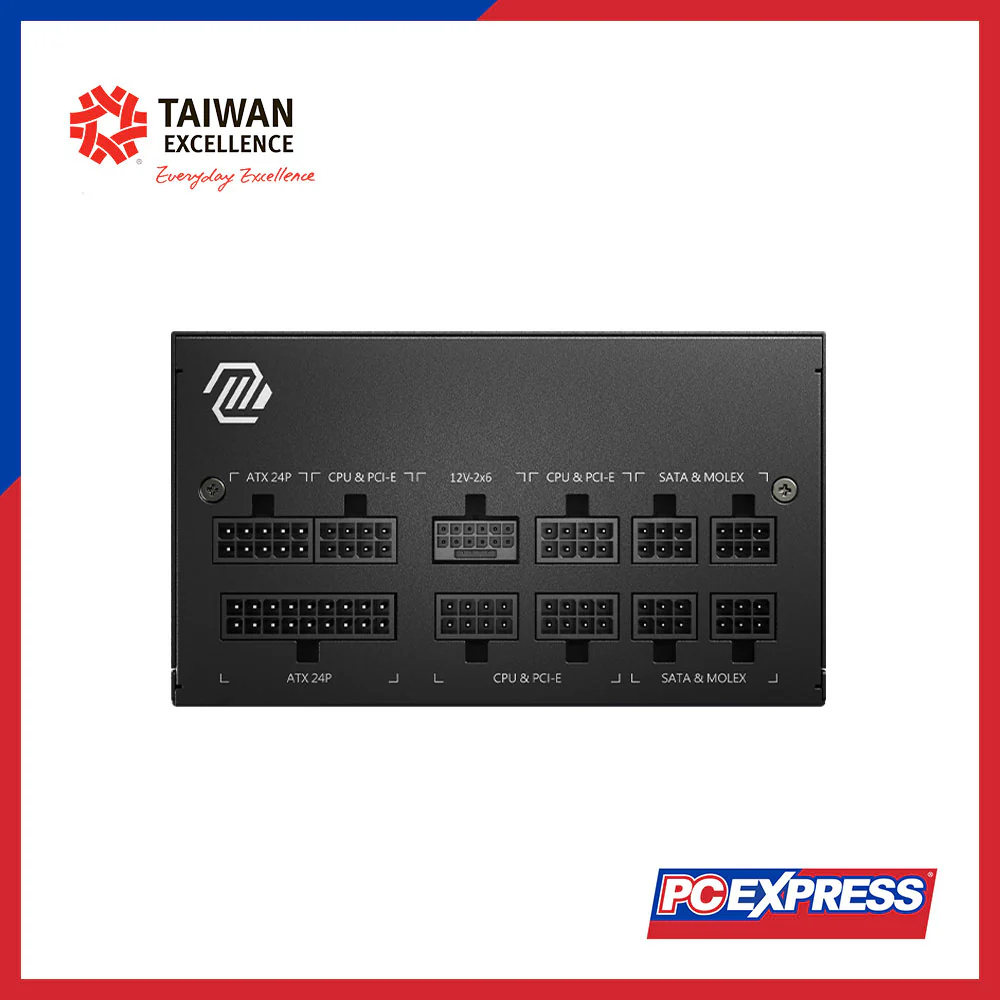

Connectors |
|
|
- ATX (24 pin) |
1 |
|
- EPS (4+4 pin) |
2 |
|
- PCI-E 5.0 (16 pin) |
1 (600W) |
|
- PCI-E (6+2 pin) |
4 |
|
- SATA (15 pin) |
8 |
|
- PERIPHERAL (4 pin) |
4 |
|
- FDD (4 pin) |
1 |
Original: $109.48
-70%$109.48
$32.84Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFICATION
|
Efficiency Rating |
80 PLUS Gold (up to 90%) |
|
Modular |
Yes (Full Modular) |
|
Fan Size |
120 mm |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Dimensions (DxWxH) |
140 x 150 x 86 mm |
|
PFC Type |
Active PFC |
|
Input Voltage Range |
100~240 VAC |
|
Power Watt |
850W |
|
Power Excursion |
1700W (*up to 200% of the PSU's rated power for 100μs) |
|
Input Frequency Range |
47-63Hz |
|
Protection |
OCP, OVP, OPP, OTP, SCP, UVP |
|
Connectors |
|
|
- ATX (24 pin) |
1 |
|
- EPS (4+4 pin) |
2 |
|
- PCI-E 5.0 (16 pin) |
1 (600W) |
|
- PCI-E (6+2 pin) |
4 |
|
- SATA (15 pin) |
8 |
|
- PERIPHERAL (4 pin) |
4 |
|
- FDD (4 pin) |
1 |
