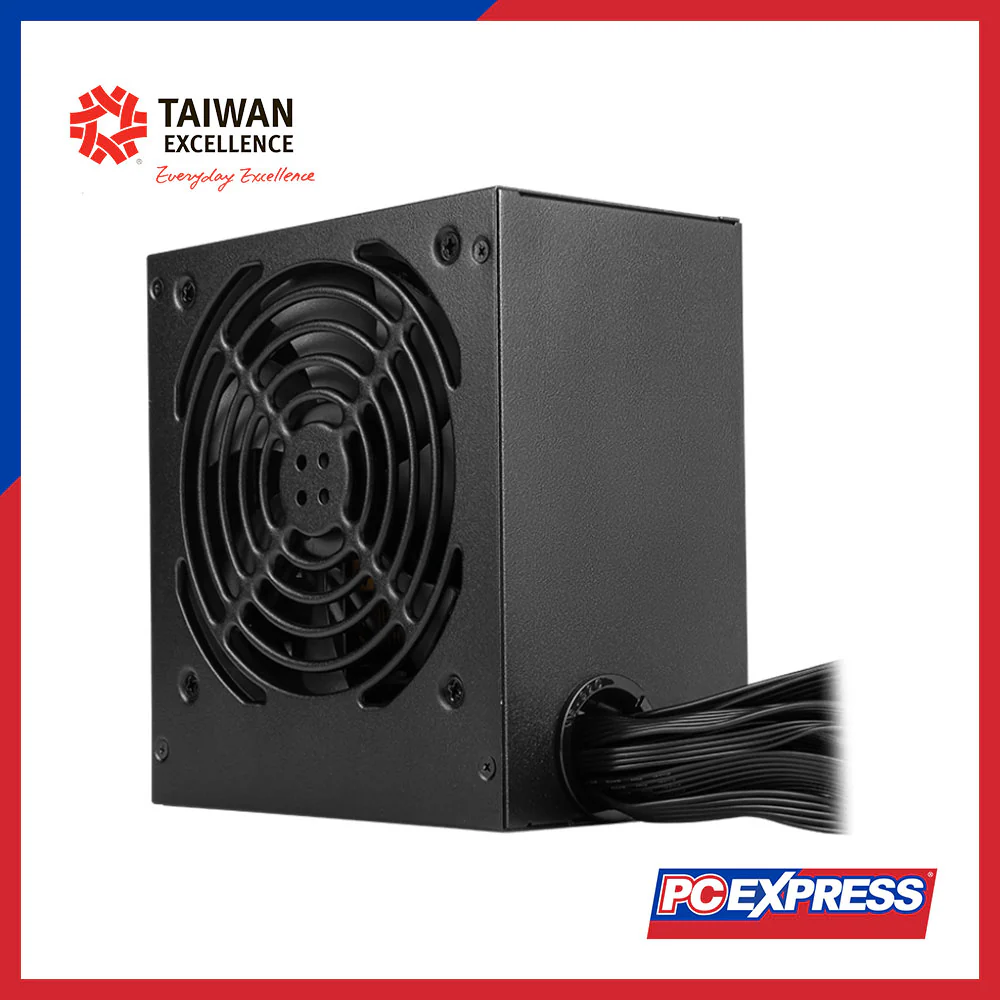

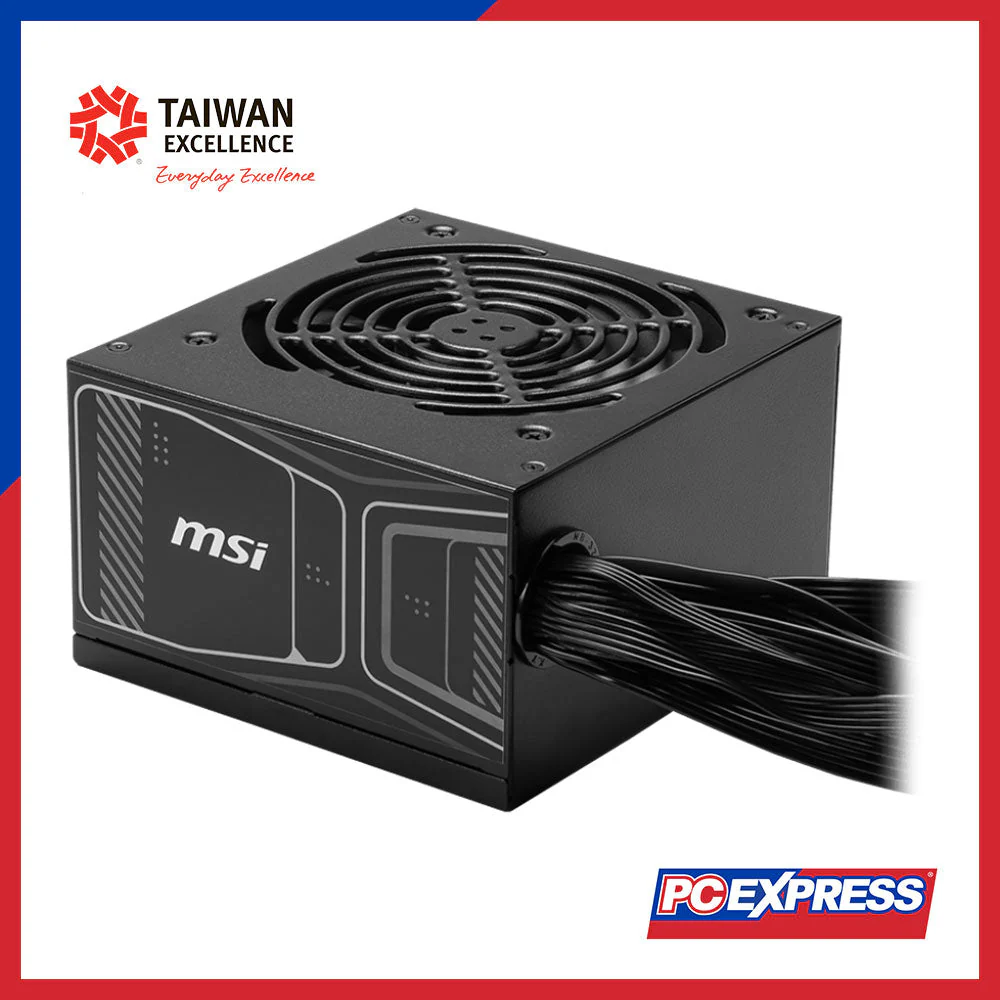

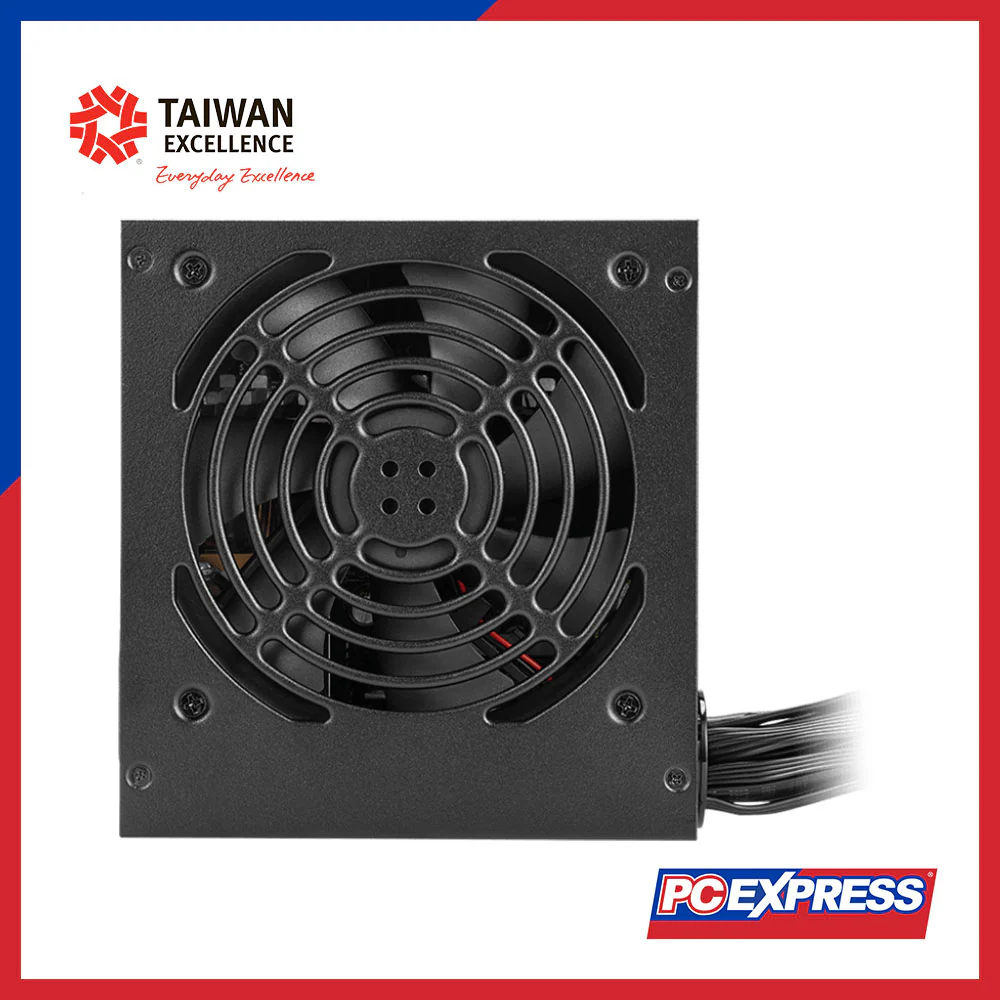

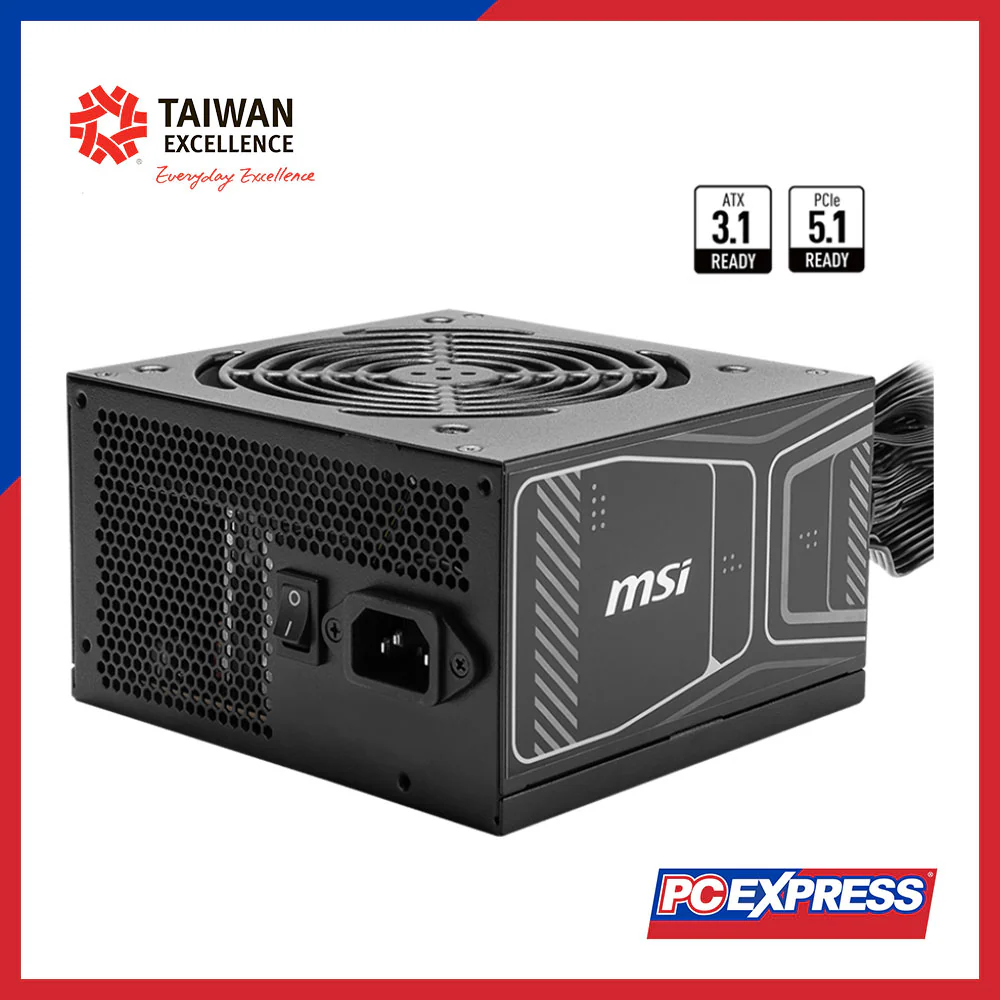

MSI 750W MAG A750GN ATX 3.1 80+ Gold Non-Modular Power Supply
SPECIFICATION
|
Efficiency Rating |
80 PLUS Gold (up to 90%) |
|
Modular |
No (non modular) |
|
Fan Size |
120 mm |
|
Fan Bearing |
Sleeve Bearing |
|
Dimensions (DxWxH) |
140 x 150 x 86 mm |
|
PFC Type |
Active PFC |
|
Input Voltage Range |
100~240 VAC |
|
Power Watt |
750W |
|
Power Excursion |
1500W (*up to 200% of the PSU's rated power for 100Ī¼s) |
|
Input Frequency Range |
47-63Hz |
|
Protection |
OCP / OVP / OPP / OTP / SCP |
|
ATX (24 pin) |
1 |
|
EPS (4+4 pin) |
2 |
|
PCI-E 5.1 (16 pin) |
1 |
|
PCI-E (6+2 pin) |
2 |
|
SATA (15 pin) |
4 |
|
Peripheral (4 pin) |
2 |
Ā
