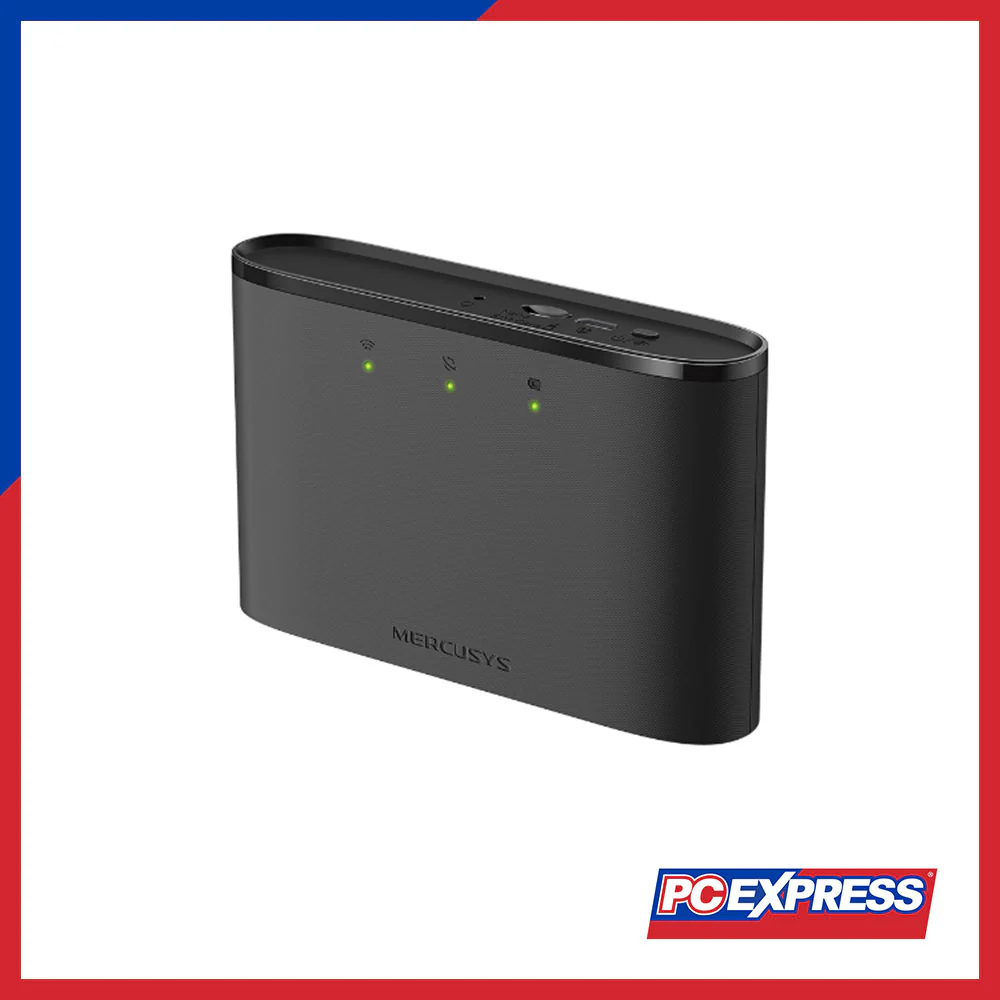

MERCUSYS MT110 150mbps 4G LTE Mobile Wi-Fi

Wireless Standards

IEEE 802.11a/b/g/n 2.4 GHz

Frequency

2.4 GHz

Reception Sensitivity

-87.5dBm (11b 11Mbps), -74dBm (11g 54Mbps), -71dBm (11n HT20 MCS7), -69dBm (11n HT40 MCS7)

Transmission Power

<20dBm

Wireless Security

WPA-PSK/WPA2-PSK, Wireless MAC Filtering, Enable/Disable SSID Broadcast

Hardware Dimensions

111 x 70 x 23.8 mm

Interfaces

1 x micro USB port for power supply, 1 x Nano SIM card slot

Button

Power Button, Reset Button

External Power Supply

5V/1A

Antenna Type

Internal Antennas

Data Rates

4G LTE Speed: DL 150 Mbps, UL 50 Mbps; WiFi Speed: 150 Mbps on 2.4 GHz

LED

Wi-Fi LED, Internet LED, Battery LED

Network Type

Supports 4G/3G network

Frequencies Supported

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 MHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software

DHCP Server, Client, DHCP Client List

Others

Package Contents: Mobile Wi-Fi MT110, Micro USB Cable, Quick Installation Guide

Environment

Operating Temperature: 0°C to 35°C (32°F to 95°F)

Storage Temperature: -10°C to 40°C (14°F to 104°F)

Operating Humidity: 0% to 75% non-condensing

Storage Humidity: 0% to 65% non-condensing

System Requirements

Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
