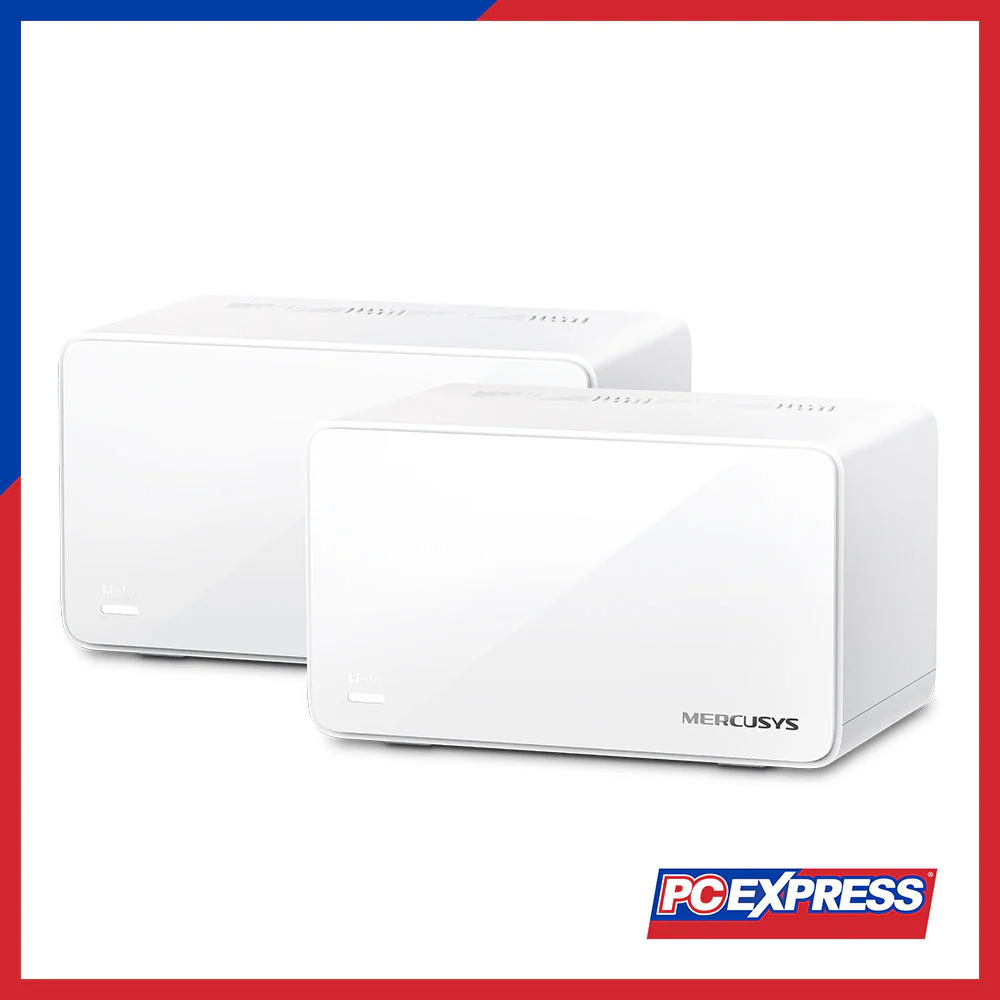

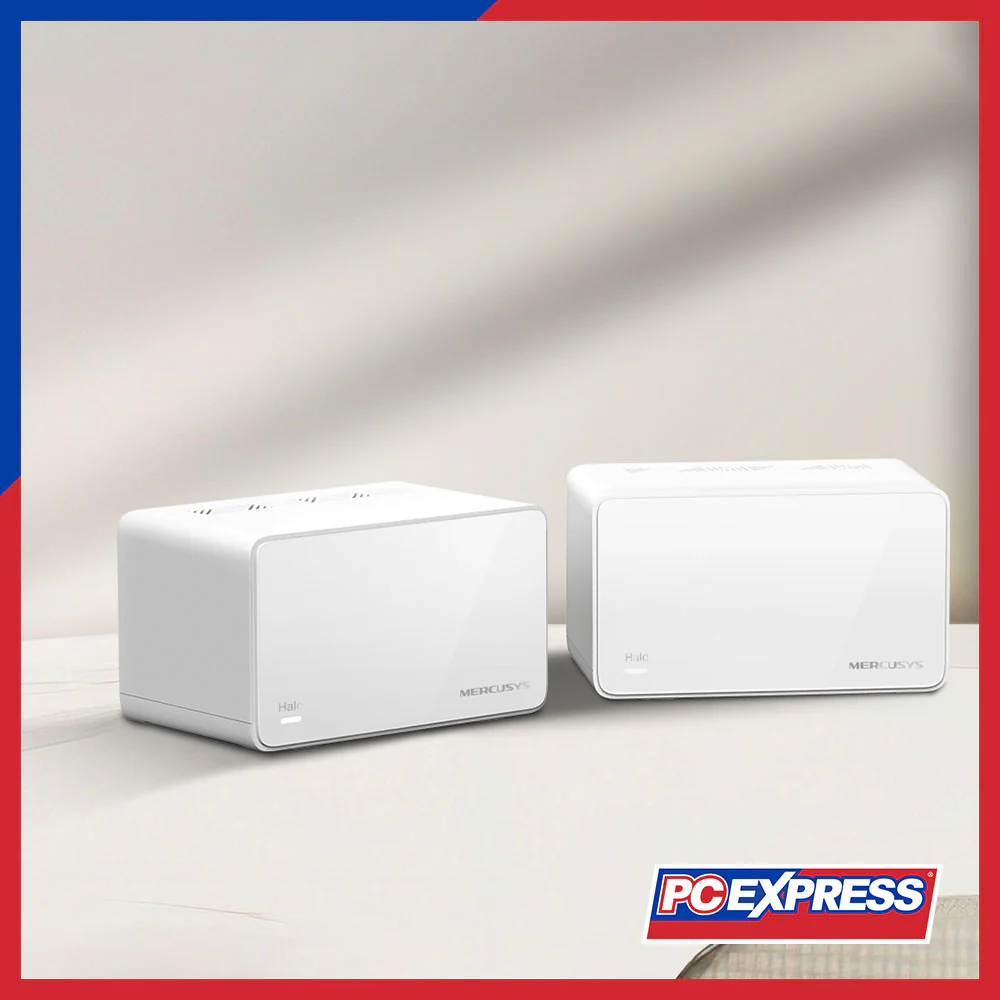

MERCUSYS HALO H90X (2-Pack) AX6000 Whole Home Mesh W-iFi 6 System

Wireless

Wireless Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

4804 Mbps on 5 GHz, 1148 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS11:-66dBm
11ax HE40 MCS11:-62.5dBm

5GHz:
11a 6Mbps:-94.5dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72.5dBm
11ax HE80 MCS11:-59dBm
11ax HE160 MCS11:-55dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security

 WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,
5 GHz Guest Network

Hardware

Dimensions

5.9 × 3.7 × 3.4 in(150 × 94 × 86.7 mm))

Interfaces

1× 2.5 Gbps Port + 2× Gigabit Ports (WAN/LAN auto-sensing)

Button

Reset button

Others

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
