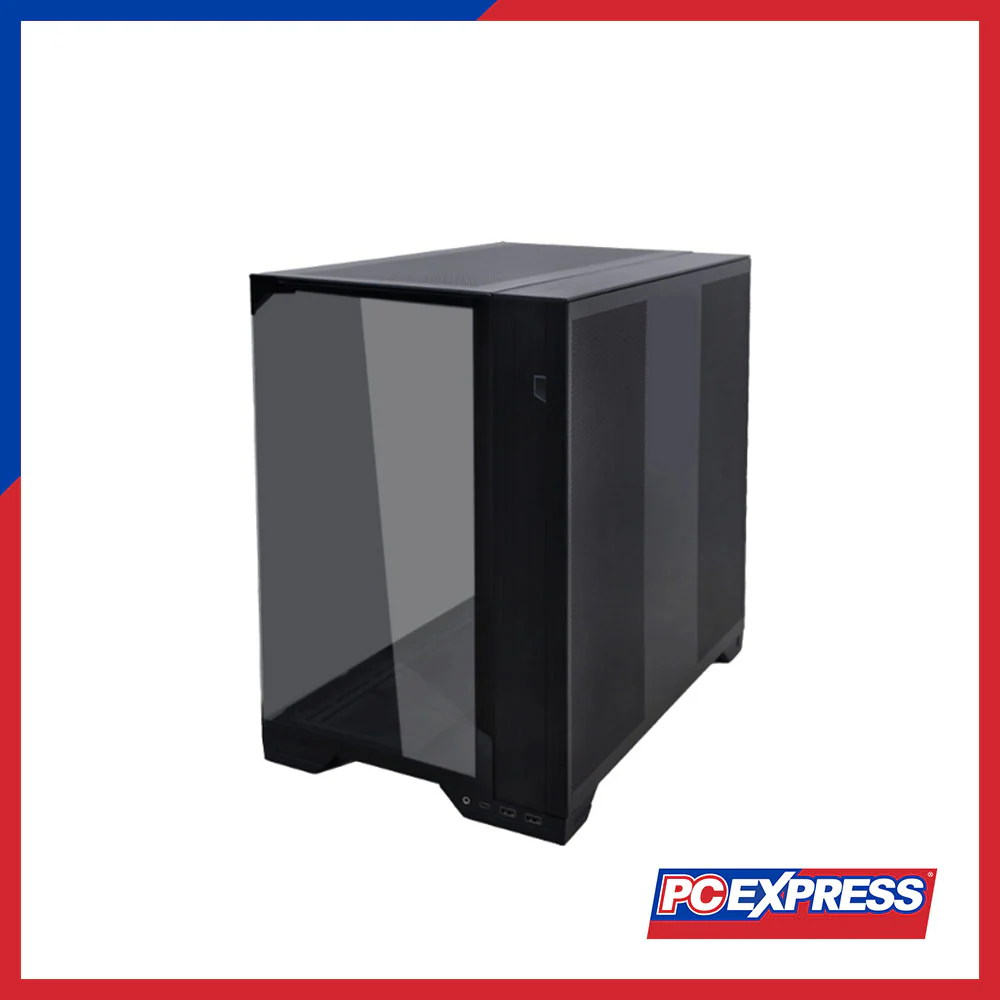

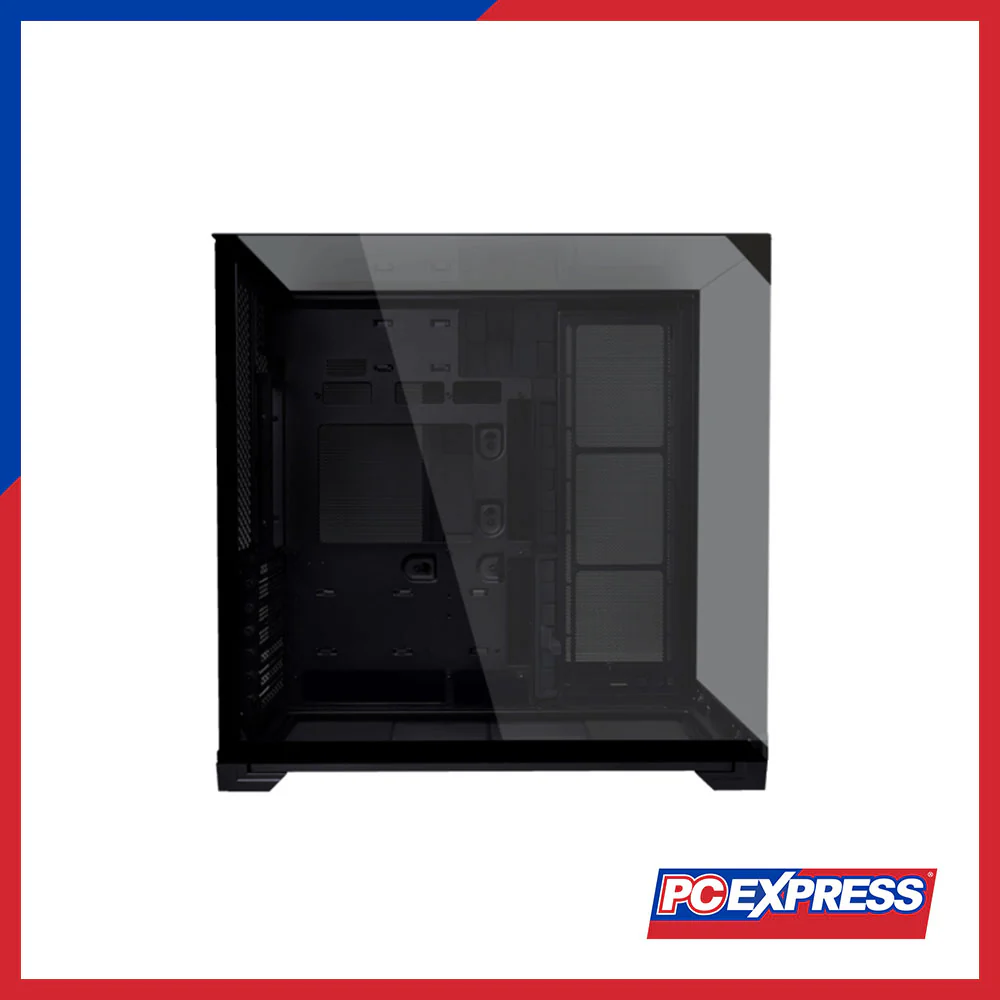

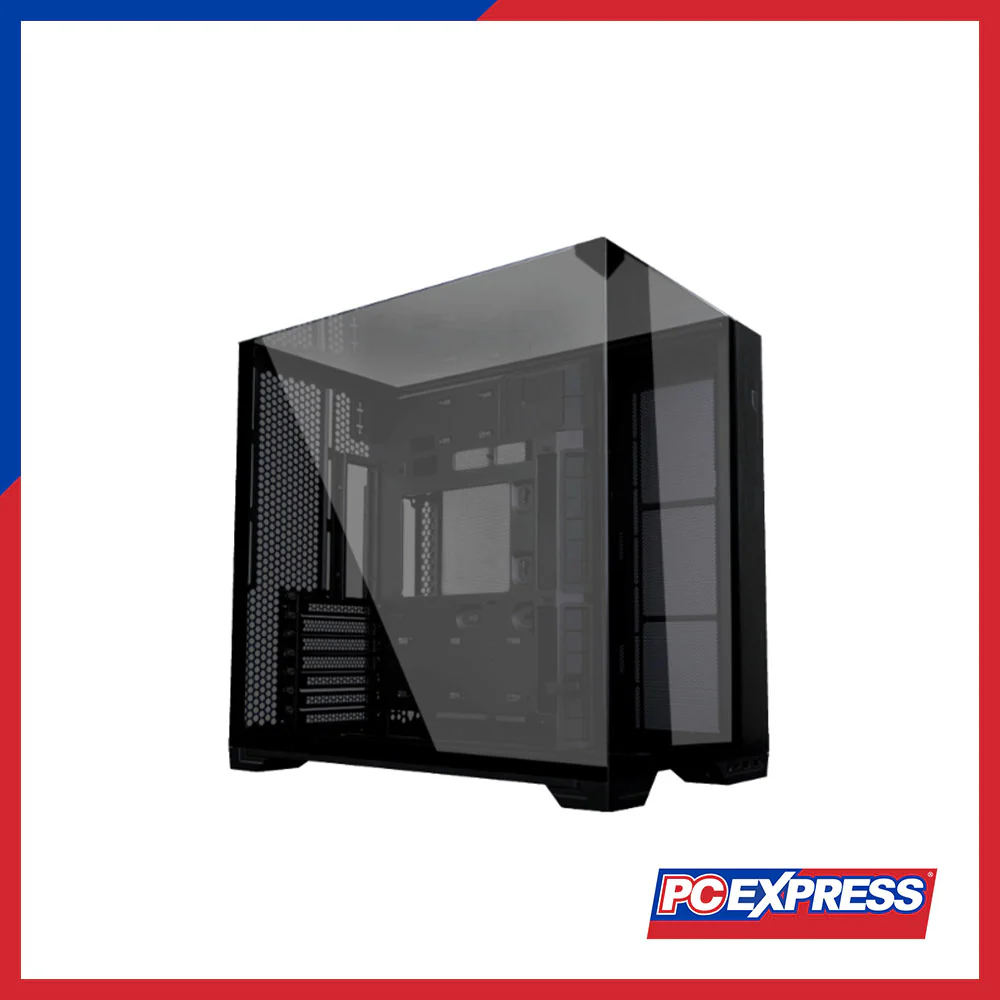

LIAN LI O11 Vison Compact Tempered Glass Tower Chassis (Black)

Model

O11 VISION COMPACT

Model No.

O11VPX (Black)

Color

Black

Case Type

Tower Chassis

Dimensions

447.5mm (D) × 287.5mm (W) × 446.4mm (H)

Material

Steel, 4.0mm Tempered Glass, 3.0mm Tempered Glass, Aluminium

Motherboard Support

Back-Connect ATX / E-ATX (≤280mm) / ATX / Micro-ATX / Mini-ITX

Expansion Slots

6+1

Storage

Behind MB Tray: 2 × 2.5″ SSD
Hard Drive Cage: 2 × 3.5″ HDD or 2 × 2.5″ SSD

GPU Length Clearance

408mm (Max.)

CPU Cooler Height Clearance

164mm (Max.)

PSU Support

ATX (≤220mm)

Fan Support

Top: 3 × 120mm or 2 × 140mm
Side: 3 × 120mm
Bottom: 3 × 120mm
Rear: 2 × 120mm

Radiator Support

Top: 1 × 240mm / 280mm / 360mm
Side: 1 × 240mm / 360mm
Bottom: 1 × 240mm / 360mm

I/O Ports

1 × Power Button
2 × USB 3.0
1 × USB 3.1 Type-C
1 × Audio

Dust Filter

Bottom × 1
