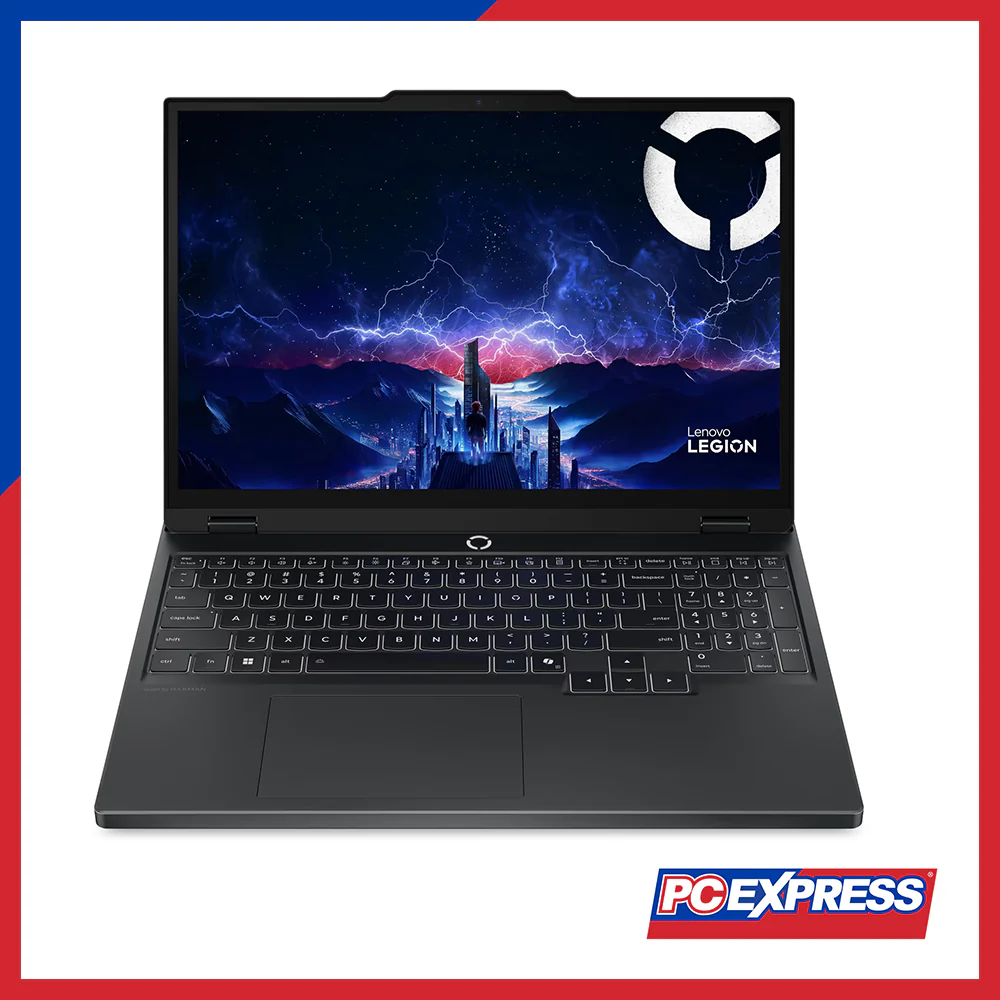

LENOVO Legion 5 15IAX10 (83F0006JPH) GeForce RTX™ 5070 Intel® Core™ Ultra 7 Laptop (Eclipse Black)
SPECIFICATION
|
Operating System |
Windows 11 Home |
|
Processor |
Intel® Core™ Ultra 7-255HX |
|
Graphics |
GeForce RTX™ 5070 |
|
Display |
15.1" WQXGA 165Hz |
|
Memory |
32GB 5600MHz DDR5 |
|
Storage |
512GB M.2 2242 PCIe NVMe SSD |
|
AI PC Category |
AI-Powered Gaming PC |
|
NPU |
Integrated Intel® AI Boost, up to 13 TOPS |
|
Chipset |
Intel® HM870 Chipset |
|
Memory Slots |
Two DDR5 SODIMM slots, dual-channel capable |
|
Optical Drive |
None |
|
Card Reader |
None |
|
Audio Chip |
High Definition (HD) Audio, Realtek® ALC3287 codec |
|
Speakers |
Stereo speakers, 2W Ă—2, audio by HARMAN, optimized with Nahimic Audio |
|
Microphone |
Dual-array microphones |
|
Camera |
5.0MP camera with E-shutter |
|
Battery |
80Wh |
|
Power Adapter |
245W Slim Tip (3-pin) |
|
Special Features |
Dedicated AI Chip: LA3 |
|
Touchscreen |
None |
|
Screen-to-Body Ratio |
OLED models: 90% AAR (Active Area Ratio) |
|
Color Calibration |
Factory color calibrated |
|
Pen Support |
Pen not supported |
|
Keyboard |
24-Zone RGB backlit keyboard, English |
|
Touchpad |
Buttonless Mylar® multi-touch touchpad, Precision TouchPad (PTP), 75 × 120 mm |
|
Dimensions (W Ă— D Ă— H) |
344.9 × 255.35 × 19.95–21.54 mm (13.58 × 10.05 × 0.79–0.85 in) |
|
Weight |
Starting at 1.9 kg (4.19 lbs) |
|
Case Color |
Eclipse Black |
|
Case Material |
Aluminum (Top), PC-ABS (Bottom) |
|
Surface Treatment |
Aluminum stamping, anodized with sandblasting |
|
Bundled Software |
Office Trial + Lenovo® AI Now |
|
WLAN + Bluetooth |
Wi-Fi® 7 (802.11be 2×2) + Bluetooth® 5.4 |
|
WWAN |
Not supported |
|
Ethernet |
100/1000M RJ-45 |
|
Standard Ports |
1× Slim Tip power; 2× USB-A 3.2 Gen 1; 1× USB-A 3.2 Gen 1 (Always On); 1× USB-C® 3.2 Gen 2 (PD 65–100W, DP 2.1); 1× USB-C® Thunderbolt™ 4 / USB4® (40Gbps, DP 2.1); 1× HDMI® 2.1 (up to 8K@60Hz); 1× 3.5mm combo jack; 1× RJ-45 |
|
Docking |
Docking supported via Thunderbolt™ or USB-C® (Legion 5 15IAX10 compatible) |
|
Security Chip |
Firmware TPM 2.0 enabled |
|
Fingerprint Reader |
None |
|
Other Security |
Camera E-shutter |
|
Bundled Accessories |
None |
|
Green Certifications |
ENERGY STAR® 9.0, EPEAT™ Gold Registered, ErP Lot 3, RoHS compliant |
|
Other Certifications |
TÜV Rheinland® Flicker Free, TÜV Rheinland® Low Blue Light (Hardware Solution) |
|
Model |
83F0006JPH |
|
Machine Type |
83F0 |
|
Region |
ASEAN |
|
Country / Region |
Philippines |
