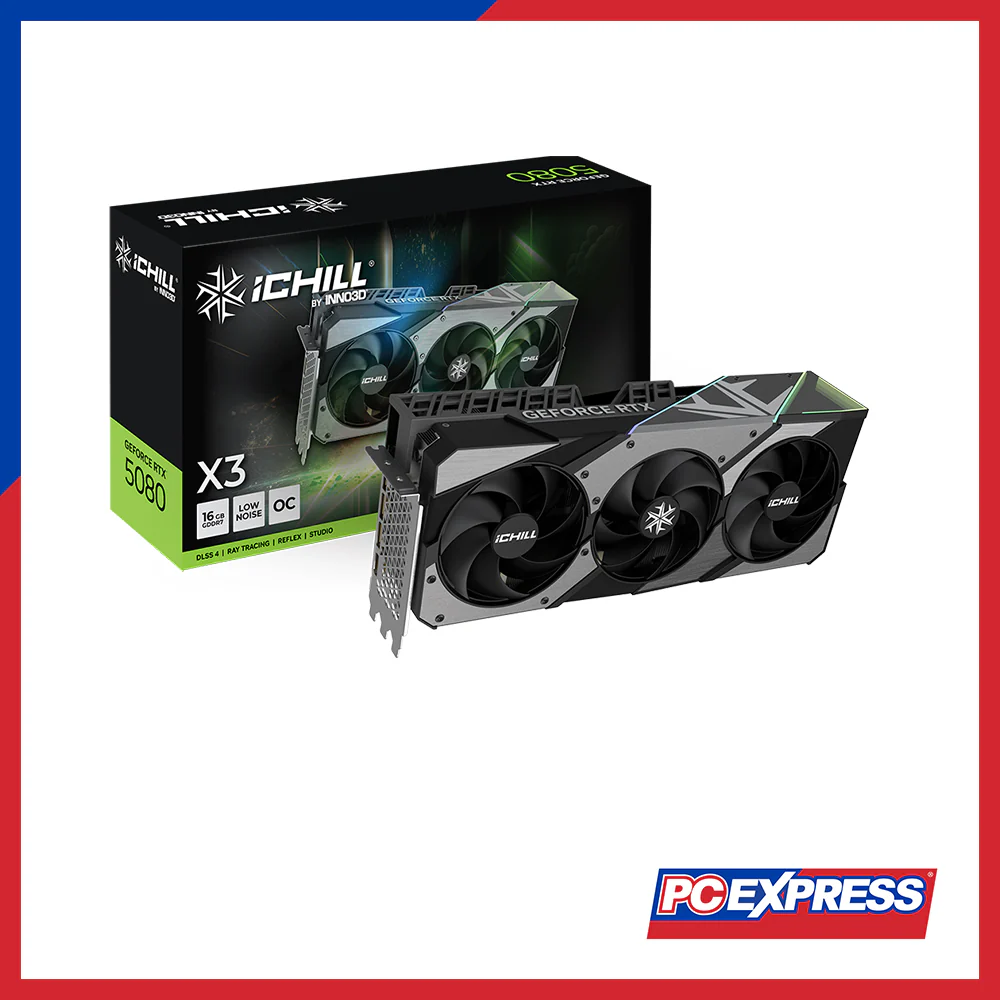

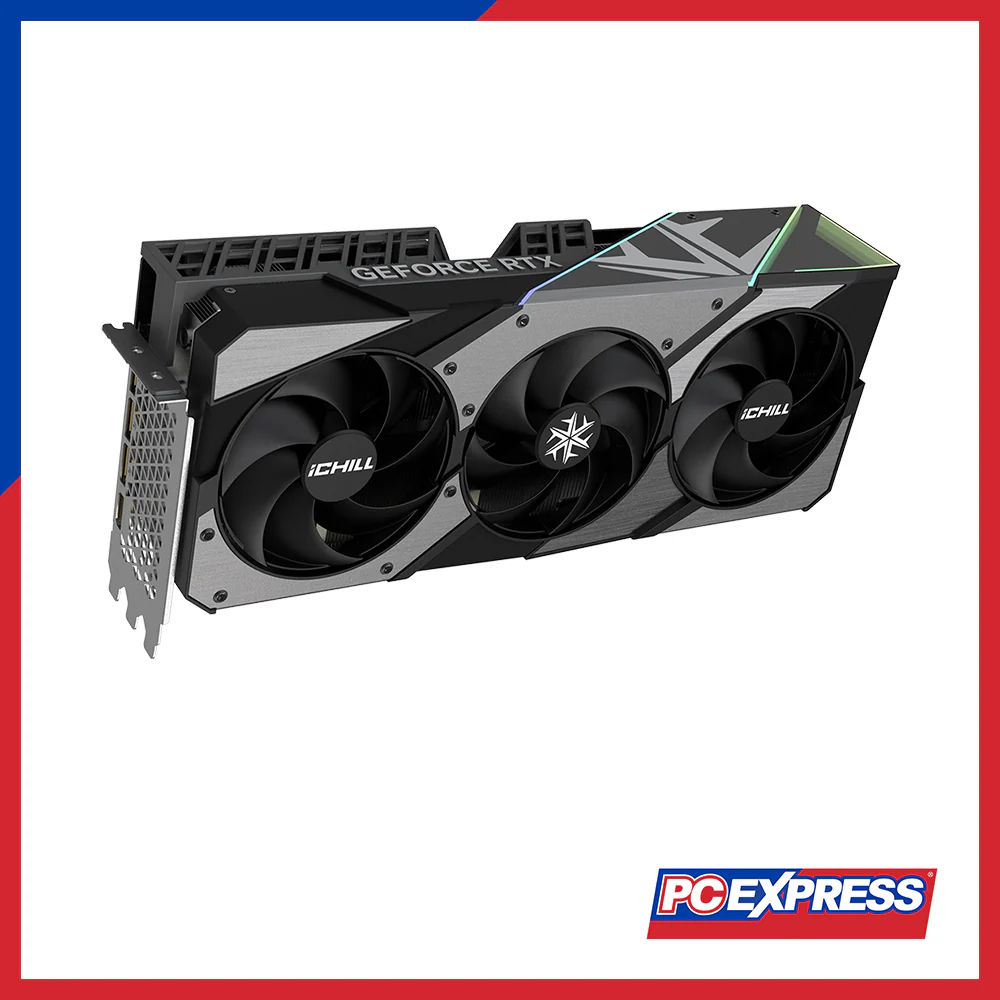

INNO3D GeForce RTX™ 5080 ICHILL X3 16GB GDDR7 256-bit Graphics Card
SPECIFICATION
|
GPU Engine Specs |
|
|
CUDA Cores |
10,752 |
|
Boost Clock (MHz) |
2715 MHz |
|
Base Clock (MHz) |
2295 MHz |
|
Thermal and Power Spec |
|
|
Minimum System Power |
850W |
|
Power Connectors |
3x PCIe 8-pin (adapter in box) or 1x PCIe Gen 5 (450W+) |
|
Memory Specs |
|
|
Memory Clock |
30 Gbps |
|
Memory Size |
16 GB |
|
Memory Type |
GDDR7 |
|
Memory Interface Width |
256-bit |
|
Memory Bandwidth |
960 GB/sec |
|
Feature Support |
|
|
Real-Time Ray Tracing |
Yes |
|
Ray Tracing Cores |
4th Gen, 171 TFLOPS |
|
Tensor Cores |
5th Gen, 1801 AI TOPS |
|
NVIDIA Architecture |
Blackwell |
|
Microsoft DirectX |
12 Ultimate |
|
NVIDIA DLSS |
4 |
|
NVIDIA Ansel |
Yes |
|
NVIDIA FreeStyle |
Yes |
|
PCIe Support |
PCI Express Gen 5 |
|
NVIDIA ShadowPlay |
Yes |
|
OS Certification |
Windows 11/10, Linux, FreeBSDx86 |
|
NVIDIA Highlights |
Yes |
|
G-SYNC Ready |
Yes |
|
Game Ready Drivers |
Yes |
|
Studio Drivers |
Yes |
|
GPU Boost |
Yes |
|
Vulkan API |
1.4 |
|
OpenGL |
4.6 |
|
NVIDIA Encoder |
2x Ninth Generation |
|
NVIDIA Decoder |
1x Sixth Generation |
|
Accessories |
|
|
Graphics Card Stand |
Yes (embedded with cooler) |
|
Dimensions |
|
|
Length |
334 mm |
|
Height |
148 mm |
|
Width |
73 mm |
|
Display Support |
|
|
Multi Monitor Support |
Up to 4 |
|
Max Digital Resolution |
4K at 480Hz or 8K at 165Hz (with DSC) |
|
HDCP |
2.3 |
|
Display Connectors |
3x DisplayPort 2.1b, 1x HDMI 2.1b |
