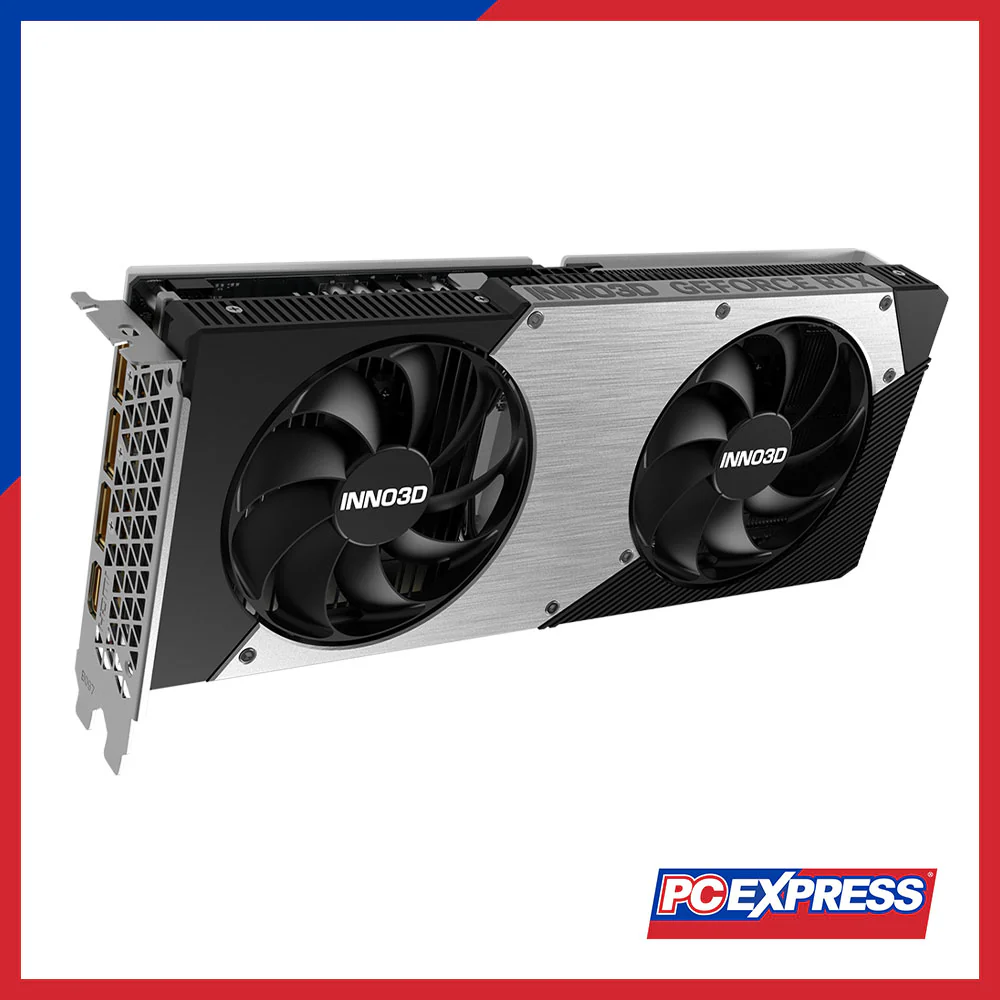

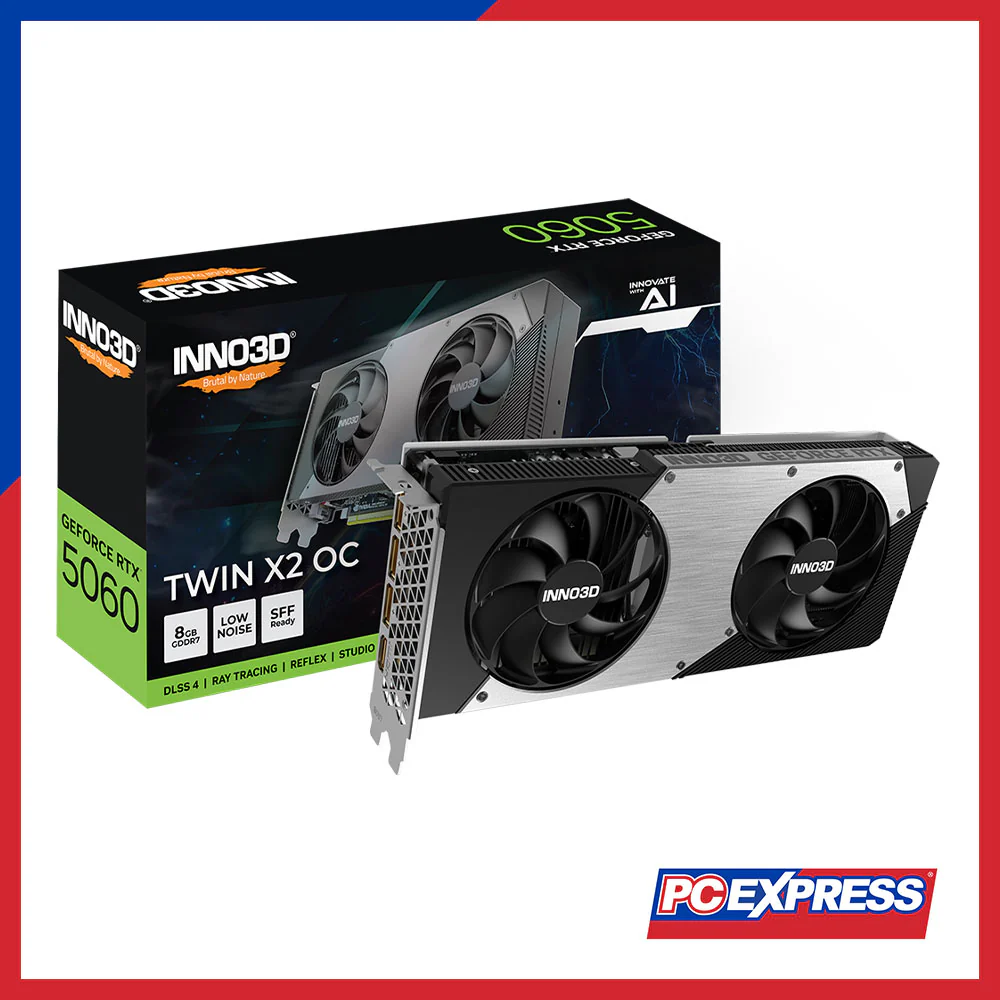

INNO3D GeForce RTX™ 5060 TWIN X2 OC 8GB GDDR7 128-bit Graphics Card

Model

N50602-08D7X-195070N

CUDA Cores

3840

Boost Clock (MHz)

2527 MHz

Base Clock (MHz)

2280 MHz

Minimum System Power Requirement (W)

550 W

Supplementary Power Connectors

1× PCIe 8-pin cable

Memory Clock

28 Gbps

Standard Memory Config

8 GB GDDR7

Memory Interface Width

128-bit

Memory Bandwidth (GB/sec)

448

Real-Time Ray Tracing

Yes

Ray Tracing Cores

4th Gen (58 TFLOPS)

Tensor Cores

5th Gen (614 AI TOPS)

NVIDIA Architecture

Blackwell

Microsoft DirectX

12 Ultimate

Vulkan API

1.4

OpenGL

4.6

NVIDIA DLSS

4

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

NVIDIA ShadowPlay

Yes

NVIDIA GPU Boost™

Yes

Bus Support

PCI Express Gen 5

OS Certification

Windows 11/10, Linux, FreeBSD x86

Game Ready Drivers

Yes

NVIDIA Studio Drivers

Yes

NVIDIA Highlights

Yes

NVIDIA Encoder

1× 9th Generation

NVIDIA Decoder

1× 6th Generation

Card Length

250 mm

Card Height

116 mm

Card Width

41 mm

Multi-Monitor Support

Up to 4

Maximum Digital Resolution

4K @ 480 Hz or 8K @ 165 Hz (with DSC)

HDCP Support

2.3

Standard Display Connectors

3× DisplayPort 2.1b, 1× HDMI 2.1b
